Открытый узел

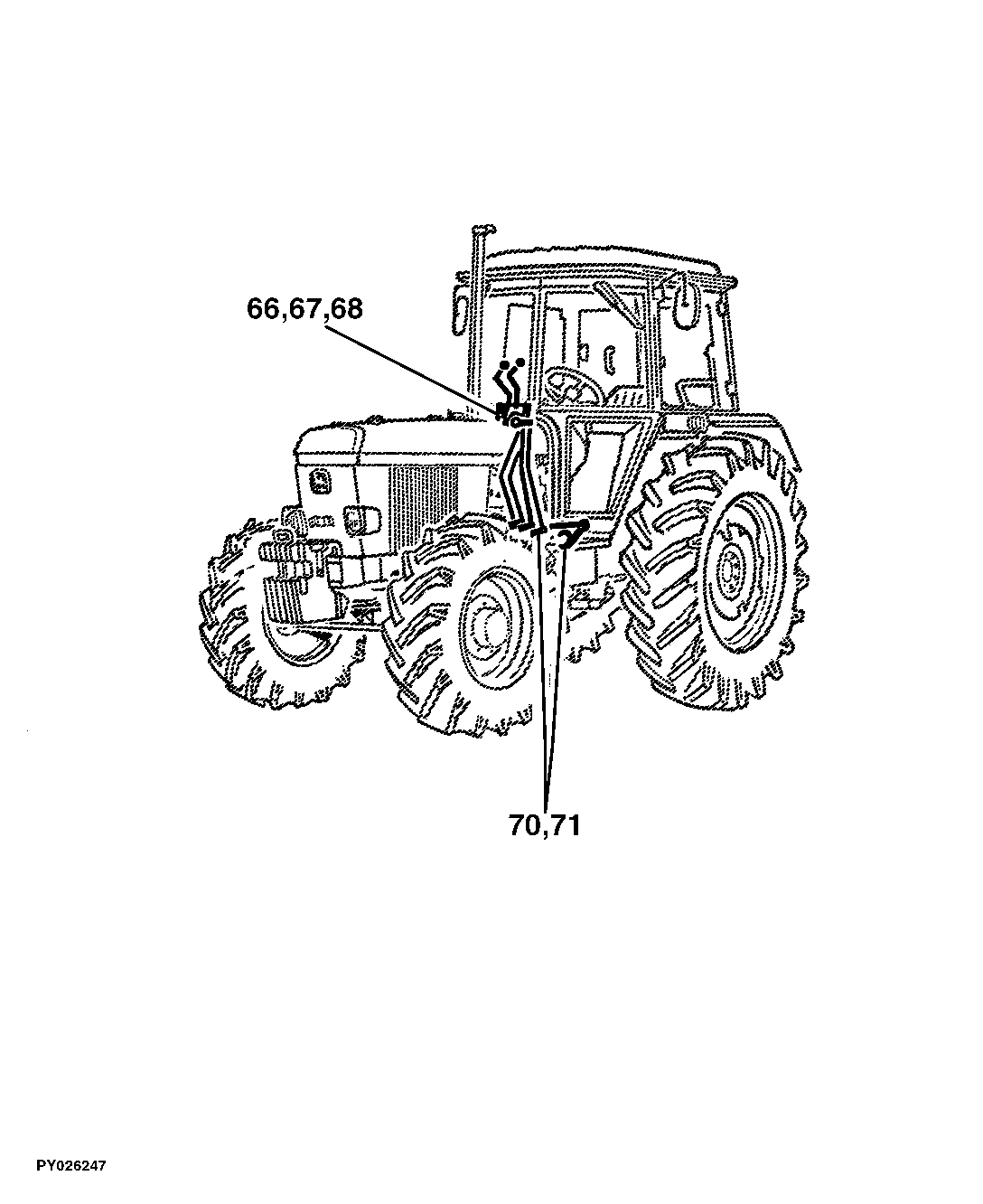

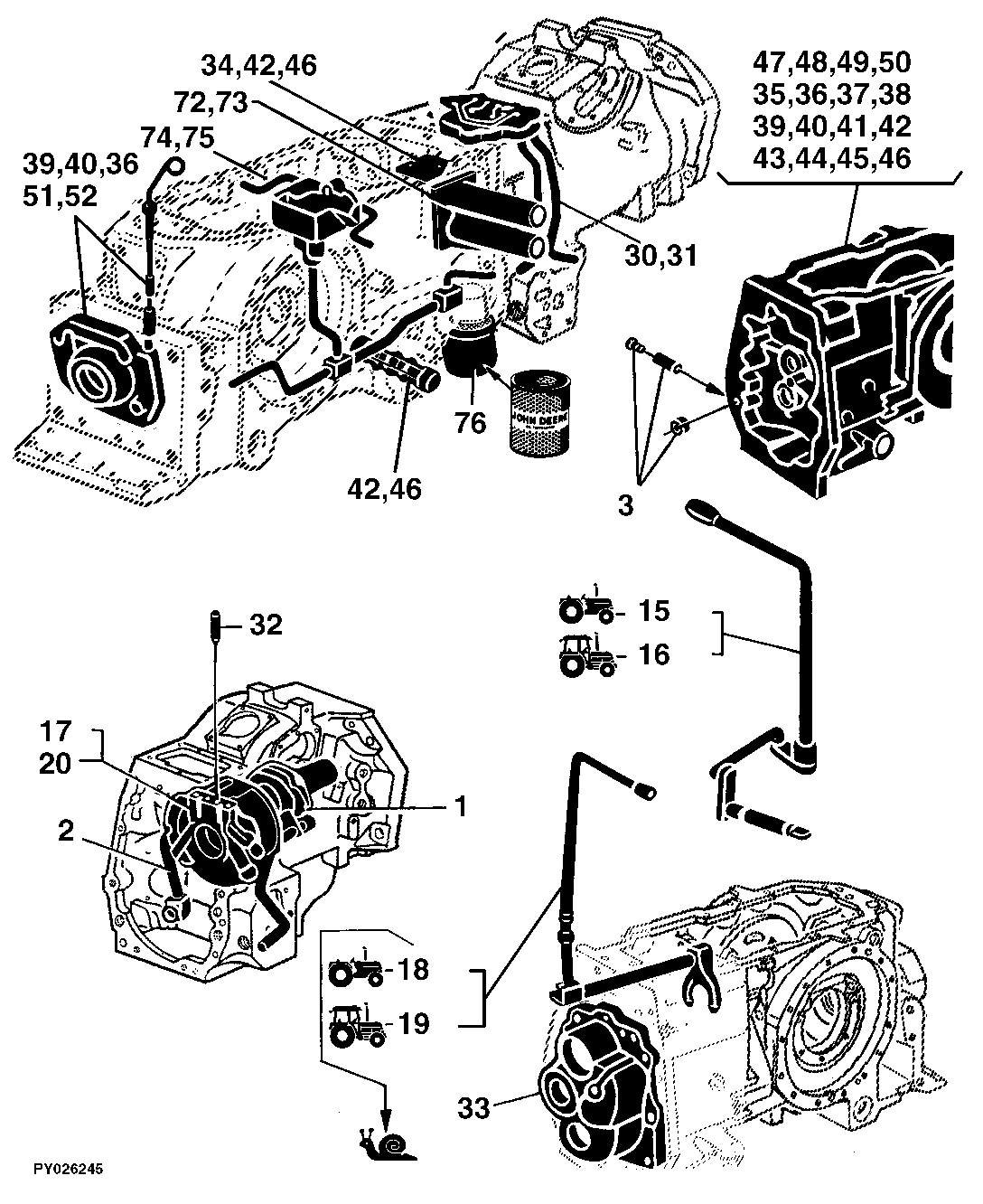

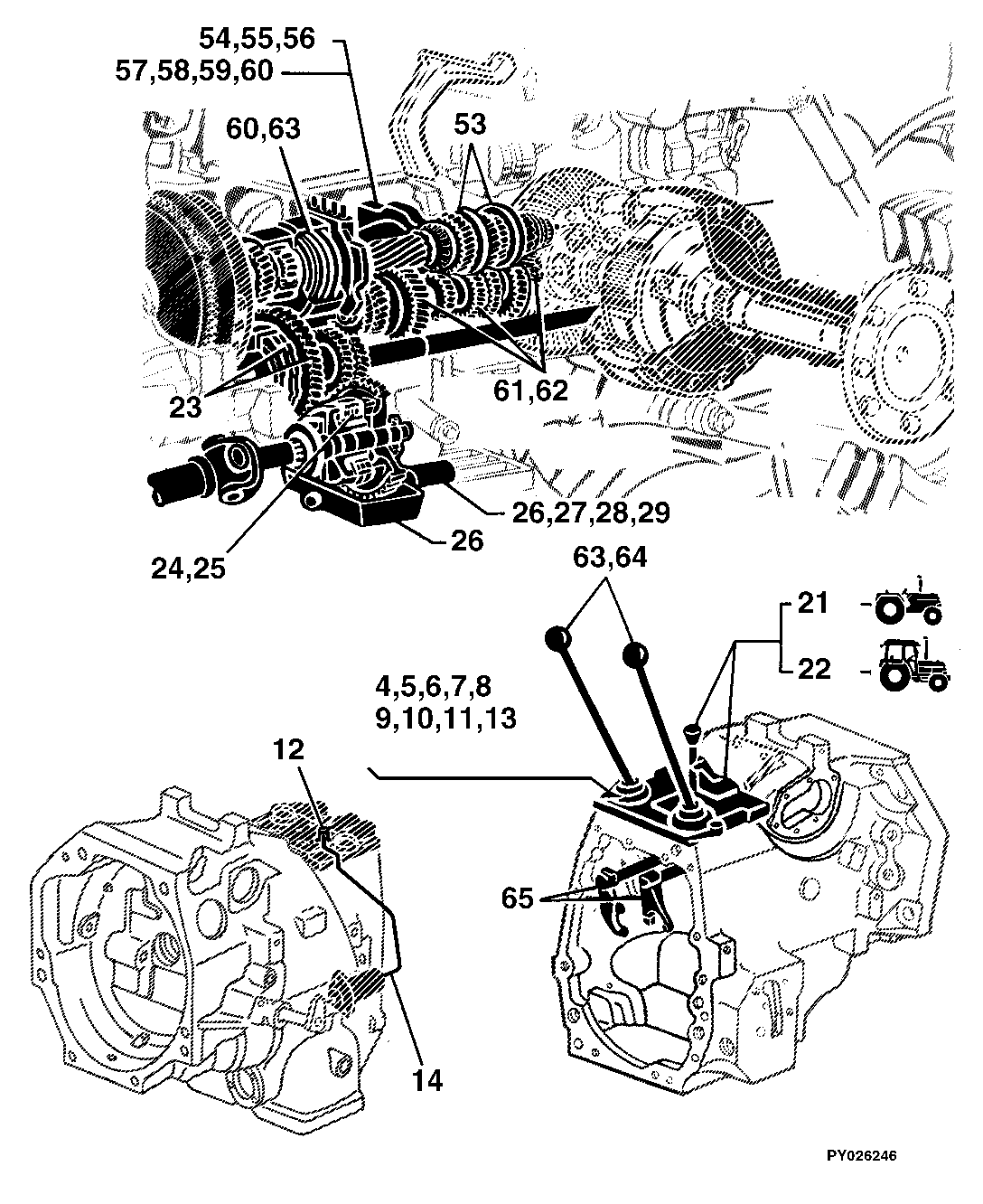

53 SYNCHRO. TRANSMISSION, HI-LO, CREEPER TRANSM.

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	SHIFT COVER (IND. PTO. HI-LO SHIFT AND CONSOLE SHIFT)	-
-	-	1	TRANSM. CASE/OIL DIPSTICK (W/SYNCHR. TRANSM. AND INCR. LIFT. CAPY.)	-
-	-	1	TRANSM. CASE CONVERSION KIT/SYNCHR. TRANSM. (W/INCREASED LIFT)	-
-	-	1	SHIFTER SHAFT HOUSING (WITH CONSOLE SHIFT)	-
-	-	1	SHIFT COVER WITH INDEP. PTO	-
-	-	1	SHIFT COVER (WITH INDEP. PTO)	-
-	-	1	SHIFT COVER (WITH IND. PTO AND HI-LO SHIFT UNIT)	-
-	-	1	SHIFT COVER (WITH IND. PTO AND HI-LO SHIFT UNIT)	-
-	-	1	SHIFT COVER (WITH IND. PTO AND CREEPER TRANSMISSION)	-
-	-	1	SHIFT COVER (WITH IND. PTO AND CREEPER TRANSMISSION)	-
-	-	1	TRANSM.CASE CONVERSION KIT/SYNCHR.TRANSM. (W/HANDSHIFT AND INTERCHANGEABLE PTO SHAFT)	-
-	-	1	SHIFT COVER (IND. PTO, HI-LO SHIFT AND CONSOLE SHIFT)	-
-	-	1	SERVICE KIT-CONSOLE SHIFT	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSMISSION)	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND HI-LO SHIFT UNIT/MFWD)	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND HI-LO SHIFT UNIT)	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND FRONT WH. DRIVE)	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND CREEPER TRANSMISSION)	-
-	-	1	REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND CREEPER TRANSM./MFWD)	-
-	-	1	TRANSMISSION CASE/END COVER (WITH AND WITHOUT INCREASED LIFTING CAPACITY)	-
-	-	1	TUBULAR SHIELD FOR SMOOTH PTO ENGAGEMENT	-
-	-	1	TRANSMISSION OIL PUMP-OIL LINES (SYNCHRONIZED TRANSMISSION)	-
-	-	1	TRANSMISSION OIL FILTER	-
-	-	1	TRANSMISSION DRIVE SHAFT AND SYNCHRONIZING PARTS	-
-	-	1	TRANSMISSION CASE/SYNCHRO.TRANSMISSION (W/INCREASED LIFT AND HANDSHIFT PTO)	-
-	-	1	TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT)	-
-	-	1	TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT AND IND. PTO)	-
-	-	1	TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT AND IND. PTO)	-
-	-	1	TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT AND HANDSHIFT PTO)	-
-	-	1	REPAIR KIT (STOP BUSHING IN TRANSMISSION CASE)	-
-	-	1	TRANSMISSION CASE-SYNCHRONIZED TRANSMISSION (WITH HANDSHIFT PTO)	-
-	-	1	TRANSMISSION CASE CONVERSION KIT/SYNCHRONIZED TRANSMISSION (WITH HANDSHIFT PTO)	-
-	-	1	TRANSMISSION CASE CONVERSION KIT, SYNCHRON. TRANSM. (WITH INDEP. 540 RPM PTO)	-
-	-	1	TRANSMISSION CASE CONVERSION KIT, SYNCHRON, TRANSM. (WITH INDEP. PTO)	-
-	-	1	TRANSMISSION CASE CONVERSION KIT (SYNCHRONIZED TRANSMISSION)	-
-	-	1	TRANSMISSION CASE - SYNCHR. TRANSM. (WITH IND. PTO)	-
-	-	1	TRANSMISSION CASE (SYNCHRONIZED TRANSMISSION)	-
-	-	1	TRANSMISSION CASE (SYNCHRONIZED TRANSMISSION)	-
-	-	1	CREEPER TRANSMISSION CONTROL LEVER AND LINKAGE (WITH SG2 CAB)	-
-	-	1	GEAR SHIFTING PARTS (SYNCHRONIZED TRANSMISSION)	-
-	-	1	GEAR SHIFT LEVER WITH SG2 CAB AND CENTER SHIFT (SYN. TRANSMISSION)	-
-	-	1	GEAR SHIFT LEVER (SYNCHRONIZED TRANSMISSION)	-
-	-	1	FWD-SOLENOID/SPARE PARTS KIT	-
-	-	1	FWD-SOLENOID	-
-	-	1	FWD-SOLENOID	-
-	-	1	FWD-DRIVE ELEMENTS (OUTPUT)	-
-	-	1	FWD MULTI-DISK CLUTCH	-
-	-	1	FWD COVER/SOLENOID VALVE	-
-	-	1	GROUP SHAFT (SYNCHRONIZED TRANSMISSION)	-
-	-	1	CREEPER TRANSMISSION CONTROL LEVER AND LINKAGE	-
-	-	1	CREEPER TRANSMISSION	-
-	-	1	COVER/CONTROL LEVER (WITH INDEPENDENT PTO)	-
-	-	1	COVER FOR SHIFT LINKAGE (WITH SG2 CAB)	-
-	-	1	CONTROL VALVE/SENDING UNIT	-
-	-	1	CONSOLE SHIFT LINKAGE	-
-	-	1	CONSOLE SHIFT LINKAGE	-
-	-	1	CONSOLE SHIFT	-
-	-	1	OIL MANIFOLD / OIL LINES (WITH IND. PTO)	-
-	-	1	PTO CONTROL LINKAGE (WITH SG2 CAB)	-
-	-	1	PTO CLUTCH (SYNCHRONIZED TRANSMISSION)	-
-	-	1	PTO BEARING QUILL CONVERSION KIT (W/SYNCHR. TRANSM./IND. PTO)	-
-	-	1	PTO Bearing Quill Conversion Kit (W. Synchr. Transm./Handshift PTO)	-
-	-	1	PLUGS AND CAPS FOR SYNCHRONIZED TRANSM. (WITHOUT ROCKSHAFT)	-
-	-	1	PINION SHAFT/GROUP SHAFT (SYNCHRONIZED TRANSMISSION)	-
-	-	1	OIL PUMP/PTO DRIVE SHAFT/CLUTCH SHAFT (SYNCHRONIZED TRANSMISSION)	-
-	-	1	OIL MANIFOLD/OIL LINES	-
-	-	1	CONSOLE SHIFT	-
-	-	1	LUBRICATING LINES/OIL CUP (SYNCHRONIZED TRANSMISSION)	-
-	-	1	LUBRICATING LINES/OIL CUP (SYNCHRONIZED TRANSMISSION)	-
-	-	1	HOLLOW DRIVE SHAFT (SYNCHRONIZED TRANSMISSION)	-
-	-	1	HI-LO SHIFT UNIT-LOCKING DEVICE PARTS	-
-	-	1	HI-LO SHIFT LINKAGE (WITH SG2 CAB)	-
-	-	1	HI-LO SHIFT CONTROL LEVER	-
-	-	1	HI-LO LOCK LINE (WITH SG2 CAB)	-
-	-	1	HI-LO CLUTCH (SYNCHRONIZED TRANSMISSION)	-

53 SYNCHRO. TRANSMISSION, HI-LO, CREEPER TRANSM.
