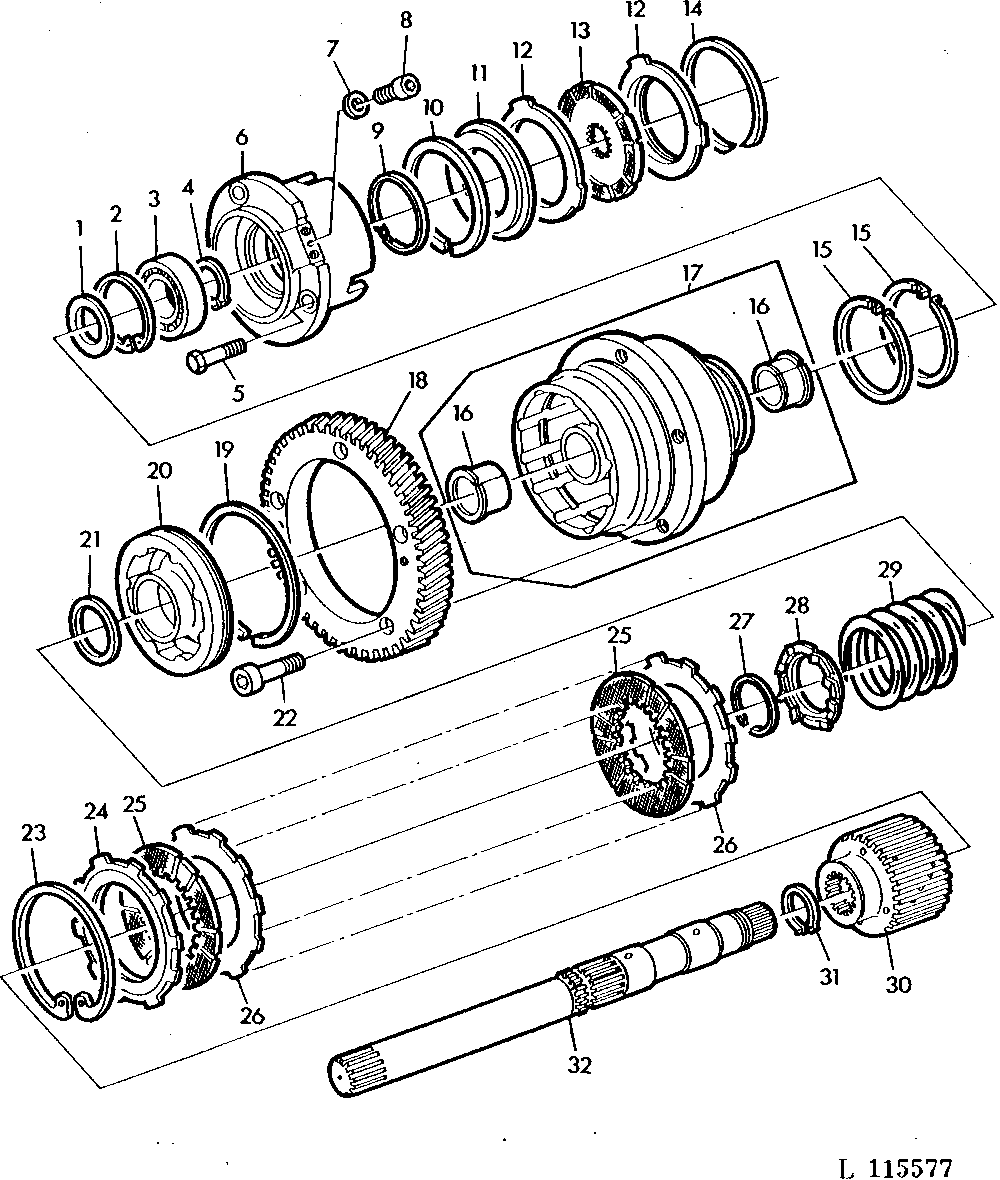

PTO CLUTCH (SYNCHRONIZED TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L33313	1	Washer	-
2	40M7044	1	Snap Ring	72X2.5MM
3	L64838	1	Ball Bearing	(SUB FOR JD10095)
4	40M7046	1	Snap Ring	35X1.5MM
5	19H3239	3	Cap Screw	3/8" X 1-1/4", 3/8"X1-1/4"
6	L33312	1	Drum	-
7	24M7088	1	Washer	6.600 X 12 X 1.600 mm, 6.6MM
8	19M7768	1	Screw	M6 X 16, M6X16
9	L33117	1	Piston Ring	-
10	51M7017	1	Piston Ring	110X100.8X3MM
11	L33316	1	Piston	-
12	L33125	2	Plate	-
13	AL55075	1	Disk With Inner Spline	(SUB FOR AL28723)
14	L33119	1	Snap Ring	-
15	R33167	2	Ring	-
16	L33320	2	Bushing	-
17	AL39262	1	Drum	(SUB FOR AL35664)
18	L40837	1	Gear	(WITH IND.540 RPM PTO) Z= 72
18	L34052	1	Gear	(WITH IND.540 RPM PTO) Z= 75
18	L61828	1	Gear	Z= 65, (SUB FOR L34053)
19	L28656	1	Piston Ring	-
20	L32738	1	Piston	-
21	R39304	1	Washer	-
22	19M7576	5	Screw	M10 X 30, M10X1.5X30
23	L38023	1	Snap Ring	-
24	L33563	1	Plate	-
25	AT26632	10	DISK, WITH INNER SPLINE	(WITH IND.540 RPM PTO)
25	AL38239	8	Disk With Inner Spline	(SUB FOR AR78361)
26	T28664	8	DISK, WITH OUTER SPLINE	-
26	T28664	10	DISK, WITH OUTER SPLINE	(WITH IND.540 RPM PTO)
27	R39299	1	Snap Ring	-
28	T32849	1	Retainer	-
29	T32848	1	Spring	-
30	L33314	1	Hub	-
31	40M7058	1	Snap Ring	40X1.75MM
32	L33317	1	Shaft	-

PTO CLUTCH (SYNCHRONIZED TRANSMISSION)
