REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND CREEPER TRANSM./MFWD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL63830	1	Kit	(WITH FRONT WHEEL DRIVE-GEAR PAIRS) (Z= 23/20), L57658/L38834OR L33266/L38834 (ORDER W/ L60519)
1	AL63830	1	Kit	(WITH FRONT WHEEL DRIVE-GEAR PAIRS) (Z= 21/23), L33264/L36724(ORDER W/ L41691)
1	AL63830	1	Kit	(WITH FRONT WHEEL DRIVE-GEAR PAIRS) (Z= 23/21), L57658/L36725OR L33266/L36725 (ORDER W/ L60520)
2	L60559	1	Snap Ring	-
3	L60560	1	Thrust Washer	-
4	AL63097	1	Needle Bearing	-
5	AL66410	1	Drive Shaft	(SUB FOR AL60231)
6	L41668	1	Bearing Housing W/O Bearing	-
7	JD10337	1	Bearing Cone	-
8	JD10336	1	Bearing Cup	-
9	L41659	1	Shim	TK= 0.15MM
9	L41664	1	Washer	TK= 1.05MM
9	L41662	1	Washer	TK= 1.00MM
9	L41661	1	Shim	TK= 0.30MM
9	L41663	1	Shim	TK= 0.20MM
9	L41660	1	Shim	TK= 0.10MM
10	JD10339	1	Bearing Cup	-
11	JD10338	1	Bearing Cone	-
12	L57555	1	Gear	Z= 28
13	AL66358	1	Gear	-
14	L41666	1	Shaft	-
15	L41641	1	Shaft	(ORDER AL66358)
16	JD10330	2	Bearing Cone	-
17	L60387	1	Gear	Z= 25, (ORDER AL66358)
18	L41654	1	Bushing	TK= 8.25MM
18	L41657	1	Bushing	TK= 8.40MM
18	L41656	1	Bushing	TK= 8.35MM
18	L41655	1	Bushing	TK= 8.30MM
18	L41653	1	Bushing	TK= 8.20MM
18	L41652	1	Bushing	TK= 8.15MM
18	L41651	1	Bushing	TK= 8.10MM
18	L41650	1	Bushing	TK= 8.05MM
18	L41649	1	Bushing	TK= 8.00MM
19	R26552	1	Ball	8MM
20	R30587	2	Dowel Pin	-
21	L38718	2	Ball	6MM
22	AL40805	1	Housing	(MARKED L41676) (ORDER W/ L40773)
23	L41675	1	Shaft	-

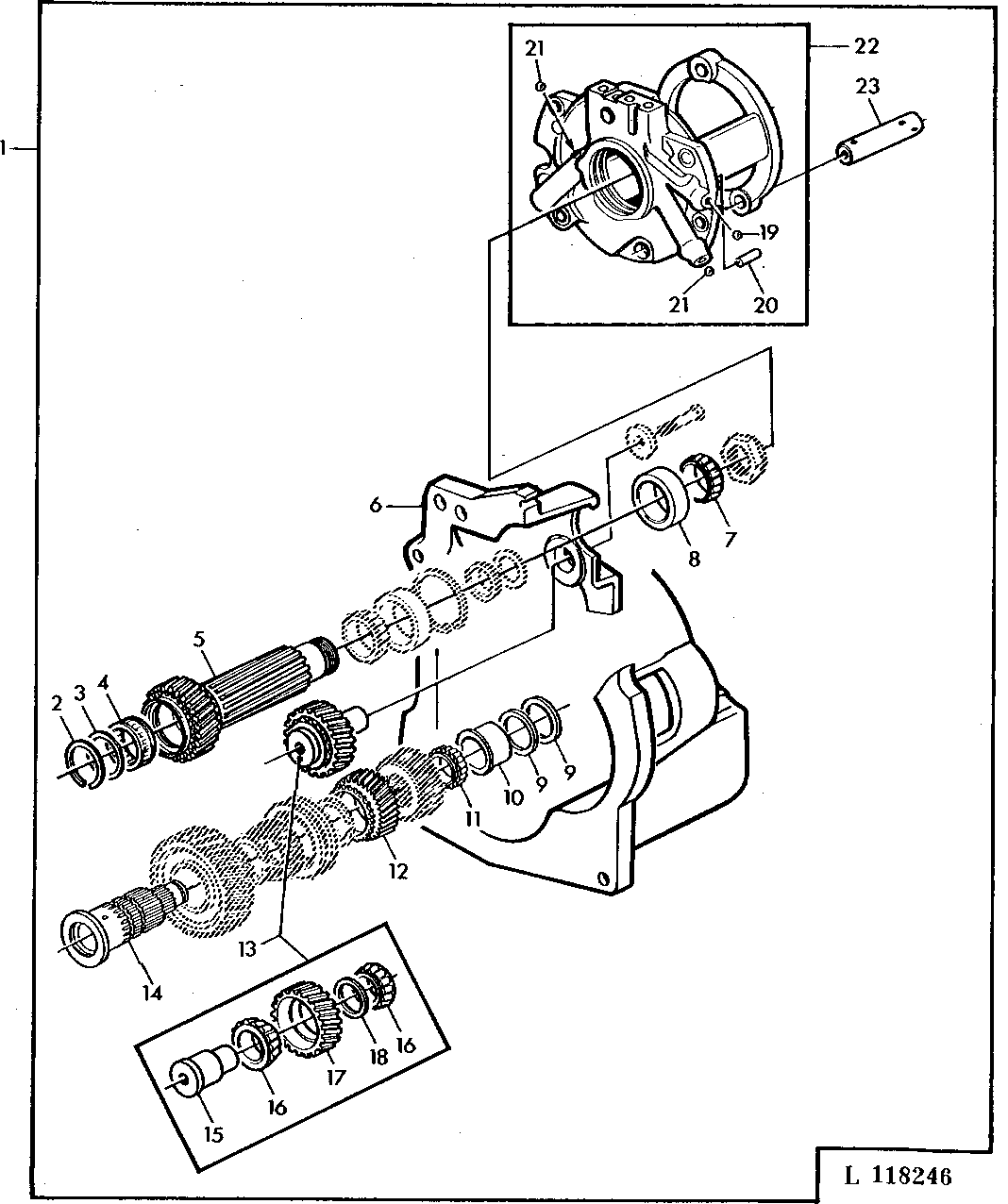

REVERSE RANGE CONVERSION KIT (WITH SYNCHR. TRANSM. AND CREEPER TRANSM./MFWD)
