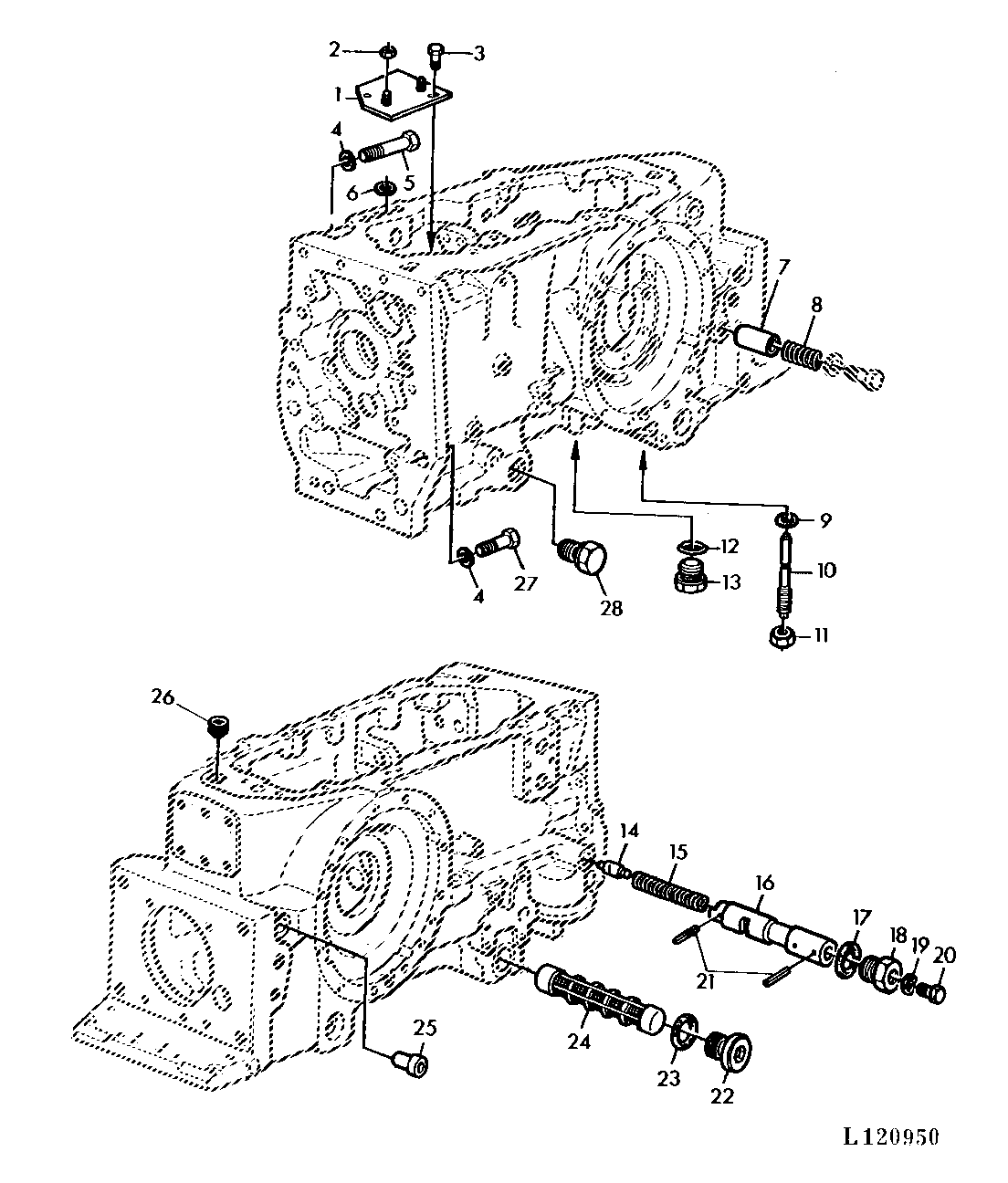

TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL39257	1	Cover	-
2	14M7327	2	Lock Nut	M8
3	19H2021	2	Cap Screw	3/8" X 5/8", 3/8"X5/8"
4	L30695	6	Washer	-
5	19H2644	2	Cap Screw	1/2" X 2-1/2", 1/2"X2-1/2"
6	T17882	1	WASHER	-
7	L34246	1	Dowel Pin	(WITH HANDSHIFT PTO) LGTH= 20MM, (ORDER L42135, L42136)
7	L42135	1	Pin Fastener	(WITH HANDSHIFT PTO) LGTH= 25MM
8	T22739	1	SPRING	(WITH HANDSHIFT PTO) LGTH= 25MM, (ORDER L42135, L42136)
8	L42136	1	Compression Spring	(WITH HANDSHIFT PTO) LGTH= 20MM
9	R27490	1	O-Ring	-
10	T21776	1	SCREW	1/2"
11	14H971	1	NUT	1/2", 1/2"
12	A4827R	2	Washer	-
13	R51895	2	Fitting	1", ORDER L41295
13	L41295	2	Drain Plug	-
14	L62898	1	Valve Spool	(SUB FOR R39294)
15	L33358	1	Spring	-
16	L33357	1	Sleeve	-
17	F3171R	1	O-Ring	-
18	L32704	1	Threaded Nipple	1-1/16"
19	R26448	1	O-Ring	-
20	R27218	1	Fitting Plug	-
21	34H247	2	Spring Pin	1/8" X 3/4"
22	L41534	1	Pipe Plug	1-1/2"
23	L41547	1	O-Ring	-
24	R53169	1	Screen	-
25	L34253	1	Bushing	(WITH HANDSHIFT PTO)
26	15H665	1	PIPE PLUG	3/4", 3/4", ORDER 15H690
26	15H690	1	Pipe Plug	3/4"
27	19H2510	6	Cap Screw	1/2" X 1-5/8", 1/2"X1-5/8"
28	AL39878	1	Pipe Plug	1-5/16"

TRANSMISSION CASE/SYNCHRO. TRANSMISSION (W/INCREASED LIFT)
