LUBRICATING LINES/OIL CUP (SYNCHRONIZED TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L38321	2	Oil Line	-
2	L112762	4	Clamp	(SUB FOR L33351)
3	L38322	2	Hose	-
4	AL41541	1	Manifold	-
5	19M7298	1	Cap Screw	M8 X 35, M8X35
6	14M7273	1	Nut	M8, M8
7	AL59585	1	Oil Line	(FOR AL64570 OR AL66781)
8	L42299	1	Tube	-
9	AL66201	1	Oil Line	(SUB FOR AL30194, AL59584)
10	R28776	1	O-Ring	-
11	R28346	2	Clamp	-
12	L33364	1	Strap	-
13	AL62014	1	Oil Line	(ORDER L62406) (SUB FOR AL28862)
13	AL62014	1	Oil Line	(WITH INTERCHANGEABLE PTO SHAFTS) (WITH HANDSHIFT PTO) OR (ORDER AL66200, AL67982, L63222)
14	AL66200	1	Oil Line	(WITH INTERCHANGEABLE PTO SHAFTS) (WITH HANDSHIFT PTO) OR
15	AL67182	1	Oil Line	(WITH INTERCHANGEABLE PTO SHAFTS) (WITH HANDSHIFT PTO) OR
16	L42300	1	Washer	(FOR AL41540)
17	19H2665	1	Cap Screw	3/8" X 1-5/8", 3/8"X1-5/8"
18	AL66971	1	Oil Cup	(SUB FOR AL41540)
19	R39090	2	Needle Roller	(FOR AL41540)
20	T23426	1	Ball	-
21	L62406	1	Oil Line	-
22	R1888R	2	STRAP	-
23	19H2021	2	Cap Screw	3/8" X 5/8", 3/8"X5/8"
24	19M7170	1	Cap Screw	M10 X 50, M10X50
25	L36108	1	Washer	-
26	L36107	1	BUSHING	-
27	AL33237	1	OIL LINE	-

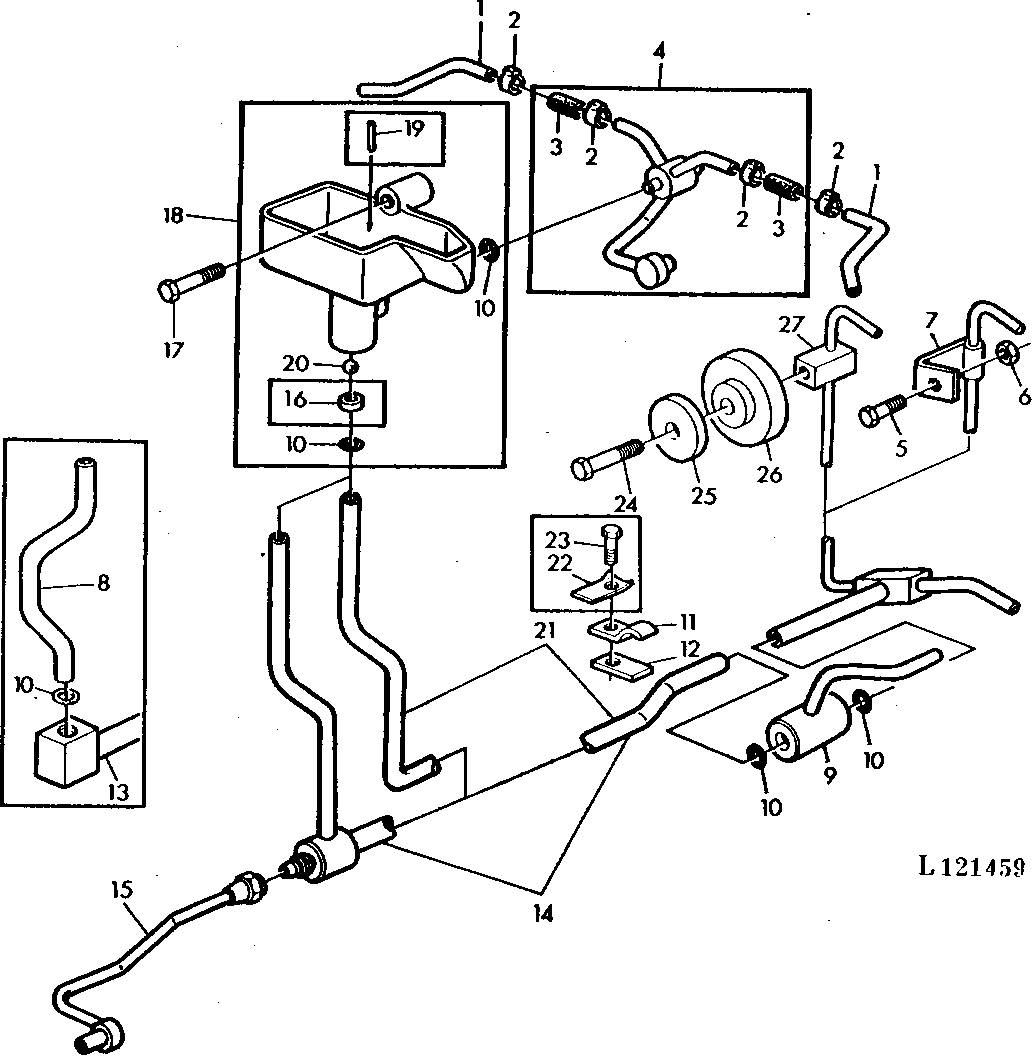

LUBRICATING LINES/OIL CUP (SYNCHRONIZED TRANSMISSION)
