PINION SHAFT/GROUP SHAFT (SYNCHRONIZED TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L41021	1	Countershaft	Z= 36/33/29/26, (SUB FOR L33019)
2	AL65172	1	Bearing	-
3	JD10076	1	Bearing Cone	(ORDER AL65172)
4	L28648	1	Bearing Cup	(ORDER AL65172)
5	T28284	1	Shim	TK= 0.1MM (.003")
5	T28285	1	Shim	TK= 0.15MM (.005")
5	T28286	1	Shim	TK= 0.25MM (.010")
6	L33032	1	Gear	-
7	L33733	1	Thrust Washer	-
8	L33033	1	Shift Collar	-
9	L55840	1	Nut	(SUB FOR L34182, L41793)
10	AL65171	1	Bearing	-
11	JD10080	1	Bearing Cone	(ORDER AL65172)
12	JD10098	1	Bearing Cup	(ORDER AL65172)
13	24M7231	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45X56X0.5MM
13	24M7224	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45X56X0.3MM
13	24M7225	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45X56X0.2MM
13	M809T	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45.237X55.575X0.127MM
13	24M7223	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45X56X0.1MM
13	L36301	1	Shim	(ORDER PART 15, 16 OR 17 AS REQUIRED) 45X56X0.15MM
14	L36087	1	Spacer	(ORDER PART 15, 16 OR 17 AS REQUIRED)
15	AL60718	1	Spacer	-
16	L58722	1	Shim	TK= 0.50MM
17	L55898	1	Spacer	TK= 14.10MM
17	L55905	1	Spacer	TK= 14.45MM
17	L55904	1	Spacer	TK= 14.40MM
17	L55903	1	Spacer	TK= 14.35MM
17	L55902	1	Spacer	TK= 14.30MM
17	L55901	1	Spacer	TK= 14.25MM
17	L55900	1	Spacer	TK= 14.20MM
17	L55899	1	Spacer	TK= 14.15MM
17	L55897	1	Spacer	TK= 14.05MM
17	L55896	1	Spacer	TK= 14.00MM
18	JD10543	2	Needle Bearing	(SUB FOR JD10070)

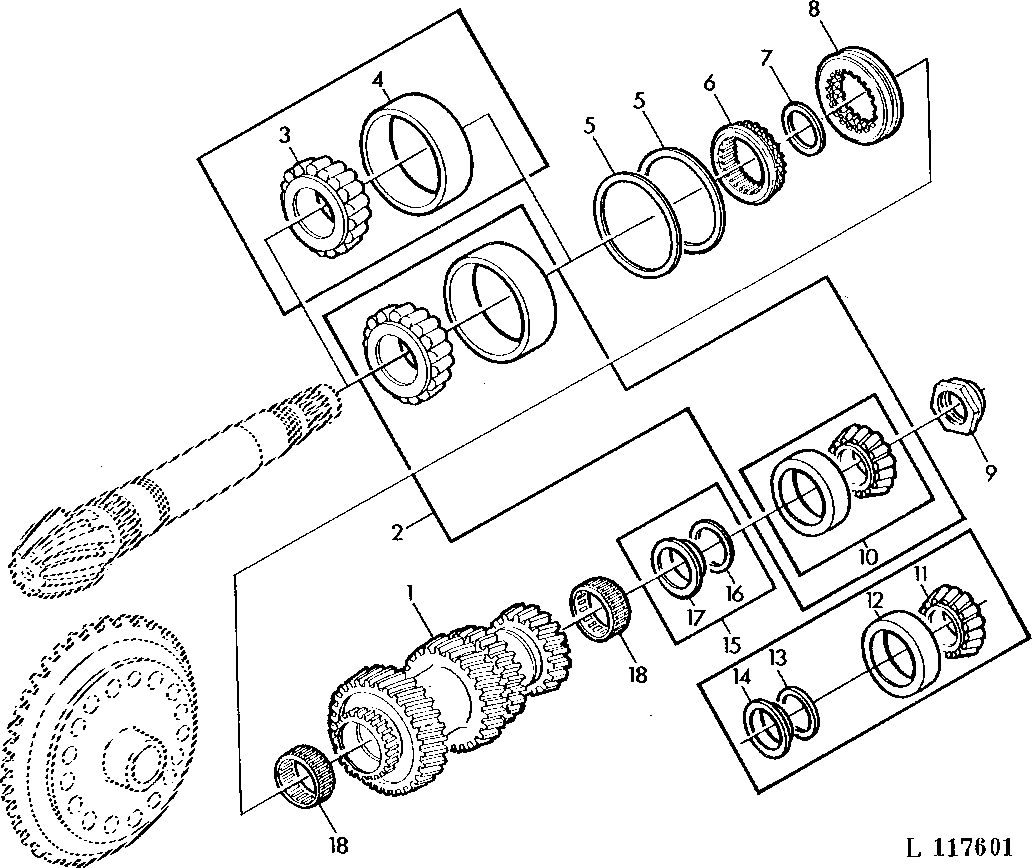

PINION SHAFT/GROUP SHAFT (SYNCHRONIZED TRANSMISSION)
