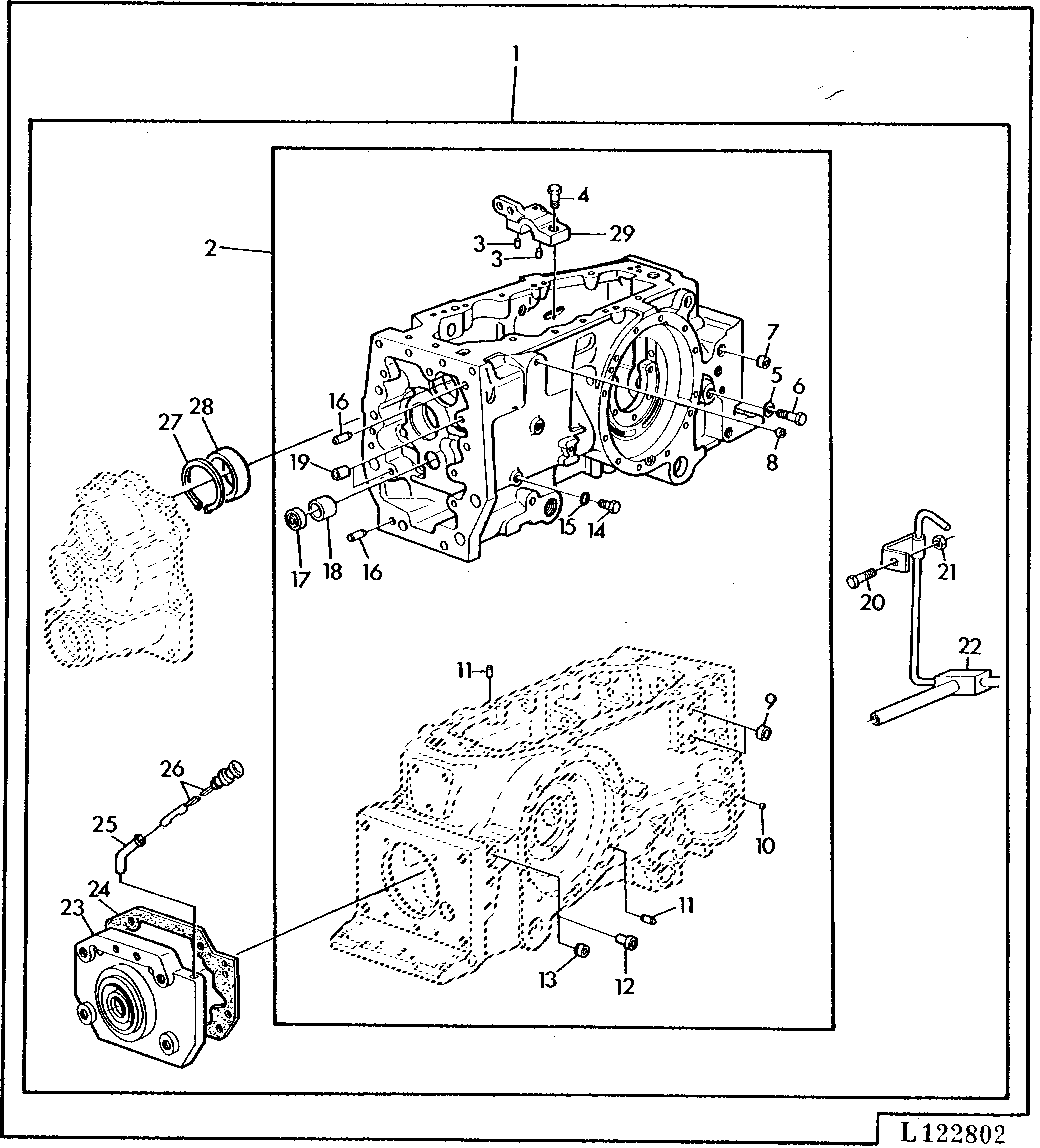

TRANSMISSION CASE CONVERSION KIT, SYNCHRON, TRANSM. (WITH INDEP. PTO)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL65439	1	Kit	(WITH HEAVY-DUTY 540 RPM PTO) (ORDER AL68510, (2) L61922, AL67449)
1	AL65437	1	Kit	(WITH 540 RPM PTO) (ORDER AL68510, (2) L61922, AL67450)
1	AL65438	1	Kit	(WITH INTERCHANGE. PTO SHAFTS) (ORDER AL68510, (2) L61922, AL67448)
2	AL64570	1	Transmission Case	(MARKED L60593 OR L61975) (ORDER AL68510, (2) L62830, (2) L61922)
2	AL66781	1	Transmission Case	(MARKED L62445) INCL KEYS L57619, (3) L61496, (2) R26906, (2) R27474) (ORDER AL68510, (2) L61922)
3	R726R	2	Dowel Pin	-
4	19H1777	2	Cap Screw	1/2" X 1-3/4", 1/2"X1-3/4"
5	R27003	1	Washer	-
6	R53802	1	Cap Screw	1/2"X1/2"
7	T18891	1	Plug	-
8	30M7004	1	Plug	OD= 14MM
9	30M7008	2	Plug	OD= 28MM
10	A174R	1	Ball	-
11	R48685	6	Dowel Pin	-
12	L34253	1	Bushing	-
13	30M7007	1	Plug	OD= 20MM
14	R27218	1	Fitting Plug	-
15	R26448	1	O-Ring	-
16	T26565	2	Dowel Pin	-
17	L41022	1	Seal	-
18	T22128	1	BUSHING	-
19	T24729	2	Bushing	-
20	19M7298	1	Cap Screw	M8 X 35, M8X35
21	14M7273	1	Nut	M8, M8
22	AL59585	1	Oil Line	-
23	L60545	1	Bearing Cap	(WITH 540 RPM PTO) (ORDER AL67450)
23	L60544	1	Bearing Cap	(WITH HEAVY-DUTY 540 RPM PTO) (ORDER AL67449)
23	L60543	1	Bearing Cap	(WITH INTERCHANGE. PTO SHAFTS) (ORDER AL67448)
24	L60548	1	Gasket	-
25	L62158	1	Extension	-
26	AL67054	1	Dipstick	(SUB FOR AL64512 APPL)
27	L41669	1	Snap Ring	-
28	JD10341	1	Bearing Cup	-
29	AL68306	1	Bearing Housing W/O Bearing	-

TRANSMISSION CASE CONVERSION KIT, SYNCHRON, TRANSM. (WITH INDEP. PTO)
