TRANSM. CASE CONVERSION KIT/SYNCHR. TRANSM. (W/INCREASED LIFT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL68519	1	Case	(KIT W/O L33497) (ORDER AL68511) (SUB FOR AL67799)
1	AL67799	1	Transmission Case	(ORDER AL68511)
2	AL68511	1	Case	(MARKED L63941) (SUB FOR AL66782)
2	AL66782	1	Transmission Case	(MARKED L62446) (KIT W/O L61918, L61922) (ORDER AL68511)
3	R726R	2	Dowel Pin	-
4	19H1777	2	Cap Screw	1/2" X 1-3/4", 1/2"X1-3/4"
5	R26448	1	O-Ring	(FOR R27218)
5	R27003	1	Washer	(FOR R53802)
6	R53802	1	Cap Screw	1/2"X1/2"
6	R27218	1	Fitting Plug	9/16"-18UNF-2AX0.39"
7	T18891	1	Plug	-
8	30M7004	1	Plug	OD= 14MM
9	30M7008	2	Plug	OD= 28MM
10	A174R	1	Ball	-
11	R48685	6	Dowel Pin	-
12	L34253	1	Bushing	-
13	30M7007	1	Plug	OD= 20MM
14	R26906	2	O-Ring	-
15	R27474	2	Drain Plug	7/8"
16	15H665	1	PIPE PLUG	3/4", 3/4"
17	R27218	1	Fitting Plug	9/16"-18UNF-2AX0.39"
18	R26448	1	O-Ring	-
19	T26565	2	Dowel Pin	-
20	L41022	1	Seal	-
21	T22128	1	BUSHING	-
22	T24729	2	Bushing	-
23	L57619	1	Flange	-
24	L61496	3	Screw	-
25	19M7298	1	Cap Screw	M8 X 35, M8X35
26	14M7273	1	Nut	M8, M8
27	AL59585	1	Oil Line	-
28	L62830	2	Brake Actuating Disk	-
29	L33497	2	Brake Actuating Disk	(FOR AL67799) (SUB FOR L56247)
30	JD10341	1	Bearing Cup	-
31	JD10102	1	Bearing Cone	-
32	L61918	1	Gasket	-
33	AL68306	1	Bearing Housing W/O Bearing	-
34	L61922	4	Gasket	-

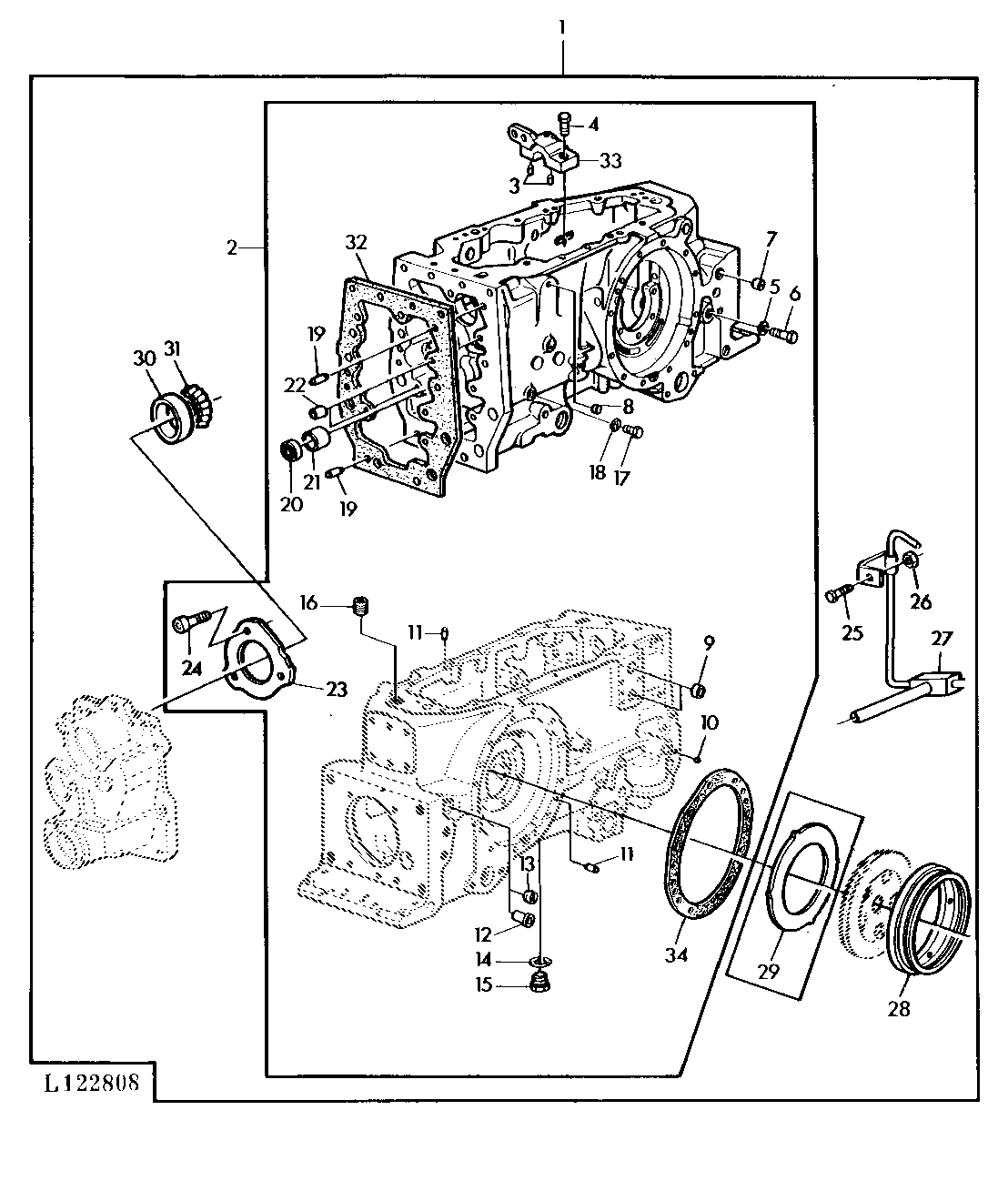

TRANSM. CASE CONVERSION KIT/SYNCHR. TRANSM. (W/INCREASED LIFT)

Нет текстового описания
