Открытый узел

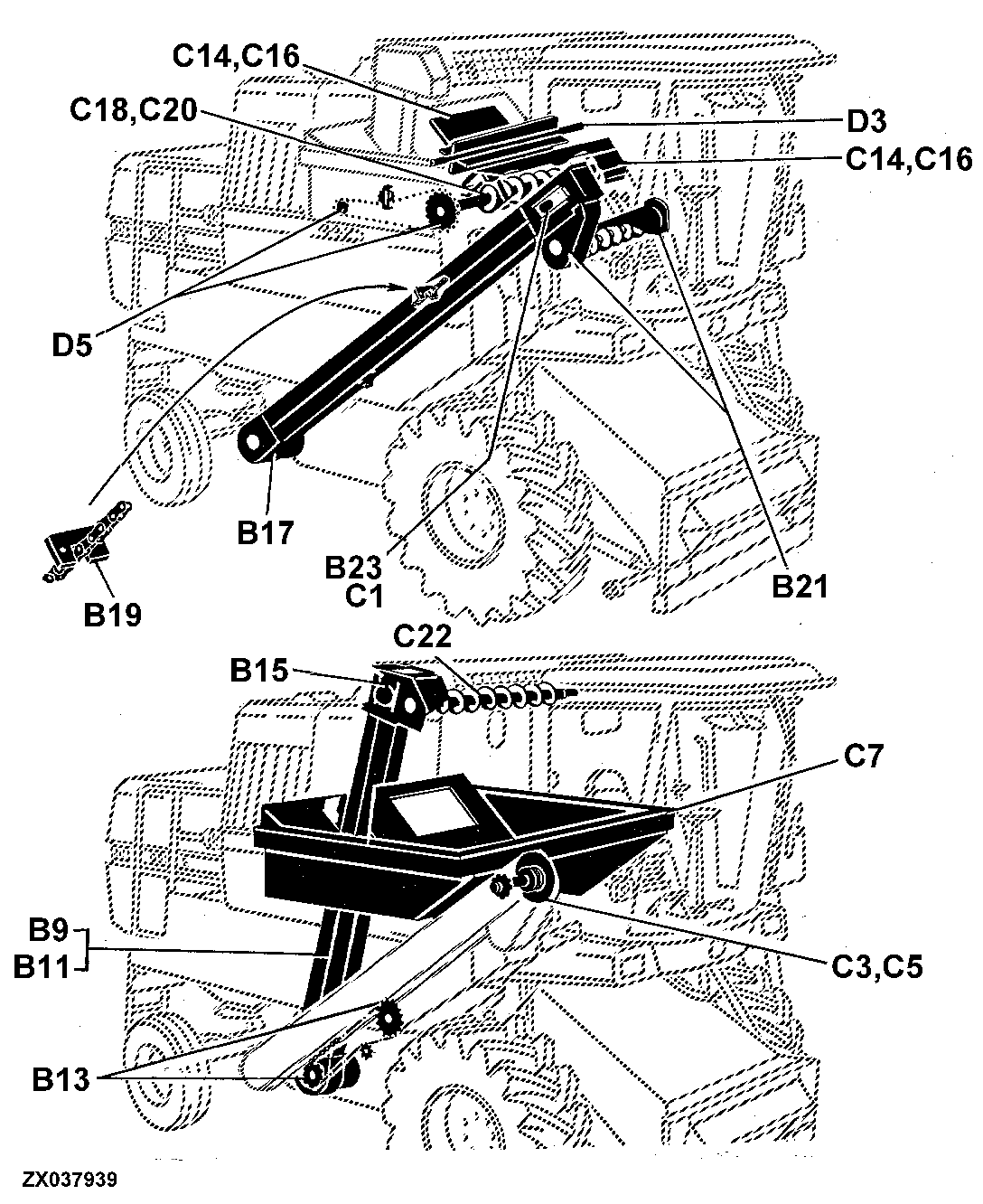

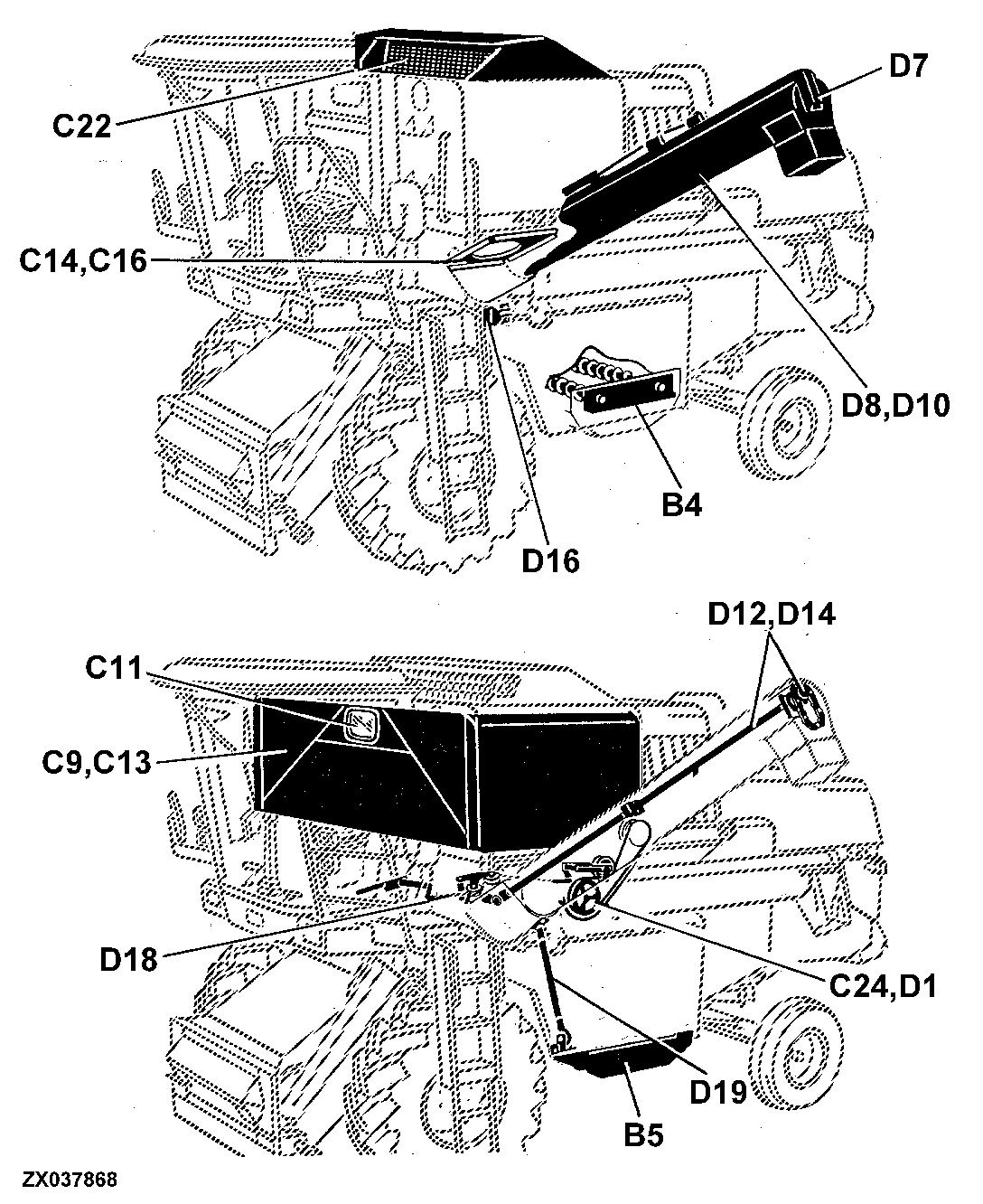

130 ELEVATORS,GRAIN TANK & UNLOADING AUGER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TAILINGS ELEVATOR [04B17]	-
-	-	1	LOWER TAILINGS AND CLEAN GRAIN AUGERS HOUSING [04B05]	-
-	-	1	OUTER UNLOADING AUGER AND HOUSING [04D08]	-
-	-	1	OUTER UNLOADING AUGER AND HOUSING [04D10]	-
-	-	1	OUTER UNLOADING AUGER HOUSING GUARDS [04D07]	-
-	-	1	OUTER UNLOADING AUGER UNIVERSAL DRIVE [04D12]	-
-	-	1	OUTER UNLOADING AUGER UNIVERSAL DRIVE [04D14]	-
-	-	1	TAILINGS AUGER DRIVE IDLER [04B23]	-
-	-	1	TAILINGS AUGER DRIVE IDLER [04C01]	-
-	-	1	LOWER TAILINGS AND CLEAN GRAIN AUGERS [04B07]	-
-	-	1	TAILINGS ELEVATOR CHAIN [04B19]	-
-	-	1	TAILINGS ELEVATOR DRIVE [04C03]	-
-	-	1	TAILINGS ELEVATOR DRIVE [04C05]	-
-	-	1	UNLOADING AUGER DRIVE LINKAGE [04D18]	-
-	-	1	UNLOADING AUGER LOWER SUPPORT [04D19]	-
-	-	1	UNLOADING AUGER SWING HYDRAULIC CYLINDER MOUNTING [04D16]	-
-	-	1	UPPER CLEAN GRAIN ELEVATOR [04B15]	-
-	-	1	GRAIN TANK SHEETS [04C09]	-
-	-	1	CLEAN GRAIN ELEVATOR, CONVEYOR CHAIN [04B11]	-
-	-	1	GRAIN TANK [04C07]	-
-	-	1	GRAIN TANK ACCESS DOOR [04C13]	-
-	-	1	GRAIN TANK INNER UNLOADING AUGER [04C18]	-
-	-	1	GRAIN TANK INNER UNLOADING AUGER [04C20]	-
-	-	1	GRAIN TANK LEVELING AUGER [04C22]	-
-	-	1	GRAIN TANK LOADING AUGER AND HOUSING [04B21]	-
-	-	1	GRAIN TANK PADDLE [04D03]	-
-	-	1	CLEAN GRAIN ELEVATOR DRIVE [04B13]	-
-	-	1	GRAIN TANK UNLOADING DRIVE [04C24]	-
-	-	1	GRAIN TANK UNLOADING DRIVE SHAFT AND BEARINGS [04D01]	-
-	-	1	GRAIN TANK WINDOWS AND HANDRAIL [04C11]	-
-	-	1	INNER UNLOADING AUGER AND PADDLE DRIVES [04D05]	-
-	-	1	INNER UNLOADING AUGER COVERS [04C14]	-
-	-	1	INNER UNLOADING AUGER COVERS [04C16]	-
-	-	1	LOWER CLEAN GRAIN ELEVATOR HOUSING [04B09]	-

130 ELEVATORS,GRAIN TANK & UNLOADING AUGER

Нет текстового описания
