Открытый узел

90 Operators Station S690HM - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

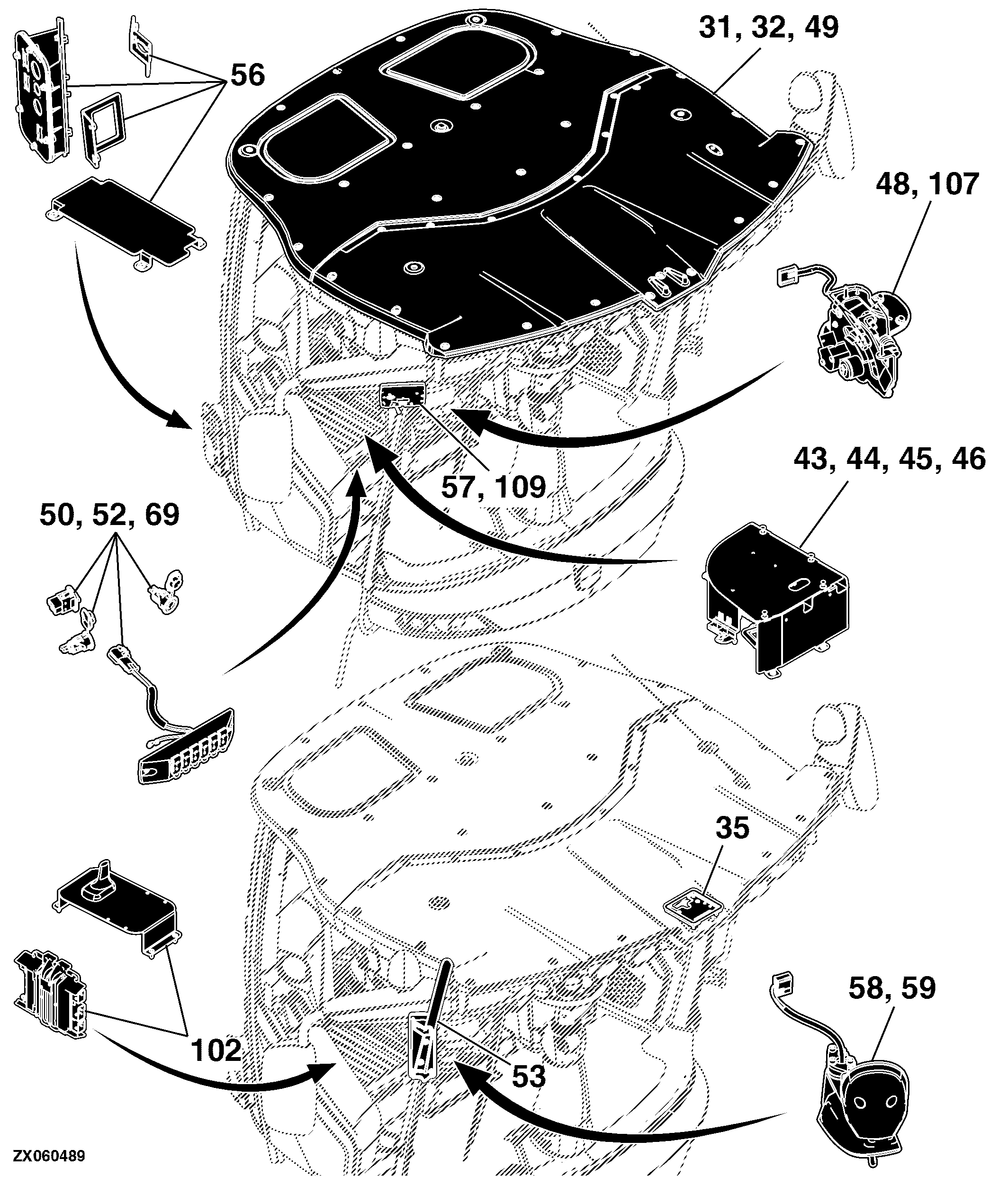

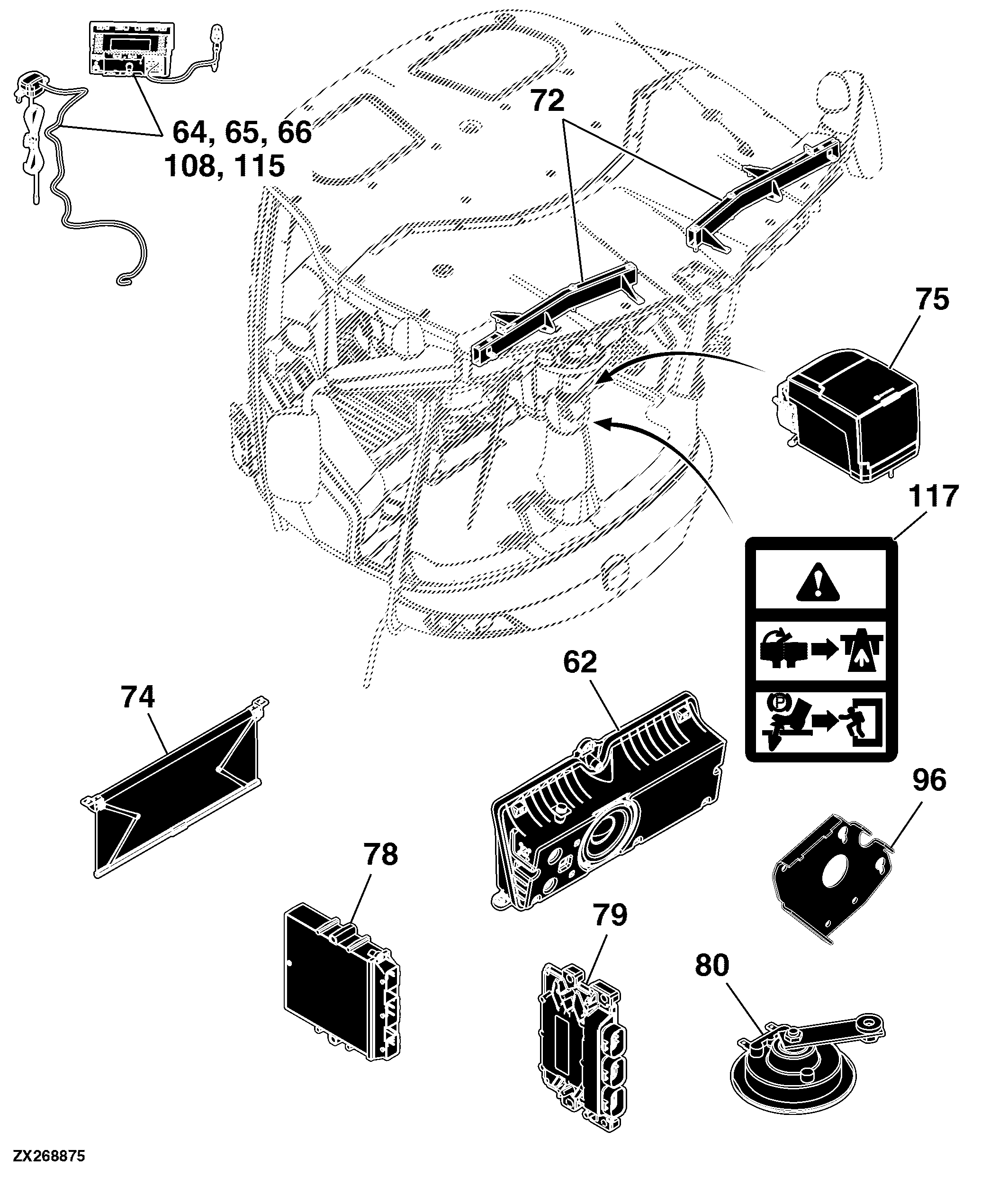

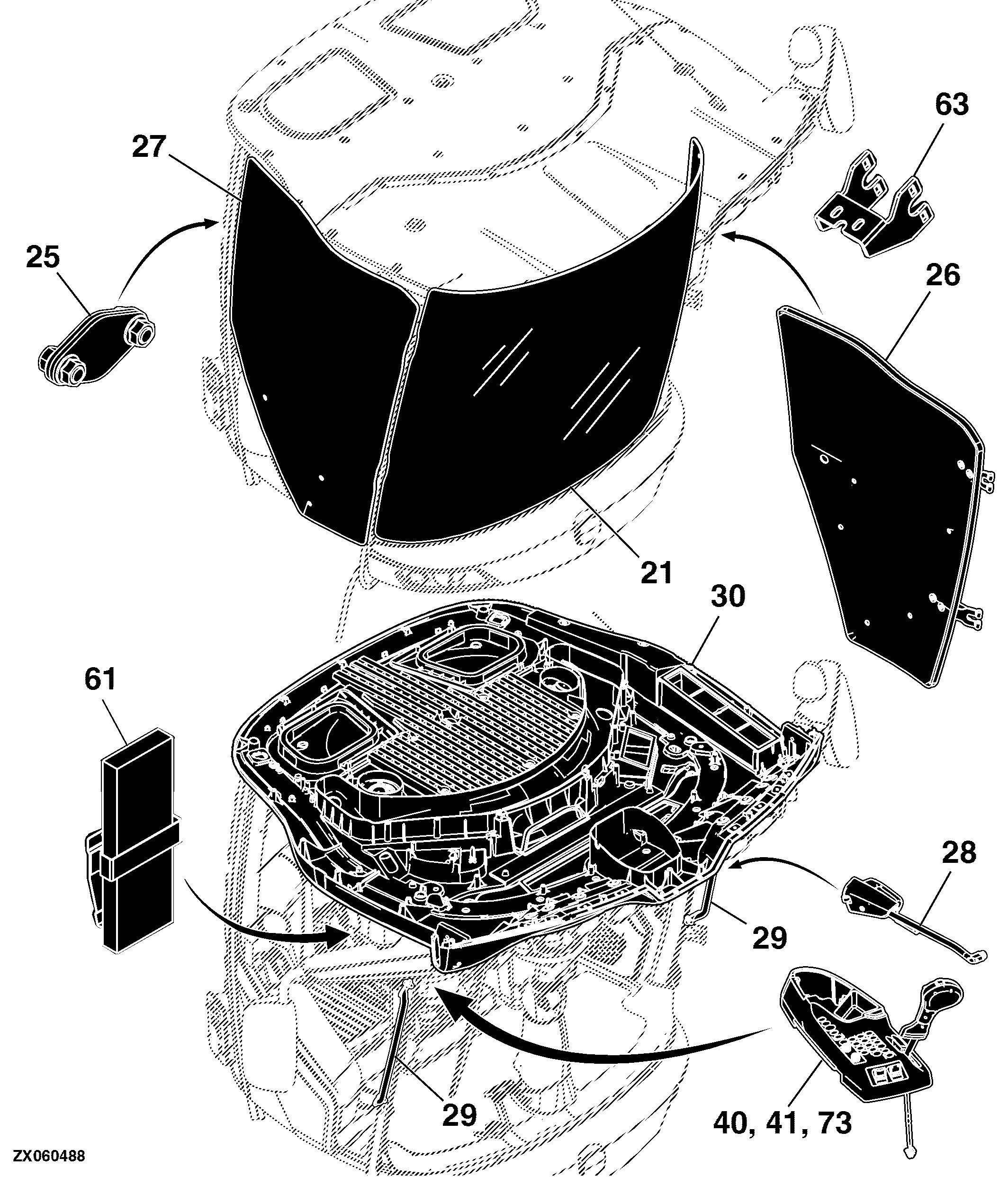

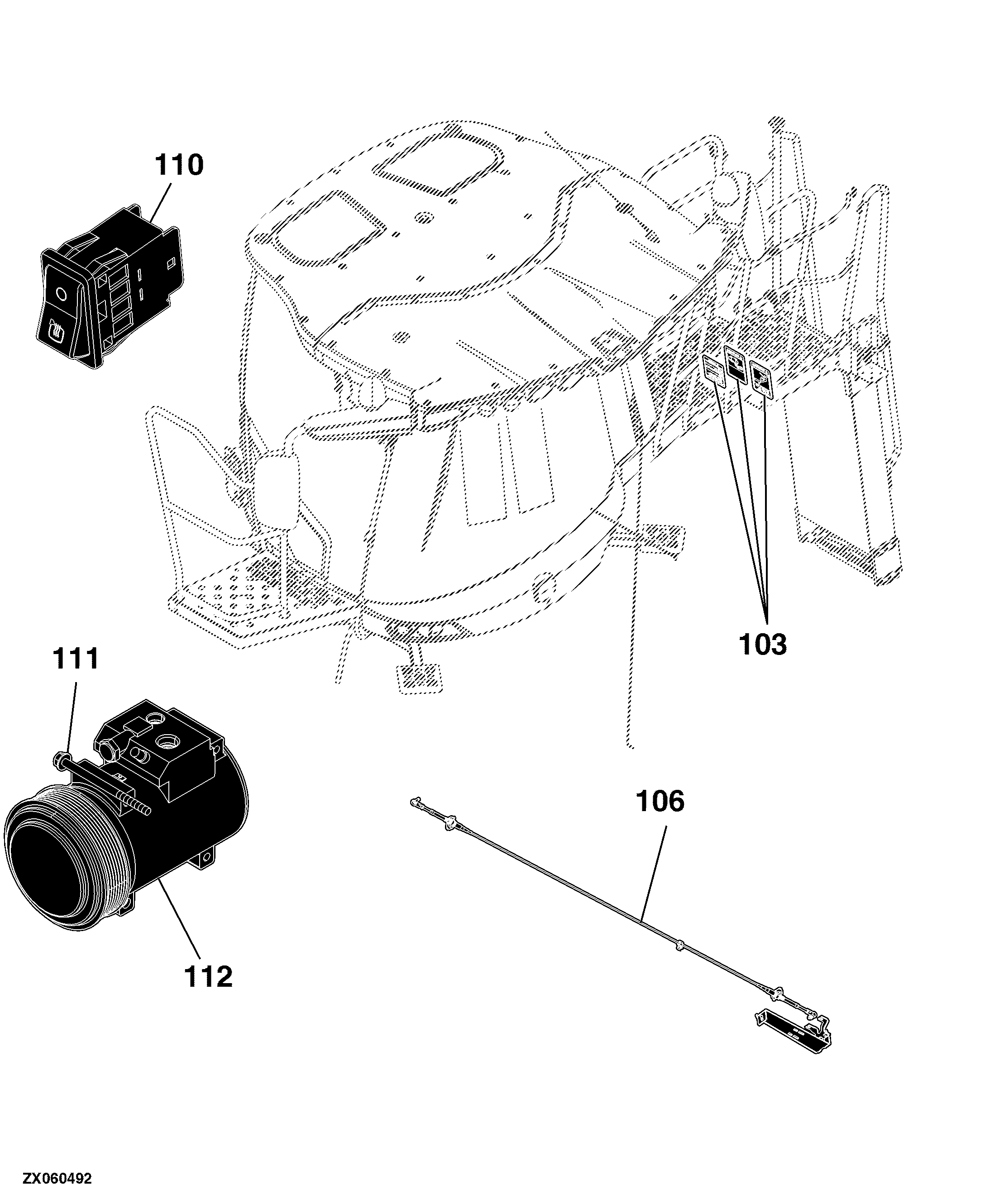

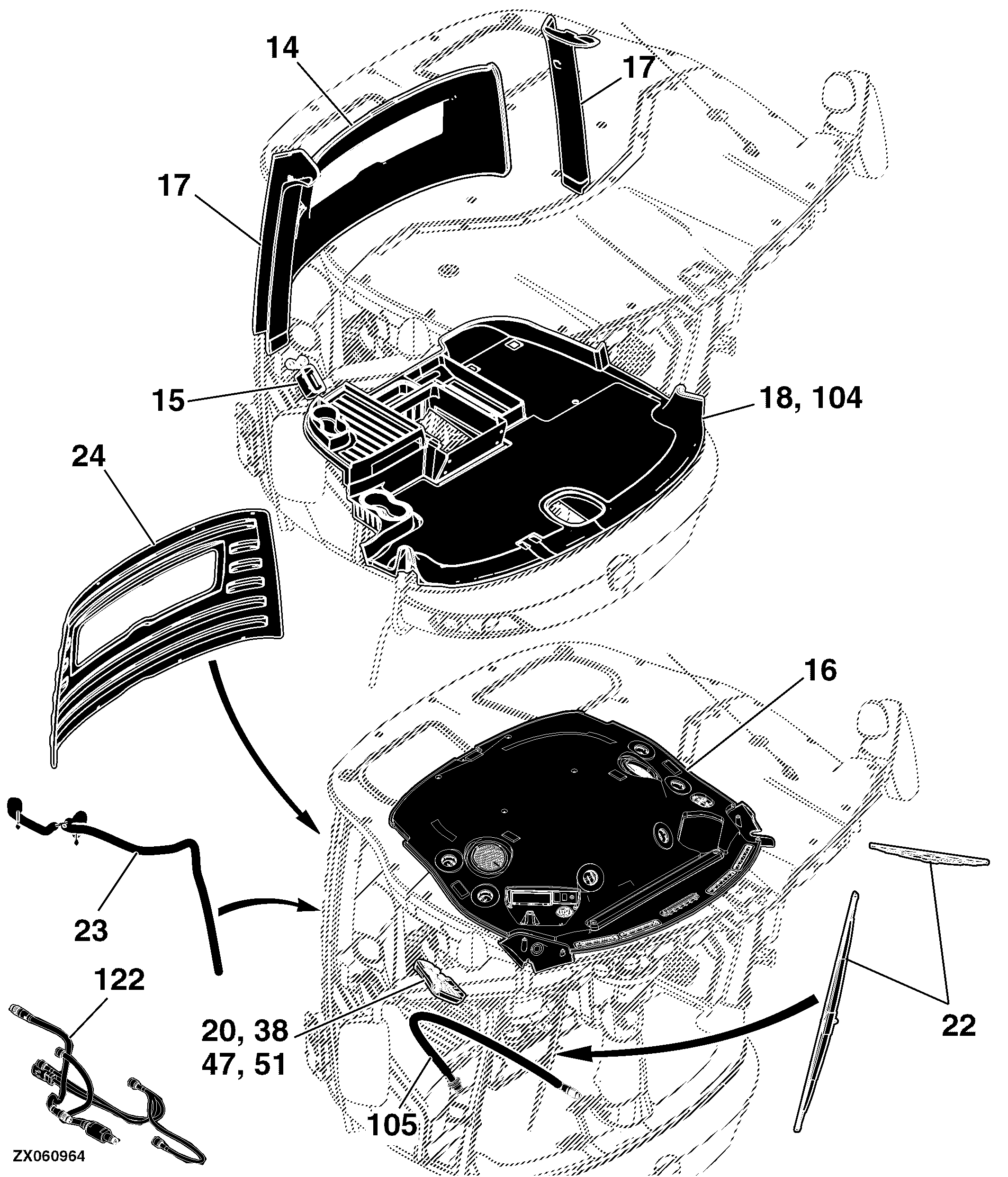

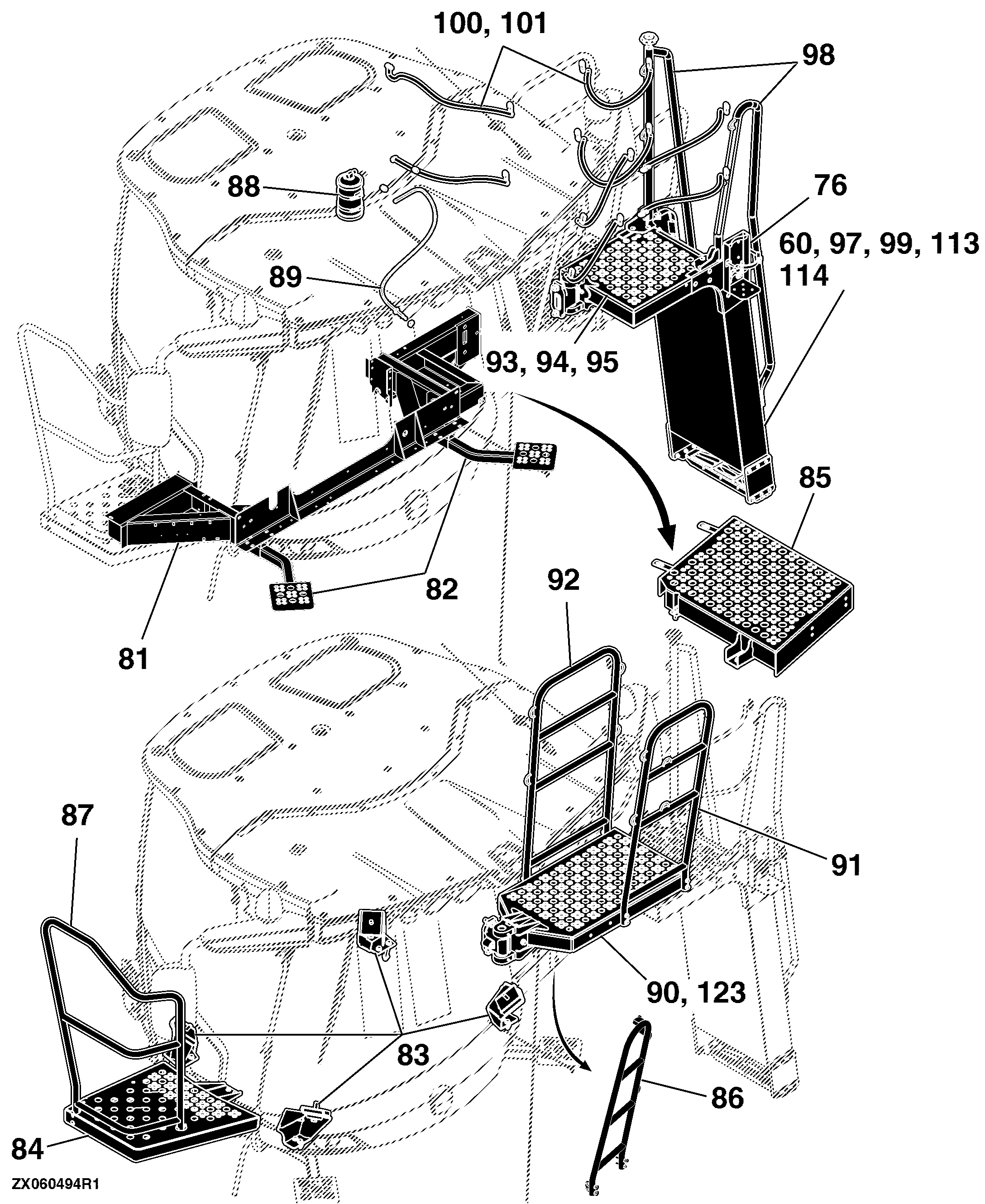

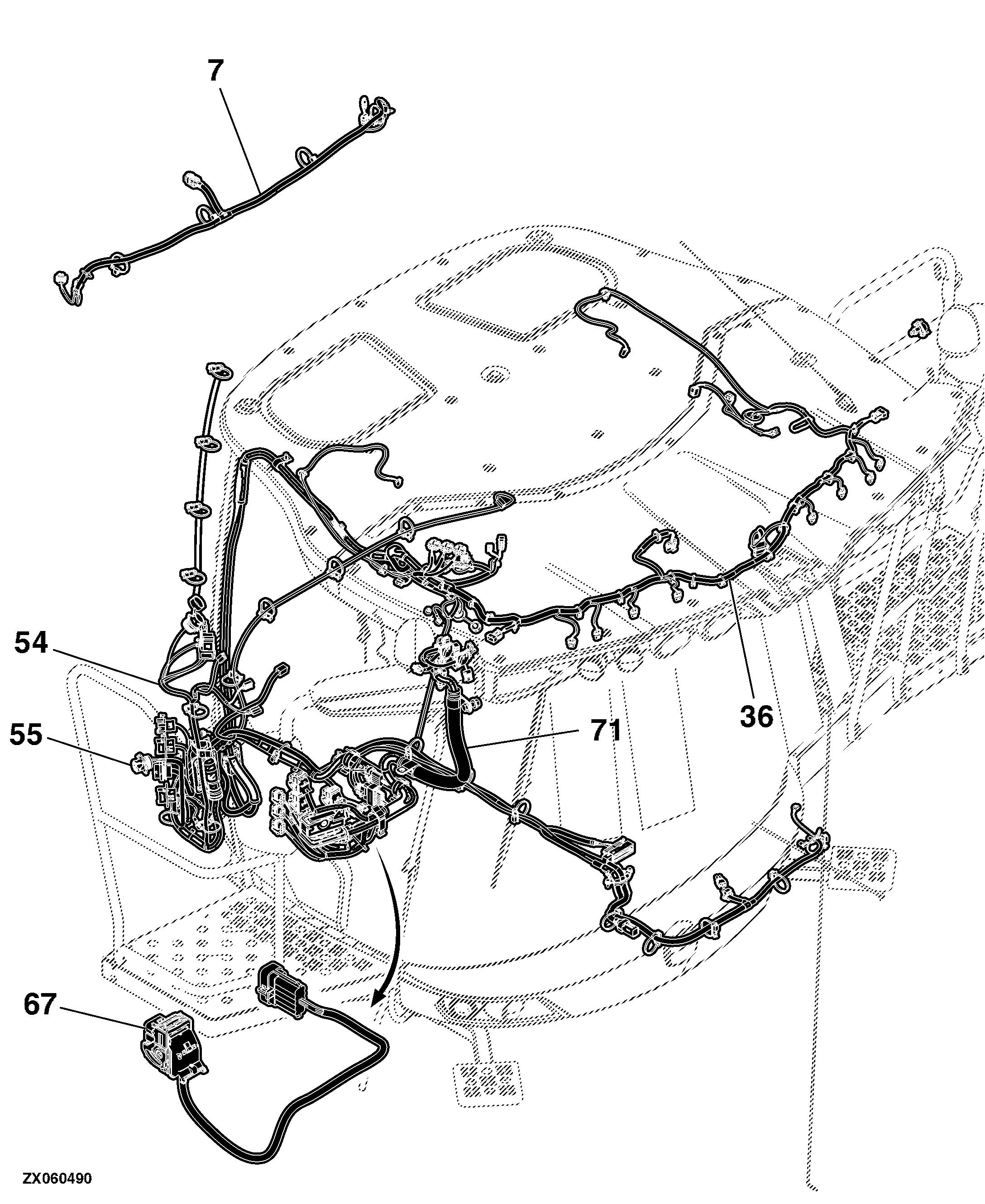

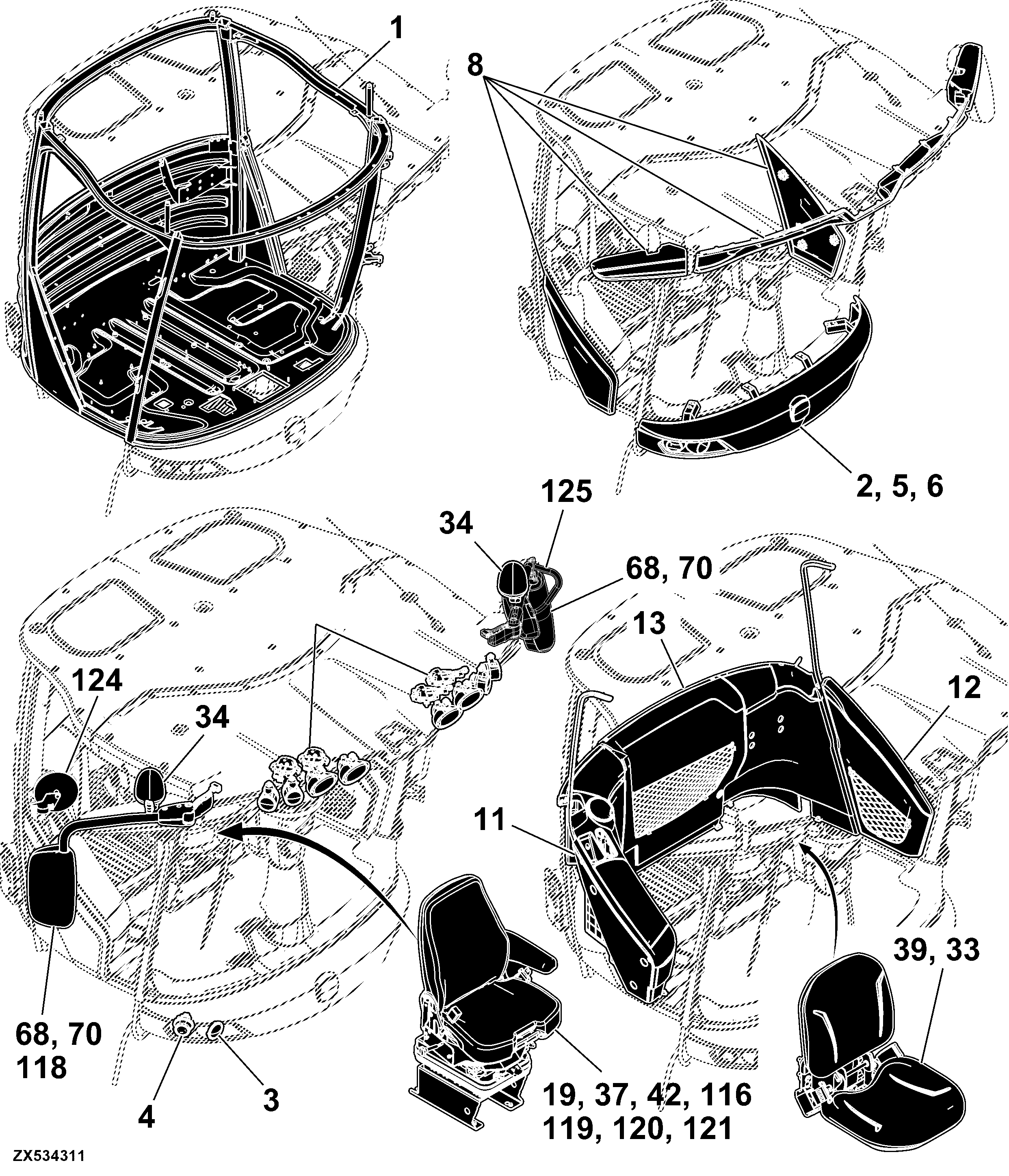

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Mat, Fridge Rear Plugs	-
-	-	1	Ladder Label, Text Free	-
-	-	1	Ladder, Double Hanger Step, Long	-
-	-	1	Ladder, Double Hanger Step, Short	-
-	-	1	Landing Platform Assembly LH, Single Tire	-
-	-	1	Landing Platform Assembly RH	-
-	-	1	Lower Cab Fascia Lights	-
-	-	1	Lower Drivers Seat, Leather	-
-	-	1	Machine Communication Radio Bracket and Gasket	-
-	-	1	Ladder Handrail	-
-	-	1	Mounting Hardware, Controller and Telematics	-
-	-	1	Outer Fascia Plugs Cover	-
-	-	1	Outer Roof and Antenna Cables	-
-	-	1	Outer Roof Hole Cover	-
-	-	1	Outer Roof Mounting Hardware	-
-	-	1	Passenger Seat Assembly, Leather	-
-	-	1	Passenger's Seat, Basic	-
-	-	1	Platform Extension, 230 mm, 9"	-
-	-	1	Key Cap, Self Leveling Shoe	-
-	-	1	Key Cap, HillMaster™	-
-	-	1	ISO Ladder, Extended Hanger, Short	-
-	-	1	ISO Ladder, Extended Hanger	-
-	-	1	ISO Ladder Support	-
-	-	1	Inner Roof	-
-	-	1	Inner Fascia Plugs Cover	-
-	-	1	Hydrostatic Drive Control Cable	-
-	-	1	Horn Assembly	-
-	-	1	Holder Assembly , Multi material	-
-	-	1	Headliner W/ Louvers	-
-	-	1	Headlight, Working Lights, W/O Ballast	-
-	-	1	Handrail, Front, LH	-
-	-	1	Handrail Assembly, RH	-
-	-	1	Halogen Headlights	-
-	-	1	Telematics Wiring Harness	-
-	-	1	Wiring Harness, Second Power Module	-
-	-	1	Wiring Harness, Multifunction Mechanism Control, Push Pull	-
-	-	1	Wiring Harness, Ethernet	-
-	-	1	Wiring Harness, Cab Main (2 of 2)	-
-	-	1	Wiring Harness, Cab Main (1 of 2)	-
-	-	1	Wiring Harness, AMS™	-
-	-	1	Windshield Wiper	-
-	-	1	Windshield Washer Reservoir	-
-	-	1	Windshield Hoses and Fitting	-
-	-	1	Vehicle Controller, Cab	-
-	-	1	Uppers Drivers Seat, Leather	-
-	-	1	Upper Rear Wall Cab Frame W/ Sound Barrier ( - 795000)	-
-	-	1	Upper Fascia Lights W/ LED Floodlamps	-
-	-	1	Upholstery, W/ Storage, Rear	-
-	-	1	Text Free Safety Decals	-
-	-	1	Grain Tank Mirror Kit	-
-	-	1	Switch Module, Control Console	-
-	-	1	Sun Visor	-
-	-	1	Step Assembly	-
-	-	1	Speaker, Subwoofer Assembly	-
-	-	1	Roof Wiring Harness (3 of 3)	-
-	-	1	Roof Wiring Harness (2 of 3)	-
-	-	1	Roof Wiring Harness (1 of 3)	-
-	-	1	Receiver Dryer, 100 cc Oil	-
-	-	1	Rear Wall W/ Window	-
-	-	1	Rear Upholstery, Upper	-
-	-	1	Primary Display Unit	-
-	-	1	Plug, Mirror	-
-	-	1	Platform, Ladder Pivot and Pivot Receiver	-
-	-	1	Platform, Dual Tire Extension	-
-	-	1	Platform Extension, 330 mm	-
-	-	1	Cab Support, Strut Support, and Hardware	-
-	-	1	Cab Handles, Inner and Outer	-
-	-	1	Cab Mounting Bracket	-
-	-	1	Cab Panels Cover	-
-	-	1	Cab Panels Cover, Green Fascia	-
-	-	1	Cab Power Module 2	-
-	-	1	Cab Socket Outlet W/ Auxiliary for Deluxe Cab	-
-	-	1	Cab Socket Outlet W/ Auxiliary Wiring Harness	-
-	-	1	Cab Socket Outlet W/ Auxiliary, Basic Cab	-
-	-	1	Cab Frame, W/ Sound Barrier	-
-	-	1	Cab Wall Plate	-
-	-	1	Cap	-
-	-	1	CommandARM™ Lower Tub Housing	-
-	-	1	Compressor, IT4 Engine	-
-	-	1	Control Console, CommandARM™	-
-	-	1	Control Console, CommandARM™, Leade	-
-	-	1	Controller Mounting Hardware	-
-	-	1	Controller Mounting Hardware Parts, Base Option and Electronic Power Module	-
-	-	1	Cab Frame	-
-	-	1	Cab Controller Mounting Hardware, Base Option	-
-	-	1	Bracket, Lower Side Sheet Extension	-
-	-	1	Beverage Cooler	-
-	-	1	Beacon Lights	-
-	-	1	Armrest Wiring Harness	-
-	-	1	Arm Assembly, Secondary Display Unit	-
-	-	1	Antenna, Vehicle Communication Radio, Low Power	-
-	-	1	Antenna, Premium Radio, W/ Bluetooth	-
-	-	1	Antenna, Modular Telematics Gateway (MTG) 3G	-
-	-	1	Antenna, Basic Radio	-
-	-	1	Antenna Cable, Machine Communication Radio	-
-	-	1	Air Conditioner Compressor, Tier 2	-
-	-	1	Acoustical Upholstery, Tray	-
-	-	1	Acoustical Upholstery, Rear-Right, W/ Storage	-
-	-	1	Dual Extension Platform Safety Chain	-
-	-	1	Global Positioning System Receiver Mounting Bracket	-
-	-	1	Gasket, Cover Installation, Rear Wiper Cover	-
-	-	1	Front Windshield	-
-	-	1	Floor Mat Premium	-
-	-	1	Fire Extinguisher Support (Europe Only)	-
-	-	1	Fascia Lights Wiring Harness	-
-	-	1	External Mirrors W/ Electrical Mirror Head	-
-	-	1	External Mirror, Electrical Head, W/ Curb Mirror, Short	-
-	-	1	External Mirror Supports	-
-	-	1	Electrical Switches for the Outer Mirrors, On the Inner Roof, Premium	-
-	-	1	Electrical Hydrohandle Mechanism Control W/ Sensor	-
-	-	1	Dual Tire Platform Extension, Attachment	-
-	-	1	Dual Tire Extension Handrail, Rear	-
-	-	1	Dual Tire Extension Handrail, Front	-
-	-	1	Dual Extension Platform Safety Chain, Single Tire W/ Wedge	-
-	-	1	Acoustical Upholstery W/ Storage, LH	-
-	-	1	Drivers Seat, Leather	-
-	-	1	Driver Seat Assembly, Premium	-
-	-	1	Driver Seat Assembly, Basic	-
-	-	1	Driver Seat Assembly Parts (2 of 2)	-
-	-	1	Driver Seat Assembly Parts (2 of 2)	-
-	-	1	Driver Seat Assembly Parts (1 of 2)	-
-	-	1	Driver Seat Assembly Parts (1 of 2)	-
-	-	1	Door, LH	-
-	-	1	Door RH, Tinted, Fixed	-
-	-	1	Door Lock, LH	-
-	-	1	Display Module, SDUA Deluxe, CMD Arm	-
-	-	1	Display Module, Advanced Secondary Video Version	-
-	-	1	Display Arm, W/ Ethernet	-
-	-	1	Curb Mirror Kit, LH	-
-	-	1	Corner Post Covers and Safety Hammer, Rear	-

90 Operators Station S690HM - MY14

Нет текстового описания
