Wiring Harness, Cab Main (2 of 2)

Wiring Harness, Cab Main (2 of 2)

Wiring Harness, Cab Main (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

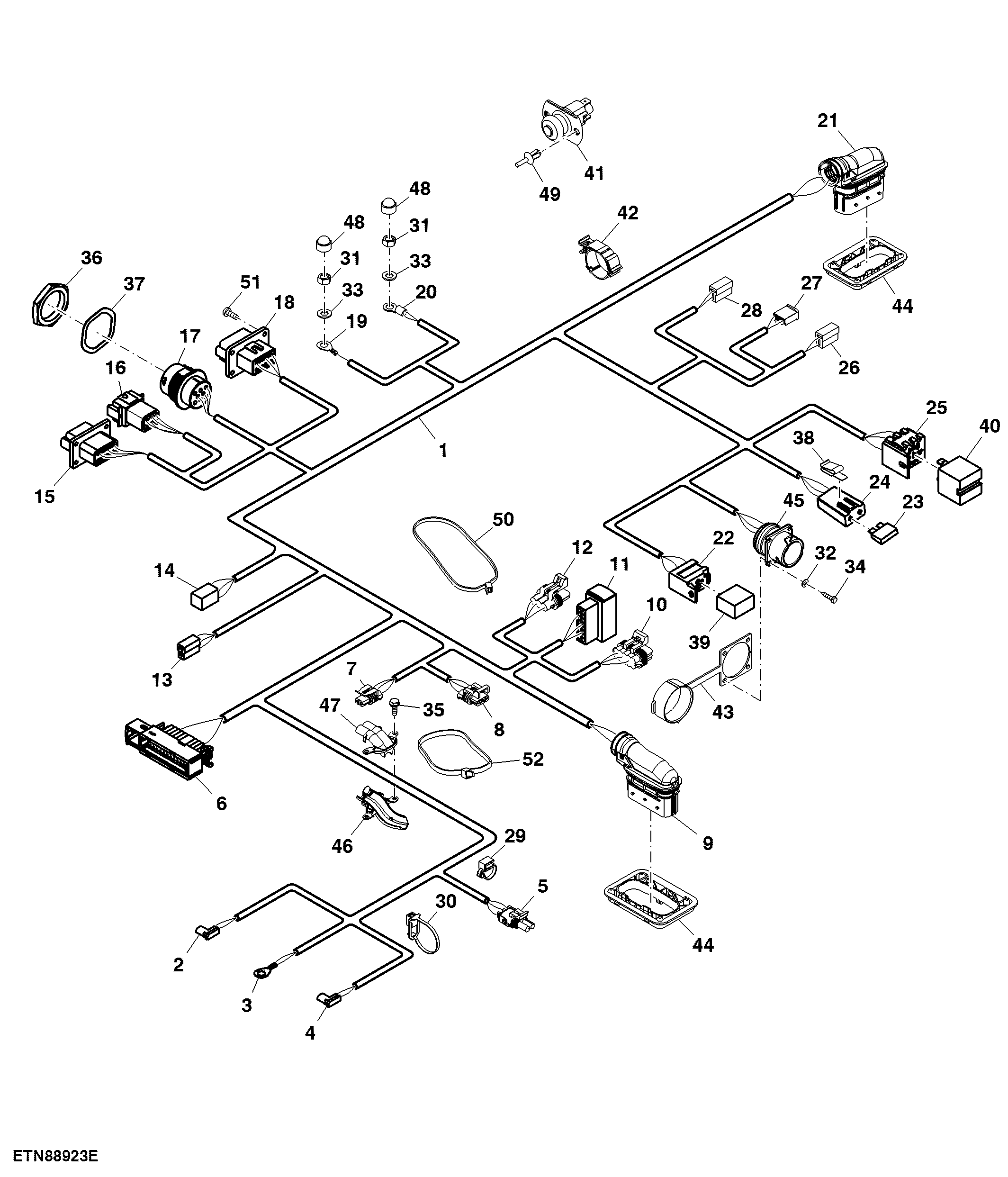

Wiring Harness, Cab Main (2 of 2)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	57M8738	1	Elec. Connector Accessory	-
21	57M8731	1	Elec. Connector Housing	Cab Main / Cab Roof Harness
21	57M7399	4	Elec. Connector Seal	Cavity 58, 59, 61, 62
21	57M8241	14	Elec. Connector Terminal	Cavity 17, 18, 19, 20, 21, 26, 28, 29, 30, 31, 32, 50, 55, 56
21	57M7403	23	Elec. Connector Cavity Plug	Cavity 5, 6, 7, 8, 13, 14, 15, 16, 22, 23, 24, 27, 38, 39, 40, 41, 44, 45, 46, 47, 48, 49, 51
21	57M7402	19	Elec. Connector Cable Seal	Cavity 1, 2, 3, 4, 9, 10, 11, 12, 25, 33, 34, 35, 36, 37, 42, 43, 52, 53, 54
21	57M9045	1	Elec. Connector Seal	Cavity 57
21	57M9041	1	Elec. Connector Terminal	Cavity 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 31, 32, 37, 50, 52, 53, 54, 55, 56
21	57M10556	14	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 9, 10, 11, 12, 33, 34, 35, 36, 42, 43
21	57M10371	4	Elec. Connector Terminal	Cavity 58, 59, 61, 62
22	Z61311	1	Elec. Connector Housing	A38 Diode Module
22	57M7103	1	Elec. Connector Terminal	Cavity 30
22	Z61304	1	Elec. Connector Terminal	Cavity 85
22	57M7185	1	Elec. Connector Terminal	Cavity 86
22	57M7103	1	Elec. Connector Terminal	Cavity 87
23	57M7125	1	Fuse	5A
24	57M8829	1	Elec. Connector Accessory	F66 Diode Module Fuse
24	57M7507	1	Elec. Connector Terminal	Cavity B
24	57M7508	1	Elec. Connector Terminal	Cavity A
25	ET15766	1	Elec. Connector Housing	H35 Warning Horn
25	57M7514	2	Elec. Connector Terminal	-
26	57M7065	1	Elec. Connector Housing	X21 Auxiliary Power Outlet 1
26	57M7431	2	Elec. Connector Terminal	-
27	57M10439	1	Elec. Connector Housing	A126 Stereo Auxiliary Assembly
27	57M10443	5	Elec. Connector Terminal	-
28	57M7065	1	Elec. Connector Housing	X22 Auxiliary Power Outlet 2
28	57M7431	2	Elec. Connector Terminal	-
29	L171035	1	Tie Band	-
30	L171122	22	Tie Band	-
31	14M7273	2	Nut	M8
32	24M7029	4	Shim	TK = 0.5 mm
33	24M7055	2	Washer	8.400 X 16 X 1.600 mm
34	37M7095	4	Screw	-
35	37M7459	2	Screw	M6 X 20
36	57M8428	1	Electrical Connector Assy	-
37	57M9062	1	Elec.Connect Locking Device	-
38	57M9413	1	Clip	-
39	AL152098	1	Diode Holder	-
40	AL159759	1	Audible Warning Alarm	-
41	AL172328	1	Switch	-
42	L209624	4	Clamp	-
43	L156796	1	Plug	-
44	L170145	2	Holder	-
45	57M7919	1	Elec. Connector Housing	-
46	L207678	1	Channel	-
47	L207680	1	Channel	-
48	L32394	2	Cap	-
49	L39134	4	Rivet	-
50	Z34568	1	Clamp	-
51	M93511	12	Screw	-
52	L41858	1	Tie Band	-
