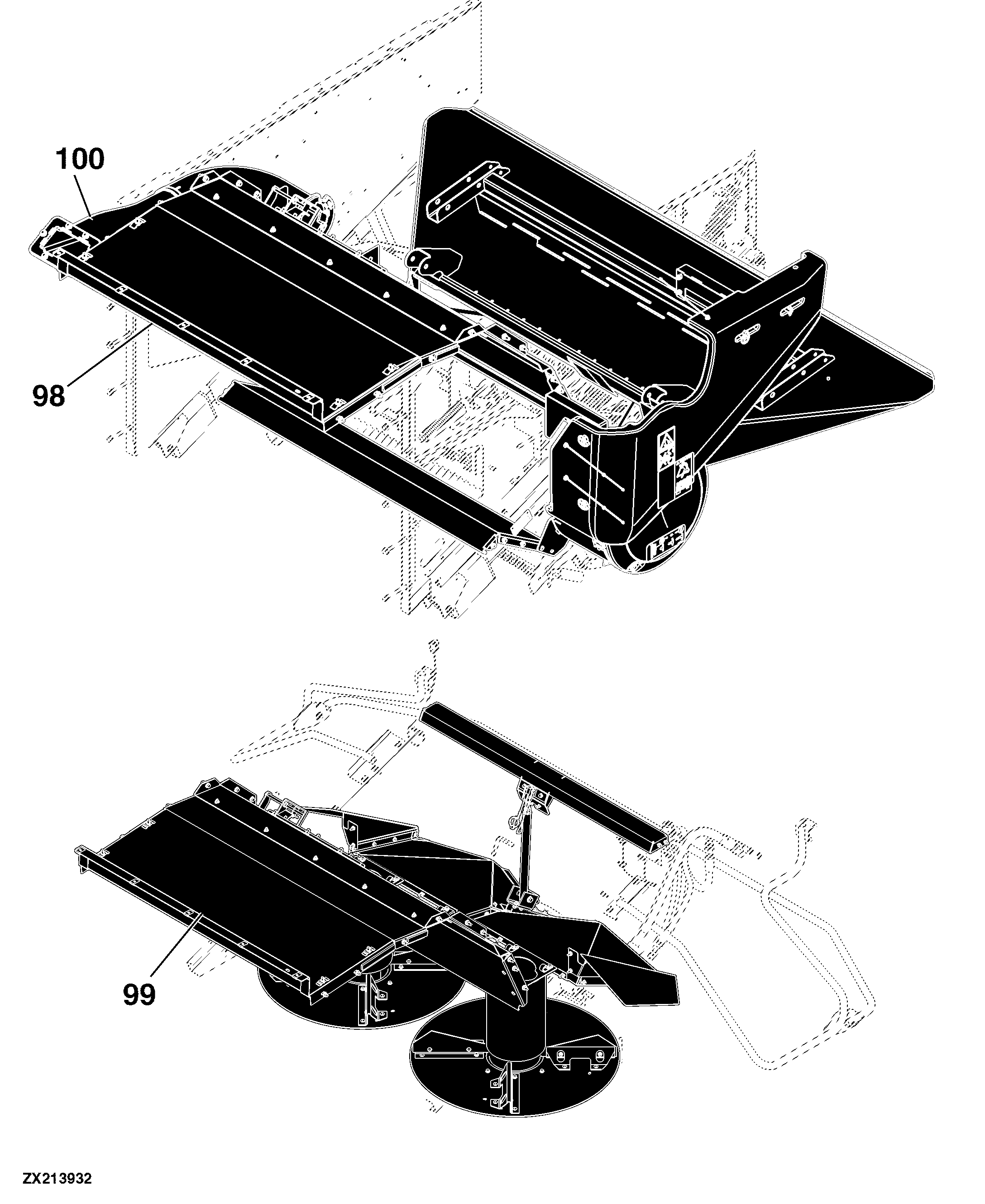

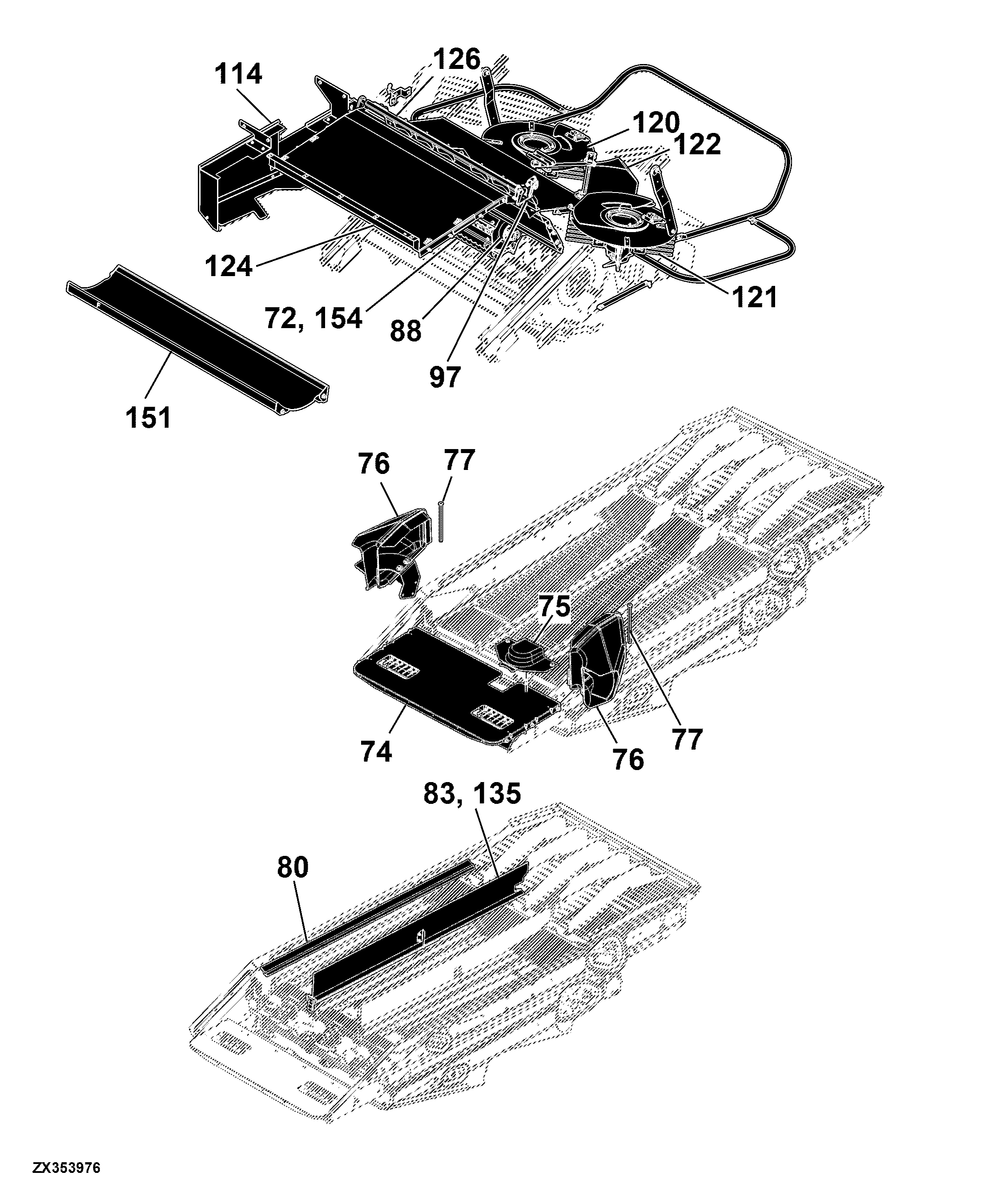

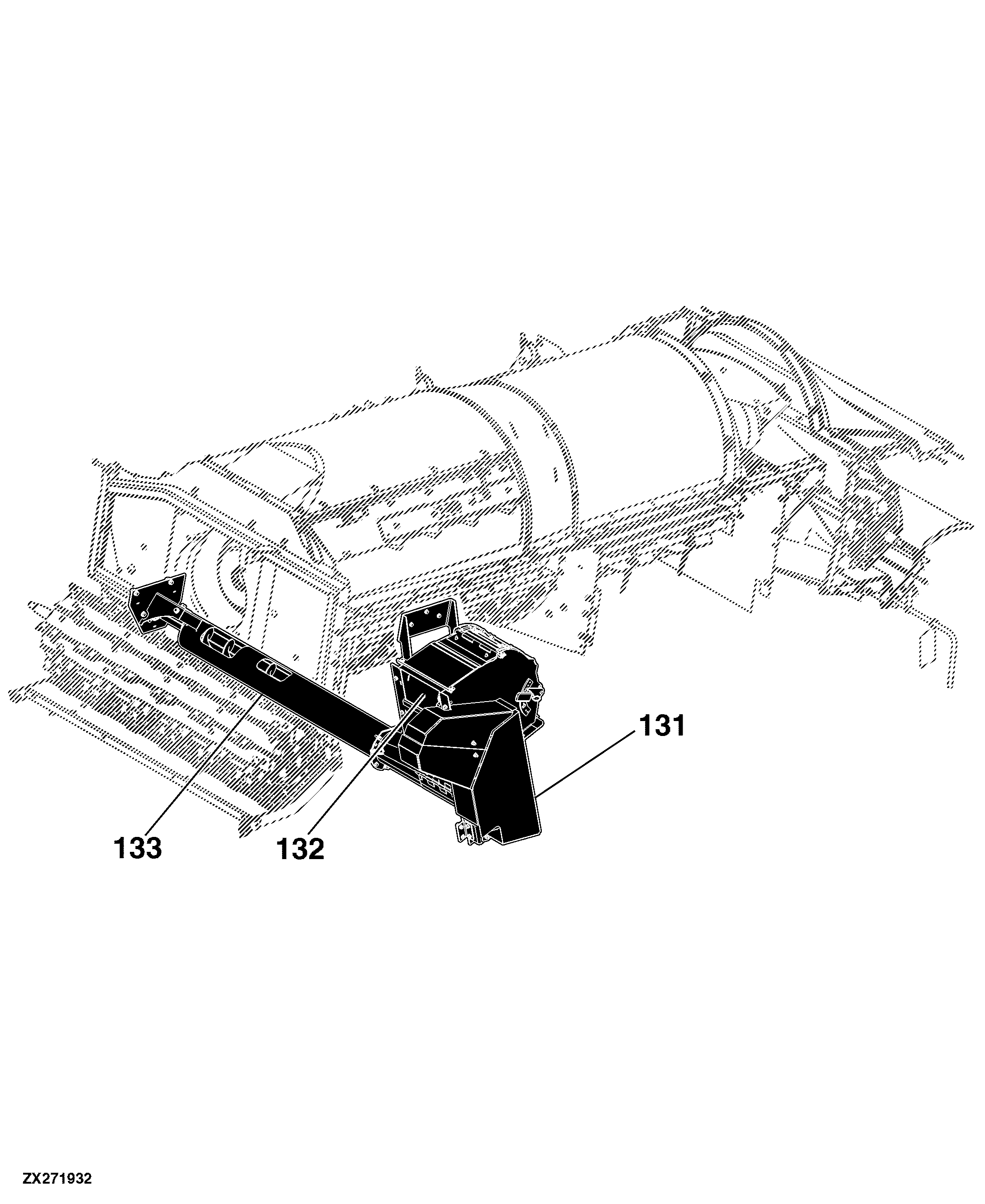

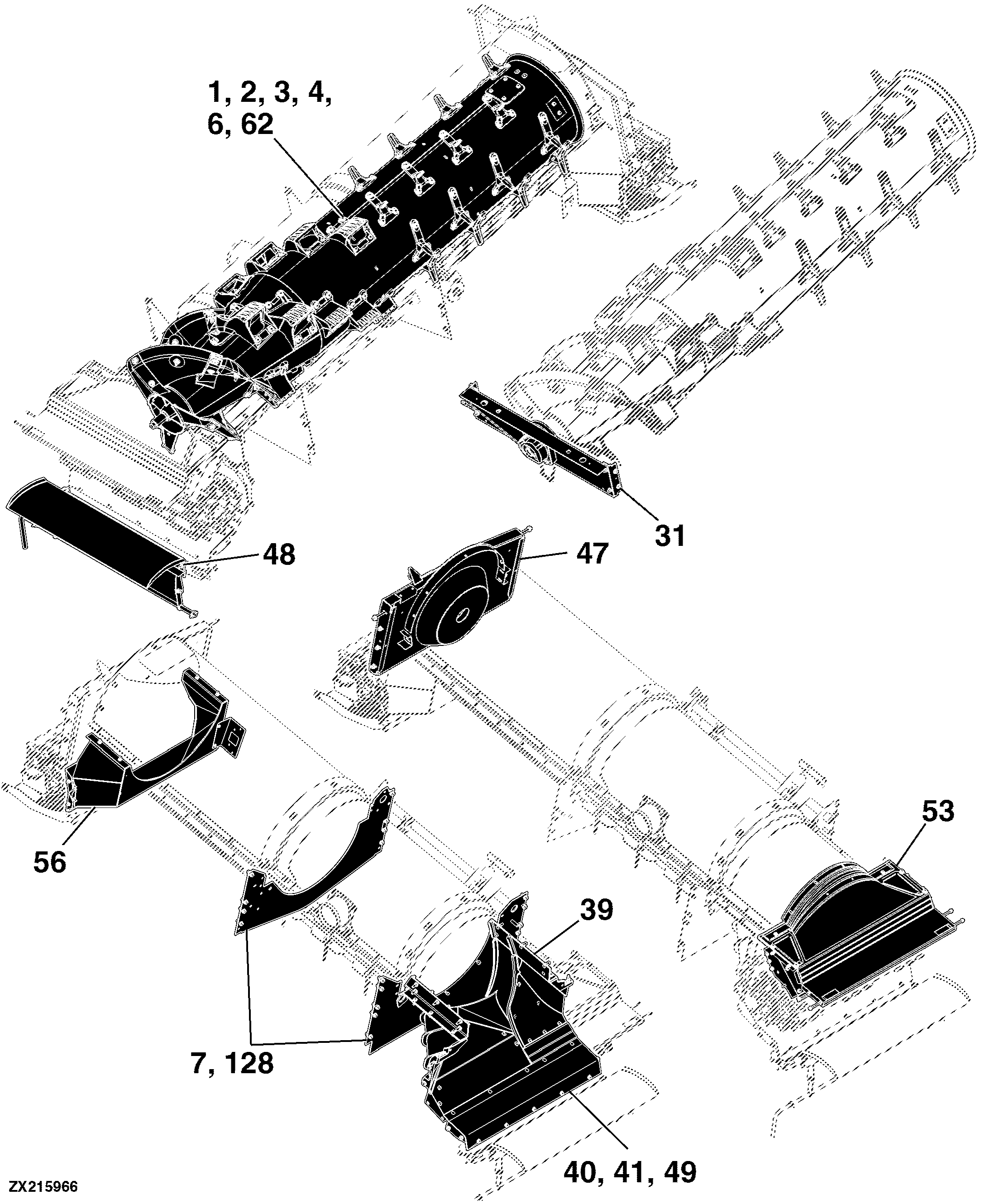

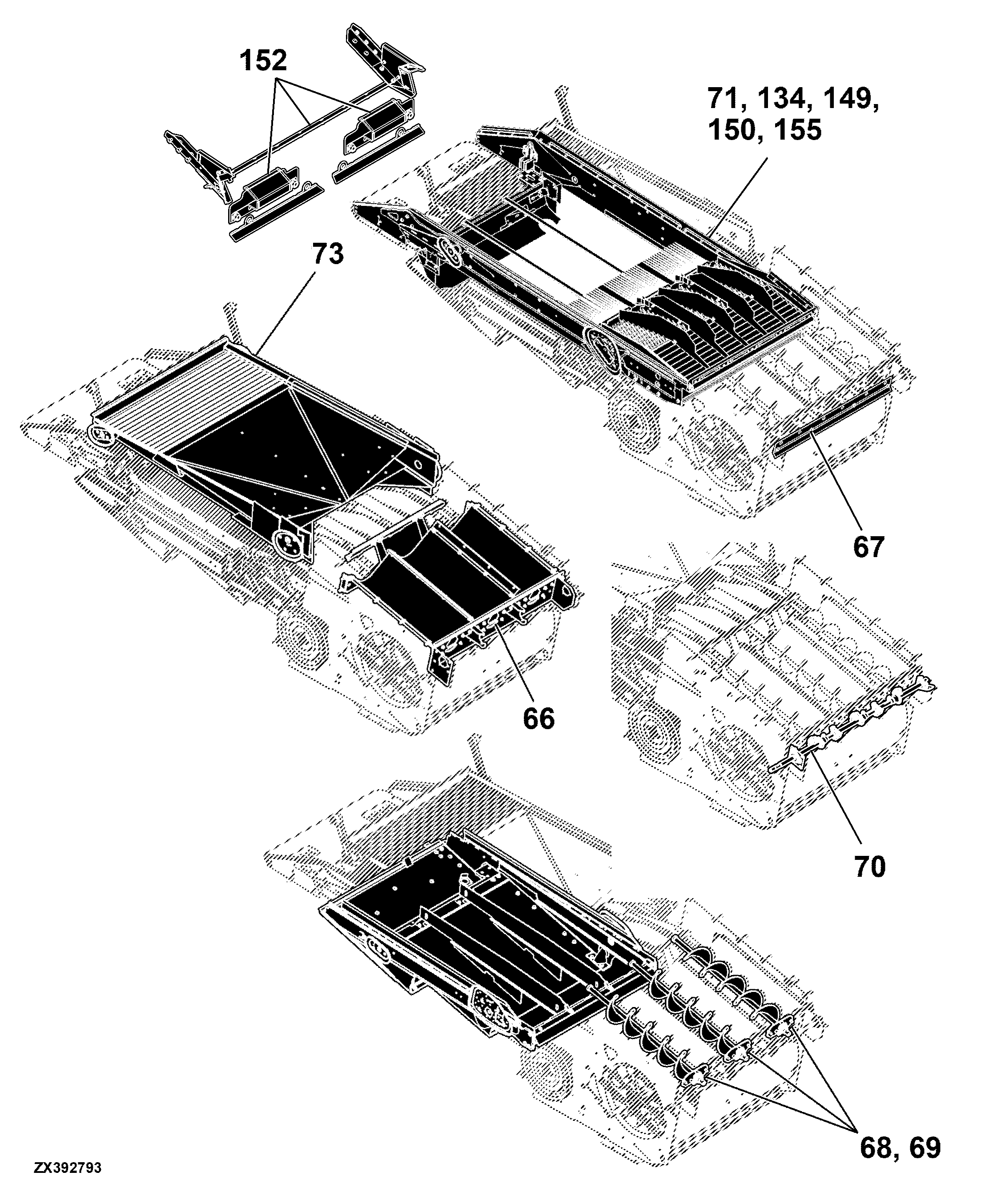

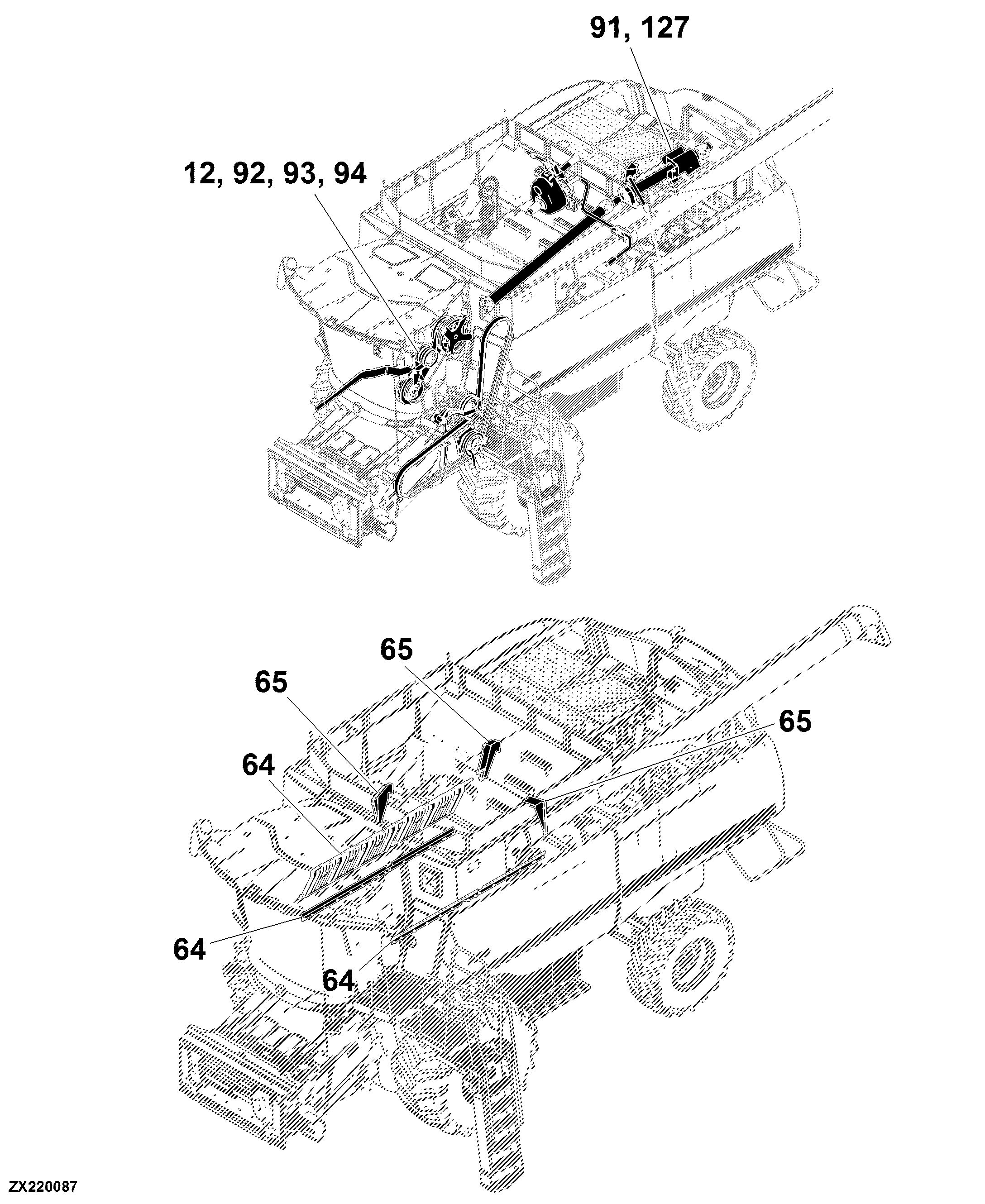

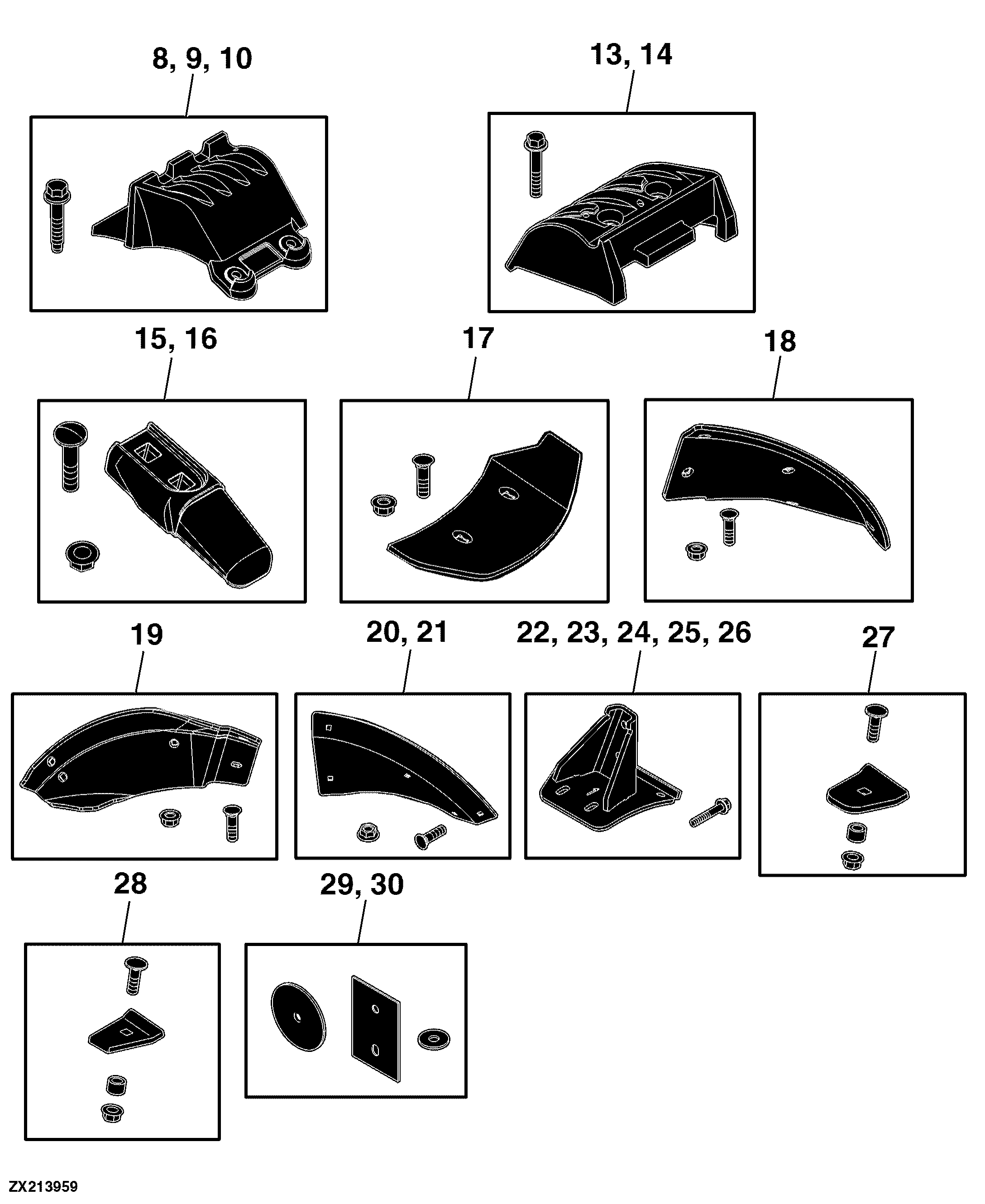

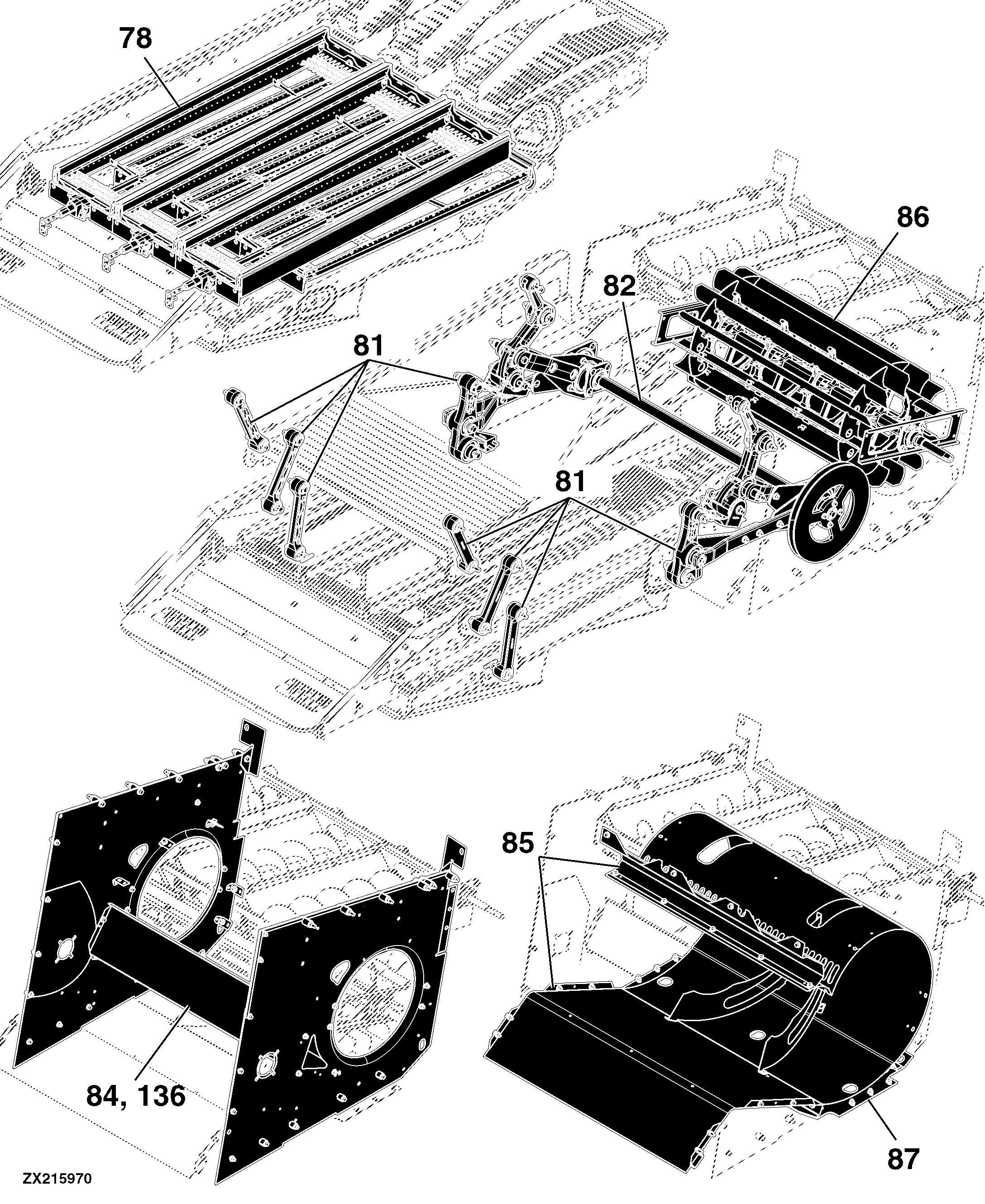

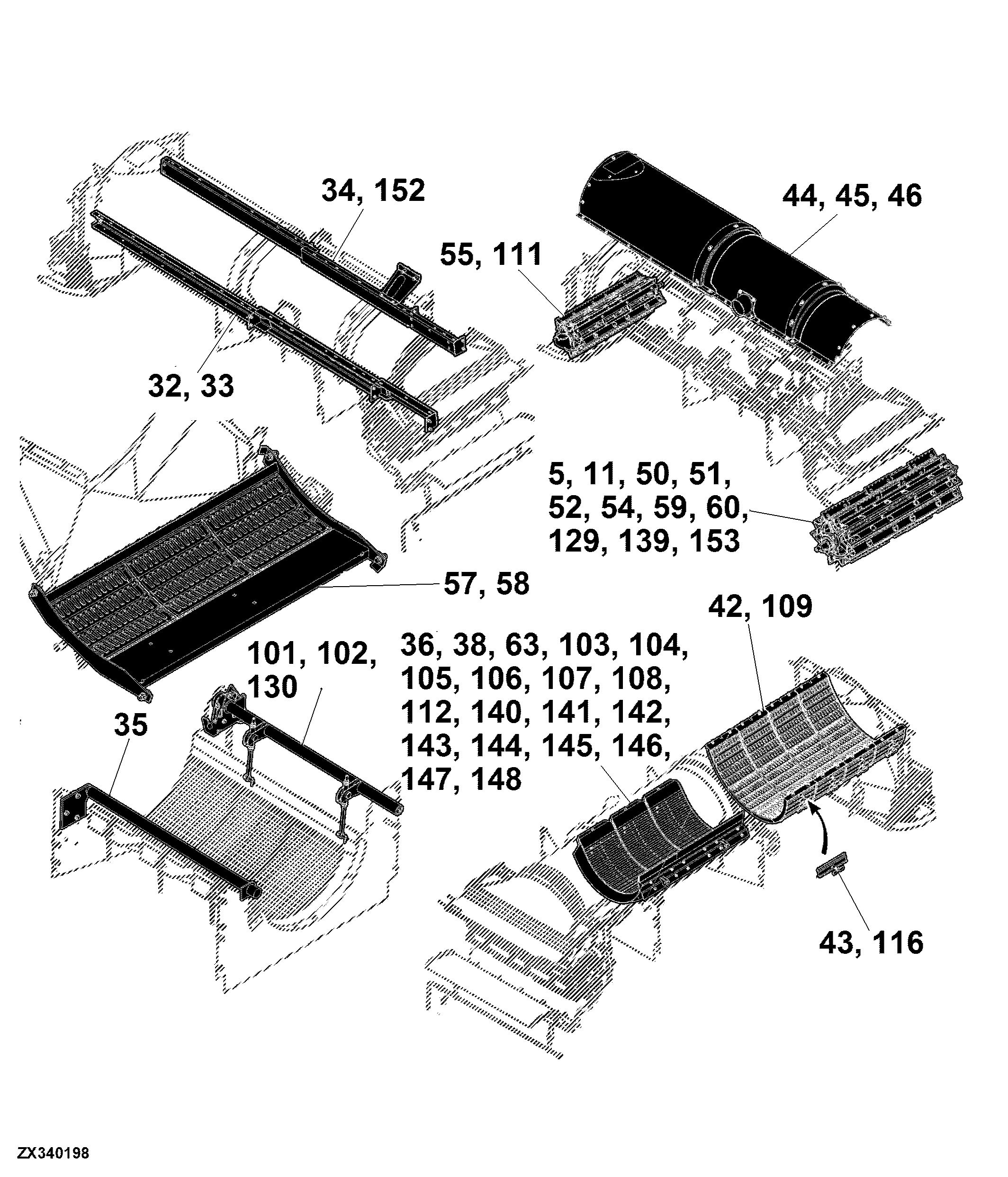

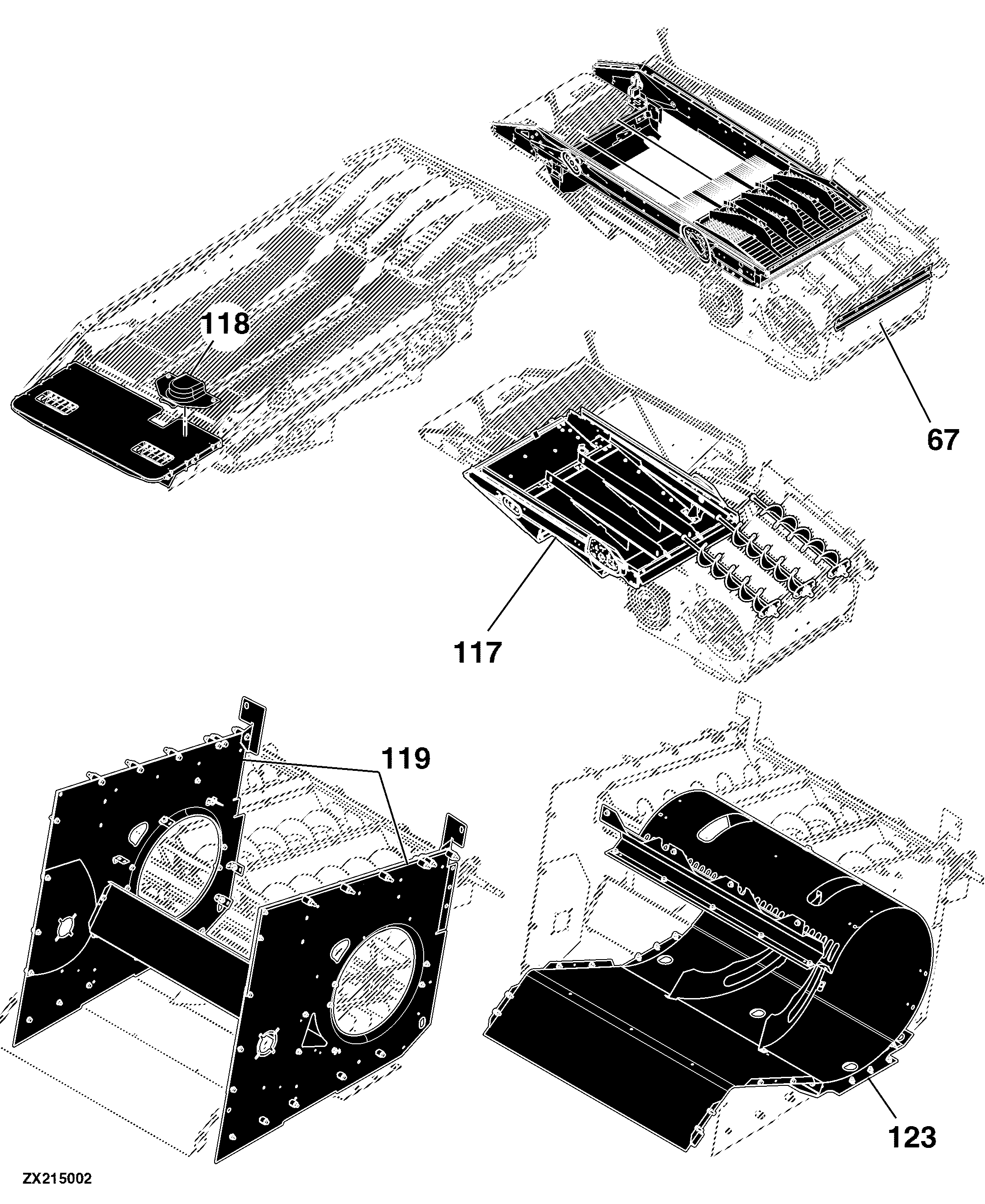

120 Separator, Cleaning Unit Combine S680 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Separator Door Filler Plates	-
-	-	1	Round Bar Concave - Regular	-
-	-	1	Round Bar Concave Cover Kit	-
-	-	1	Round Bar Concave, Extended Wear, Attachment	-
-	-	1	Round Bar Concave, High Wear	-
-	-	1	Seal, Sieve Side, Dyna Flow 3	-
-	-	1	Sensor Mount	-
-	-	1	Separator Bulkhead Support	-
-	-	1	Separator Cover Kit, LH	-
-	-	1	Separator Covers, Filler Plates and Seals	-
-	-	1	Rotor Assembly Kit, Thick, Grain	-
-	-	1	Separator Door Seals	-
-	-	1	Separator Doors, Covers, Seals, and Hardware	-
-	-	1	Separator Doors, Seals, and Hardware	-
-	-	1	Separator Grate	-
-	-	1	Separator Grate Covers	-
-	-	1	Separator Grate, Heavy Duty, Welded	-
-	-	1	Separator Jackshaft Drives, High Capacity, Front, RH	-
-	-	1	Separator Locking Stone Trap	-
-	-	1	Separator Rail, Conical - LH, Standard, 5 Speed	-
-	-	1	Overshot Beater Assembly	-
-	-	1	High Wear Separator Rail Kit, LH	-
-	-	1	Jackshaft Drive, Rear RH	-
-	-	1	Large Wire / Regular Wear Concave, Attachment (775001 - )	-
-	-	1	Large Wire Concave - Regular	-
-	-	1	Large Wire Concave, High Wear, Attachment	-
-	-	1	Large Wire Concave, Regular Wear, Attachment	-
-	-	1	Large Wire Concave, Regular, High Wear	-
-	-	1	Over Shot Beater Drive Shielding	-
-	-	1	Overshot Beater	-
-	-	1	Separator Rail, LH, Standard	-
-	-	1	Overshot Beater Cover and Wear Strips, Attachment	-
-	-	1	Overshot Beater Cover Kit	-
-	-	1	Overshot Beater Drive, Premium Flex Residue	-
-	-	1	Rear Bulkhead and Gearbox Support	-
-	-	1	Rear Rotor Flight Kit	-
-	-	1	Remote Shoe Adjust Actuator, Level Land	-
-	-	1	Rotary Top Covers, Adjustable Conical, High Wear	-
-	-	1	Rotary Top Covers, Adjustable Conical, Regular Wear	-
-	-	1	TriStream™ Rotor Assembly, Regular Wear	-
-	-	1	Threshing Element Kit, High Wear, Corn and Grain, 2N	-
-	-	1	Threshing Element Kit, High Wear, Grain	-
-	-	1	Threshing Element Kit, Standard	-
-	-	1	Threshing Tine Wear Plates Kit, Variable Stream Rotor, Rice	-
-	-	1	Threshing Tines Kit, Variable Stream Rotor, Row 1	-
-	-	1	Threshing Tines Kit, Variable Stream Rotor, Row 2	-
-	-	1	Threshing Tines Kit, Variable Stream Rotor, Row 3	-
-	-	1	Threshing Tines Kit, Variable Stream Rotor, Row 4	-
-	-	1	Threshing Tines, Variable Stream Rotor, All Rows, Attachments	-
-	-	1	Tailings Rethresher Return Auger	-
-	-	1	Universal Drive Shaft, 5 Speed	-
-	-	1	Universal Driveshaft - Large Yoke	-
-	-	1	Variable Stream Rotor Kit	-
-	-	1	Variable Stream Rotor, Dense Pack Tines - High Wear, Rice	-
-	-	1	Variable Stream Rotor, Regular, Grain	-
-	-	1	Variable Stream Rotor, Threshing Element Kit, Grain High Wear	-
-	-	1	Variable Stream Rotor, Threshing Element Kit, Rice High Wear	-
-	-	1	Wide Feed Housing	-
-	-	1	Shoe, Conveyor Auger Drive	-
-	-	1	Separator Rail, RH, High Wear	-
-	-	1	Separator Rail, RH, Regular	-
-	-	1	Separator Stone Trap Floor and Seals	-
-	-	1	Separator Tine Kit, Variable Stream Rotor, Extra High Wear	-
-	-	1	Separator Tine Kit, Variable Stream Rotor, High Wear	-
-	-	1	Separator Top Covers and Seals, Regular	-
-	-	1	Shim Kit, Feed Accelerator Driver Drive	-
-	-	1	Shoe Kit Assembly	-
-	-	1	Shoe Kit Assembly, Chaffer Frame, Dyna-Flo™ 3	-
-	-	1	Grate Filler Cover, Heavy Duty	-
-	-	1	Small Wire / Extended Wear Concave Kit	-
-	-	1	Small Wire Concave - Regular	-
-	-	1	Small Wire Concave, High Wear	-
-	-	1	Small Wire Concave, High Wear	-
-	-	1	Spreader Cover Plate Pins	-
-	-	1	Support, Concave Adjustment, LH	-
-	-	1	Tailings Rethresher Beater	-
-	-	1	Tailings Rethresher Housing	-
-	-	1	Combine Shoe Fan Blades With Shaft	-
-	-	1	Chaffer Elements, Chaffer, Sieve, Level Land	-
-	-	1	Chaffer Elements, Chaffer, Sieve, Level Land (Deep Tooth)	-
-	-	1	Chaffer Frame Combine Shoe W/ Raised Center Front Extension	-
-	-	1	Chaffer Frame Reinforcement Kit	-
-	-	1	Chaffer Frame W/O Raised Center Front Extension	-
-	-	1	Cleaning Shoe Fan Windboard	-
-	-	1	Combine Shoe Chaffer Tailboard	-
-	-	1	Combine Shoe Conveyor Auger Drive	-
-	-	1	Combine Shoe Drive Shaft	-
-	-	1	Chaffer and Sieve Mounting	-
-	-	1	Combine Shoe Fan Housing	-
-	-	1	Combine Shoe Fan Side Sheets	-
-	-	1	Combine Shoe Return Pan	-
-	-	1	Combine Shoe Sieve Frame	-
-	-	1	Combine Shoe, Conveyor Auger Cleanout	-
-	-	1	Combine Shoe, Remote Shoe Adjust Cover, Dyna Flow 3	-
-	-	1	Concave Support, LH	-
-	-	1	Concave Support, LH	-
-	-	1	Attachment, Rear Feed Flight, Variable Stream Rotor	-
-	-	1	Advanced PowerCast™ Disk	-
-	-	1	Advanced PowerCast™ Shroud Adjustment	-
-	-	1	Air Chutes and Agitators	-
-	-	1	Air Duct, Flex Residue	-
-	-	1	Angle Bracket - Residue Deflector	-
-	-	1	Attachment, Concave Insert Bars	-
-	-	1	Attachment, Feed Accelerator Smooth Wear Strips	-
-	-	1	Attachment, Flat Bar Concave Covers	-
-	-	1	Attachment, Large Wire / Extended Wear Concave Kit (775001 - )	-
-	-	1	Concave Support, RH	-
-	-	1	Attachment, Rice Enhancement Wear Plates, Variable Stream Rotor	-
-	-	1	Attachment, Separator Grate Covers	-
-	-	1	Attachment, Small Wire / Extended Wear Concave Kit (775001 - )	-
-	-	1	Attachment, Small Wire / Regular Wear Concave Kit (775001 - )	-
-	-	1	Balance Weight Kit	-
-	-	1	Balance Weight Kit	-
-	-	1	Bottom Belly Pan	-
-	-	1	Bottom Belly Pan, Combine Shoe	-
-	-	1	Feed Accelerator Stone Trap Drive, Slow Speed	-
-	-	1	Discharge Flights Kit, Variable Stream Rotor	-
-	-	1	Discharge Housing	-
-	-	1	Extended Wear Round Bar Concave, Attachment	-
-	-	1	Feed Accelerator and Rear Discharge Beater Wings Kit	-
-	-	1	Feed Accelerator Anti Wrap Kit	-
-	-	1	Feed Accelerator Assembly, Corn/Grain	-
-	-	1	Feed Accelerator Stone Trap Beater, High Capacity	-
-	-	1	Feed Accelerator Stone Trap Beater, Rice	-
-	-	1	Feed Accelerator Stone Trap Drive, High Capacity	-
-	-	1	Discharge Beater, Premium Residue, High Capacity	-
-	-	1	Feed Accelerator Stone Trap Drive, Standard Speed	-
-	-	1	Feed Floor	-
-	-	1	Feed Floor Liner, LH	-
-	-	1	Front Beater Cover	-
-	-	1	Front Feed Flight Kit, Variable Stream Rotor	-
-	-	1	Front Rotor Bearing and Supports	-
-	-	1	Front Rotor Flight Kit	-
-	-	1	Grain Deflector and Sealing Kit	-
-	-	1	Deflector, Deluxe Residue	-
-	-	1	Conveyor Auger Drive W/ Slip Clutch	-
-	-	1	Conveyor Auger Housing	-
-	-	1	Conveyor Auger, Combine Shoe, High Wear	-
-	-	1	Conveyor Auger, Combine Shoe, Standard Wear	-
-	-	1	Cover	-
-	-	1	Crop Divider, Chaffer Element (Class 7)	-
-	-	1	Crop Divider, Chaffer Element (Class 8)	-
-	-	1	Deflector Kit	-
-	-	1	Deflector Kit	-
-	-	1	Actuator, Advanced PowerCast™, Single wag	-
-	-	1	Deflector, Premium Residue	-
-	-	1	Discharge Beater Assembly	-
-	-	1	Discharge Beater Drive, Extra Fine Cut Chopper	-
-	-	1	Discharge Beater Drive, Fine Cut Chopper	-
-	-	1	Discharge Beater Grate, Premium Flex Residue	-
-	-	1	Discharge Beater Grate, Thresh	-
-	-	1	Discharge Beater Long Drive, Corn	-
-	-	1	Discharge Beater, Premium Residue, Corn	-

120 Separator, Cleaning Unit Combine S680 - MY15

Нет текстового описания
