Chaffer Elements, Chaffer, Sieve, Level Land (Deep Tooth)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH165012	4	Mounting Parts	-
2	24M7180	4	Washer	13 X 37 X 3 mm
3	H169836	4	Spacer	-
4	H170071	4	Screw	-
5	H171075	4	Retainer	-
6	N14279	4	Compression Spring	-
7	R26286	4	O-Ring	-
8	24H1265	4	Washer	13/16" X 1-1/4" X 0.060"
9	14M7518	2	Flange Nut	M10
10	HXE11441	2	Strip	Outer
11	N231749	2	Washer	-
12	HXE11445	2	Leaf Spring	Outer
13	HXE11446	1	Leaf Spring	Centre
14	HXE16541	2	Isolator	-
15	AXE10856	1	Adjuster	USE WITH AXE20450
16	HXE11452	1	Strip	Centre USE WITH AXE20450
17	HXE11453	1	Leaf Spring	Centre USE WITH AXE20450
18	HXE11454	2	Strip	Outer USE WITH AXE20450
19	HXE11455	2	Leaf Spring	Outer USE WITH AXE20450
20	H156801	1	Actuator	-
21	HXE43052	1	Strip	-
22	AXE24458	1	Chaffer	SUB FOR AXE28478 OR AXE20449
23	AXE20450	1	Sieve	-
23	AXE18878	1	Sieve	10 mm Fixed Hole
23	AXE18879	1	Sieve	3 mm Fixed Hole
24	HXE42305	2	Label	Refer To Operator Manual
25	H178105	24	Nut	-
26	14M7397	2	Lock Nut	M6
27	19M7833	2	Screw	M6 X 35
28	19M7835	2	Screw	M10 X 35
29	R52516	2	Bushing	-
30	M90781	2	Spacer	-
31	AXE24467	1	Adjuster	-
32	AXE24468	1	Adjuster	-
33	H156800	2	Retainer	-
34	H205182	8	Rivet	-
35	AXE14081	2	Wiring Harness	-
36	57M7260	2	Elec. Connector Housing	-
36	57M10770	12	Elec. Connector Terminal	Cavity A, B, C, D, E, F
36	57M7258	12	Elec. Connector Seal	-
36	R104846	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F
36	R104919	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F
37	AXE10967	1	Adjuster	USE WITH AXE20449
38	HXE11442	1	Strip	USE WITH AXE20449
39	M139896	1	Label	USE WITH AXE18878 OR AXE18879

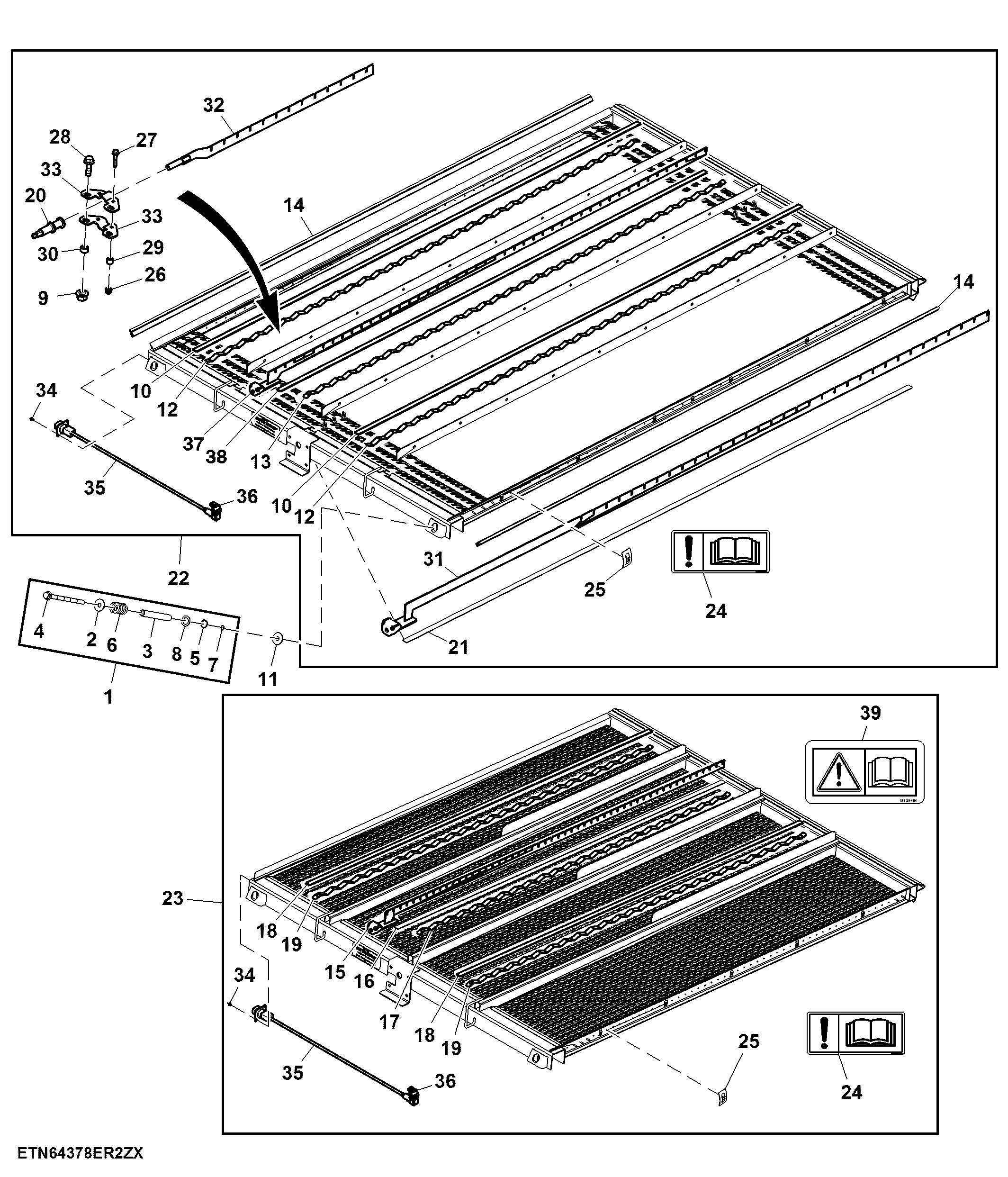

Chaffer Elements, Chaffer, Sieve, Level Land (Deep Tooth)
