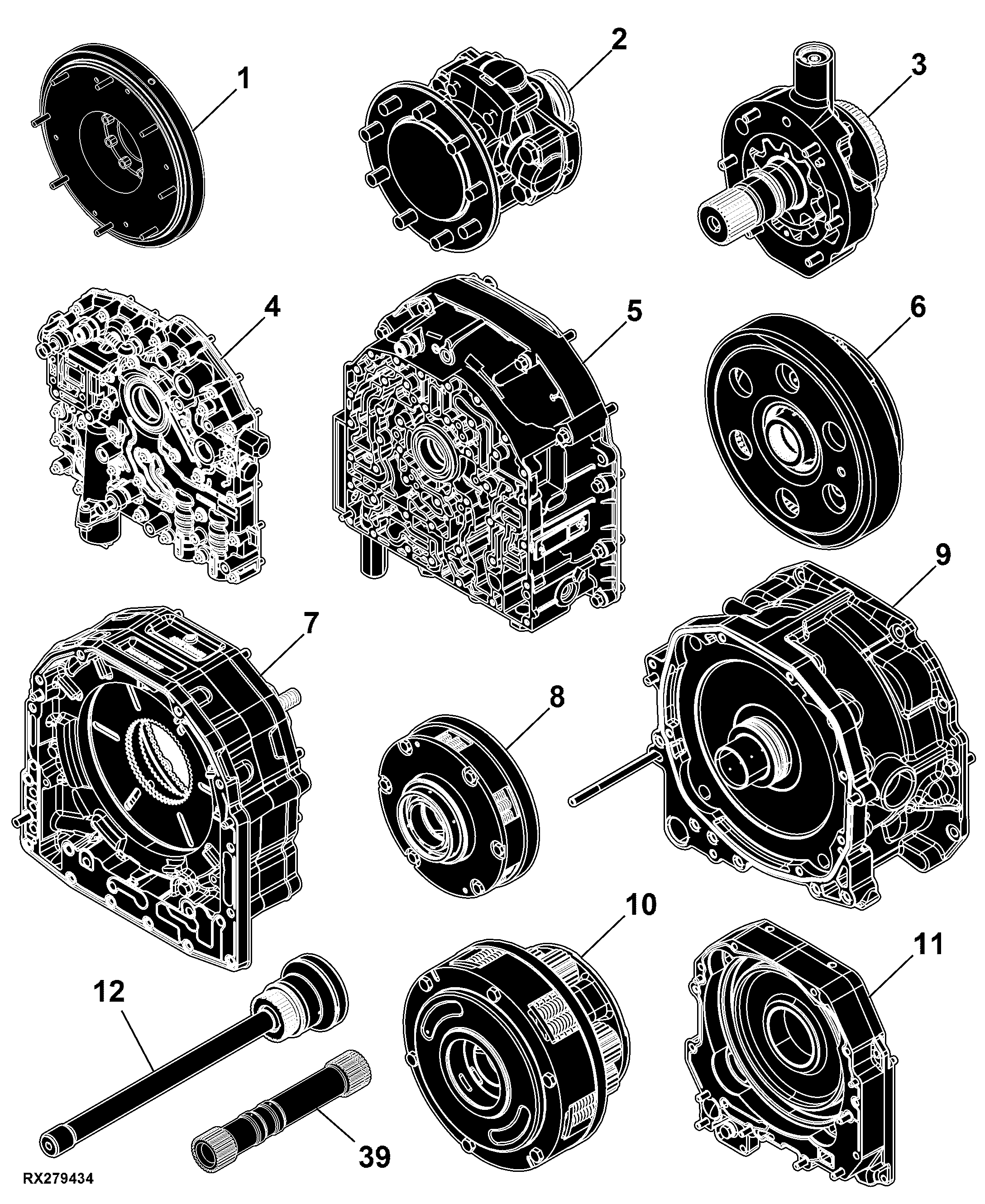

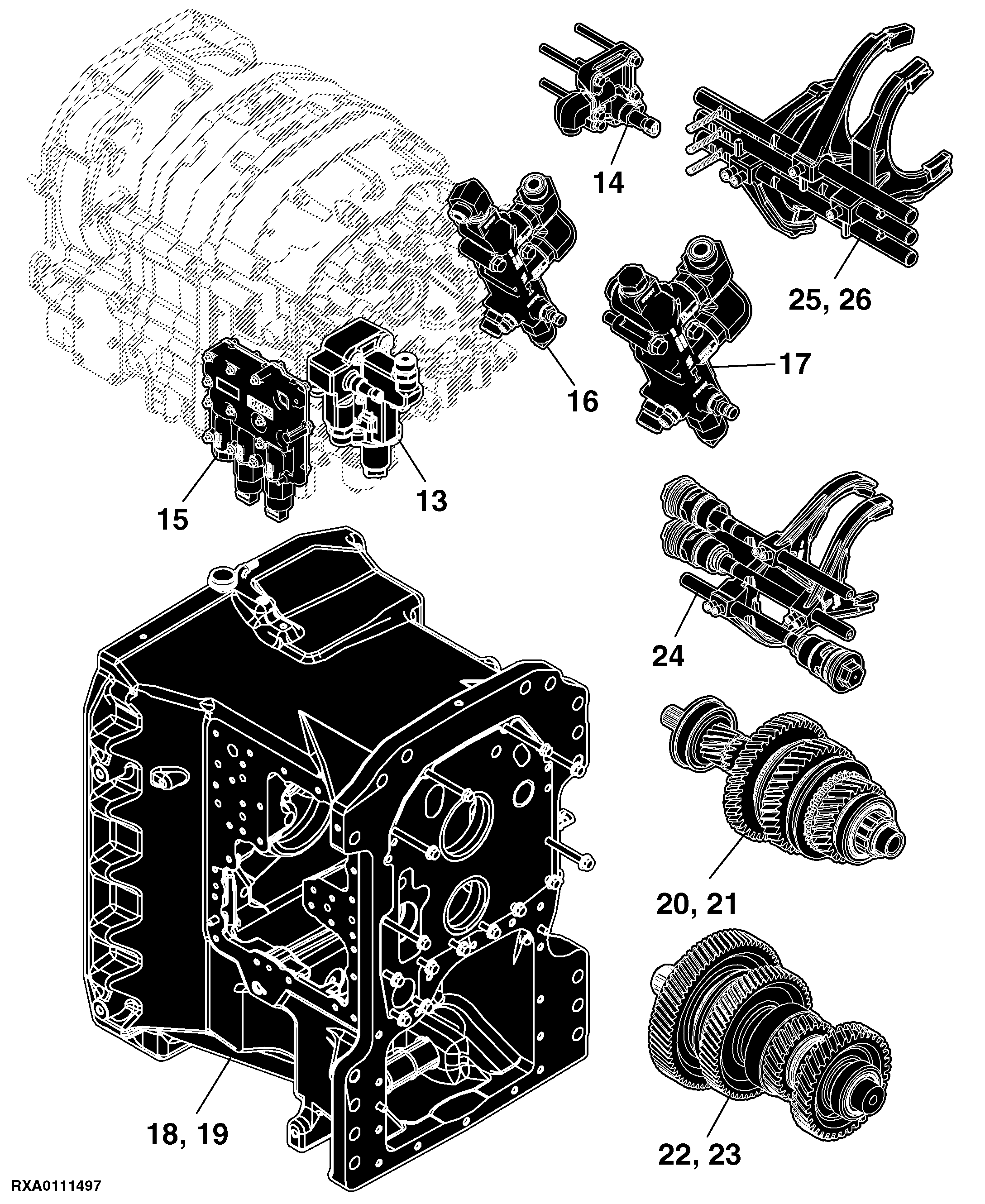

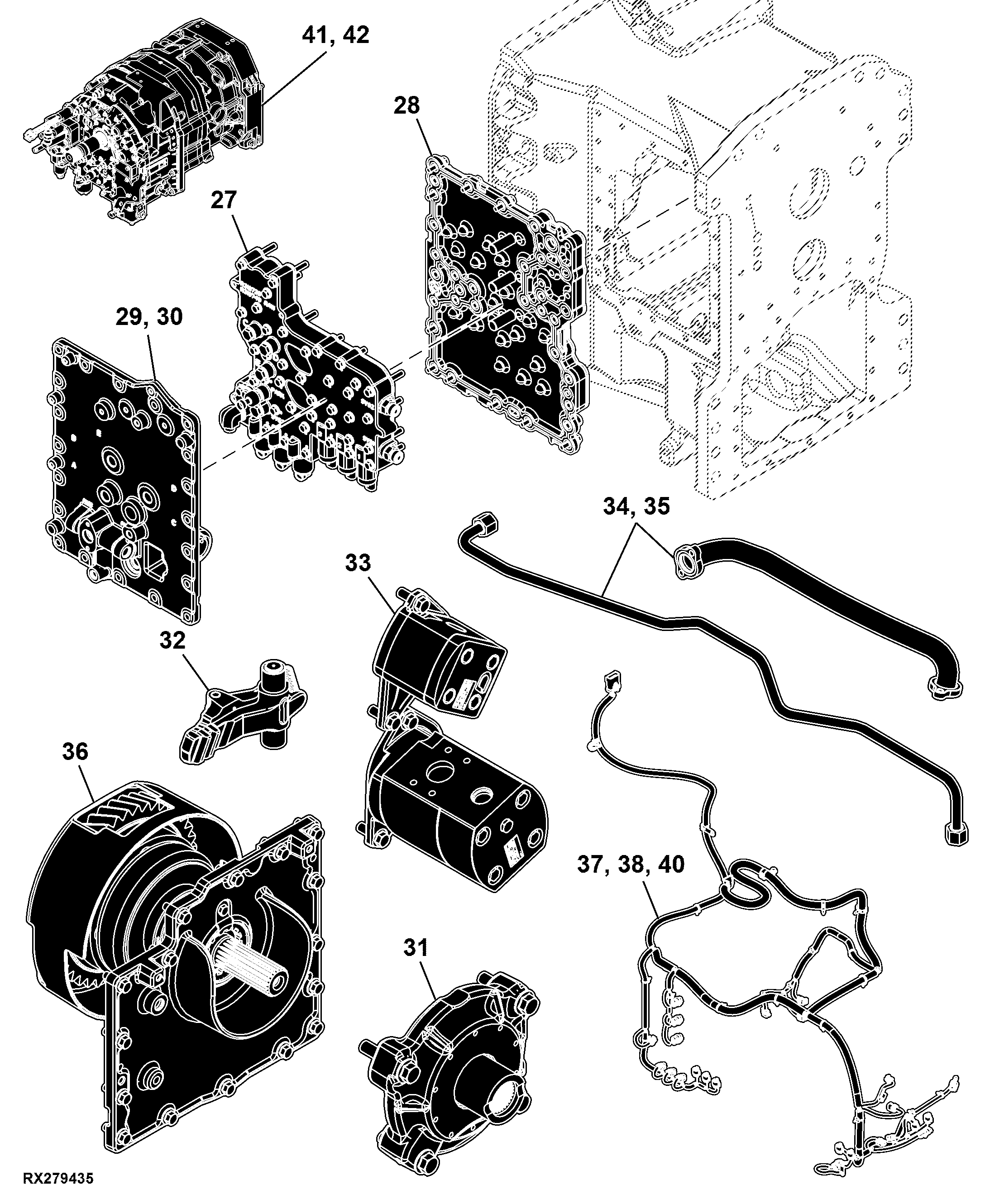

52 AutoQuad™ / CommandQuad™ / PowrQuad™ Transmission

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Pump, Scavenge, PowrQuad™	-
-	-	1	MFWD Clutch, PowrQuad™	-
-	-	1	Module, PowrQuad™ / CommandQuad™, Electrical Shift	-
-	-	1	Module, PowrQuad™, Mechanical Shift	-
-	-	1	Output Shaft	-
-	-	1	Output Shaft, Range Box, (30K STD) PowrQuad™	-
-	-	1	Output Shaft, Range Box, (40K STD), PowrQuad™	-
-	-	1	Output Shaft, Range Box, 40 Km/h - 50 Km/h, PowrQuad™/CommandQuad™	-
-	-	1	Park Brake, CommandQuad™	-
-	-	1	Park Pawl (30K / 40K / 40K ECO / 50K)	-
-	-	1	Plate for No Boost, PowrQuad™	-
-	-	1	Manifold, Thermal Bypass	-
-	-	1	Scavenge Transmission Pumps, CommandQuad™	-
-	-	1	Shifter and Rails - Mechanical, 40K	-
-	-	1	Shifter Rods, CommandQuad™	-
-	-	1	Shifters and Rails - Mechanical (30K)	-
-	-	1	Shifting Valves, CommandQuad™	-
-	-	1	Torsional Coupler	-
-	-	1	Transmission Pump, W/ Valve, AutoQuad™ / CommandQuad™ / PowrQuad™	-
-	-	1	Wiring Harness, PowrQuad™	-
-	-	1	Wiring Harness, Transmission, CommandQuad™ (1/2)	-
-	-	1	Wiring Harness, Transmission, CommandQuad™ (2/2)	-
-	-	1	Housing, Range Box W/O Torque Sensor, PowrQuad™	-
-	-	1	Clutch, 4 Disks, PowrQuad™/AutoQuad™	-
-	-	1	Clutch, Forward, W/ Disk Spring	-
-	-	1	Clutch, PowrQuad™ / AutoQuad™, B1, B2, and B3	-
-	-	1	Cover CommandQuad™ Valve	-
-	-	1	Driveshaft	-
-	-	1	Front Cover Housing, 20 bar	-
-	-	1	Housing 4-Speed Shift Valve, Electrical	-
-	-	1	Housing Planetary Brake, PowrQuad™/AutoQuad™	-
-	-	1	Housing, 5 Disk Reverse Brake, PowerQuad™	-
-	-	1	Housing, Front Valve, PowrQuad™	-
-	-	1	Boost Valve Assembly	-
-	-	1	Housing, Range Box, CommandQuad™	-
-	-	1	Housing, Shift Control 40/50K	-
-	-	1	Housing, Shift Control, 30K	-
-	-	1	Input Planetary Assembly, PowrQuad™/AutoQuad™	-
-	-	1	Input Shaft	-
-	-	1	Input Shaft Assembly, 30K, PowrQuad™	-
-	-	1	Input Shaft Assembly, Range Box 40K- 50K, PowrQuad™/CommandQuad™	-
-	-	1	Lines, Transmission Hydraulics, PowrQuad™	-
-	-	1	Lines, Transmission Hydraulics, PowrQuad™/CommandQuad™	-
-	-	1	Manifold, Cooler Bypass, Mechanical, PowrQuad™	-

52 AutoQuad™ / CommandQuad™ / PowrQuad™ Transmission

Нет текстового описания
