Lines, Transmission Hydraulics, PowrQuad™/CommandQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE331915	1	Oil Line	SYS1 Supply to Range Box SUB FOR RE320021
2	RE320093	1	Oil Line	Front SYS2 Supplt to Tee
3	RE321591	1	Oil Line	Cooler Bypass Supply
4	R314905	1	Hose	SYS2 to Differential Lock SUB FOR RE320098
5	RE323173	1	Oil Line	Range Box Lube Relief Line
6	RE322889	1	Oil Line	Boost Valve to Cooler Bypass
7	42M7014	2	Stud	-
8	R201228	2	Half Clamp	-
9	19M7796	1	Screw	M6 X 30
10	14M7303	1	Flange Nut	M6
11	H135156	2	Clamp	-
12	19M7798	1	Screw	M8 X 40
13	14M7298	3	Flange Nut	M8
14	RE346602	1	Oil Line	Trans Pump SYS1 to Front Cover SUB FOR APPL RE319973
14	RE575021	1	Oil Line	Trans Pump SYS1 to Front Cover SUB FOR RE346602
15	T76252	1	Clamp	-
16	19M7865	1	Screw	M8 X 16
17	38H5025	1	Elbow Fitting	-
18	51M7041	3	O-Ring	11.300 X 2.200 mm
19	T77814	1	O-Ring	-
20	RE319931	1	Oil Line	Park Pump Off Line, Hydraulic pump to shift valve
21	RE337339	1	Oil Line	Scavenging Lube Inlet to Pump SUB FOR RE320912
22	RE325191	1	Oil Line	Power Distribution Lube Line
23	RE324928	1	Oil Line	PTO Lube Line
24	RE318836	1	Oil Line	Scavenging Pump Outlet to Diff Case
25	38H5152	1	Adapter Fitting	-
26	T77932	2	O-Ring	-
27	51M7047	1	O-Ring	23.600 X 2.900 mm
28	R112296	3	Screw	-
29	A4540R	5	O-Ring	-
30	38H5017	1	Elbow Fitting	-
31	51M7043	1	O-Ring	15.300 X 2.200 mm
32	T77857	2	O-Ring	-
33	38H5016	1	Elbow Fitting	INCLUDES 51M7041
34	19M7785	14	Screw	M10 X 25
35	RE333698	1	Oil Line	SYS2 to Diff Lock SUB FOR RE320098
36	RE320913	1	Oil Line	Charge Pump to Range Box Inlet
37	R105415	3	O-Ring	-
38	RE561310	1	Line	Charge Pump to Transmission Inlet SUB FOR RE337340 OR RE320916
39	RE323253	1	Oil Line	Charge Pump Return To Reservoir
40	R323657	1	Housing	-
41	B3690R	1	O-Ring	-
42	A4730R	1	O-Ring	-
43	38H5004	1	Adapter Fitting	INCLUDES 51M7045
44	51M7045	1	O-Ring	19.300 X 2.200 mm
45	38H5172	1	Adapter Fitting	-
46	T78612	1	O-Ring	-
47	51M7048	2	O-Ring	29.600 X 2.900 mm
48	38H5020	1	Elbow Fitting	-
49	T76938	1	O-Ring	-
50	T77613	1	O-Ring	-
51	19M7868	2	Screw	M8 X 30
52	H109046	4	Clamp	-
53	RE322773	1	Oil Line	-

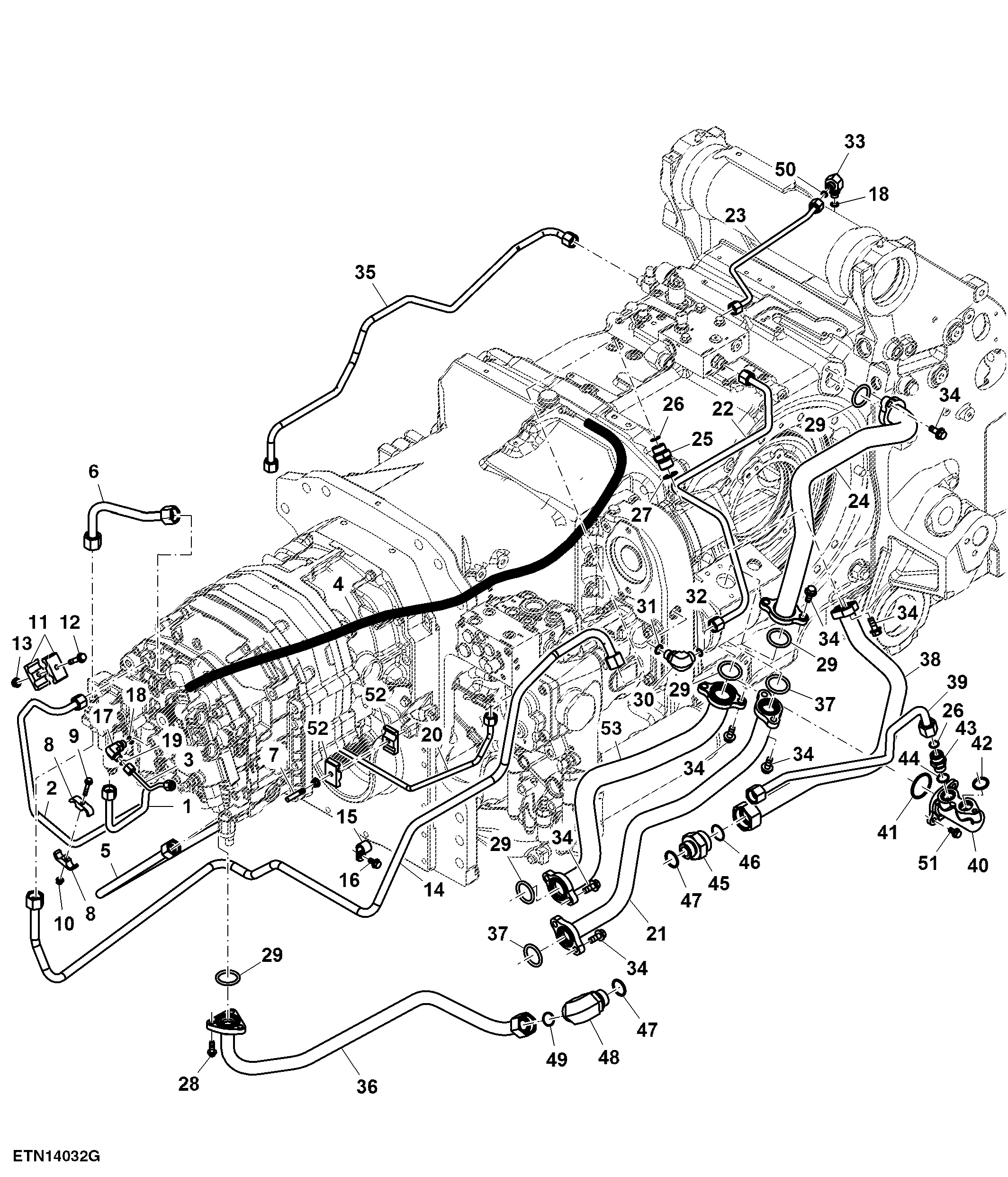

Lines, Transmission Hydraulics, PowrQuad™/CommandQuad™
