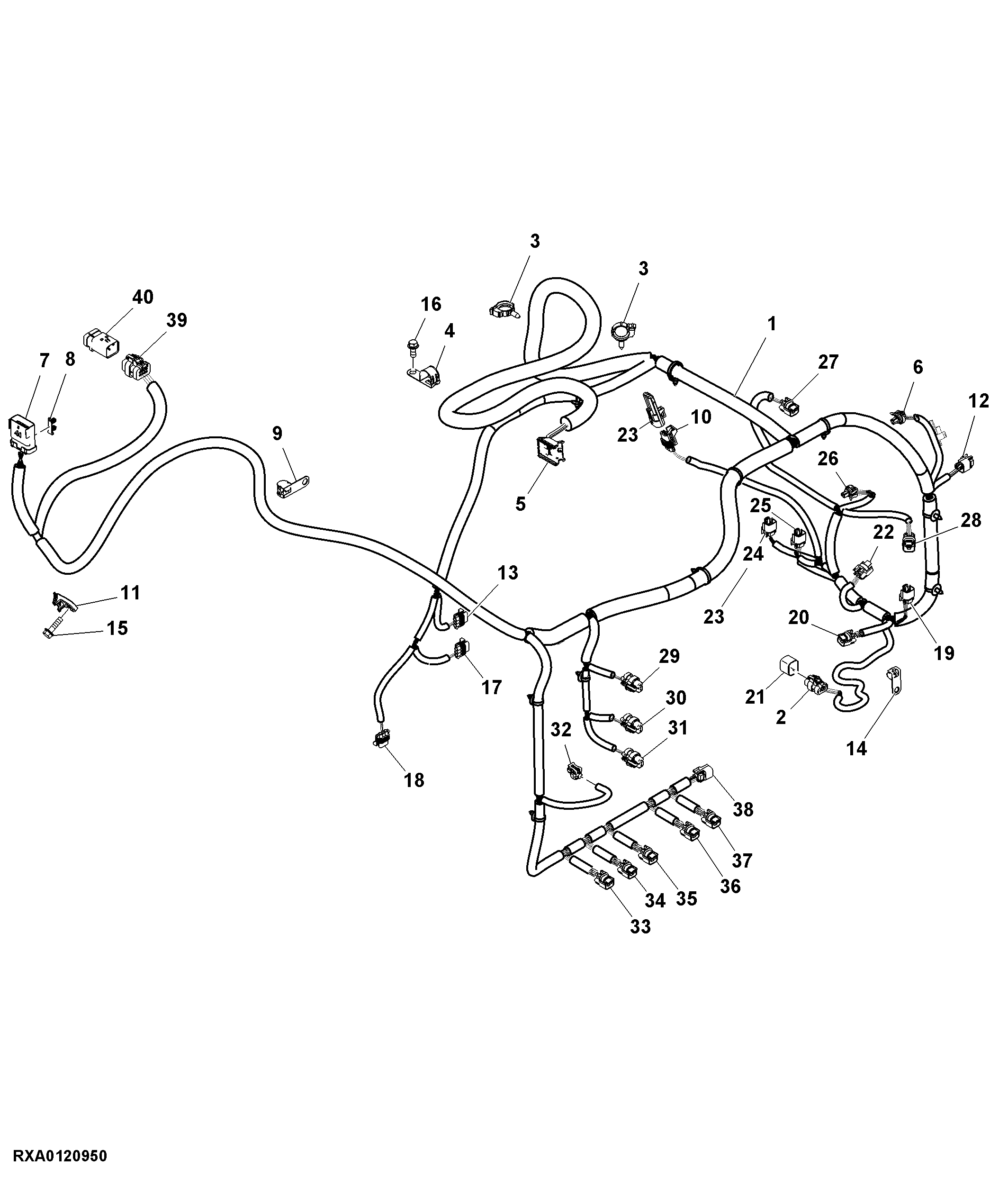

Wiring Harness, Transmission, CommandQuad™ (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	57M9784	1	Elec. Connector Housing	Dust Cap
22	57M8924	1	Elec. Connector Housing	Enable Solenoid (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
22	57M8633	1	Elec. Connector Accessory	-
23	57M7257	1	Elec. Connector Housing	Dust Cap
23	57M7290	1	Elec. Connector Accessory	-
24	57M8924	1	Elec. Connector Housing	Reverse Solenoid (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
24	57M8633	1	Elec. Connector Accessory	-
25	57M8924	1	Elec. Connector Housing	Forward Solenoid (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
25	57M8633	1	Elec. Connector Accessory	-
26	57M8624	1	Elec.Connect Locking Device	-
26	57M8625	1	Elec. Connector Housing	Clutch Enable Pressure (USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals)
27	57M8924	1	Elec. Connector Housing	Oil Cooler Bypass (USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals)
27	57M8633	1	Elec. Connector Accessory	-
28	57M8924	1	Elec. Connector Housing	Oil MGT Boost (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
28	57M8633	1	Elec. Connector Accessory	-
29	57M9780	1	Elec. Connector Housing	Rail Position Sensor 3 (USE WITH (3) 57M9808_Pins)
30	57M9780	1	Elec. Connector Housing	Rail Position Sensor 2 (USE WITH (3) 57M9808_Pins)
31	57M9780	1	Elec. Connector Housing	Rail Position Sensor 1 (USE WITH (3) 57M9808_Pins)
32	57M8625	1	Elec. Connector Housing	Park Brake Pressure (USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals)
32	57M8624	1	Elec.Connect Locking Device	-
33	57M8924	1	Elec. Connector Housing	Park Supply (USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals)
33	57M8633	1	Elec. Connector Accessory	-
34	57M8924	1	Elec. Connector Housing	Park Sump Block (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
34	57M8633	1	Elec. Connector Accessory	-
35	57M8924	1	Elec. Connector Housing	MFWD (USE WITH (2) 57M8602_Pins, (2) 57M8603_Seals)
35	57M8633	1	Elec. Connector Accessory	-
36	57M8633	1	Elec. Connector Accessory	-
36	57M8924	1	Elec. Connector Housing	Range Box 3 (USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals)
37	57M8924	1	Elec. Connector Housing	Range Box 2 (USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals)
37	57M8633	1	Elec. Connector Accessory	-
38	57M8924	1	Elec. Connector Housing	Range Box 1 (USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals)
38	57M8633	1	Elec. Connector Accessory	-
39	57M7256	1	Elec. Connector Housing	Tow Mode (USE WITH (2) R104919_Pins, (2) 57M9215_Seals)
39	57M7289	1	Elec.Connect Locking Device	-
40	57M7254	1	Elec. Connector Housing	Dust Cap
40	57M7289	1	Elec.Connect Locking Device	-

Wiring Harness, Transmission, CommandQuad™ (2/2)
