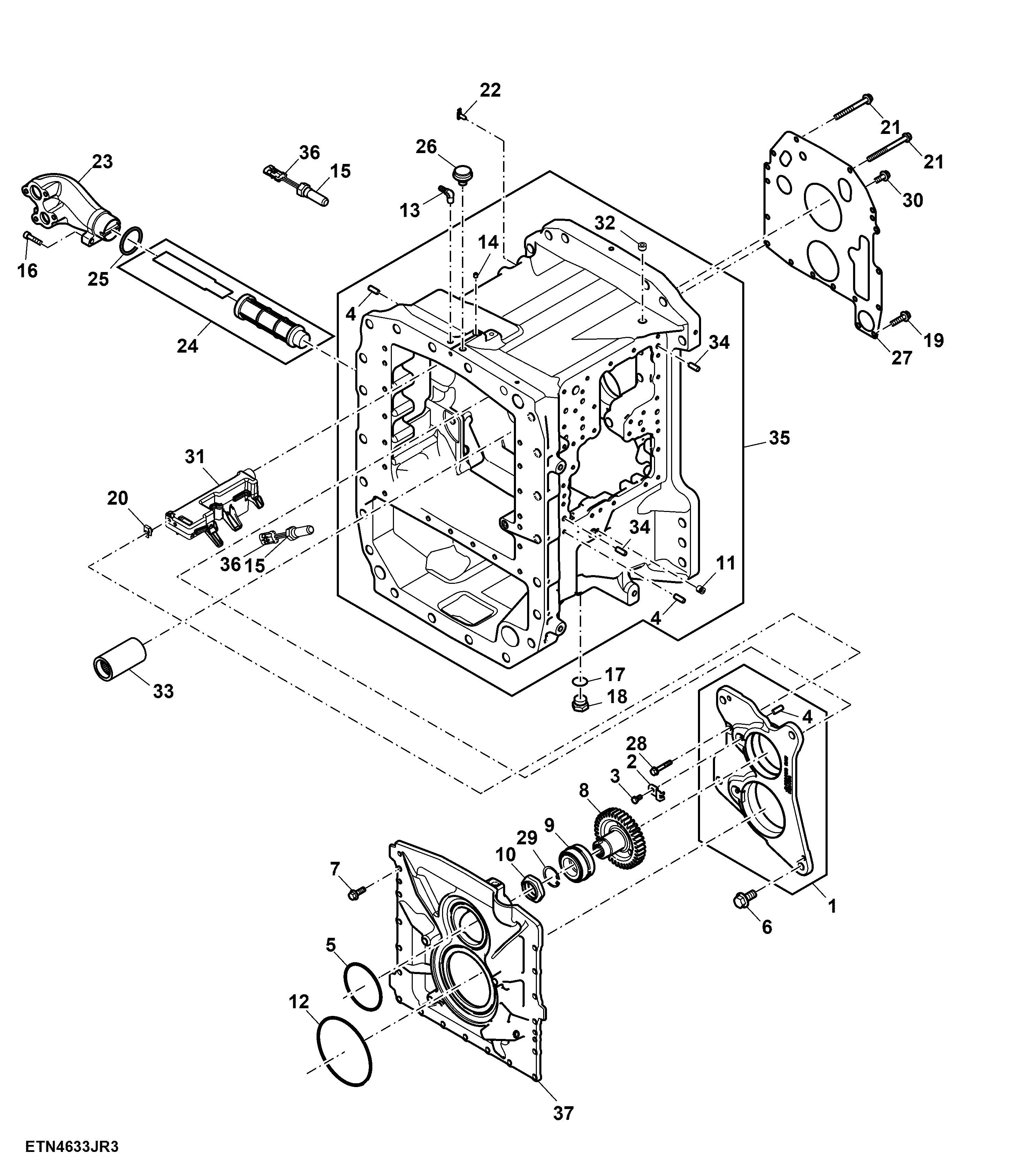

Housing, Range Box W/O Torque Sensor, PowrQuad™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R294616	1	Faceplate	ALSO ORDER 44M7070
1	RE334037	1	Cover Kit	ORDER R294616
2	R106839	2	Retainer	-
3	R88246	2	Cap Screw	-
4	44M7070	10	Dowel Pin	-
5	F37030245	1	O-Ring	-
6	H159105	4	Screw	-
7	H205558	17	Screw	-
8	R294803	1	Spur Gear	Z=38
9	RE206285	1	Tapered Roller Bearing	-
10	R285438	1	Lock Nut	-
11	AT107509	1	Plug	-
12	F37030260	1	O-Ring	-
13	R112945	1	Elbow Fitting	-
14	R254371	1	Orifice	-
15	RE295929	2	Sensor	Primary Wheel / Top Shaft Speed
16	19M8274	1	Screw	M8 X 35
17	F3171R	1	O-Ring	-
18	R84262	1	Fitting Plug	-
19	19M8162	6	Screw	M10 X 40
20	M84971	1	Nut	-
21	19M7812	6	Screw	M10 X 100
22	57M8910	2	Clip	-
23	R323267	1	Manifold	-
24	RE322933	1	Screen	-
25	R26863	1	O-Ring	-
26	U43871	1	Breather	-
27	R544199	1	Gasket	SUB FOR R324596
28	R106825	1	Screw	USE WITH RE322220
28	R106826	1	Screw	USE WITH R339408
29	40M7085	1	Snap Ring	-
30	19M7785	2	Screw	M10 X 25
31	RE322220	1	Oil Tube	ORDER R339408
31	R339408	1	Oil Tube	ALSO ORDER R106826 AND M84971
32	RE252354	1	Plug	-
33	R317606	1	Splined Coupling	-
34	T26565	2	Dowel Pin	-
35	RE334033	1	Housing Kit	ORDER RE337274
35	RE337274	1	Housing Kit	INCLUDES (9) 44M7070, AT107509, R254371, RE252354 AND (2) T26565
36	57M7257	2	Elec. Connector Housing	USE WITH 57M7252, 57M7258 AND 57M7317
37	R313986	1	Cover	-

Housing, Range Box W/O Torque Sensor, PowrQuad™
