Открытый узел

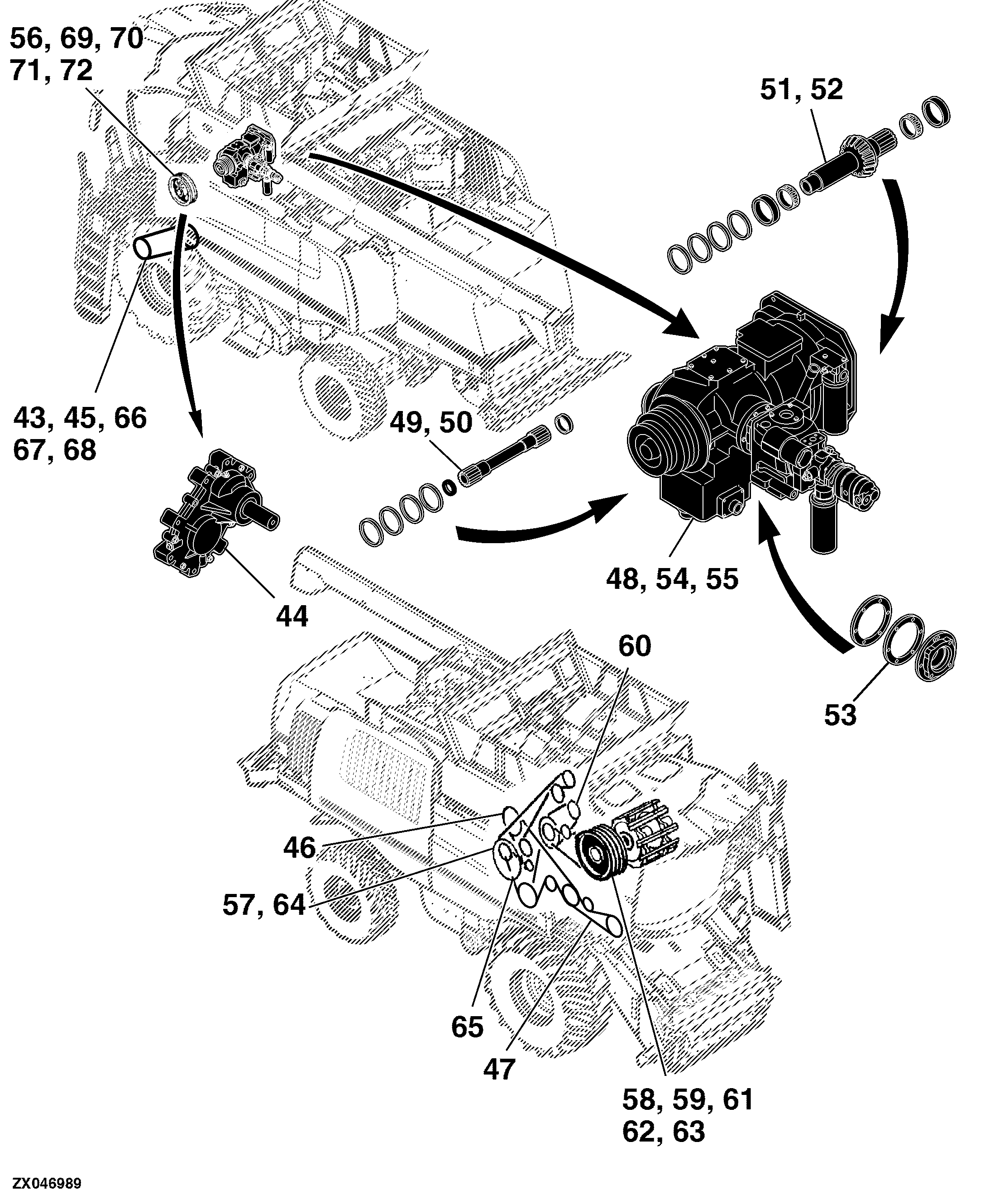

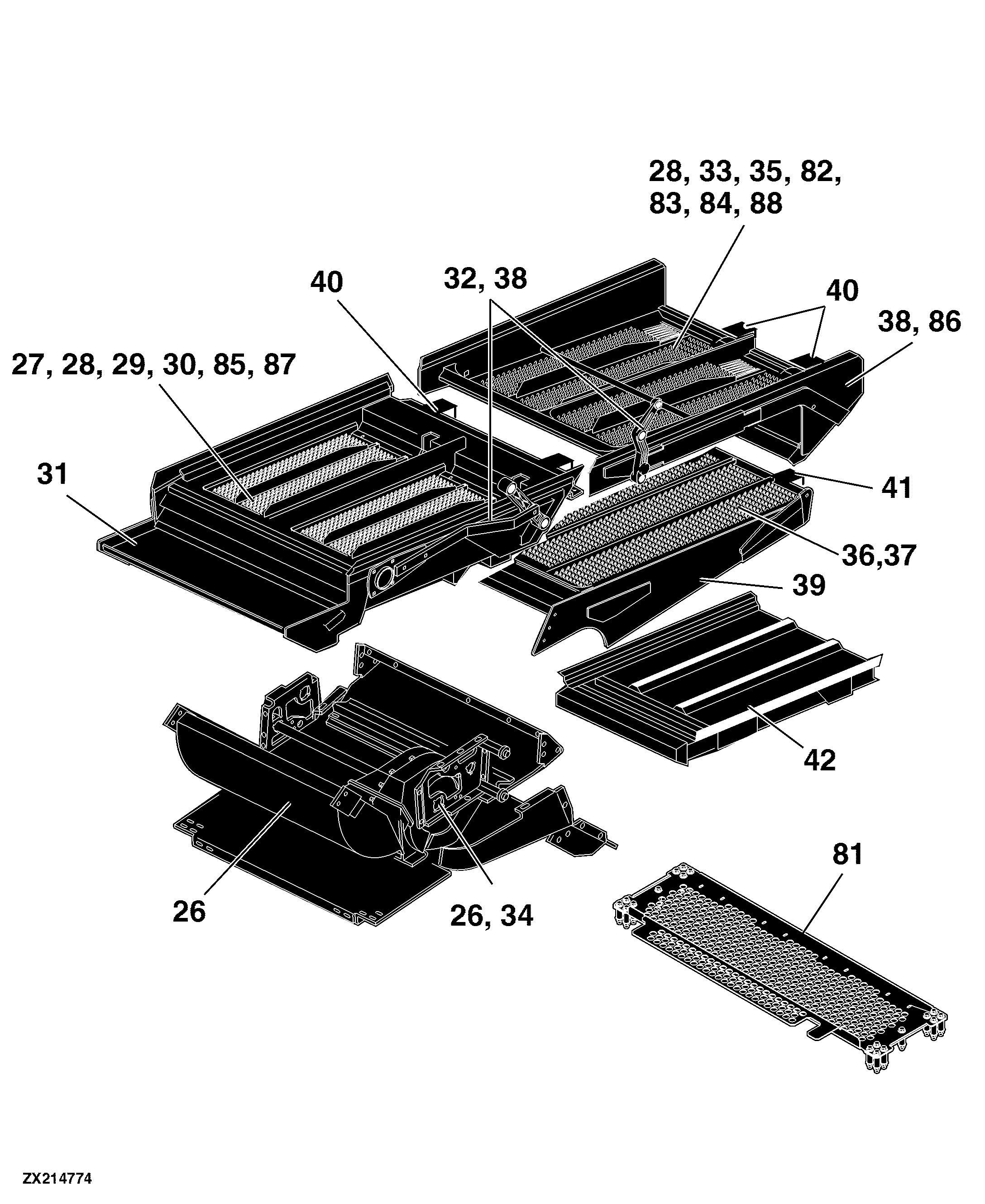

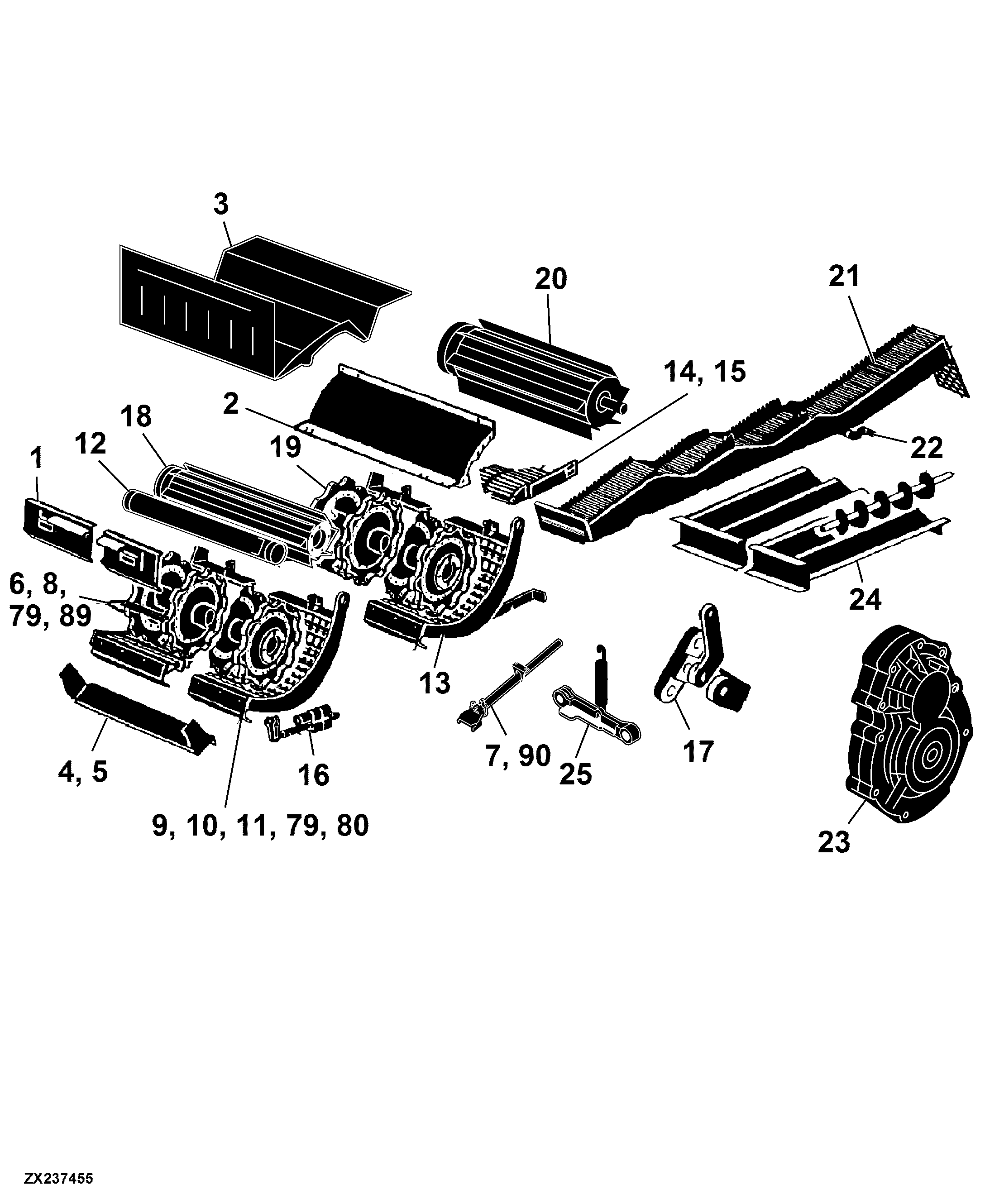

120 Separator, Cleaning Unit Combine T550 - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rasp Bar Concave	-
-	-	1	Separation Grate Assembly	-
-	-	1	Separation Grate	-
-	-	1	Separation Grate	-
-	-	1	Secondary Countershaft Drive	-
-	-	1	Rotor Speed Reduction for Corn	-
-	-	1	Rotor Pulley, Speed Reduction, Corn	-
-	-	1	Rotor Drive	-
-	-	1	Rotor	-
-	-	1	Ring Spanner	-
-	-	1	Rasp Bar Threshing Cylinder	-
-	-	1	Separator Fan Drive and Secondary Countershaft	-
-	-	1	Pulley, Speed Reduction for Corn, Attachment	-
-	-	1	PTO Gear, ProDrive™	-
-	-	1	PTO Gear	-
-	-	1	PTO Gear	-
-	-	1	PTO Gear	-
-	-	1	Primary Countershaft Supports and Gear Case Mounting	-
-	-	1	Primary Countershaft Gear Case	-
-	-	1	Primary Countershaft Drive Shaft And Variable Sheave	-
-	-	1	Pre-Cleaner Chaffer Frame Arms	-
-	-	1	Spike Tooth Threshing Cylinder	-
-	-	1	Threshing Cylinder Cover	-
-	-	1	Support, Cleaning Fan	-
-	-	1	Support and Motor For Electrically Adjustable Sieve	-
-	-	1	Stripper Beater Drive	-
-	-	1	Straw Walkers And Inserts	-
-	-	1	Straw Walker Drive Gear Case And Pulley	-
-	-	1	Straw Walker Crankshaft and Support	-
-	-	1	Stone Trap and Flap	-
-	-	1	Spike Tooth Threshing Cylinder / Concave, Attachment	-
-	-	1	Pre-Cleaner Chaffer Frame	-
-	-	1	Spike Tooth Concave	-
-	-	1	Speed Reduction for Corn, Attachment	-
-	-	1	Sieve, Electrically Adjustable, LH and RH	-
-	-	1	Sieve Frame	-
-	-	1	Sieve For Corn, Cob Mix	-
-	-	1	Sieve Element, Manually Adjustable, RH and LH	-
-	-	1	Shoe Grain Supply Augers and Housing	-
-	-	1	Shield, Cleaning Fan	-
-	-	1	Shaker Pan	-
-	-	1	Chaffer Element, Electrically Adjustable	-
-	-	1	Corn Sieves, Manually Adjustable, CZ/4 Fins	-
-	-	1	Corn Sieves, Electrically Adjustable, CZ/4 Fins	-
-	-	1	Conveyor Augers, Sieve And Chaffer Drive	-
-	-	1	Conveyor Auger Drive	-
-	-	1	Concave Indicator	-
-	-	1	Concave Adjusting Motor	-
-	-	1	Cleaning Shoe, Pre-Cleaner, Electrically Adjustable	-
-	-	1	Cleaning Fans And Shrouds	-
-	-	1	Chaffer Frame	-
-	-	1	Chaffer Element, Manually Adjustable	-
-	-	1	Cylinder Access Door	-
-	-	1	Chaffer Element, Electrically Adjustable	-
-	-	1	Beater Grate For Cylinder With Spike Teeth	-
-	-	1	Beater Grate	-
-	-	1	Beater Drive, Sheaves and Tightener	-
-	-	1	Beater	-
-	-	1	Attachment, Spike Tooth Cylinder	-
-	-	1	Attachment, Rotator	-
-	-	1	Attachment, Chaffer, Remote Cleaning	-
-	-	1	Attachment, Chaffer	-
-	-	1	Fan Drive Speed Control Linkage	-
-	-	1	Pre - Cleaner, Manually Adjustable	-
-	-	1	Overshot Beater Gear Box	-
-	-	1	Overshot Beater	-
-	-	1	Motor For Electrically Adjustable Pre-Cleaner and Chaffer Sieves	-
-	-	1	Main Gear Case	-
-	-	1	Front Beater Cover	-
-	-	1	For PTO Clutch	-
-	-	1	Fixed Cylinder Drive	-
-	-	1	Fan Drive Speed Control Sheave Linkage	-
-	-	1	Actuator for Remote Shoe Adjust	-
-	-	1	Electro-Magnetic Header Clutch	-
-	-	1	Dual-Range Lockout Arm	-
-	-	1	Dual-Range Cylinder Drive Tightener	-
-	-	1	Dual-Range Cylinder Drive Intermediate Sheave	-
-	-	1	Dual-Range Cylinder Drive Intermediate Shaft Mounting	-
-	-	1	Dual-Range Cylinder Drive Adjusting Bracket	-
-	-	1	Cylinder Stripper	-
-	-	1	Cylinder Stripper	-
-	-	1	Cylinder Drive Reduction Gear	-

120 Separator, Cleaning Unit Combine T550 - MY14
