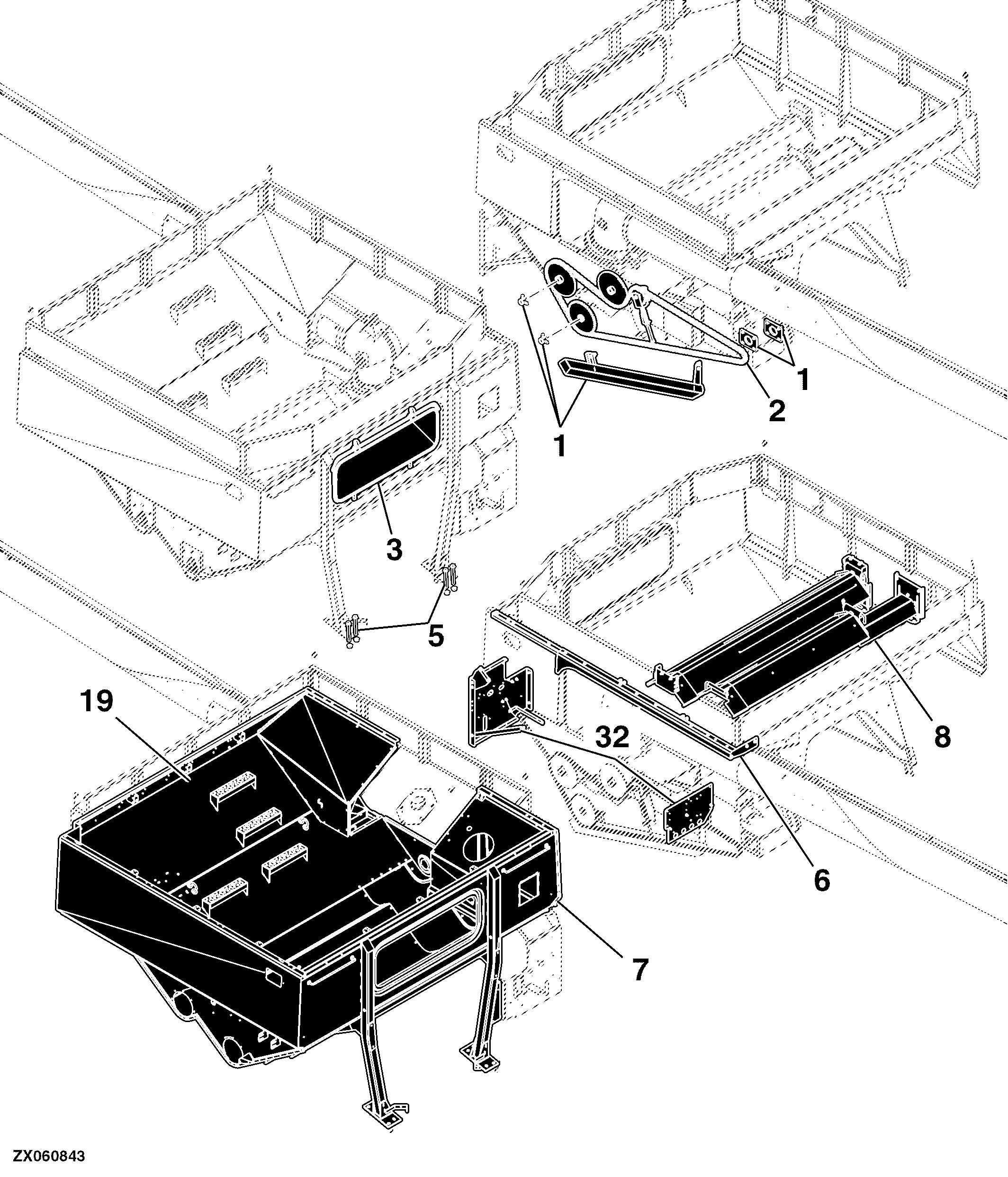

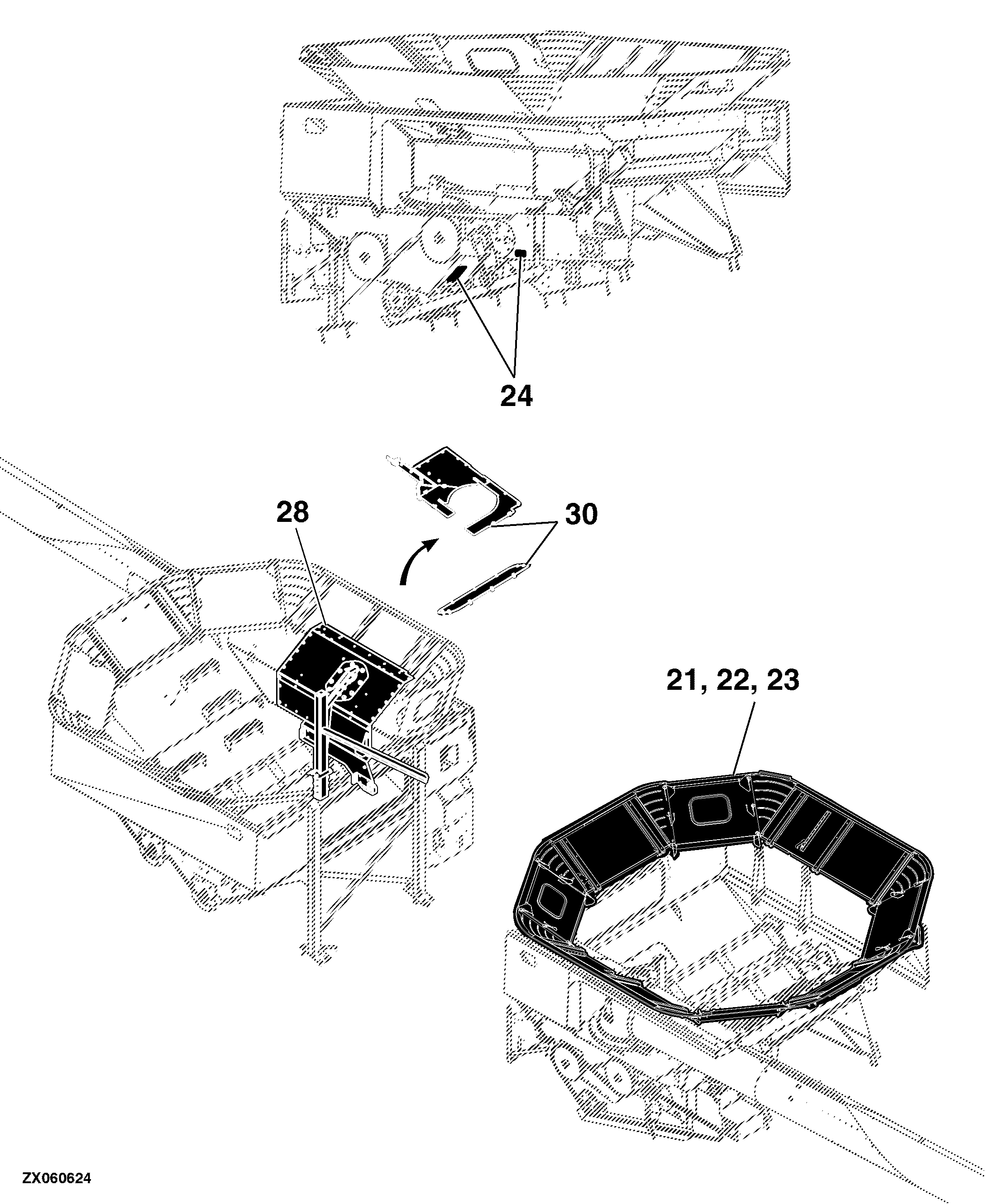

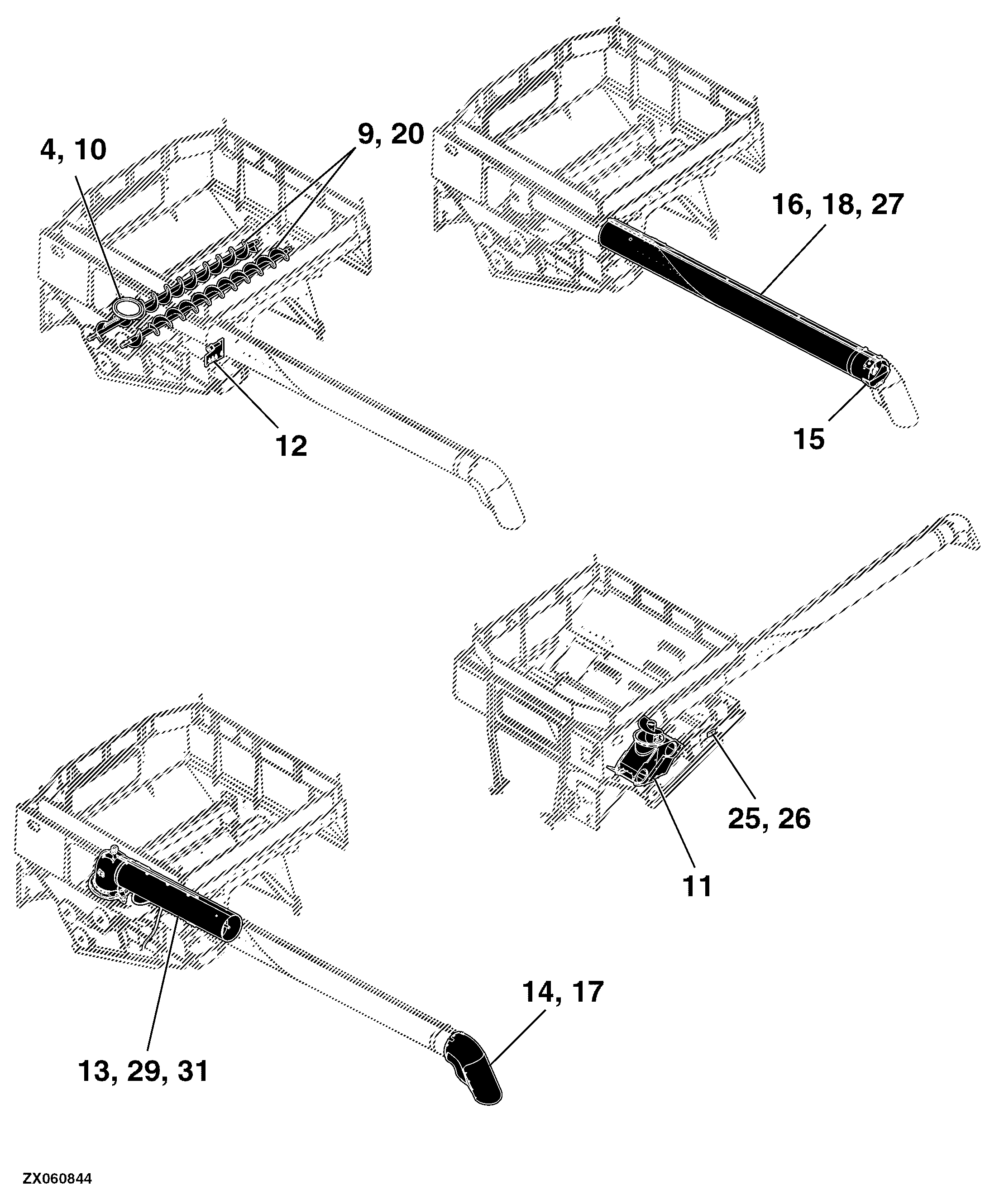

150 Grain Tank and Unloading Auger S670HM - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Grain Tank Styling Panels and Rail, LH, 3.3 and 3.8 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, Regular Wear, 3.3 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, High Wear, 3.3 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate	-
-	-	1	Unloading Auger Chain Drive, 3.3 bps	-
-	-	1	Unloading Auger Boot, High Unloading Rate, Standard, 3.3 and 3.8 bps	-
-	-	1	Unloading Auger Boot, High Unloading Rate, Export, 3.3 and 3.8 bps	-
-	-	1	Unloading Auger and Turret Assembly, 6.9 m (22.6 ft)	-
-	-	1	Unloading Auger and Turret Assembly	-
-	-	1	Turret Covers, 3.3 and 3.8 bps	-
-	-	1	Text Free Decal, Folding Unloading Auger, 6.9 m (22.6 ft)	-
-	-	1	Outer Unloading Auger, 5.6 m (18.5 ft)	-
-	-	1	Outer Unloading Auger Light Bracket	-
-	-	1	Horizontal Unloading Auger Drive Gear Case	-
-	-	1	Grain Tank, High Unloading Rate	-
-	-	1	Grain Tank Text Free Decals	-
-	-	1	Auger Assembly, Folding Unloading Auger, 6.9 m (22.5')	-
-	-	1	Grain Tank Mounting Hardware	-
-	-	1	Grain Tank Front Window and Sample Door	-
-	-	1	Grain Tank Electrical Components Mounting Brackets W/O 5 Speed, ProDrive™	-
-	-	1	Grain Tank Cross Augers, High Unloading Rate, Regular Wear	-
-	-	1	Grain Tank Cross Augers, 3.3 and 3.8 bps	-
-	-	1	Grain Tank Cross Auger Covers and Bearing Plates, 3.3 and 3.8 bps	-
-	-	1	Grain Tank Covers	-
-	-	1	Grain Tank Cover Mounted Decals, Text Free	-
-	-	1	Grain Tank Cover Linkages	-
-	-	1	Grain Tank Cover Linkage Supports	-
-	-	1	Drive, High Unloading rate	-
-	-	1	Dribble Door, High Unloading Rate	-
-	-	1	Cradle	-
-	-	1	Cover, Grain Tank Turret Support Structure	-
-	-	1	Bracket, Sensor	-

150 Grain Tank and Unloading Auger S670HM - MY14

Нет текстового описания
