Auger Assembly, Folding Unloading Auger, 6.9 m (22.5')

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE72376	1	Tube	SUB FOR AXE38891
2	-	1	Part 2	CTL 915 mm, MF H81330
3	03M7185	4	Bolt	M8 X 25
4	AH226068	1	Auger	-
5	AH122717	1	Gudgeon	-
6	AH211828	1	Auger	-
7	AH209150	2	Bearing With Housing	-
8	JD9373	1	Ball Bearing	-
9	19M7835	17	Screw	M10 X 35
10	U41053	1	Washer	-
11	03M7186	9	Bolt	M8 X 30
12	21M7731	21	Screw	M10 X 50
13	24M7296	25	Washer	10.500 X 30 X 2.500 mm
14	H213604	16	Spacer	-
15	14M7296	29	Flange Nut	M10
16	AH213769	1	Support	-
17	AXE32933	1	Semi-Finished Casting	-
18	34M7044	2	Spring Pin	6 X 50 mm
19	34M7102	2	Spring Pin	5 X 26 mm
20	H211888	2	Pin	-
21	H217009	1	Shim	TK = 22.5 mm
22	AXE32932	1	Semi-Finished Casting	-
23	H207614	6	Bushing	-
24	H204883	1	Spacer	-
25	AXE36427	1	Auger	-
26	14M7298	5	Flange Nut	M8
27	19M7800	1	Screw	M8 X 50
28	24M7091	6	Washer	26 X 44 X 4 mm
29	AH211963	1	Pin	-
30	AH217466	1	Bracket	-
31	AXE37608	1	Link	-
32	HXE37867	1	Bracket	-
33	24H1300	1	Washer	25/64" X 2" X 0.220"
34	19M7866	1	Screw	M8 X 20
35	R41076	1	Grommet	-
36	14M7397	2	Lock Nut	M6
37	19M7862	2	Screw	M6 X 20
38	HXE11471	1	Lever	-
39	34M7040	1	Spring Pin	6 X 30 mm
40	AH89461	1	Pin Fastener	-
41	H207612	1	Seal	-
42	H207615	2	Thrust Washer	-
43	H211804	1	Spring	-
44	HXE137184	1	Pin	-
45	M129036	3	Ring	-
46	34M7042	1	Spring Pin	6 X 40 mm
47	H216254	1	Guide	-
48	H216268	1	Hydr. Quick Coupler Plug	-
49	24M7291	2	Washer	37 X 66 X 5 mm
50	14M7400	13	Lock Nut	M10
51	HXE125955	1	Door	SUB FOR HXE83086 OR H203723
52	M84309	13	Nut	-
53	21M7584	4	Screw	M10 X 35
54	AXE40405	1	Bracket	SUB FOR AXE37506
55	19M7868	1	Screw	M8 X 30
56	53M7016	1	Screw	M8 X 70
57	A78364	1	Tie Band	-
58	T26565	4	Dowel Pin	-
59	AH89557	1	Clip	-
60	AT44188	1	Rivet	-
61	57M11936	1	Elec. Connector Accessory	-

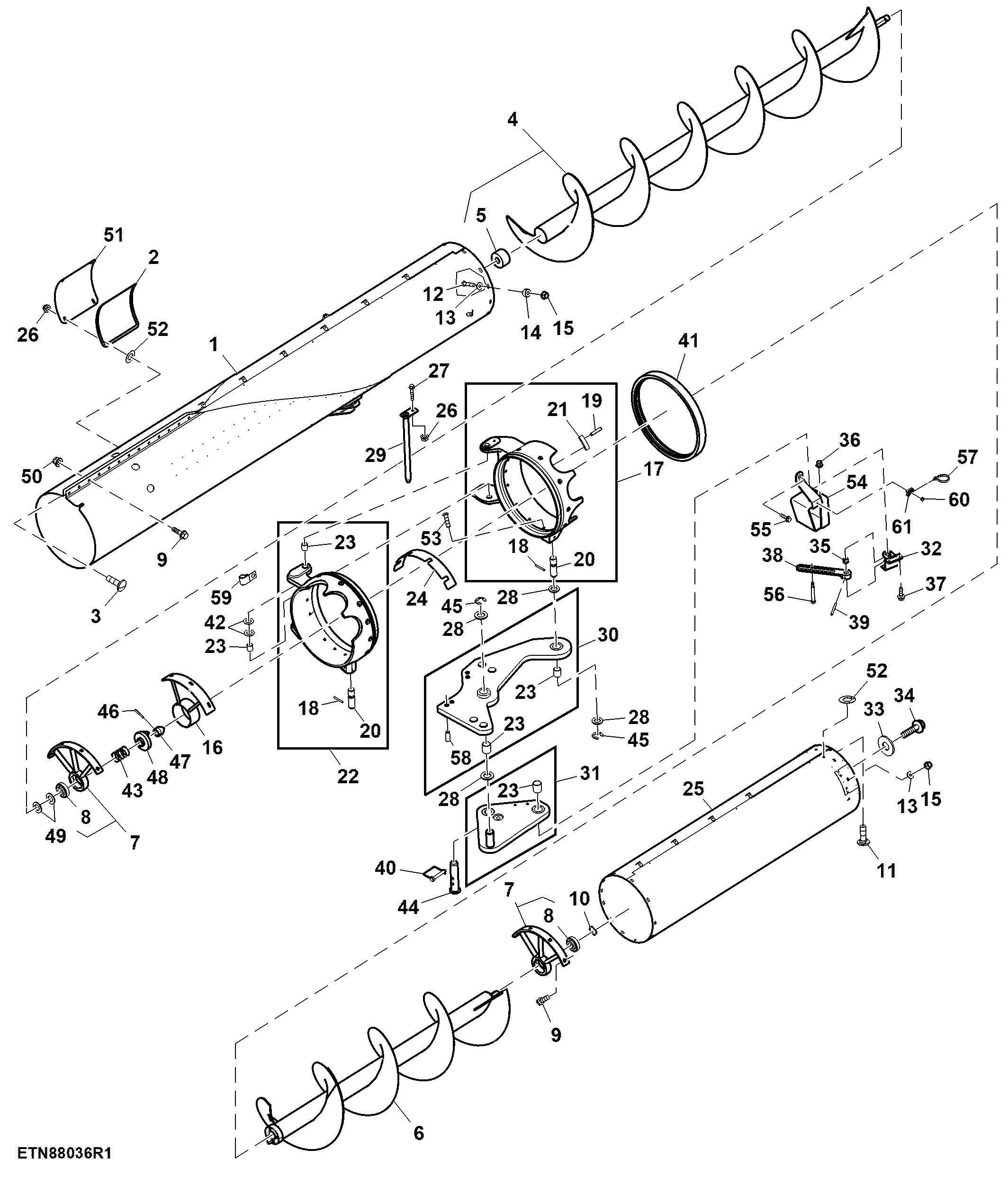

Auger Assembly, Folding Unloading Auger, 6.9 m (22.5')
