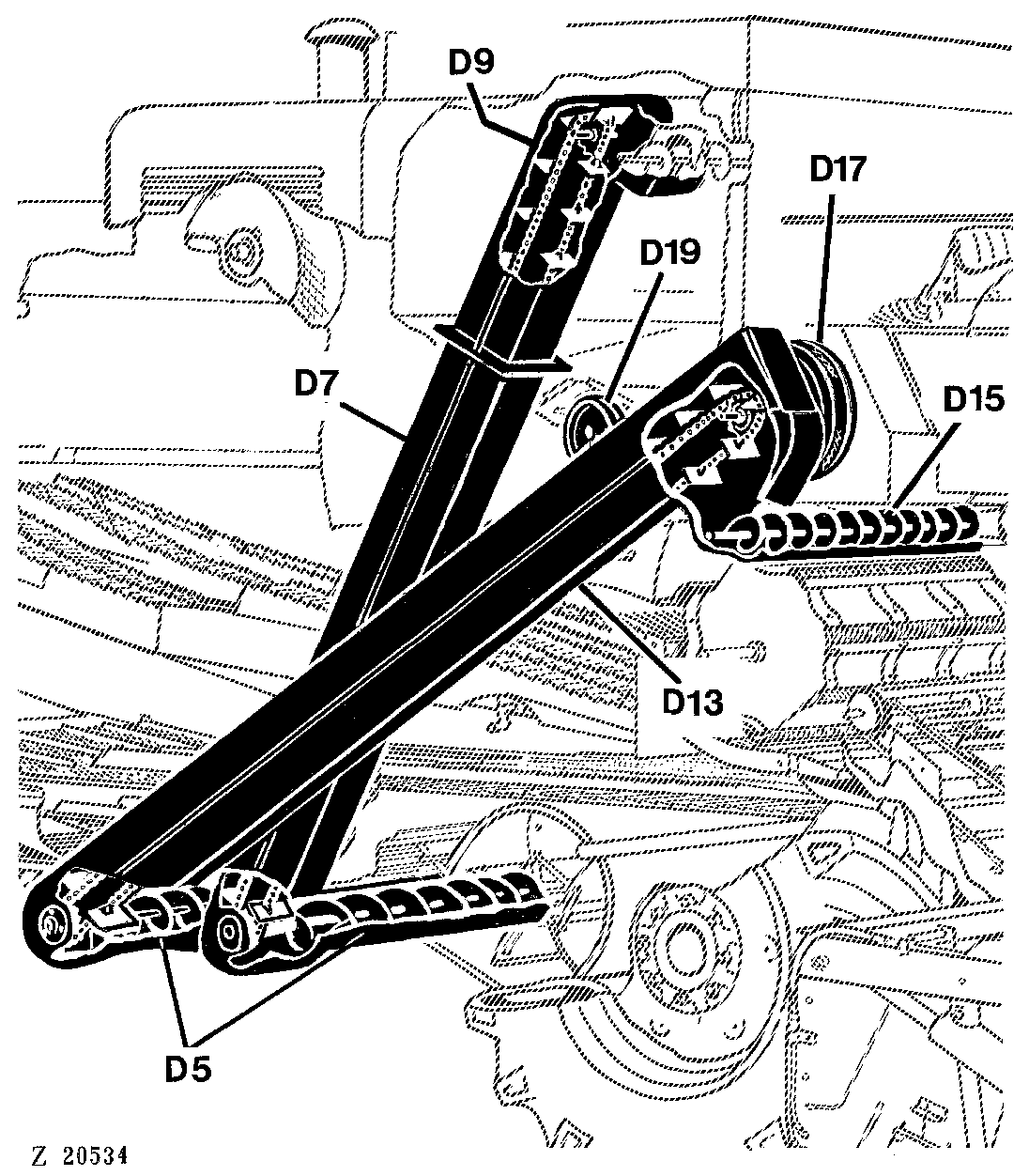

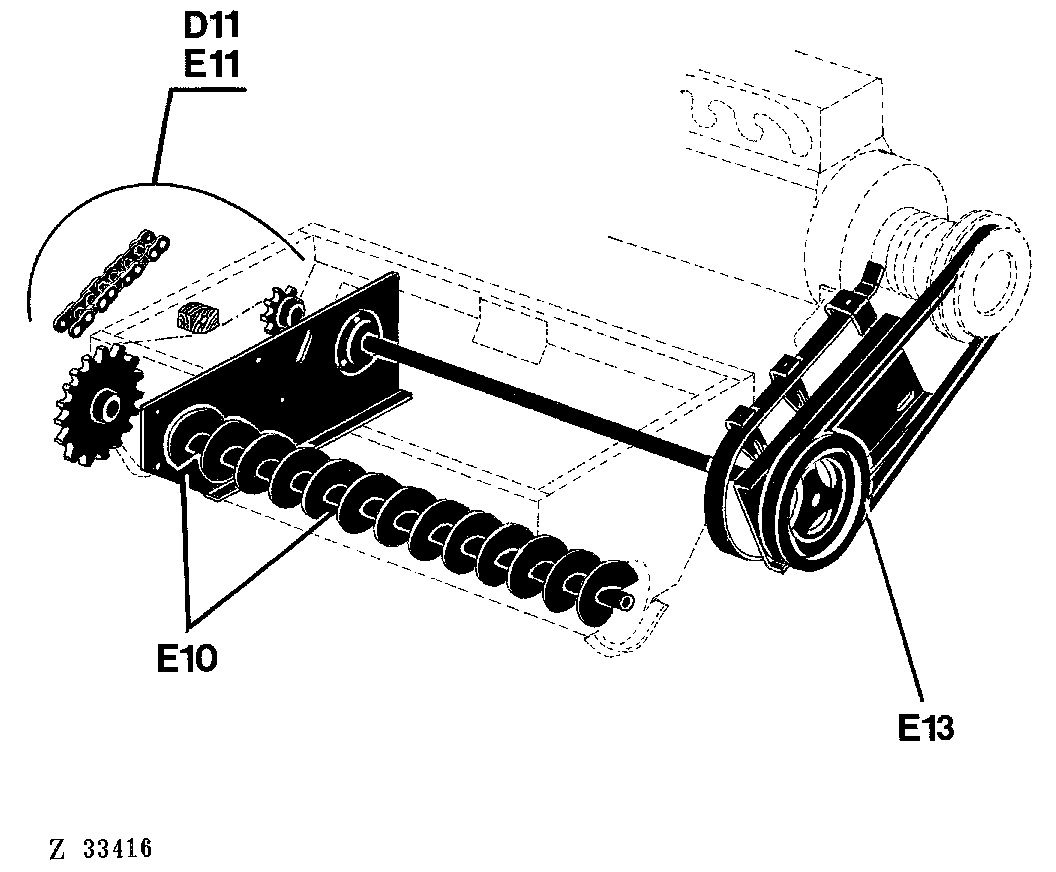

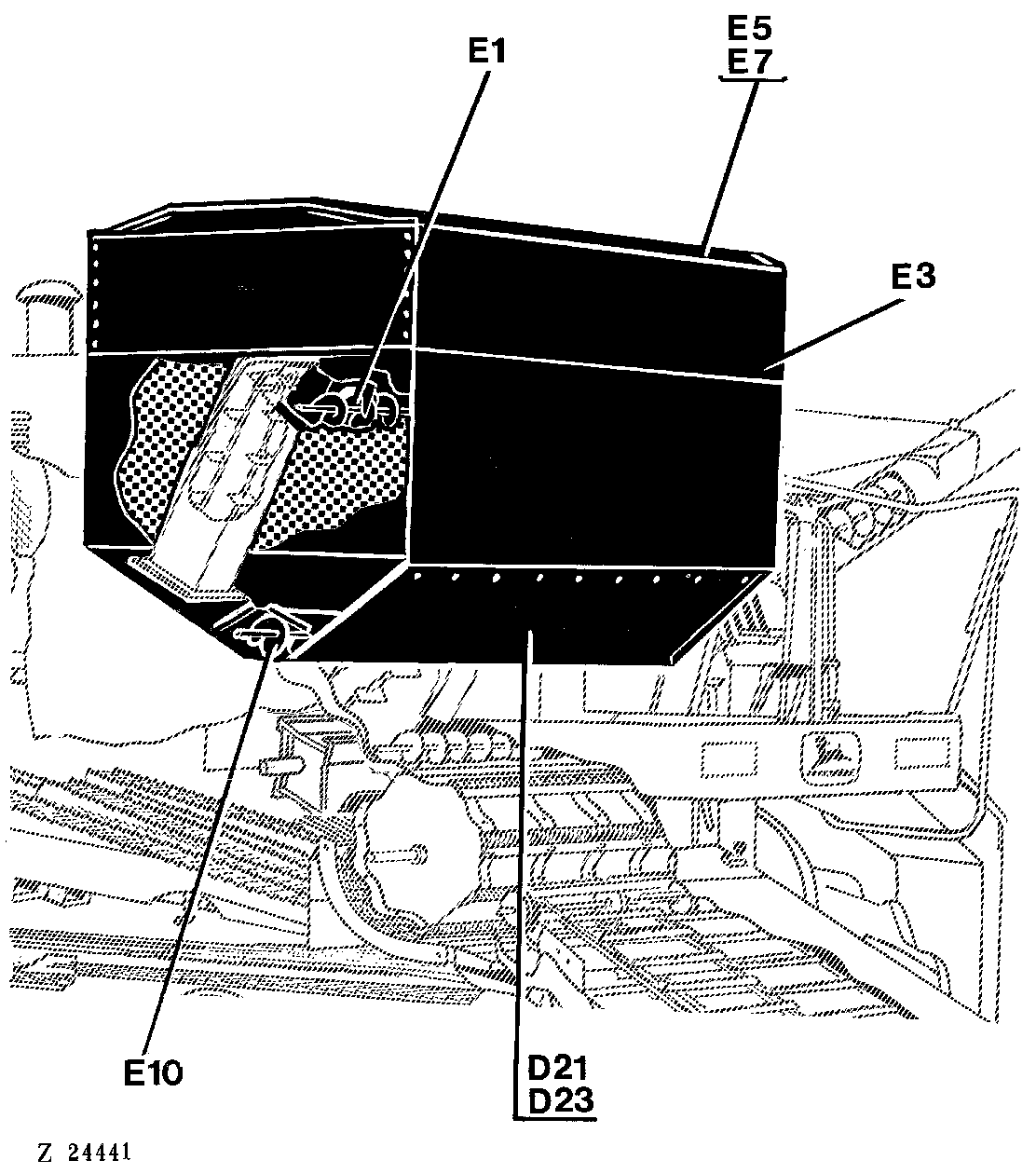

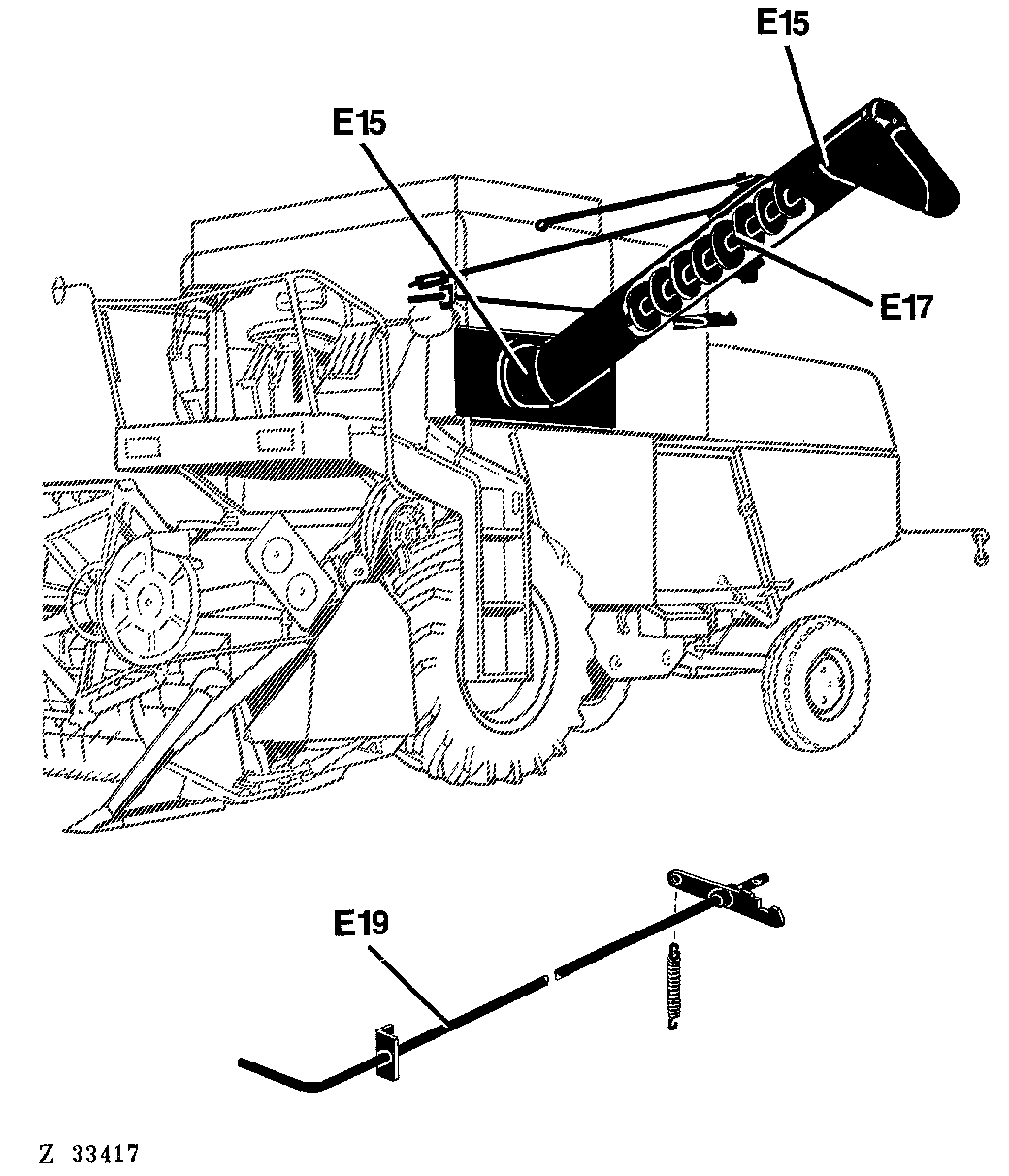

130 ELEVATORS, GRAIN TANK AND UNLOADING AUGERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	M E M O R A N D A [03E09]	-
-	-	1	UPPER PART OF TAILINGS ELEVATOR [03D15]	-
-	-	1	UPPER PART OF CLEAN GRAIN ELEVATOR [03D09]	-
-	-	1	UNLOADING TUBE SUPPORT [03E19]	-
-	-	1	UNLOADING HOUSING [03E15]	-
-	-	1	UNLOADING AUGER [03E17]	-
-	-	1	TAILINGS ELEVATOR [03D13]	-
-	-	1	TAILINGS AUGER AND ELEVATOR DRIVE [03D17]	-
-	-	1	TAILINGS AND CLEAN GRAIN AUGER HOUSING [03D05]	-
-	-	1	M E M O R A N D A [03E25]	-
-	-	1	M E M O R A N D A [03E24]	-
-	-	1	M E M O R A N D A [03E23]	-
-	-	1	M E M O R A N D A [03E22]	-
-	-	1	M E M O R A N D A [03E21]	-
-	-	1	M E M O R A N D A [03E20]	-
-	-	1	COVER-GRAIN TANK [03E05]	-
-	-	1	M E M O R A N D A [03E04]	-
-	-	1	M E M O R A N D A [03D16]	-
-	-	1	GRAIN TANK-LOADING AUGER WITH HOUSING [03E01]	-
-	-	1	GRAIN TANK UNLOADNING-DRIVE [03E13]	-
-	-	1	GRAIN TANK UNLOADING-DRIVE [03E11]	-
-	-	1	GRAIN TANK UNLOADING AUGER [03E10]	-
-	-	1	GRAIN TANK [03D23]	-
-	-	1	GRAIN TANK [03D21]	-
-	-	1	GRAIN ELEVATOR DRIVE WITH HOUSING [03D11]	-
-	-	1	GRAIN ELEVATOR [03D07]	-
-	-	1	EXTENSION FOR GRAIN TANK [03E03]	-
-	-	1	ELEVATOR DRIVE [03D19]	-
-	-	1	COVER-GRAIN TANK [03E07]	-

130 ELEVATORS, GRAIN TANK AND UNLOADING AUGERS

Нет текстового описания
