Открытый узел

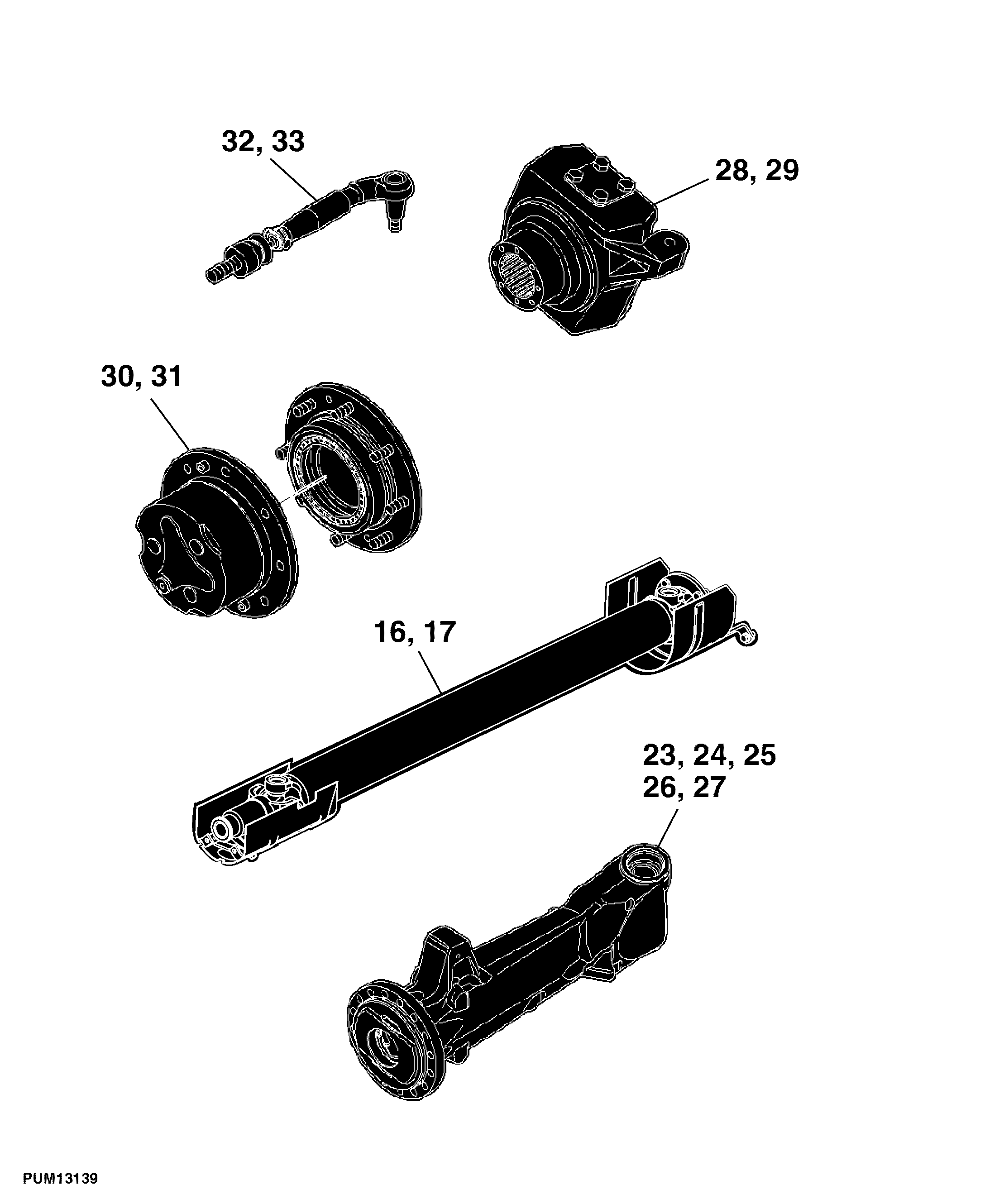

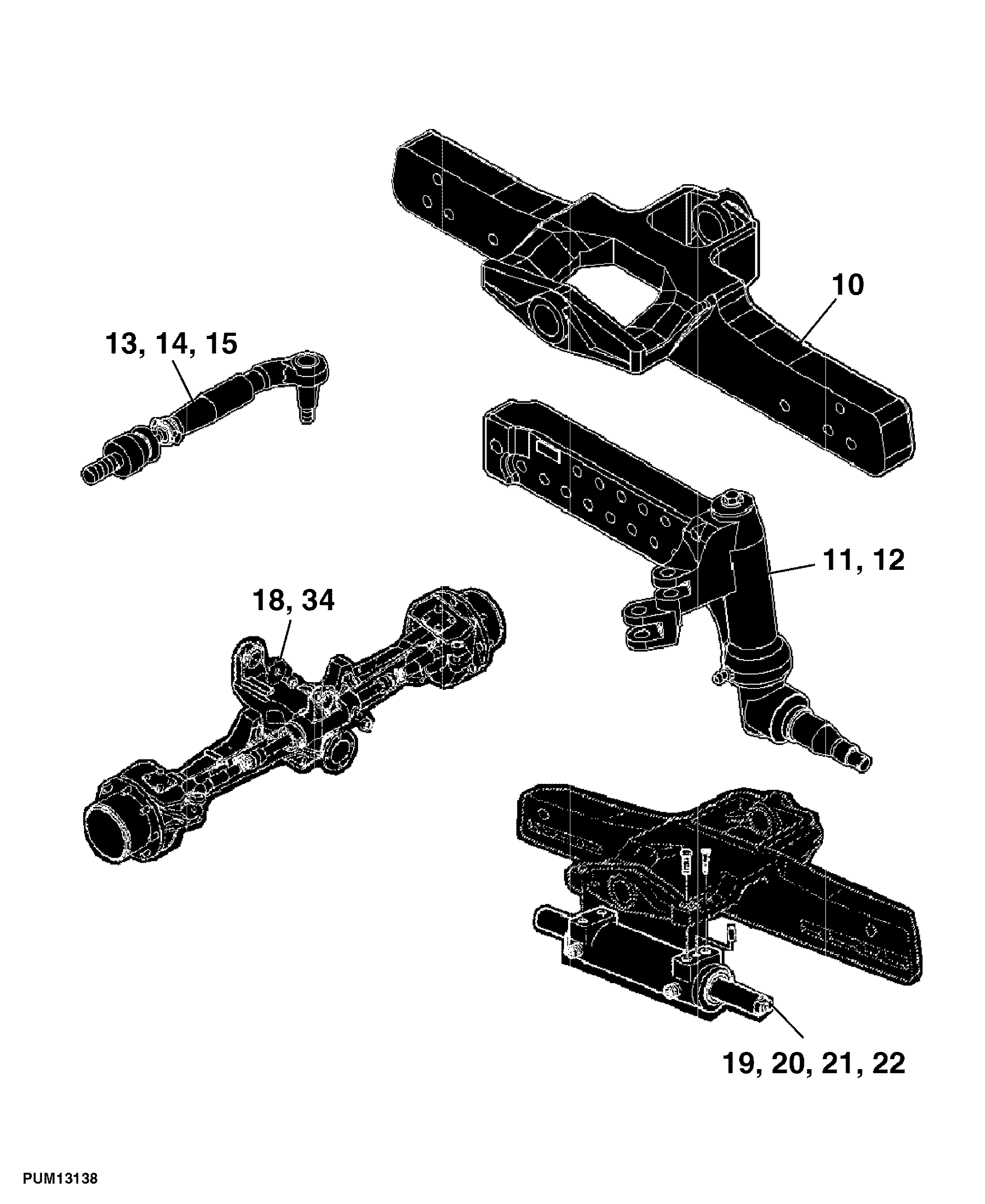

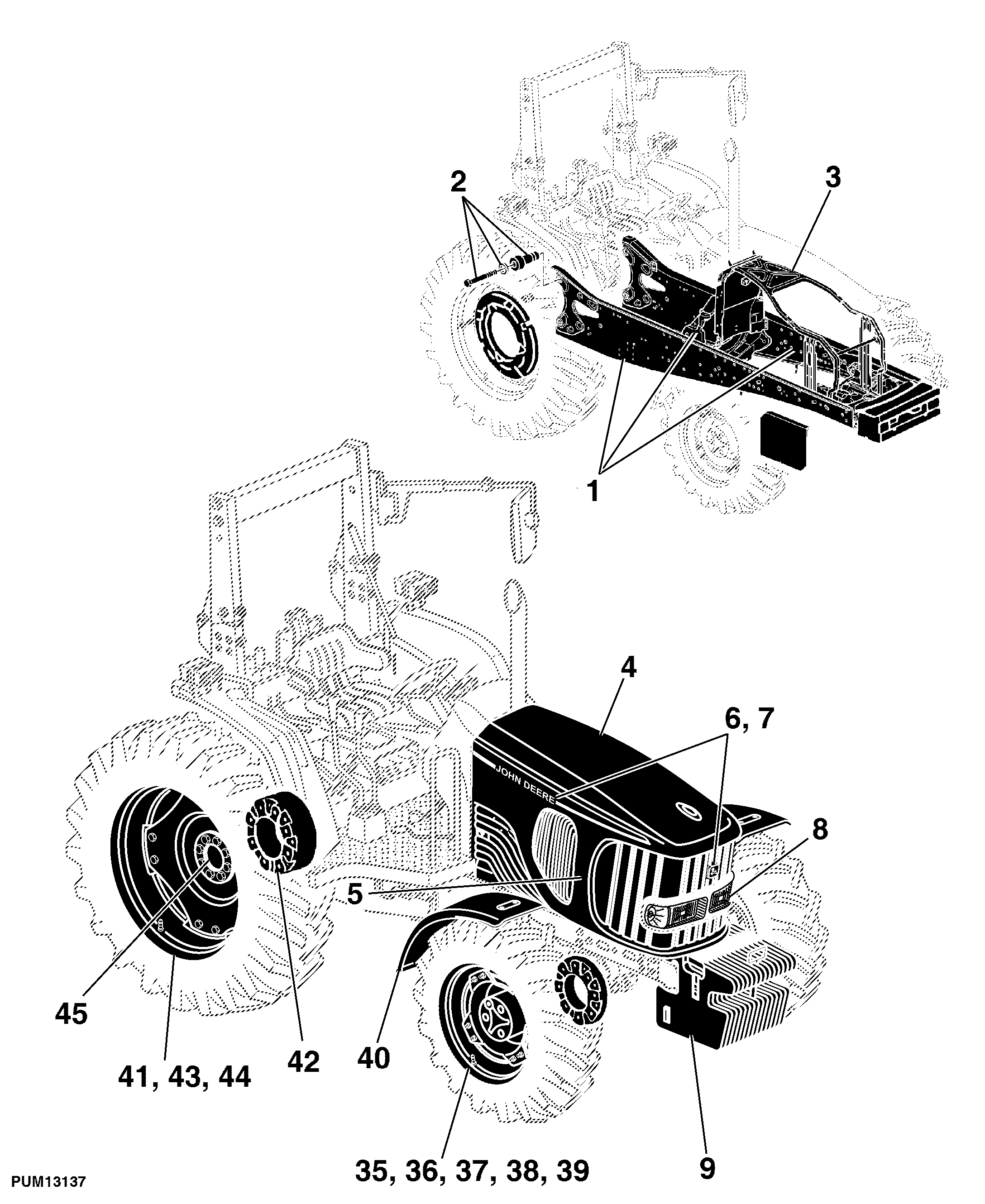

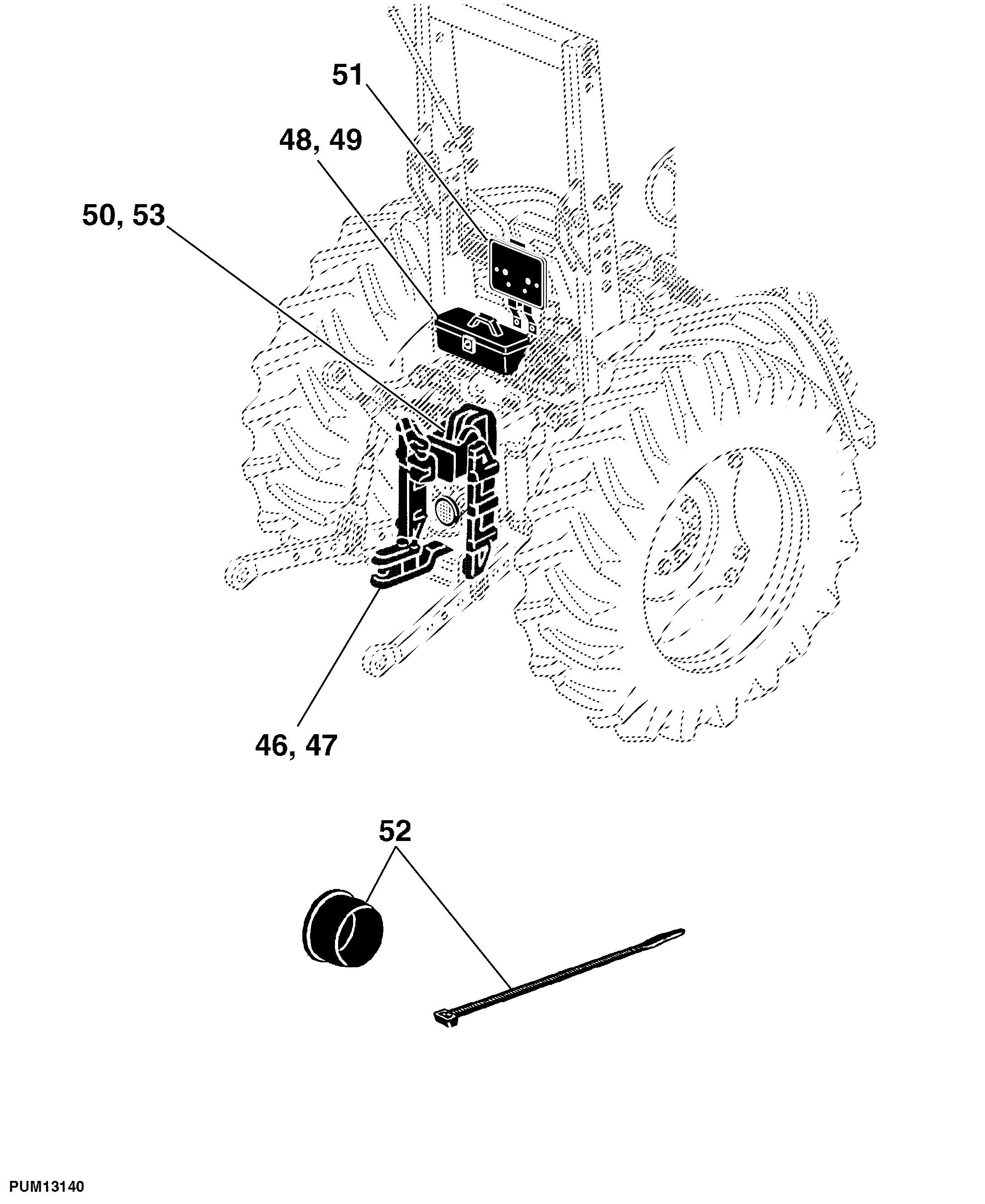

80 WHEELS, FRONT AXLES, FENDERS, MISCELLANEOUS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	HOOD	-
-	-	1	FRONT WHEEL DRIVE, PLANETARY DRIVE (APL2060)	-
-	-	1	FRONT WHEEL DRIVE, TIE ROD (APL2045)	-
-	-	1	FRONT WHEELS	-
-	-	1	Front Wheels	-
-	-	1	FRONT WHEELS (WITH MFWD)	-
-	-	1	FRONT WHEELS 320/85R34	-
-	-	1	FRONT WHEELS, MOUNTING PARTS	-
-	-	1	FWD AXLE (APL2060/APL2045)	-
-	-	1	FWD KNUCKLE HOUSING (APL2045)	-
-	-	1	FWD KNUCKLE HOUSING (APL2060)	-
-	-	1	FWD, ANTI-WRAP GUARD	-
-	-	1	FWD, MULTIPLE DISK SELF-LOCK. DIFFERENTIAL (APL2060)(APL2045)	-
-	-	1	FWD, UNIVERSAL JOINTED SHAFT	-
-	-	1	FRONT WHEEL DRIVE, PLANETARY DRIVE (APL2045)	-
-	-	1	LOCTITE SEAL AND VALVES LUBRICATING	-
-	-	1	MAIN FRAME	-
-	-	1	MAIN FRAME, MOUNTING PARTS	-
-	-	1	PLASTIC PLUG	-
-	-	1	REAR WEIGHTS (18.4 X 38 CAST WHEEL)	-
-	-	1	REAR WHEELS, MOUNTING PARTS	-
-	-	1	SIDE COVERS (COMPLETE)	-
-	-	1	STEEL DISK 18.4 X 34 REAR WHEELS	-
-	-	1	TIE ROD, FWD-AXLE,(APL2060/AS2060)	-
-	-	1	TOOL BOX	-
-	-	1	TOOLS	-
-	-	1	TRADEMARK, DECALS	-
-	-	1	WARNING SHIELD	-
-	-	1	FRONT FENDER (FWD, WIDTH 400MM)	-
-	-	1	Attachment, Front Fenders	-
-	-	1	CAST REAR WHEELS (18.4 X 38)	-
-	-	1	CAST REAR WHEELS (320/90 R50)	-
-	-	1	DECAL, SERVICE DIAGRAM	-
-	-	1	DRAWBAR	-
-	-	1	DRAWBAR SUPPORT	-
-	-	1	FRONT AXLE CENTER	-
-	-	1	Front Axle Knee/Spindle Knuckle	-
-	-	1	FRONT AXLE, EXTENSION	-
-	-	1	FRONT AXLE, EXTENSION - FIELD INSTALLATION KIT	-
-	-	1	FRONT AXLE, SUSPENSION	-
-	-	1	FRONT AXLE, TIE RODS	-
-	-	1	FRONT AXLE, WHEEL HUB	-
-	-	1	ACCESSORY PARTS	-
-	-	1	Front Fenders, Attachment	-
-	-	1	FRONT FRAME	-
-	-	1	FRONT GRILLE	-
-	-	1	FRONT WEIGHTS	-
-	-	1	FRONT WHEEL DRIVE, AXLE BRIDGES (APL2045)	-
-	-	1	FRONT WHEEL DRIVE, AXLE BRIDGES (APL2060)	-
-	-	1	FRONT WHEEL DRIVE, BEVEL GEAR SET (APL2045)	-
-	-	1	FRONT WHEEL DRIVE, BEVEL GEAR SET (APL2060)	-
-	-	1	FRONT WHEEL DRIVE, DOUBLE JOINTED SHAFT (APL2045)	-
-	-	1	FRONT WHEEL DRIVE, DOUBLE JOINTED SHAFT (APL2060)	-
-	-	1	FRONT WHEEL DRIVE, DRIVE FLANGE (APL2045)	-
-	-	1	FRONT WHEEL DRIVE, DRIVE FLANGE (APL2060)	-

80 WHEELS, FRONT AXLES, FENDERS, MISCELLANEOUS

Нет текстового описания
