Открытый узел

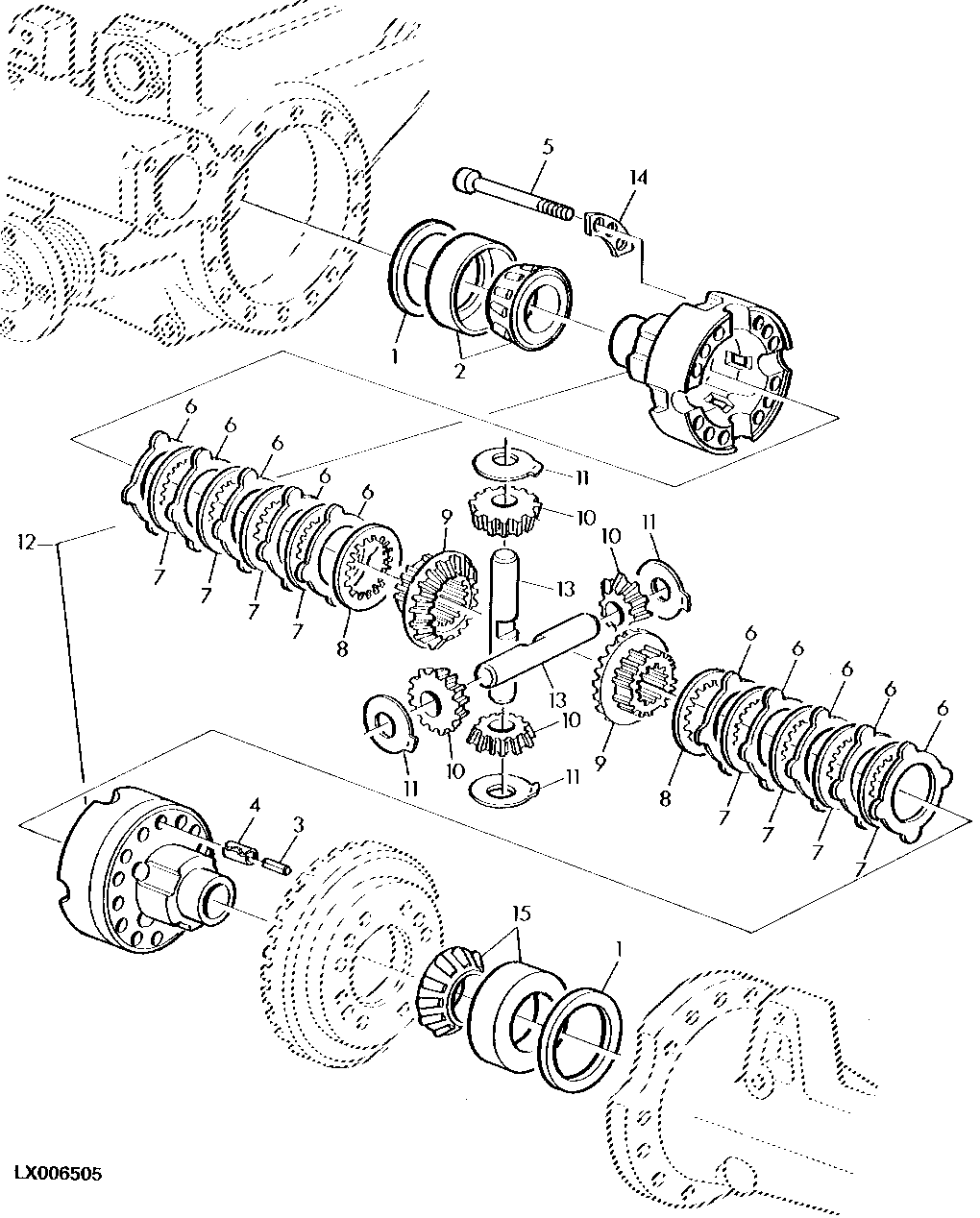

FWD, MULTIPLE DISK SELF-LOCK. DIFFERENTIAL (APL2060)(APL2045)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L112206	1	Washer	TK= 1.60MM, (SUB FOR L40244)
1	L40997	1	Washer	TK= 1.20MM
1	L112219	1	Washer	TK= 1.25MM, (SUB FOR L55591)
1	L112220	1	Washer	TK= 1.30MM, (SUB FOR L55592)
1	L112221	1	Washer	TK= 1.35MM, (SUB FOR L55593)
1	L112210	1	Washer	TK= 1.40MM, (SUB FOR L40248)
1	L112209	1	Washer	TK= 1.45MM, (SUB FOR L40247)
1	L112208	1	Washer	TK= 1.50MM, (SUB FOR L40246)
1	L112207	1	Washer	TK= 1.55MM, (SUB FOR L40245)
1	L41004	1	Shim	TK= 0.20MM
1	L112205	1	Washer	TK= 1.65MM, (SUB FOR L40243)
1	L112204	1	Washer	TK= 1.70MM, (SUB FOR L40242)
1	L112203	1	Washer	TK= 1.75MM, (SUB FOR L40241)
1	L112202	1	Washer	TK= 1.80MM, (SUB FOR L40240)
1	L112201	1	Washer	TK= 1.85MM, (SUB FOR L40239)
1	L112200	1	Washer	TK= 1.90MM, (SUB FOR L40238)
1	L112199	1	Washer	TK= 1.95MM, (SUB FOR L40237)
1	L112198	1	Washer	TK= 2.00MM, (SUB FOR L40236)
1	L41000	1	Shim	TK= 0.60MM
1	L112218	1	Washer	TK= 1.15MM, (SUB FOR L55590)
1	L41005	1	Shim	TK= 0.10MM
1	L41003	1	Shim	TK= 0.30MM
1	L41002	1	Shim	TK= 0.40MM
1	L101689	1	Shim	TK= 0.45MM
1	L41001	1	Shim	TK= 0.50MM
1	L101690	1	Shim	TK= 0.55MM
1	L112211	1	Washer	TK= 0.65MM, (SUB FOR L55583)
1	L112212	1	Washer	TK= 0.70MM, (SUB FOR L55584)
1	L112213	1	Washer	TK= 0.75MM, (SUB FOR L55585)
1	L40999	1	Washer	TK= 0.80MM
1	L112214	1	Washer	TK= 0.85MM, (SUB FOR L55586)
1	L112215	1	Washer	TK= 0.90MM, (SUB FOR L55587)
1	L112216	1	Washer	TK= 0.95MM, (SUB FOR L55588)
1	L40998	1	Washer	TK= 1.00MM
1	L112222	1	Washer	TK= 1.05MM, (SUB FOR L101691)
1	L112217	1	Washer	TK= 1.10MM, (SUB FOR L55589)
2	JD37087	1	Tapered Roller Bearing	LH
2	JD37219	1	Tapered Roller Bearing	LH
3	34M7135	4	Spring Pin	14 X 40 mm
4	34M3875	4	Spring Pin	8 X 40 mm
5	19M8119	12	Screw	M12 X 130, (12.9)
6	L100150	1	Disk With Outer Spline	TK= 1.00MM
6	L100151	1	Disk With Outer Spline	TK= 1.10MM
6	L100152	1	Disk With Outer Spline	TK= 1.20MM
7	L100153	8	Disk With Inner Spline	-
8	L100154	2	Thrust Washer	-
9	L101697	2	Bevel Gear	(USED ON APL2045 AXLE)
9	L110635	2	Bevel Gear	(USED ON APL2060 AXLE)
10	L101698	4	Bevel Gear	(USED ON APL2045 AXLE)
10	T116851	4	Bevel Gear	(USED ON APL2045 AXLE)
11	L40253	4	Washer	(USED ON APL2045 AXLE)
11	L60103	4	Thrust Washer	(USED ON APL2060 AXLE)
12	L101699	1	Housing	(USED ON APL2045 AXLE)
12	L110634	1	Housing	(USED ON APL2060 AXLE)
13	L39983	2	Axle With Differential	(USED ON APL2045 AXLE)
13	L110636	2	Axle With Differential	(USED ON APL2060 AXLE)
14	L40254	4	Sector	(ORDR75522)
14	R75522	12	Lock Washer	(USED ON APL2045 AND APL2060 AXLES)
15	JD37219	1	Tapered Roller Bearing	RH
15	JD37087	1	Tapered Roller Bearing	RH

FWD, MULTIPLE DISK SELF-LOCK. DIFFERENTIAL (APL2060)(APL2045)
