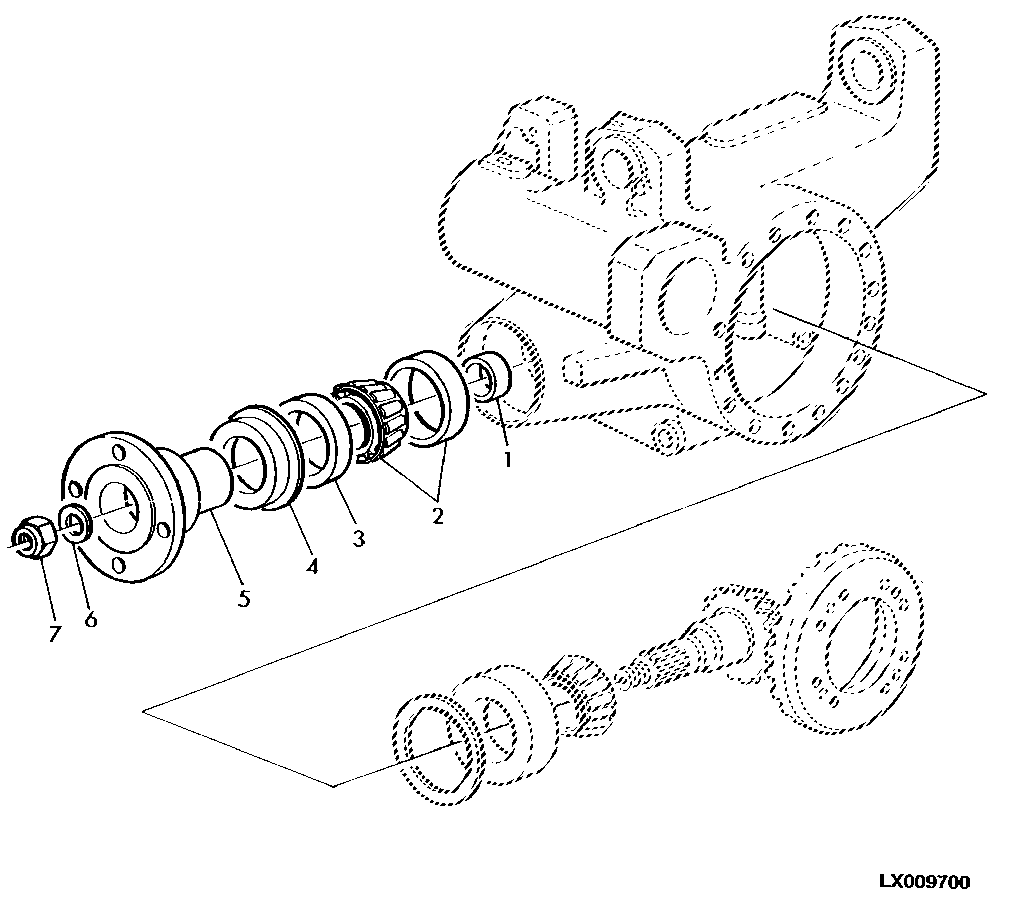

FRONT WHEEL DRIVE, DRIVE FLANGE (APL2060)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L110683	1	Ring	TK= 12.05MM
1	L110671	1	Ring	TK= 11.69MM
1	L110672	1	Ring	TK= 11.72MM
1	L110673	1	Ring	TK= 11.75MM
1	L110674	1	Ring	TK= 11.78MM
1	L110675	1	Ring	TK= 11.81MM
1	L110676	1	Ring	TK= 11.84MM
1	L110677	1	Ring	TK= 11.87MM
1	L110678	1	Ring	TK= 11.90MM
1	L110679	1	Ring	TK= 11.93MM
1	L110680	1	O-Ring	TK= 11.96MM
1	L110681	1	Ring	TK= 11.99MM
1	L110682	1	Ring	TK= 12.02MM
1	L110705	1	Ring	TK= 10.97MM
1	L110684	1	Ring	TK= 12.08MM
1	L110685	1	Ring	TK= 12.11MM
1	L110686	1	Ring	TK= 12.14MM
1	L110687	1	Ring	TK= 12.17MM
1	L110688	1	Ring	TK= 12.20MM
1	L110689	1	Ring	TK= 12.23MM
1	L110690	1	Ring	TK= 12.26MM
1	L110691	1	Ring	TK= 12.29MM
1	L110692	1	Ring	TK= 12.32MM
1	L110693	1	Ring	TK= 12.35MM
1	L110694	1	Ring	TK= 12.38MM
1	L110669	1	Ring	TK= 11.63MM
1	L110706	1	Ring	TK= 10.94MM
1	L110704	1	Ring	TK= 11.00MM
1	L110703	1	Ring	TK= 11.03MM
1	L110702	1	Ring	TK= 11.06MM
1	L110701	1	Ring	TK= 11.09MM
1	L110700	1	Ring	TK= 11.12MM
1	L110699	1	Ring	TK= 11.15MM
1	L110698	1	Ring	TK= 11.18MM
1	L110697	1	Ring	TK= 11.21MM
1	L110696	1	Ring	TK= 11.24MM
1	L110695	1	Ring	TK= 11.27MM
1	L110659	1	Ring	TK= 11.33MM
1	L110670	1	Ring	TK= 11.66MM
1	L110668	1	Ring	TK= 11.60MM
1	L110667	1	Ring	TK= 11.57MM
1	L110666	1	Ring	TK= 11.54MM
1	L110665	1	Ring	TK= 11.51MM
1	L110664	1	Ring	TK= 11.48MM
1	L110663	1	Ring	TK= 11.45MM
1	L110662	1	Ring	TK= 11.42MM
1	L110661	1	Ring	TK= 11.39MM
1	L110660	1	Ring	TK= 11.36MM
1	L110658	1	Ring	TK= 11.30MM
2	JD10359	1	Tapered Roller Bearing	-
3	AL110922	1	Seal	-
4	T82532	1	Dust Shield	-
5	L110708	1	Flange	-
6	R75837	1	Washer	-
7	14M7523	1	Lock Nut	-

FRONT WHEEL DRIVE, DRIVE FLANGE (APL2060)

Нет текстового описания
