Открытый узел

54 Front And Rear PTO

54 Front And Rear PTO

54 Front And Rear PTO

54 Front And Rear PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

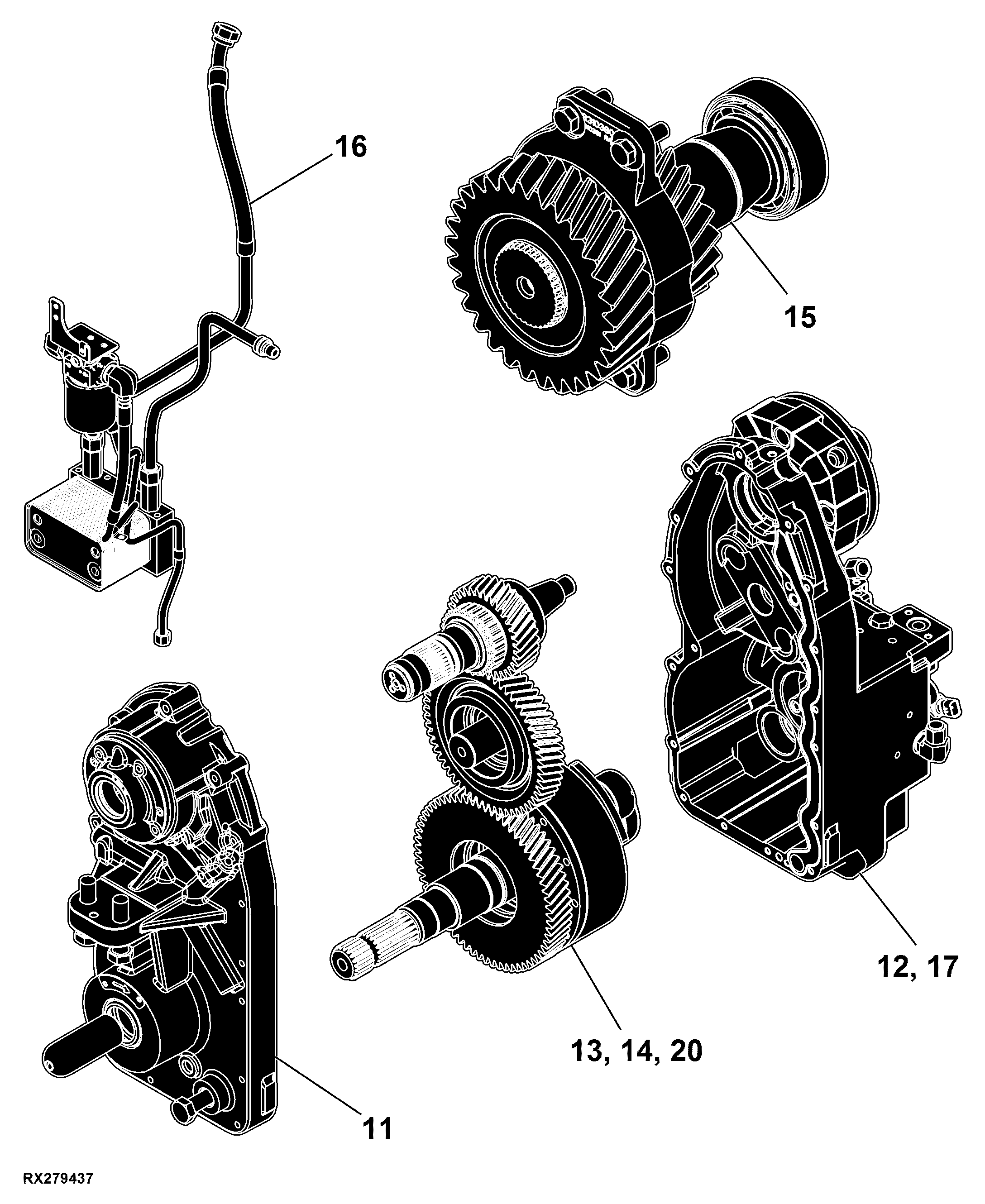

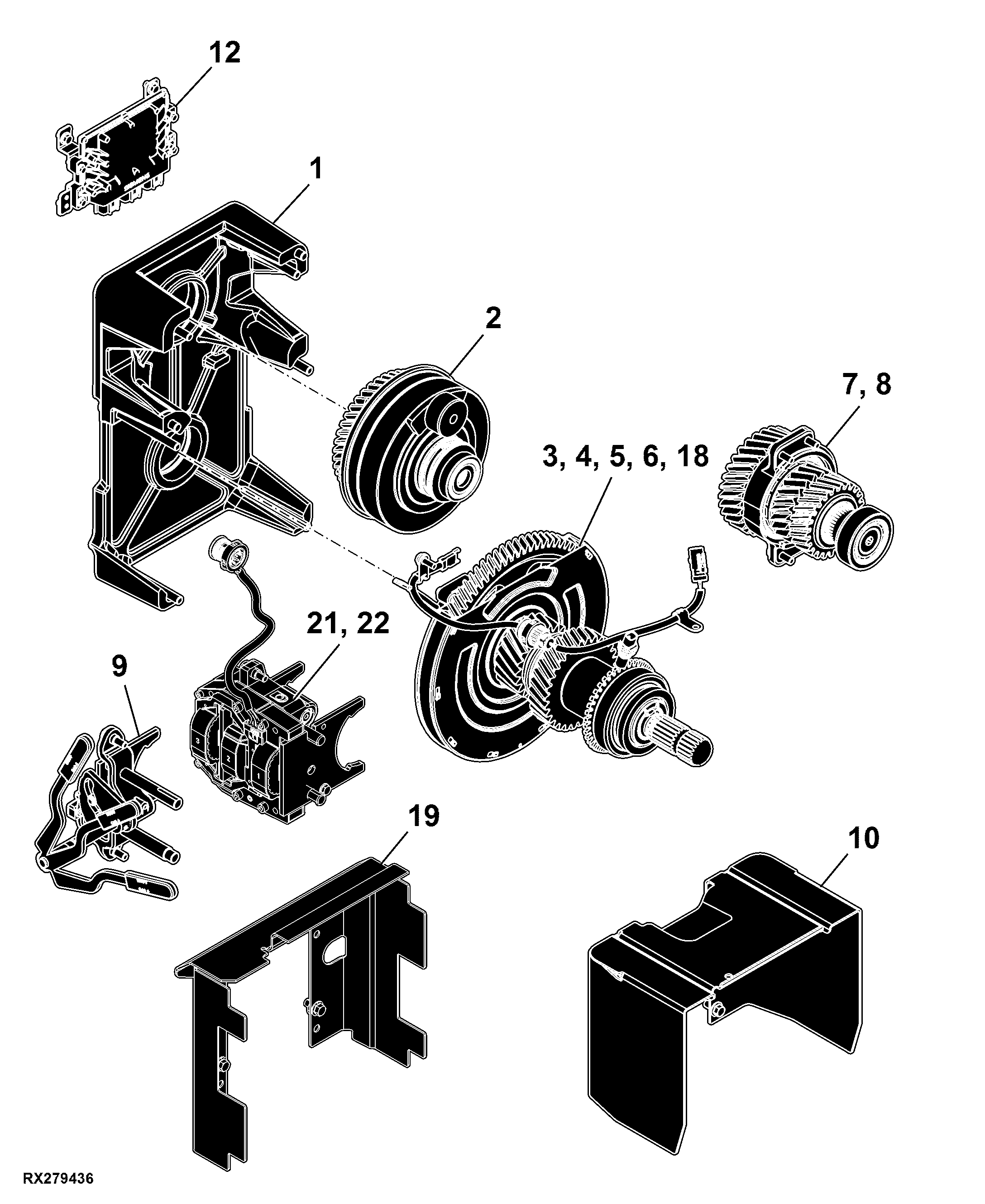

54 Front And Rear PTO

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	PTO, Master Shield, W/O Pickup Hitch	-
-	-	1	Output Shaft, Rear PTO, 1000 / 1000E / 540E, For North America	-
-	-	1	Output Shaft, Rear PTO, 540 / 540E / 1000 rpm, W/ Which End Out	-
-	-	1	Plug, Electrical Connector Cap, Front Hitch	-
-	-	1	PTO Output Shaft, 540 / 1000, W/ Which End Out, For North America	-
-	-	1	PTO Shaft, Front PTO, Type 1 (1 3/8” Shaft) (6 Splines)	-
-	-	1	PTO Shaft, Front PTO, Type 2 (1 3/8” Shaft) (21 Splines)	-
-	-	1	PTO Shaft, Front PTO, Type 3 (1 ¾” Shaft) (20 Splines)	-
-	-	1	PTO Shield, 3 in 1 Wagon Hitch Frame	-
-	-	1	PTO Shield, Pickup Hitch	-
-	-	1	Output Shaft, Non Exchangeable Rear PTO, 540 / 1000 rpm	-
-	-	1	Rear PTO Controller	-
-	-	1	Rear PTO Guard	-
-	-	1	Rear PTO Output Shaft, 1000 rpm	-
-	-	1	Rear PTO Shifting Device, 540/1000 RPM, For North America	-
-	-	1	Shaft, Rear PTO Clutch	-
-	-	1	Shifter Parts, 3-Speed, PAPTOS PTO, W/ Which End Out	-
-	-	1	Shifter Parts, 3-Speed, W/ PAPTOS, W/O Which End Out	-
-	-	1	Support, PTO, Front Bearing Type 3	-
-	-	1	Front PTO Housing, Rear	-
-	-	1	Clutch, Front PTO, Type 3, Clockwise	-
-	-	1	Countershaft (PTO Assembly)(540/1000)	-
-	-	1	Countershaft (Rear PTO Assembly) (1000/1000E/540E)	-
-	-	1	Countershaft (Rear PTO Assembly) (540/540E/1000)	-
-	-	1	Front PTO	-
-	-	1	Front PTO Drive, 20 Spline, 45 mm, Type 3	-
-	-	1	Front PTO Drive, 21 Spline, 35 mm, Type 2	-
-	-	1	Front PTO Drive, 6 Spline, 35 mm, Type 1	-
-	-	1	Front PTO Housing, Front	-
-	-	1	Clutch, Front PTO, Type 1, Counter Clockwise	-
-	-	1	Front PTO Oil Cooler	-
-	-	1	Front PTO, Attachment	-
-	-	1	Front PTO, Type 1, Counter Clockwise	-
-	-	1	Front PTO, Type 3, Clockwise	-
-	-	1	Housing, Front PTO, Type 1, Counter Clockwise	-
-	-	1	Housing, Front PTO, Type 3, Clockwise	-
-	-	1	Output Shaft, Non Exchangeable Rear PTO, 3 Speed, 1000 / 540 / 540E rpm	-
-	-	1	Output Shaft, Non Exchangeable Rear PTO, 3 Speed, 1000 / 1000E / 540E rpm	-
