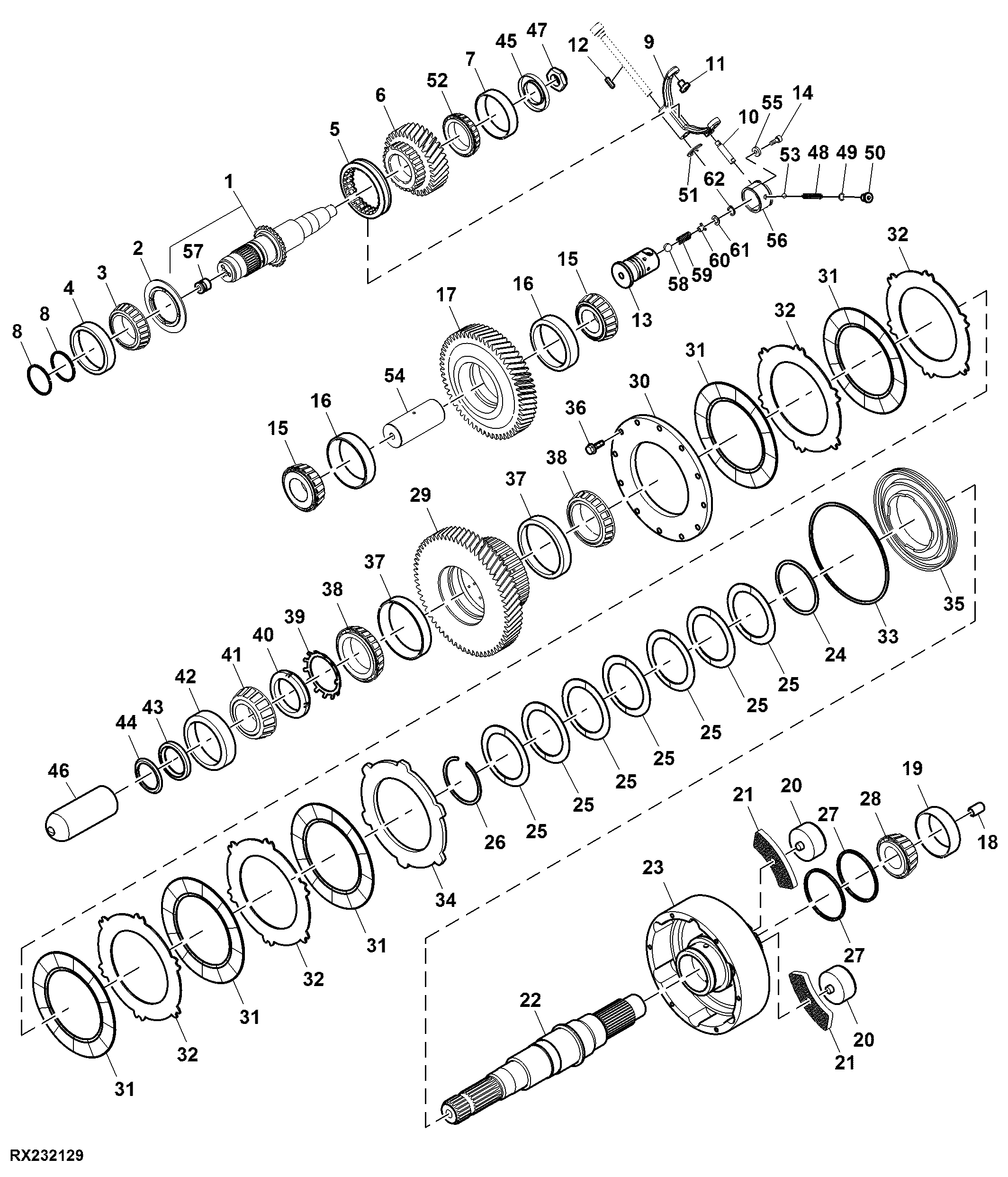

Front PTO Drive, 20 Spline, 45 mm, Type 3

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE333174	1	Shaft	Input
2	R342784	1	Washer	SUB FOR R303086
3	JD9049	1	Bearing Cone	-
4	JD9114	1	Bearing Cup	-
5	R301403	1	Shift Collar	-
6	R340005	1	Gear	Z=33, SUB FOR R301127
7	JD7282	1	Bearing Cup	-
8	R301807	2	Sealing Ring	-
9	R301400	1	Fork	-
10	R301333	1	Stud	-
11	R323602	2	Shoe	-
12	49M7048	1	Shaft Key	5 X 5 X 20 mm
13	R342777	1	Valve	SUB FOR R301401
14	19M9471	3	Screw	M4 X 10
15	JD8113	2	Bearing Cone	-
16	JD7430	2	Bearing Cup	-
17	R301296	1	Gear	Z=57
18	R186335	1	Bushing	-
19	JD8223	1	Bearing Cup	-
20	R93467	2	Piston	-
21	RE204190	2	Plate	-
22	R301398	1	Shaft	Output, Type 3
23	R183273	1	Drum	-
24	R43381	1	Washer	-
25	R70027	7	Disk Spring	-
26	R43383	1	Snap Ring	-
27	R33167	2	Ring	-
28	JD8182	1	Bearing Cone	-
29	R302019	1	Gear	Z=64
30	R183272	1	Plate	-
31	RE65291	5	Disk With Inner Spline	-
32	R95110	4	Clutch Plate	-
33	R120841	1	Seal	-
34	R95109	1	Clutch Plate	-
35	R183274	1	Piston	-
36	R219965	6	Self-Locking Screw	-
37	JD8206	2	Bearing Cup	-
38	JD8162	2	Bearing Cone	-
39	CE19103	1	Lock Washer	-
40	E12305	1	Nut	-
41	JD10129	1	Bearing Cone	-
42	JD8288	1	Bearing Cup	-
43	RE14439	1	Seal	-
44	R116086	1	Seal	-
45	LCA91707	1	Seal	-
46	R121280	1	Sleeve	-
47	R301806	1	Nut	-
48	R301402	1	Spring	-
49	51M7039	1	O-Ring	8.100 X 1.600 mm
50	64M1015	1	Drain Plug	-
51	40M7244	1	Snap Ring	-
52	RE301805	1	Bearing Cone	-
53	L78632	1	Ball	-
54	R183275	1	Bushing	-
55	R308592	3	Washer	-
56	R339630	1	Sleeve	SUB FOR R308593
57	AT107510	1	Plug	-
58	R339715	1	Ball	-
59	R47816	1	Spring	-
60	R186353	1	Guide	-
61	24M6504	1	Washer	10 X 16 X 1.500 mm
62	R43816	1	Snap Ring	-

Front PTO Drive, 20 Spline, 45 mm, Type 3
