Открытый узел

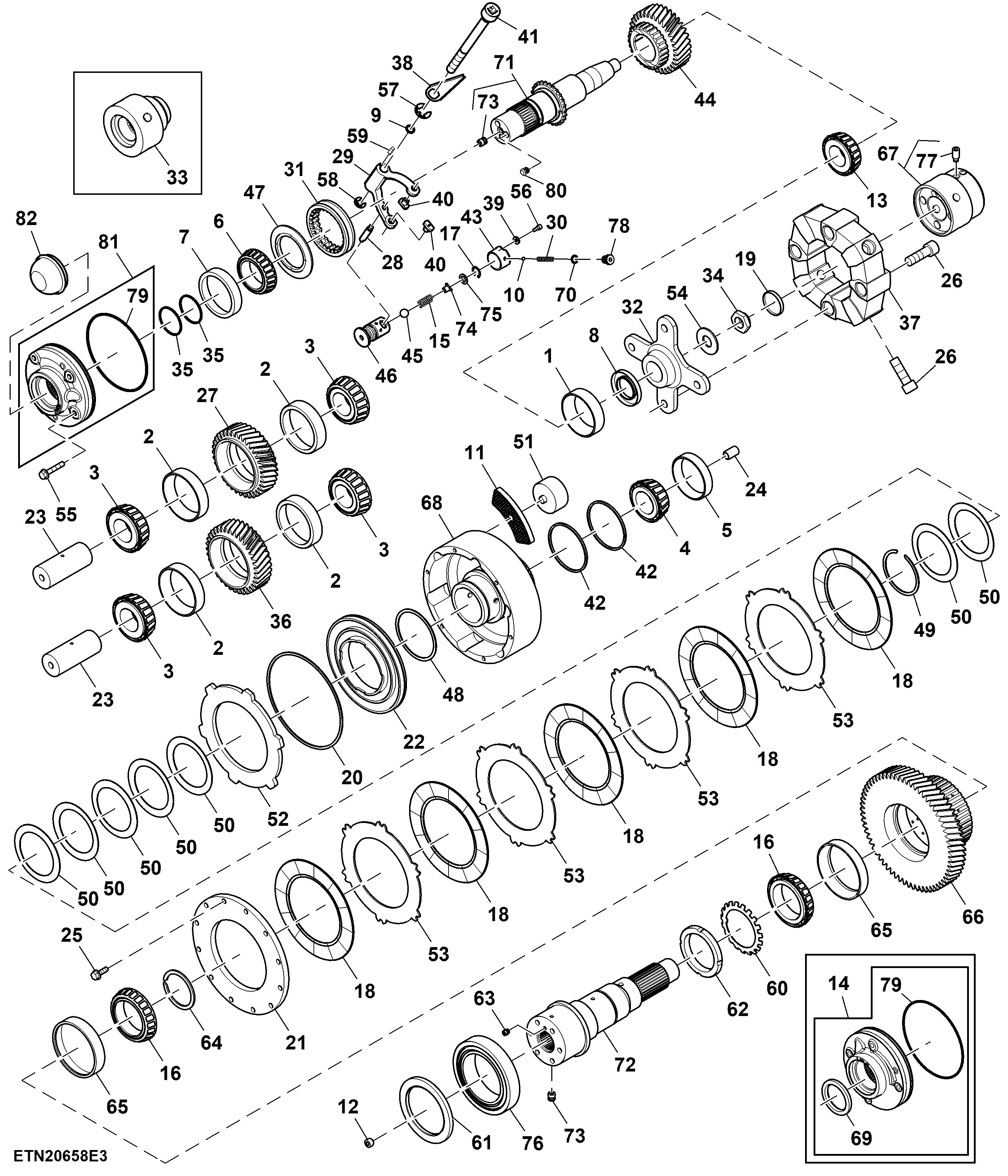

Clutch, Front PTO, Type 1, Counter Clockwise

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7282	1	Bearing Cup	-
2	JD7430	4	Bearing Cup	-
3	JD8113	4	Bearing Cone	-
4	JD8182	1	Bearing Cone	-
5	JD8223	1	Bearing Cup	-
6	JD9049	1	Bearing Cone	-
7	JD9114	1	Bearing Cup	-
8	LCA91707	1	Seal	-
9	L114670	1	O-Ring	-
10	L78632	1	Ball	-
11	RE204190	2	Plate	-
12	RE252354	1	Plug	-
13	RE301805	1	Bearing Cone	-
14	RE301809	1	Oil Pump	ORDER RE591837
15	R47816	1	Spring	-
16	JD8162	2	Bearing Cone	-
17	R43816	1	Snap Ring	-
18	RE65291	5	Disk With Inner Spline	-
19	R101005	1	Plug	-
20	R120841	1	Seal	-
21	R183272	1	Plate	-
22	R183274	1	Piston	-
23	R183275	2	Bushing	-
24	R186335	1	Bushing	-
25	R219965	6	Self-Locking Screw	-
26	R223711	8	Screw	-
27	R301294	1	Gear	Z = 36
28	R301333	1	Stud	-
29	R301400	1	Fork	-
30	R301402	1	Spring	-
31	R301403	1	Shift Collar	-
32	R544050	1	Flange	-
33	R544051	1	Hub	ORDER RE568721
34	R301806	1	Nut	-
35	R301807	2	Sealing Ring	-
36	R302018	1	Gear	Z = 36
37	R303088	1	Flange	-
38	R305827	1	Indicator	-
39	R308592	3	Washer	-
40	R323602	2	Shoe	-
41	R324352	1	Shaft	-
42	R33167	2	Ring	-
43	R339630	1	Sleeve	-
44	R340005	1	Gear	Z = 33
45	R339715	1	Ball	-
46	R342777	1	Valve	-
47	R342784	1	Washer	-
48	R43381	1	Washer	-
49	R43383	1	Snap Ring	-
50	R70027	7	Disk Spring	-
51	R93467	2	Piston	-
52	R95109	1	Clutch Plate	-
53	R95110	4	Clutch Plate	-
54	T147926	1	Washer	-
55	19M8318	4	Screw	M8 X 45
56	19M9471	3	Screw	M4 X 10
57	40M7051	1	Snap Ring	-
58	40M7244	1	Snap Ring	-
59	49M7048	1	Shaft Key	5 X 5 X 20 mm
60	R345649	1	Lock Washer	-
61	R560245	1	Seal	SUB FOR AR105724
62	R345648	1	Nut	-
63	AL166902	1	Plug	-
64	T27862	1	Snap Ring	-
65	JD8206	2	Bearing Cup	-
66	R301135	1	Gear	Z = 64
67	RE568721	1	Hub	-
68	R183273	1	Drum	-
69	R542378	1	Seal	USE WITH RE301809
70	51M7039	1	O-Ring	8.100 X 1.600 mm
71	RE333174	1	Shaft	INCLUDES AT107510
72	RE343763	1	Shaft	INCLUDES AT107510, AL166902 AND RE252354
73	AT107510	2	Plug	-
74	R186353	1	Guide	-
75	24M6504	1	Washer	10 X 16 X 1.500 mm
76	RE218971	1	Tapered Roller Bearing	ORDER YZ90690
76	YZ90690	1	Tapered Roller Bearing	-
77	22M7192	2	Set Screw	M12 X 25
78	64M1015	1	Drain Plug	-
79	R542377	1	O-Ring	145 X 2.500 mm (5.709" X 0.098")
80	R557115	3	Plug	-
81	RE591837	1	Oil Pump	-
82	R50992	1	Cap	USE WITH RE591837

Clutch, Front PTO, Type 1, Counter Clockwise

Нет текстового описания
