92 SG2 CAB

92 SG2 CAB

92 SG2 CAB

92 SG2 CAB

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

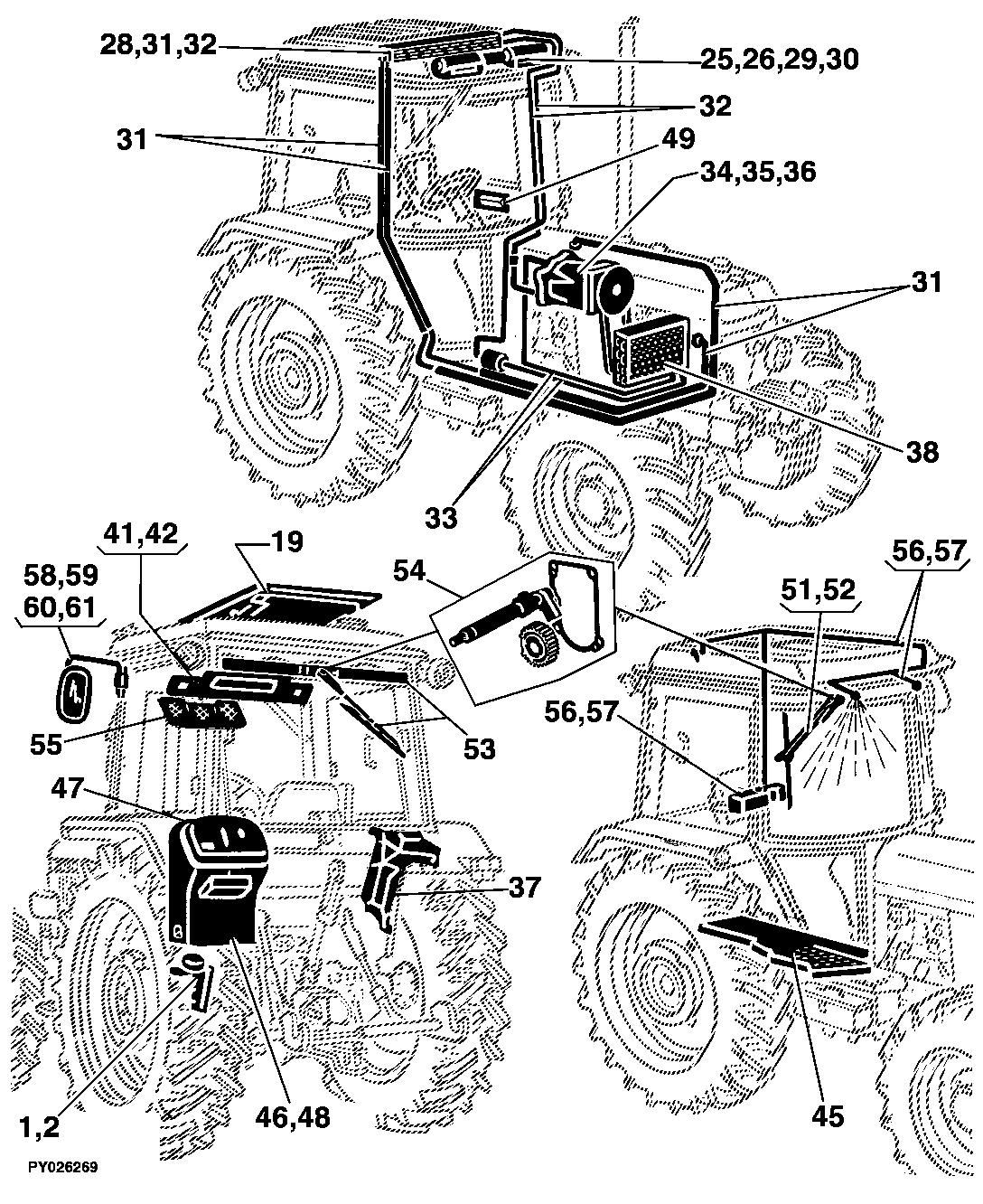

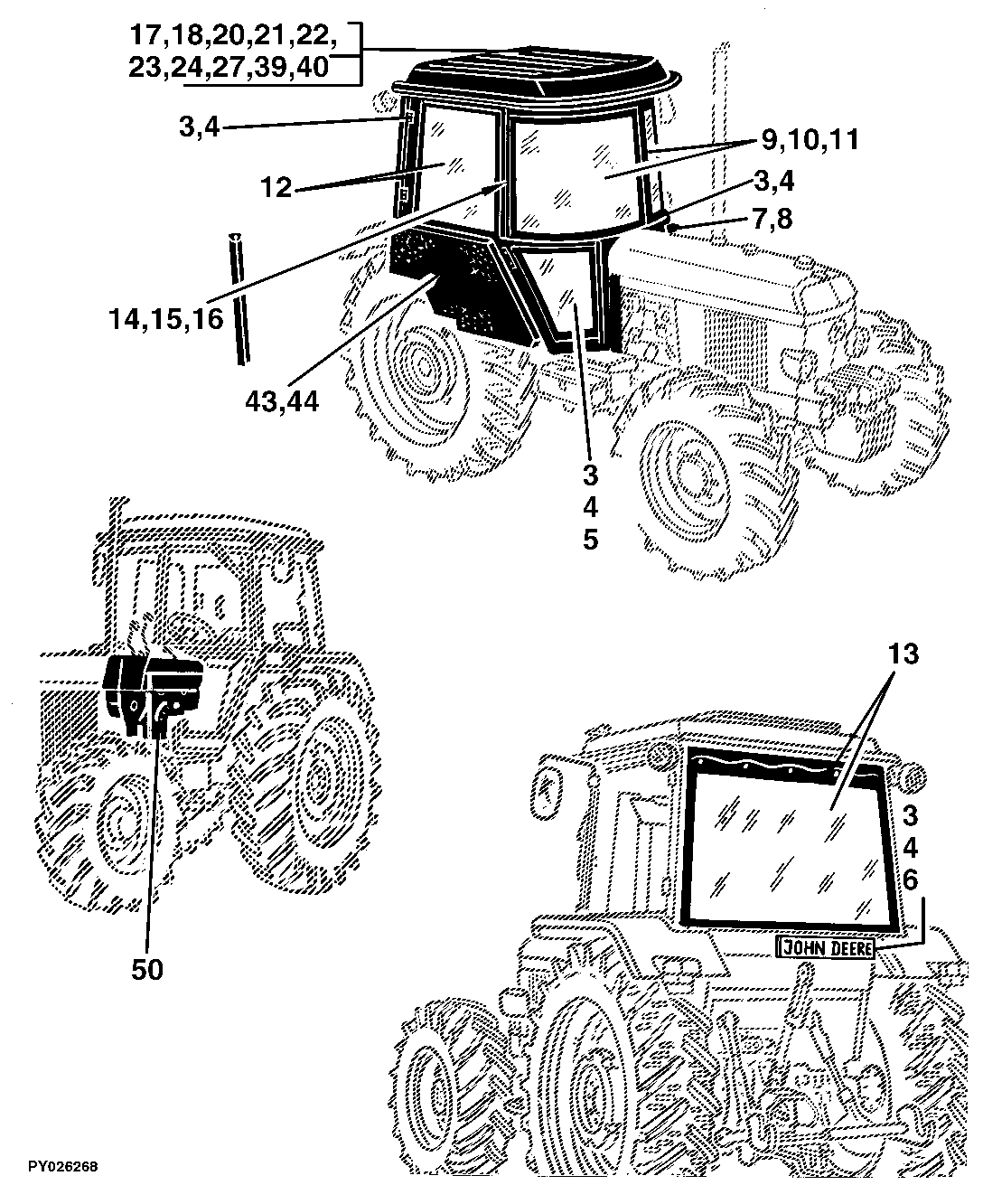

92 SG2 CAB

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	RUBBER SURROUNDS-RIGHT HAND DOOR	-
-	-	1	HATCH (WITH SG2 CAB)	-
-	-	1	HEATER PARTS (WITH SG2 CAB)	-
-	-	1	INDIVIDUAL PARTS-FIELD KIT FOR REMOTE CYLINDER LINES	-
-	-	1	INSTRUMENT PANEL (WITH SG2 CAB)	-
-	-	1	LATCH	-
-	-	1	LOW PROFILE CAB-INNER LINING	-
-	-	1	PLATFORM MATS AND COVER (WITH SG2 CAB)	-
-	-	1	REAR FIXED SIDE SWING WINDOW	-
-	-	1	REAR VIEW MIRROR (TELESCOPIC)	-
-	-	1	REAR VIEW MIRROR (TELESCOPIC) (WITH SG2 CAB)	-
-	-	1	REAR VIEW MIRROR (WITH SG2 CAB)	-
-	-	1	REAR VIEW MIRROR (WITH SG2 CAB)	-
-	-	1	REAR WINDOW (SWINGS OUT 90 DEGREES)	-
-	-	1	ROOF PANEL FOR LOW PROFILE CAB	-
-	-	1	RUBBER SURROUNDS FOR WINDOW-LEFT HAND DOOR-SERVICE DOOR	-
-	-	1	GUARD FOR HEATER AND AIR CONDITIONING SYSTEM LINES	-
-	-	1	SG2 CAB FRAME WITH LEFT AND RIGHT-HAND DOORS	-
-	-	1	SG2 CAB ROOF WITH HATCH	-
-	-	1	SG2 CAB-FRAME	-
-	-	1	SG2 CAB-LOW PROFILE	-
-	-	1	SG2 CAB-ROOF	-
-	-	1	SG2-Cab Lining Front	-
-	-	1	SG2-CAB LINING REAR	-
-	-	1	SUN VISOR	-
-	-	1	SUPPORT BRACKET (WITH SG2 CAB)	-
-	-	1	Support Bracket Anti-Vibration Kit (With SG2 Cab)	-
-	-	1	WINDOWS WITH "SEALED BEAM" LIGHTING	-
-	-	1	WINDSHIELD WASHER	-
-	-	1	WINDSHIELD WASHER	-
-	-	1	WINDSHIELD WIPER MOTOR-INDIVIDUAL PARTS-REPAIR KIT	-
-	-	1	CONDENSER (WITH SG2 CAB)	-
-	-	1	AIR CIRCULATION PARTS-BLOWER	-
-	-	1	AIR CIRCULATION PARTS-BLOWER	-
-	-	1	AIR CLEANER FOR LOW PROFILE CAB	-
-	-	1	AIR CONDITIONING LINES	-
-	-	1	AIR LOUVERS AND HEADLINER	-
-	-	1	ASHTRAY	-
-	-	1	BLOWER FAN MOTOR-INTERFERENCE SUPPRESSION KIT	-
-	-	1	BLOWER MOTOR RESISTOR	-
-	-	1	CAB ROOF HEADLINER (WITH SG2 CAB)	-
-	-	1	CAB ROOF HEADLINER COVER	-
-	-	1	CAB ROOF HEADLINER COVER FOR LOW PROFILE CAB	-
-	-	1	CAB ROOF HEADLINER WITH HATCH (WITH SG2 CAB)	-
-	-	1	COMPRESSOR MOUNTING PARTS (WITH AIR CONDITIONING)	-
-	-	1	COMPRESSOR-AIR CONDITIONING SYSTEM	-
-	-	1	AIR CIRCULATION FILTER PARTS	-
-	-	1	CONTROL SUPPORT/COWL	-
-	-	1	CONVERSION KIT-AIR CONDITIONING FROM R12 TO R134A (SG2)	-
-	-	1	DASH INSULATION	-
-	-	1	DOOR HANDLES	-
-	-	1	DOOR LH (WITH SG2 CAB)	-
-	-	1	EVAPORATOR AND REAR PIPES	-
-	-	1	FAN AND HEATER PARTS FOR LOW PROFILE CAB	-
-	-	1	FRAME STRIPS	-
-	-	1	FRONT DOOR WINDSHIELD WIPER/REAR WIPER WITH BRACKET	-
-	-	1	FRONT WINDSHIELD WIPER, LEFT-HAND	-
-	-	1	FRONT WINDSHIELD WIPER, RIGHT-HAND	-
-	-	1	FRONT WINDSHIELDS	-
-	-	1	FRONT WINDSHIELDS WITH RIGHT-HAND DOOR	-
-	-	1	GEAR SHIFT CONSOLE (WITH SG2 CAB)	-
