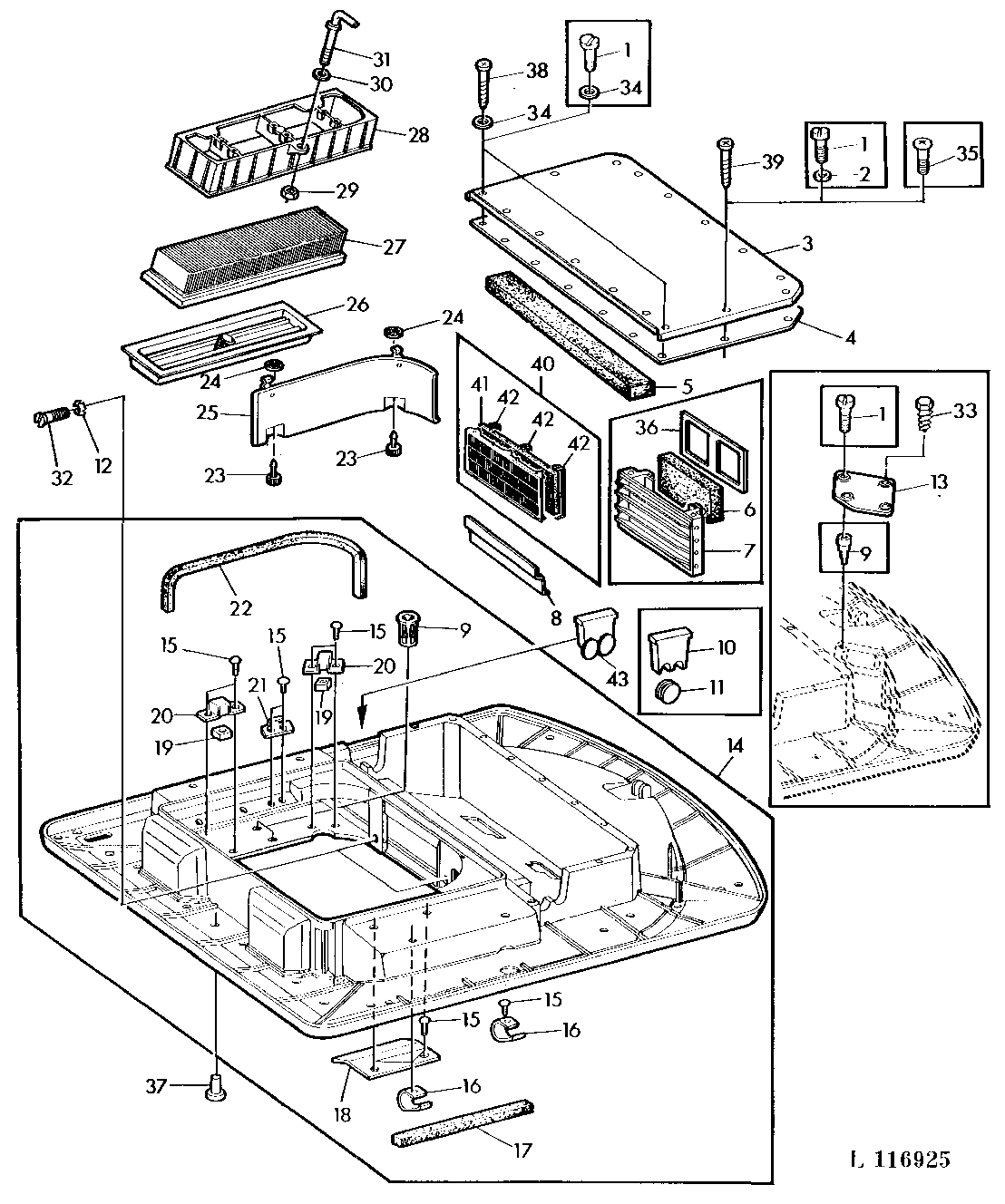

CAB ROOF HEADLINER WITH HATCH (WITH SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1410	1	Screw	1/4" X 1", 1/4"X1"
2	24H1287	16	Washer	9/32" X 5/8" X 0.065", 9/32"X5/8"
3	L55010	1	Cover	(SUB FOR R68972)
4	L55025	1	Insulator	(SUB FOR R68970)
5	R52149	1	Weatherstrip	-
6	R69180	1	Filter Element	-
7	AR93860	1	Air Filter	(ORDER AL58297)
8	AL37339	1	Panel	NLA
9	R71523	1	Nut	-
10	R71345	2	Panel	(ORDER L56856)
11	R65477	2	Plug	(WITHOUT AIR CONDITIONING)
12	R71348	2	Push Nut	-
13	R50272	1	Cover	-
14	AL39659	1	Roof	(SUB FOR AL35810, AL37408) (ORDER AL58301, (14) 37M7147, (2) 37M7148)
14	AL58301	1	Roof	(SUB FOR AL41292)
15	R55326	1	Rivet	-
16	R71341	4	Spring	-
17	R71344	2	Isolator	-
18	AR99698	2	Support	-
19	14H1030	4	Nut	5/16", 5/16"
20	R50692	4	Retainer	-
21	R74364	2	Bracket	-
22	R71343	2	Isolator	-
23	AR93864	4	Knob	-
24	L40404	4	Push Nut	-
25	AR93862	1	Panel	RH
25	AR93863	1	Panel	LH
26	AL36606	2	Dust Bowl	-
27	L38596	2	Filter Element	-
28	L38597	2	Frame	-
29	14H786	2	Nut	1/4", 1/4"
30	24M7054	2	Washer	6.400 X 12 X 1.600 mm, 6.4X12.5X1.6MM
31	L38839	2	Hook Bolt	-
32	R50499	2	Screw	(SUB FOR L38835)
33	37M7136	4	Screw	6.3X19MM
34	24M7251	2	Washer	6.400 X 18 X 1.600 mm, 6.4X18X1.6MM
35	R50641	14	Screw	1/4"X.81"
36	R74400	1	Retainer	-
37	R68332	26	Rivet	-
38	37M7148	2	Screw	6X25MM
39	37M7147	14	Screw	6X20MM
40	AL58297	1	Air Filter	-
41	L57652	1	Filter Element	-
42	L57651	3	Ring	-
43	L56856	2	Panel	-

CAB ROOF HEADLINER WITH HATCH (WITH SG2 CAB)
