SG2 CAB FRAME WITH LEFT AND RIGHT-HAND DOORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CG20696	1	Frame	(ORDER W/ L56734, AL67848)
1	CG20560	1	Frame	(ORDER CG20696, AL38844, AL38846, (2) L40872, AL67848)
2	AR103010	1	Door	(ORDER AL118343)
3	L40393	4	Hinge	(SUB FOR AR77445)
4	L40409	8	Screw	(ORDER 19M8361, 14M7273)
4	19M8361	4	Screw	M8 X 25, M8X25
5	AR93643	2	Hinge	RH
5	AR89198	2	Hinge	LH
6	R65570	1	Bushing	-
7	24H1302	4	Washer	13/32" X 11/16" X 0.035", 13/32"X11/16"X.036"
8	25M7022	4	Groove Pin	3 X 12 mm, 3X12MM
9	L38505	4	Pin Fastener	-
10	L40688	8	Washer	(SUB FOR 24M7024 APPL)
11	12M7056	8	Lock Washer	8 mm
12	14H785	8	Nut	5/16", 5/16"
12	14M7273	4	Nut	M8, M8
13	R68461	4	Plug	-
14	L55208	2	Grommet	(SUB FOR R20759)
15	AR97883	1	Insulator	(ORDER AL62769, (2) 16M7100)
15	AL62769	1	Insulator	-
16	L38053	3	Grommet	-
17	R63839	1	Cover	-
18	R52937	5	Cap Screw	-
19	AR93415	1	Door	-
20	L41256	1	Plug	(SUB FOR R52233)
21	37M7109	12	Screw	6.3X16MM
22	R50470	1	Gasket	-
23	R50469	1	Cover	-
24	37M7116	1	Screw	M8 X 20, M8X20, (SUB FOR 37H27 APPL)
25	L31349	3	Plug	-
26	99M7009	1	Plug	14.5MM
27	L39642	1	Plug	-
28	99M7016	2	Plug	9MM
29	L40392	2	Hinge	RH
29	L40391	2	Hinge	LH
30	L40286	4	Pin Fastener	-
31	-	1	Part 37	(ORDER R28123)
32	L40522	1	Cover	-
32	L42020	1	Cover	-
33	37M7076	12	Screw	6.3X16MM, (ORDER 37M7109, 24M7251)
34	L39277	1	Cover	-
35	24M7251	12	Washer	6.400 X 18 X 1.600 mm, 6.3X18MM
36	L42019	1	Gasket	-
37	L55207	1	Cover	-
38	16M7100	2	Rivet	5 mm
..	R28123	1	Pad	LGTH= 1956MM (77"), KIT

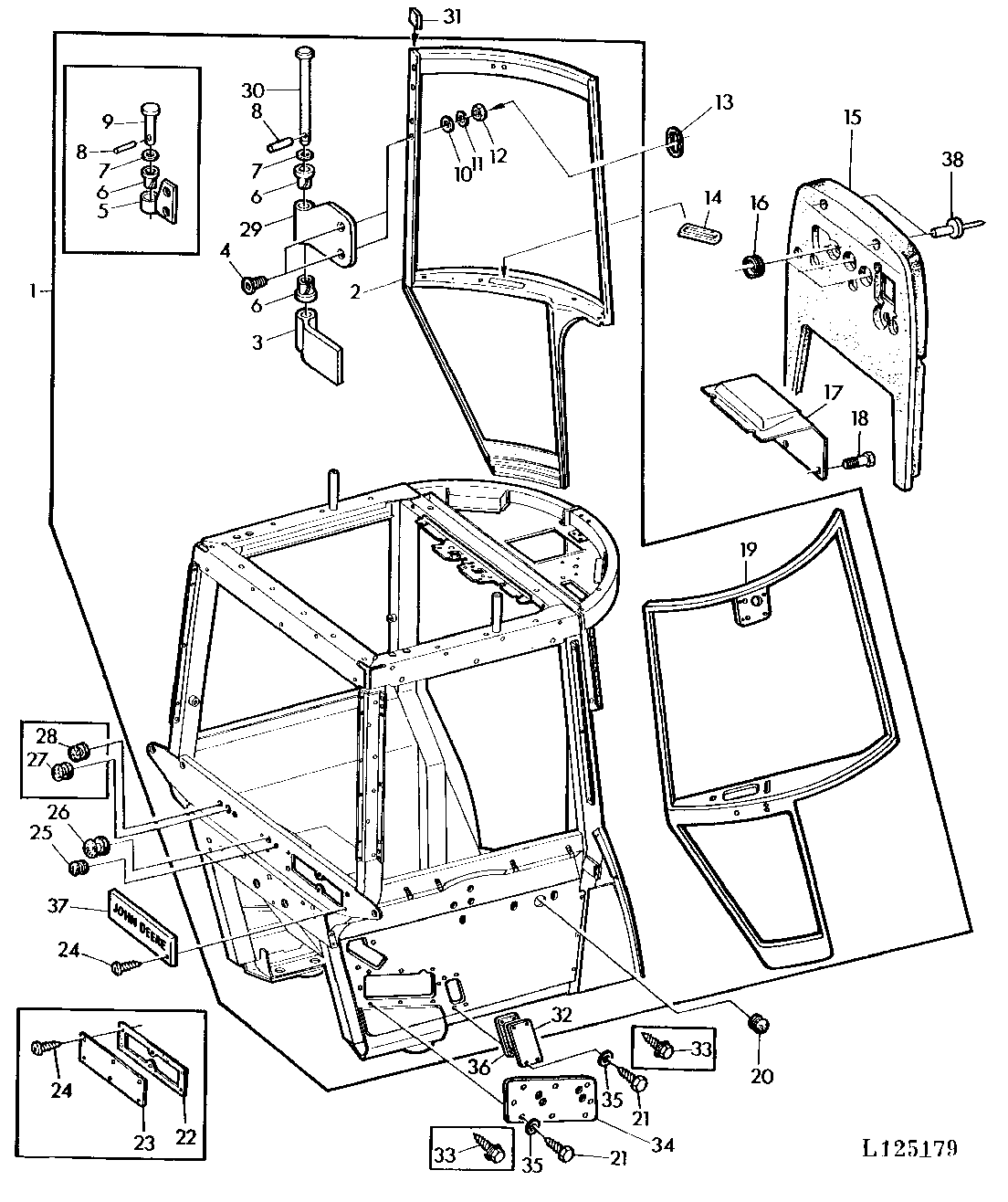

SG2 CAB FRAME WITH LEFT AND RIGHT-HAND DOORS
