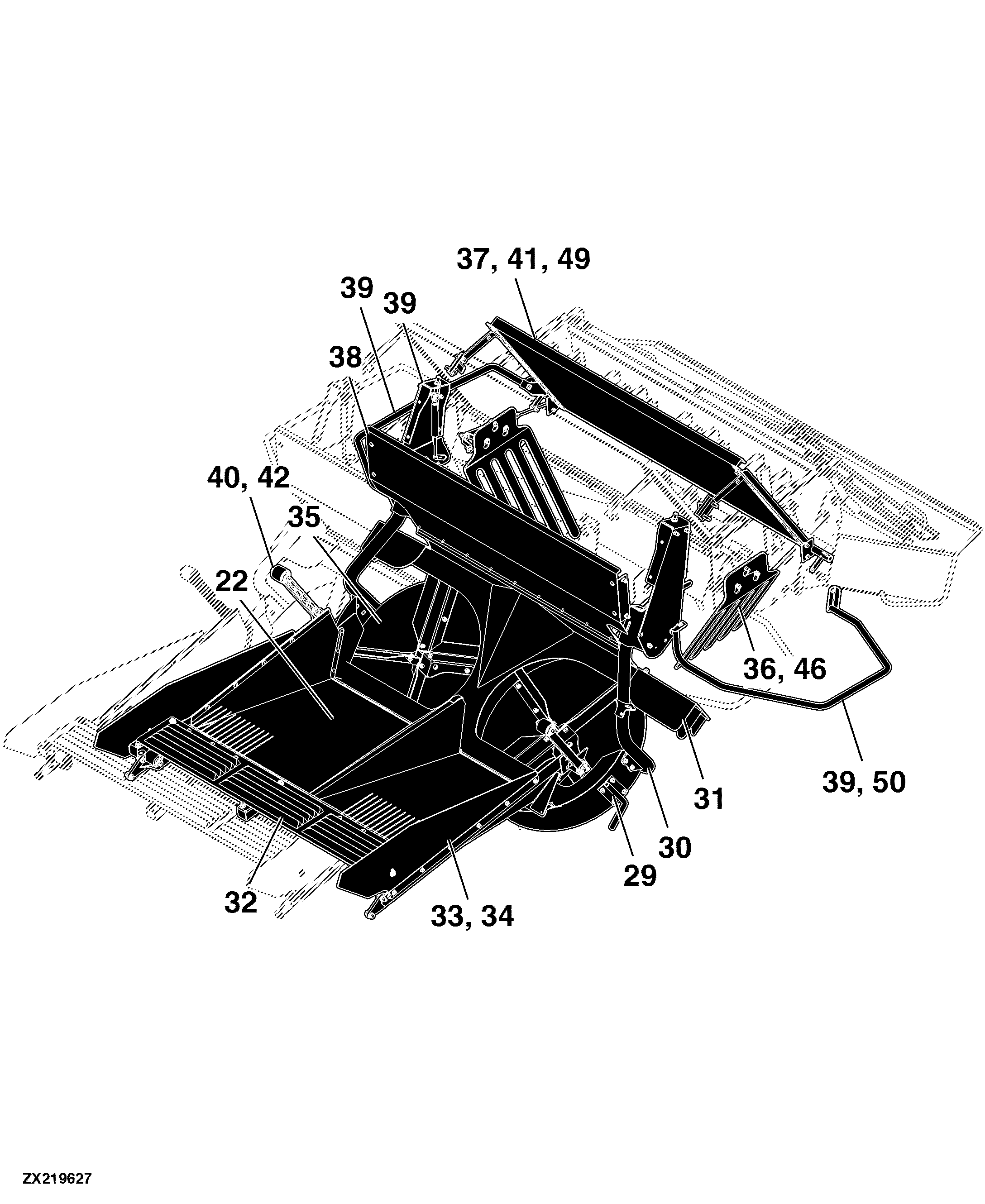

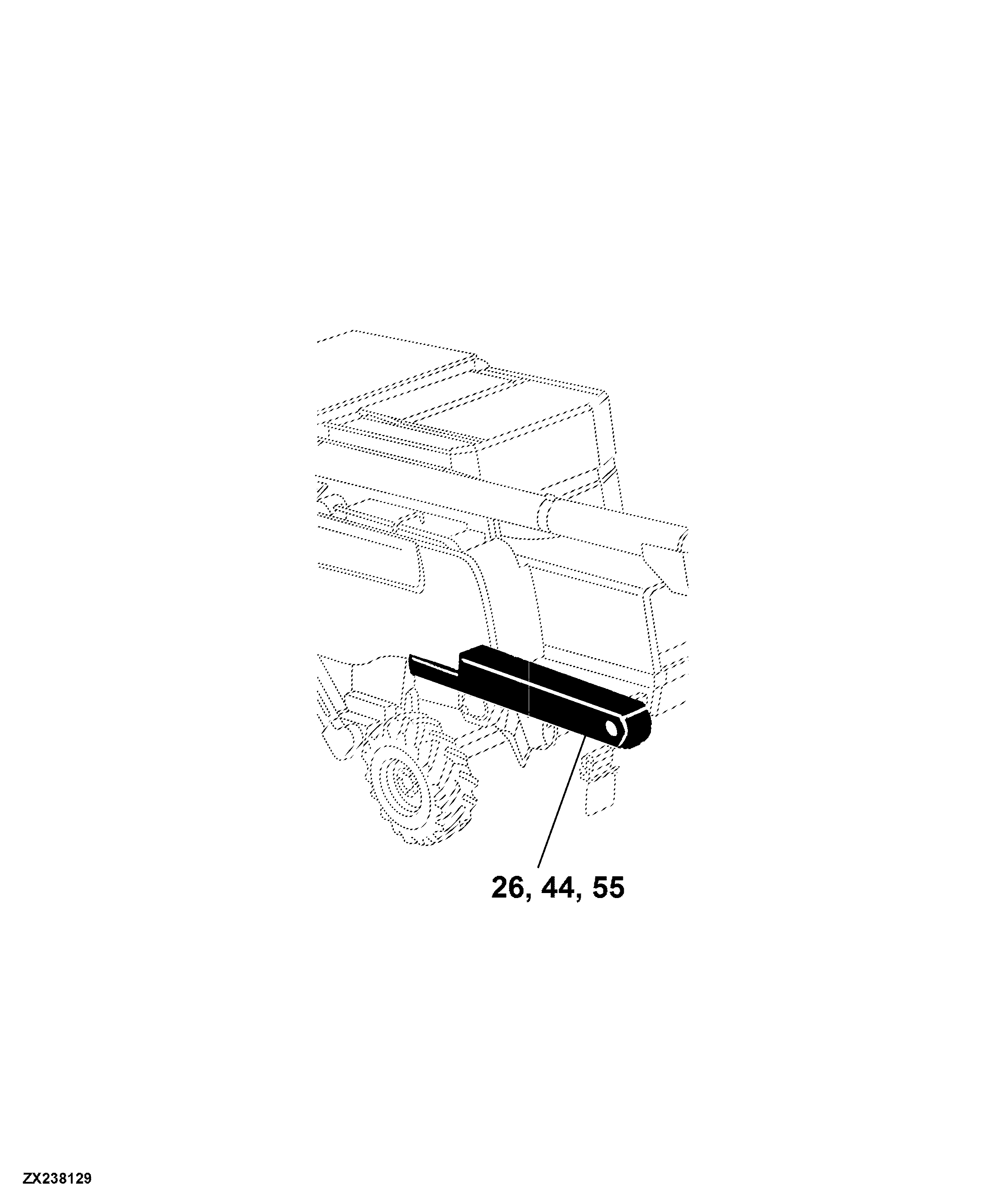

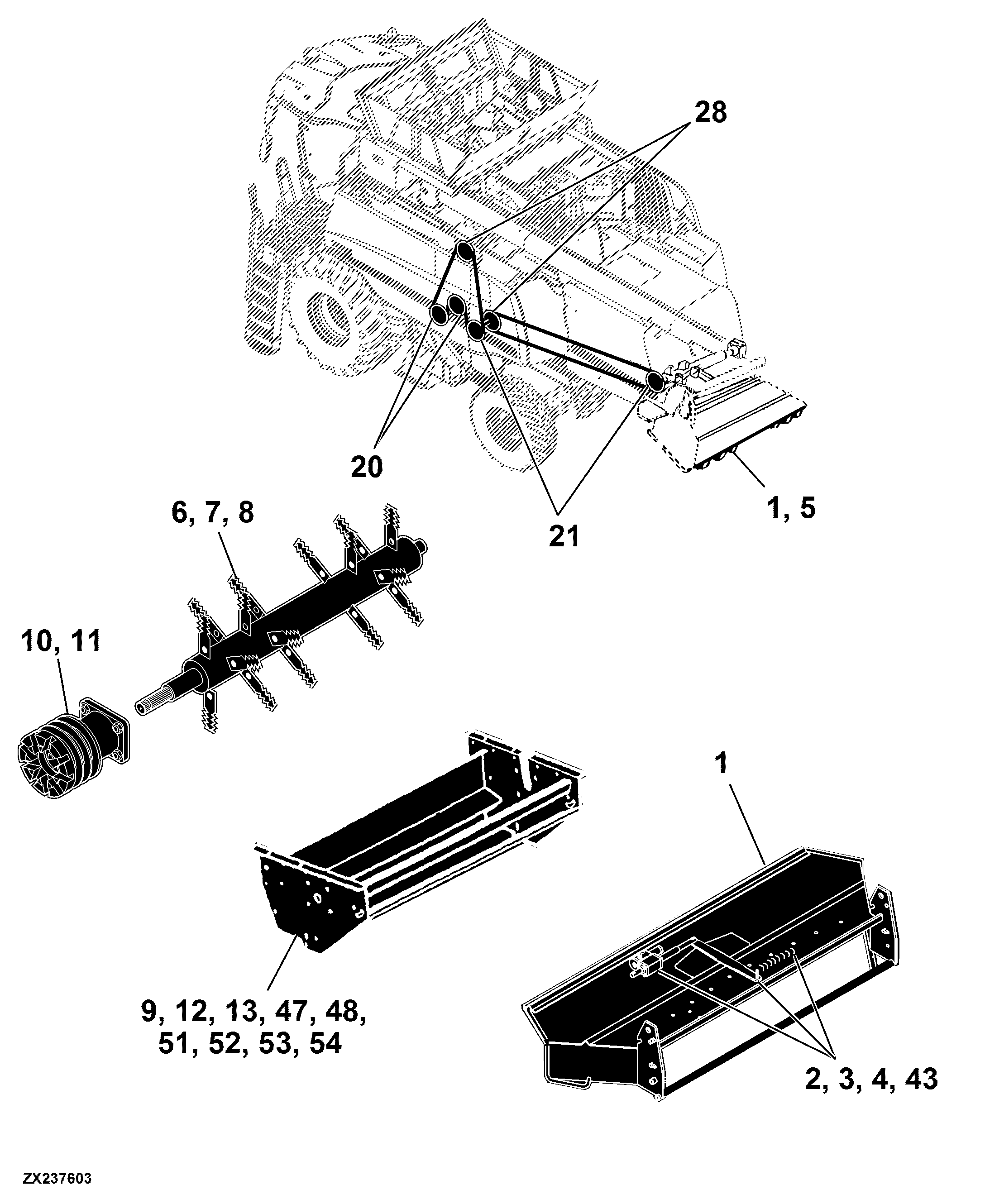

140 Straw Spreader, Chaff Spreader Combine W660-MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Pan, Sheet, Support, Non Chaff Spreader	-
-	-	1	Counterknives And Chopper Housing Cover, Extra Fine Cut	-
-	-	1	Door, Premium Chop to Drop Door	-
-	-	1	Door, Standard Chop to Drop Door	-
-	-	1	Drive Kit, Dual Speed, Attachment	-
-	-	1	Drive Pulley, Straw Chopper	-
-	-	1	Finger, Straw Rake	-
-	-	1	Housing, Chaff Spreader	-
-	-	1	Knife Rotor, Premium	-
-	-	1	Knife Rotor, Serrated Knives	-
-	-	1	Pan, Chaffer Extension	-
-	-	1	Connectors, Chaff Pan W/ Chaff Spreader	-
-	-	1	Sheet, Corn Kit	-
-	-	1	SPREADER, CORN KIT	-
-	-	1	Straw Chopper Drive Shields	-
-	-	1	Straw Chopper Drives, Rear	-
-	-	1	Straw Distributor With Bolted-On Straw Deflectors	-
-	-	1	Straw Distributor With Electrically Adjustable Straw Deflectors	-
-	-	1	Straw Distributor With Electrically Adjustable Straw Deflectors, Extra Fine Cut, Distribution Over 25 ft	-
-	-	1	Straw Distributor With Electrically Adjustable Straw Deflectors, Extra Fine Cut, Distribution Over 25 ft	-
-	-	1	Straw Spreader, Straw Deflectors, Extra Fine Cut, Distribution Over 25 ft	-
-	-	1	Support, Chaff Spreader	-
-	-	1	Chaff Pan, Sheet, Support, Chaff Spreader	-
-	-	1	Attachment, Door, Premium Chop to Drop Door	-
-	-	1	Attachment, Drive Belt Cover, Straw Chopper Drive	-
-	-	1	Attachment, Dual Speed Chopper Drive	-
-	-	1	Attachment, Dual Speed Chopper Drive	-
-	-	1	Attachment, Finger, Straw Rake	-
-	-	1	Attachment, Manual Adjustable Tailbaord, Standard Straw Chopper	-
-	-	1	Attachment, Pivoting Wind Paddles	-
-	-	1	Attachment, Premium Chaff Spreader Deflector	-
-	-	1	Attachments, Straw Chopper	-
-	-	1	Chaff Deflector	-
-	-	1	Attachment, Chaff Spreader Pan	-
-	-	1	Chaff Spreader Deflector	-
-	-	1	Chaff Spreader Disc	-
-	-	1	Chaff Spreader Frame	-
-	-	1	Chopper Drives, Front	-
-	-	1	Chopper Drum Support	-
-	-	1	Chopper Housing	-
-	-	1	Chopper Housing, Extra Fine Cut	-
-	-	1	Chopper Rotor W/ Smooth Knives	-
-	-	1	Connectors, Chaff Pan W / Chaff Spreader	-

140 Straw Spreader, Chaff Spreader Combine W660-MY14
