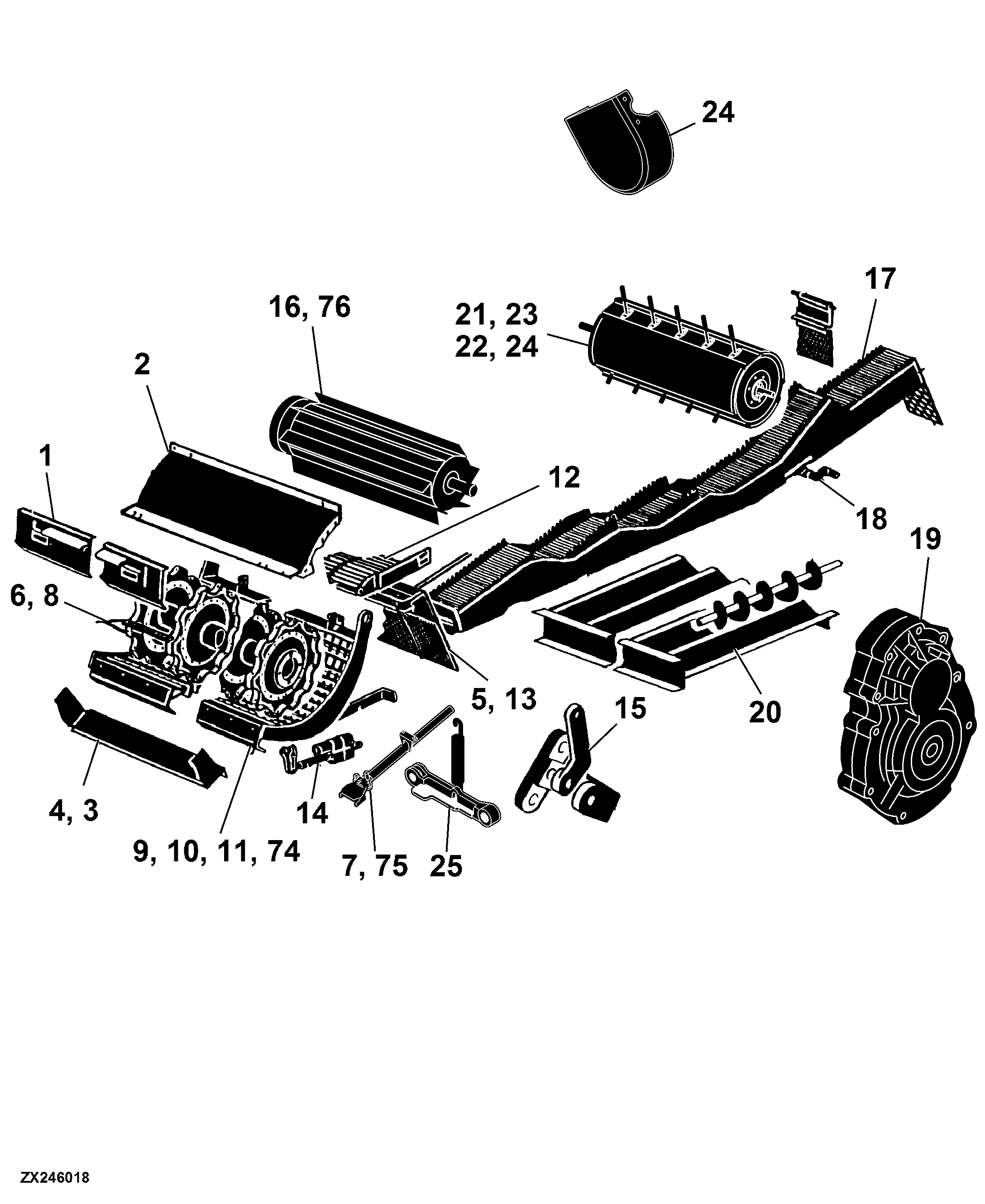

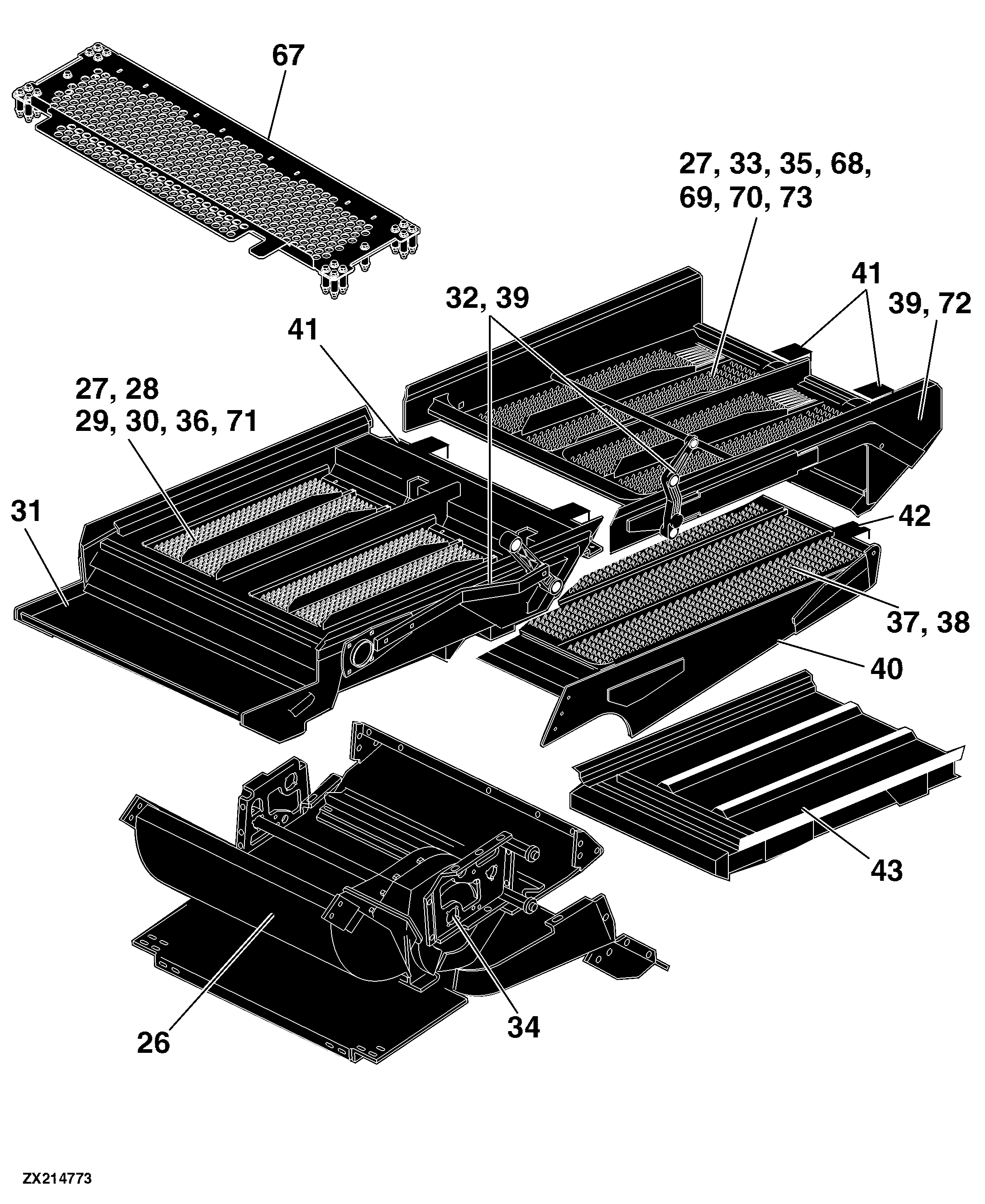

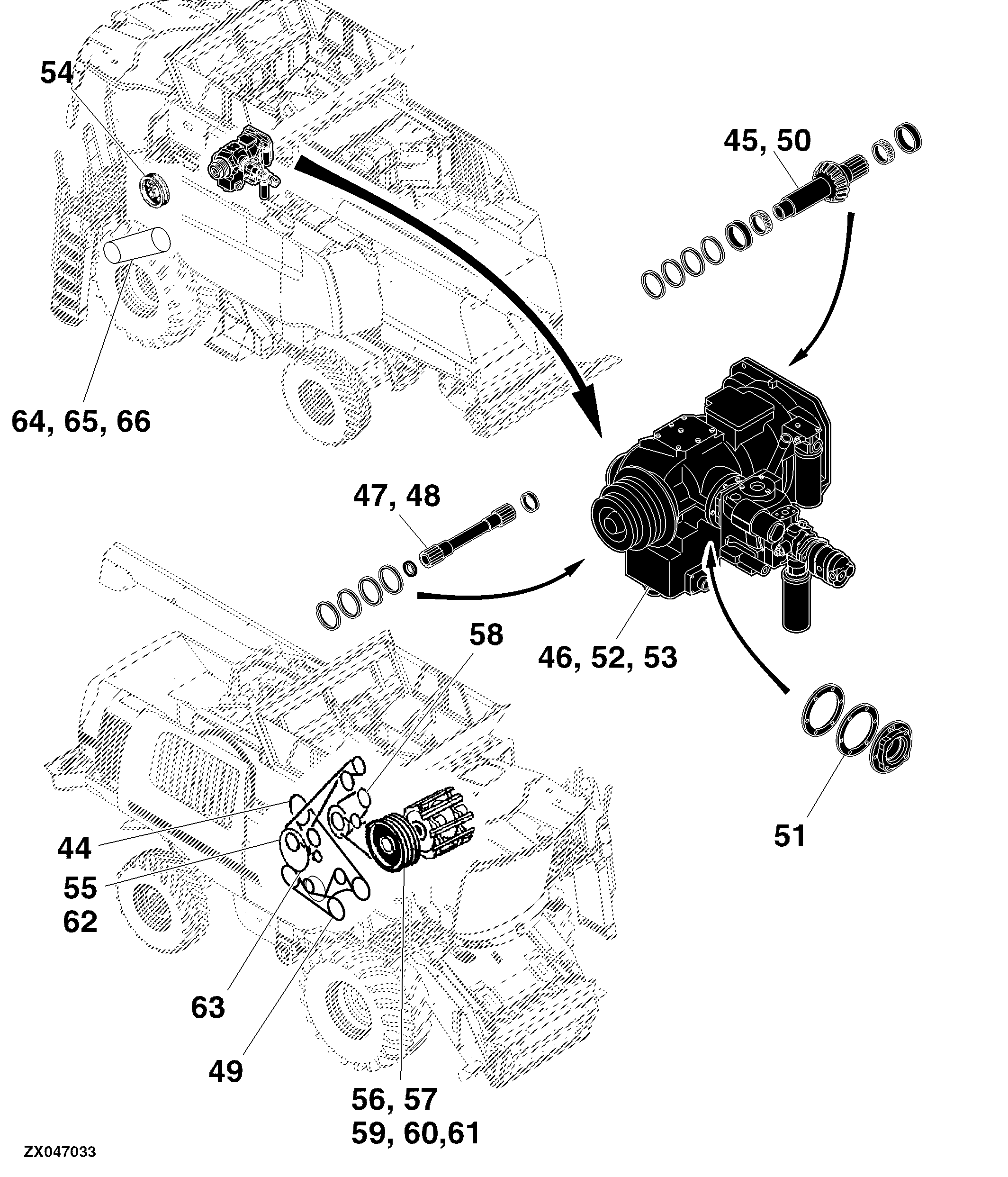

120 Separator, Cleaning Unit Combine W660 - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Primary Countershaft Drive Shaft And Variable Sheave	-
-	-	1	Ring Spanner	-
-	-	1	Rasp Bar Threshing Cylinder	-
-	-	1	Rasp Bar Concave	-
-	-	1	PTO Gear, ProDrive™	-
-	-	1	PTO Gear	-
-	-	1	PTO Gear	-
-	-	1	PTO Gear	-
-	-	1	Primary Countershaft Supports And Gear Case Mounting	-
-	-	1	Primary Countershaft Gear Case	-
-	-	1	Secondary Countershaft Drive	-
-	-	1	Pre-Cleaner, Manually Adjustable	-
-	-	1	Pre-Cleaner, Electrically Adjustable, Standard	-
-	-	1	Pre-Cleaner, Electrically Adjustable, High Performance Sieves	-
-	-	1	Pre-Cleaner Chaffer Frame Arms	-
-	-	1	Pre - Cleaner Chaffer Frame	-
-	-	1	Power Separator Support	-
-	-	1	Power Separator Drive	-
-	-	1	Power Separator	-
-	-	1	Sieve, Electrically-Adjustable, L.H. And R.H.	-
-	-	1	Threshing Cylinder Cover	-
-	-	1	Support, Cleaning Fan	-
-	-	1	Straw Walkers and Inserts	-
-	-	1	Straw Walker Drive Gear Case and Pulley	-
-	-	1	Straw Walker Crankshaft And Support	-
-	-	1	Stone Trap And Flap	-
-	-	1	Standard Chaffer Element, Electrically Adjustable	-
-	-	1	Spike-Tooth Concave	-
-	-	1	Spike Tooth Threshing Cylinder	-
-	-	1	Motor For Electrically Adjustable Pre-Cleaner and Chaffer Sieves	-
-	-	1	Sieve Frame	-
-	-	1	Sieve For Corn-Cob-Mix	-
-	-	1	Sieve Element, Manually-Adjustable, R.H. And L.H.	-
-	-	1	Shoe Grain Supply Augers and Housing	-
-	-	1	Shield, Cleaning Fan	-
-	-	1	Shield For Power Separator Drive, W/O Chopper	-
-	-	1	Shaker Pan	-
-	-	1	Separator Fan Drive and Secondary Countershaft	-
-	-	1	Beater, Shaft And Drive Belt	-
-	-	1	Conveyor Auger Drive	-
-	-	1	Concave Indicator	-
-	-	1	Concave Assembly and Beater Grate	-
-	-	1	Concave Adjusting Motor	-
-	-	1	Cleaning Fans And Shrouds	-
-	-	1	Chaffer Frame	-
-	-	1	Chaffer Element, Manually-Adjustable	-
-	-	1	Chaffer Element, Electrically-Adjustable	-
-	-	1	Bracket And Motor For Remote Shoe Adjust	-
-	-	1	Conveyor Augers, Sieve And Chaffer Drive	-
-	-	1	Beater Grate For Cylinder With Spike Teeth	-
-	-	1	Beater Grate Curtain	-
-	-	1	Beater Drive, Sheaves and Tightener	-
-	-	1	Attachment, Spike Tooth Cylinder and Concave	-
-	-	1	Attachment, Sheave Low Speed Beater Drive	-
-	-	1	Attachment, Rotator	-
-	-	1	Attachment, Chaffer, Remote shoe Adjust	-
-	-	1	Attachment, Chaffer	-
-	-	1	Dual-Range Cylinder Drive Tightener	-
-	-	1	Main Gear Case	-
-	-	1	For PTO Clutch	-
-	-	1	Fixed Cylinder Drive	-
-	-	1	Finger Rake And Curtain, Concave	-
-	-	1	Fan Drive Speed Control Sheave Linkage	-
-	-	1	Fan Drive Speed Control Linkage	-
-	-	1	Electro-Magnetic Header Clutch	-
-	-	1	Dual-Range Lockout Arm	-
-	-	1	Actuator for Remote Shoe Adjust	-
-	-	1	Dual-Range Cylinder Drive Intermediate Sheave	-
-	-	1	Dual-Range Cylinder Drive Intermediate Shaft Mounting	-
-	-	1	Dual-Range Cylinder Drive Adjusting Bracket	-
-	-	1	Cylinder Stripper	-
-	-	1	Cylinder Drive Reduction Gear	-
-	-	1	Cylinder Access Door	-
-	-	1	Corn Sieves, Manually Adjustable, CZ/4 Fins	-
-	-	1	Corn Sieves, Electrically Adjustable, CZ/4 Fins	-
