130 Elevators, Grain Tank, Unloading Auger Combine W540-MY12

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Slip Clutch for Clean Grain Elevator, Attachment	-
-	-	1	Horizontal Unloading Auger Housing 7.2 M (23.5 Ft)	-
-	-	1	Horizontal Unloading Auger Housing, 17 ft and 20 ft	-
-	-	1	Horizontal Unloading Auger Swivel	-
-	-	1	Horizontal Unloading Auger, 17 ft and 20 ft	-
-	-	1	Horizontal Unloading Auger, Hub Carrier	-
-	-	1	Lower Clean Grain Elevator and Elevator Conveyor Chain	-
-	-	1	Lower Tailings Auger Drive Tightener	-
-	-	1	Lower Tailings Auger Trough	-
-	-	1	Lower Tailings Auger, Shaft and Tightener	-
-	-	1	Motor With Support For Grain Tank Cover, 8000 Liters	-
-	-	1	Mounting Parts For Elevator Housing For Grass Seed Harvesting	-
-	-	1	Slip Clutch For Clean Grain Elevator	-
-	-	1	Horizontal Unloading Auger Drive Gear Case	-
-	-	1	Tailings Elevator Housing And Supports	-
-	-	1	Unloading Auger Countershaft Drive	-
-	-	1	Unloading Auger Drive Belt Guide	-
-	-	1	Unloading Auger Seal	-
-	-	1	Upper Clean Grain Elevator Shaft, Sheave and Sprocket	-
-	-	1	Upper Clean Grain Loading Auger Housing	-
-	-	1	Upper Tailings Auger Housing And Paddle Assembly	-
-	-	1	Upper Tailings Auger, Drive And Shield	-
-	-	1	Upper Tailings Drive Chain Tightener	-
-	-	1	Vertical Auger Lower Gear Case	-
-	-	1	Vertical Unloading Auger and Charge Housing	-
-	-	1	Grain Chute	-
-	-	1	Adjustment Of Fill Tube And Grain Tank Cover, 10000 Liters	-
-	-	1	Attachment, Adjustable Grain Tank Auger Cover	-
-	-	1	Attachment, Unloading Auger Speed Reduction	-
-	-	1	Chain, Sprockets and Bearings For Tailings Elevator	-
-	-	1	Clean Grain Elevator Drive Tightener and Idler	-
-	-	1	Clean Grain Elevator Gear Case And Sheave	-
-	-	1	Clean Grain Loading Auger	-
-	-	1	Clean Grain Lower Auger And Hinged Door	-
-	-	1	Cross Auger Bearing Plate - L.H.	-
-	-	1	Cross Auger Covers And Channel	-
-	-	1	Gas-Filled Spring For Grain Tank Cover 8000 Liters	-
-	-	1	Adjustable Cross Auger Covers	-
-	-	1	Grain Tank Access Ladder	-
-	-	1	Grain Tank Base And Attachments	-
-	-	1	Grain Tank Base And Curtains	-
-	-	1	Grain Tank Cover 10000 L	-
-	-	1	Grain Tank Cover 8000 Liters	-
-	-	1	Grain Tank Cover Mounting Parts, 8000 L	-
-	-	1	Grain Tank Cover – Support	-
-	-	1	Grain Tank Cross Augers	-
-	-	1	Grain Tank Top	-
-	-	1	Grain Tank, Support And Braces	-
-	-	1	Horizontal Unloading Auger 7.2 M (23.5 Ft)	-

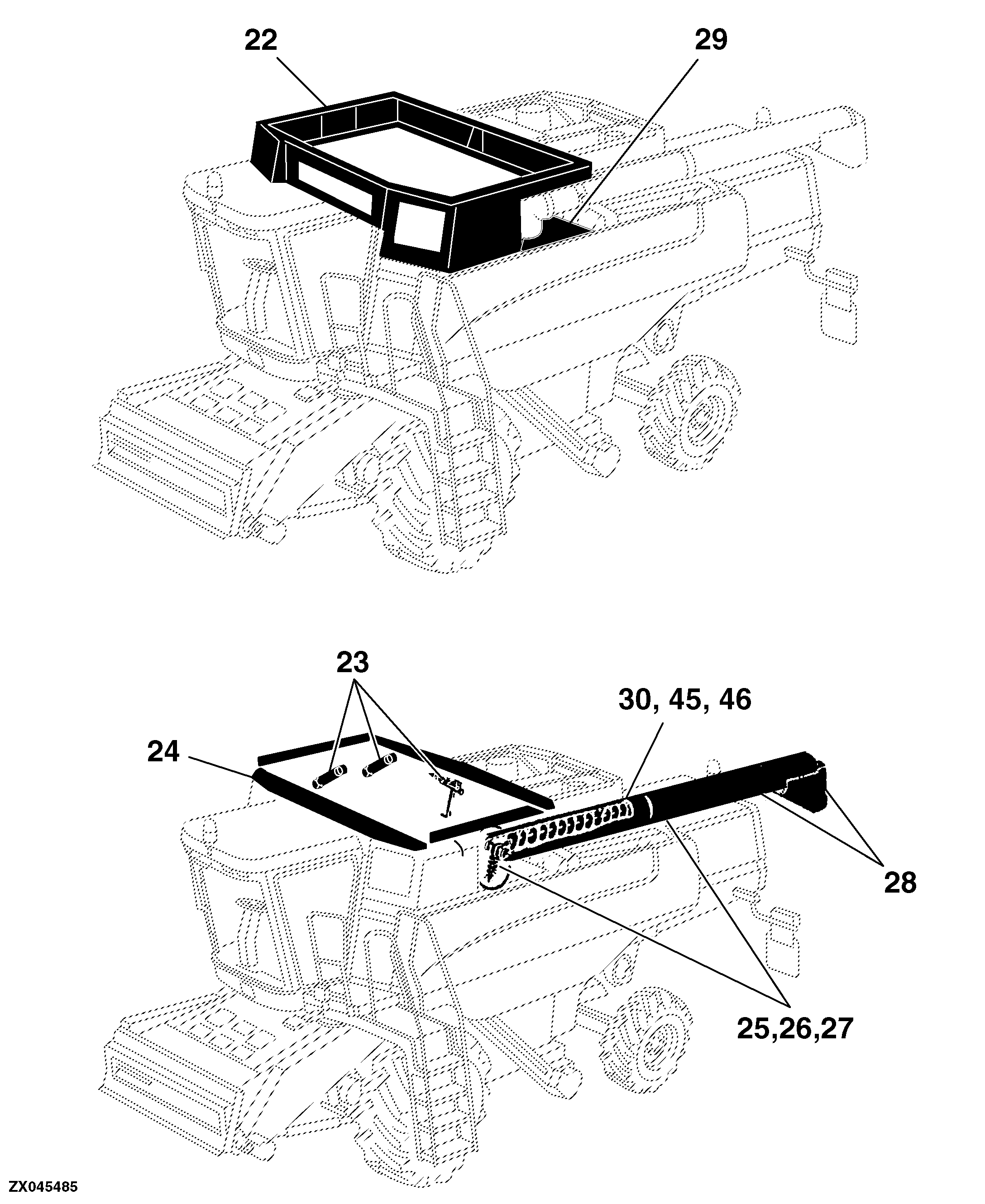

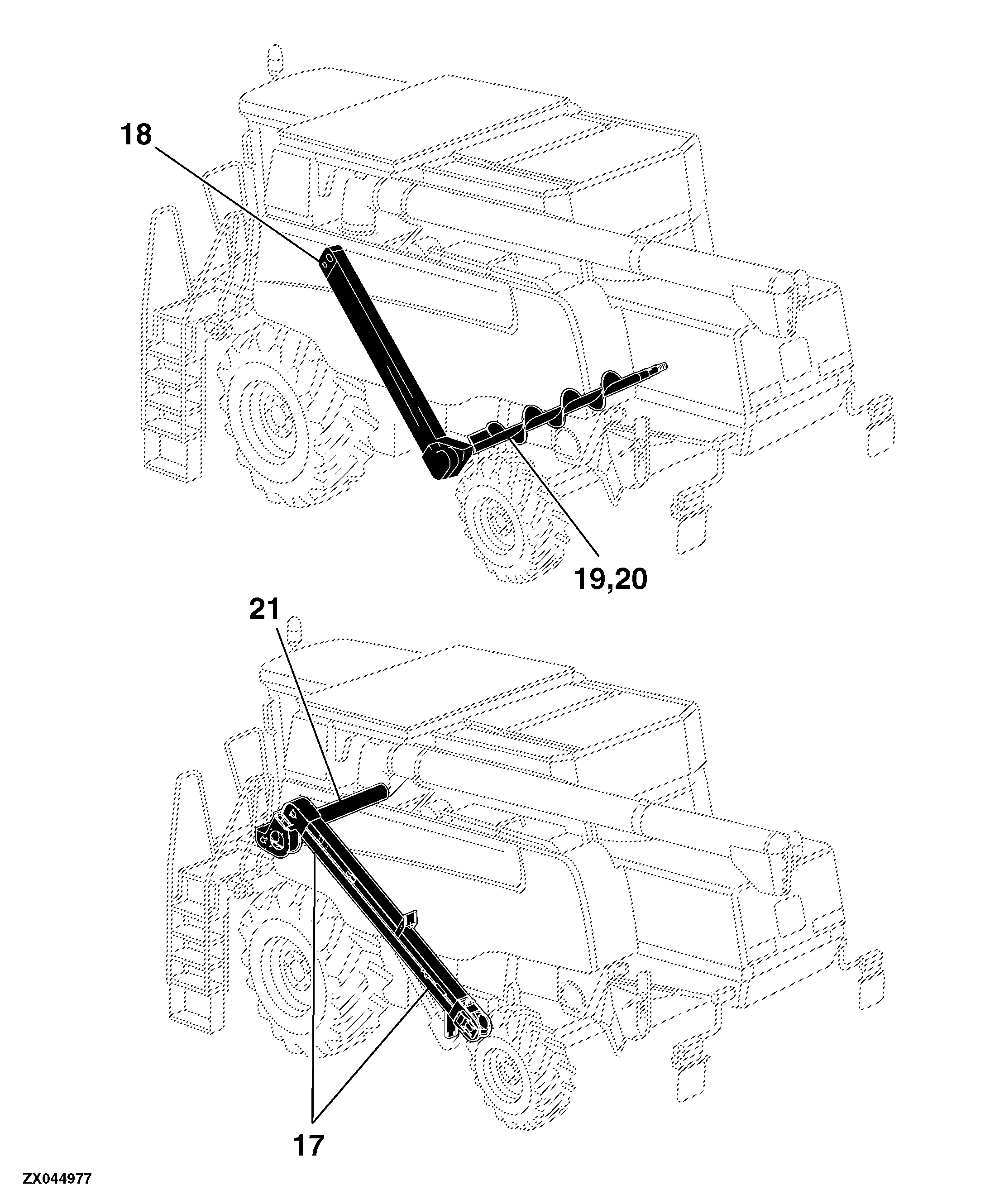

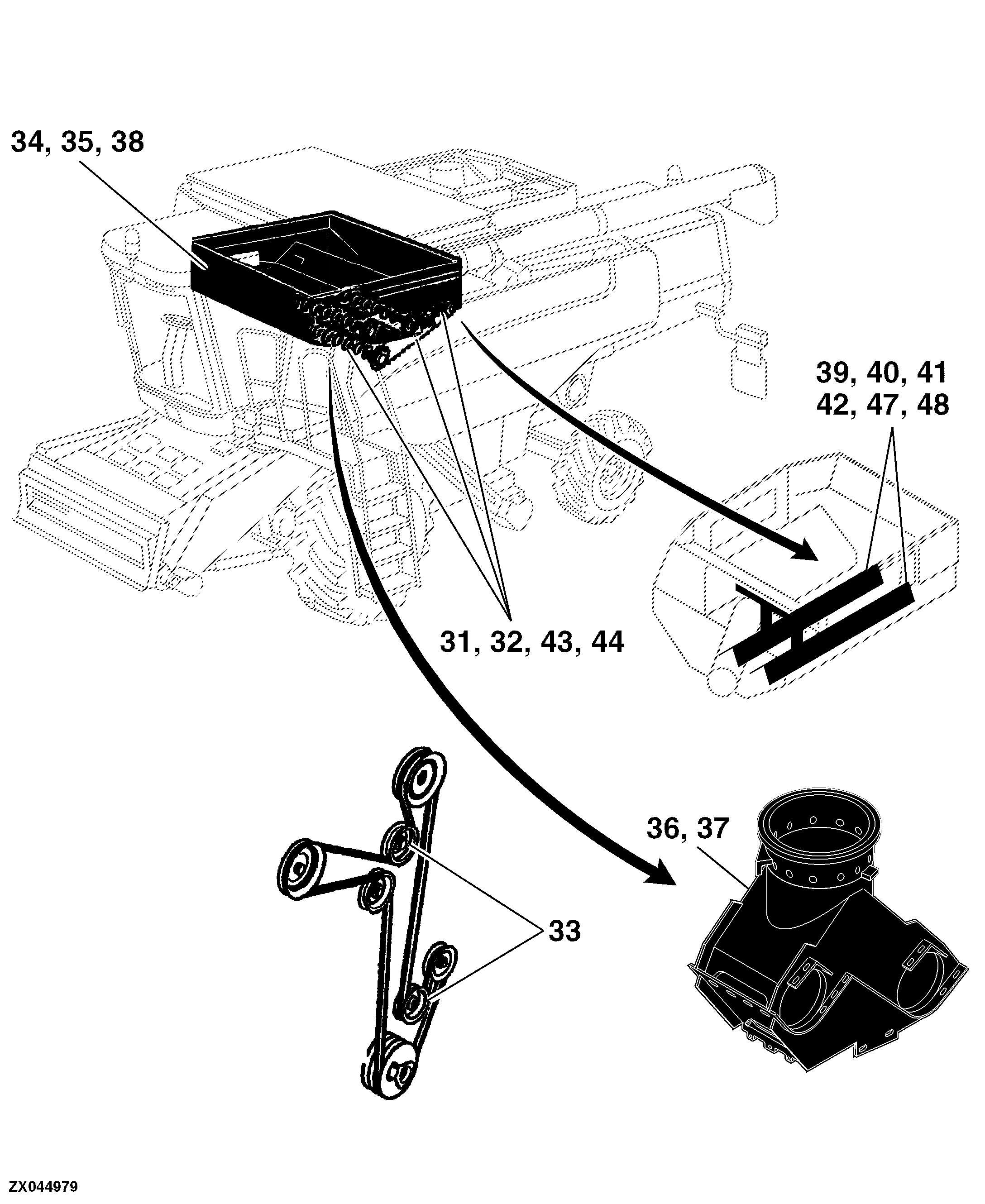

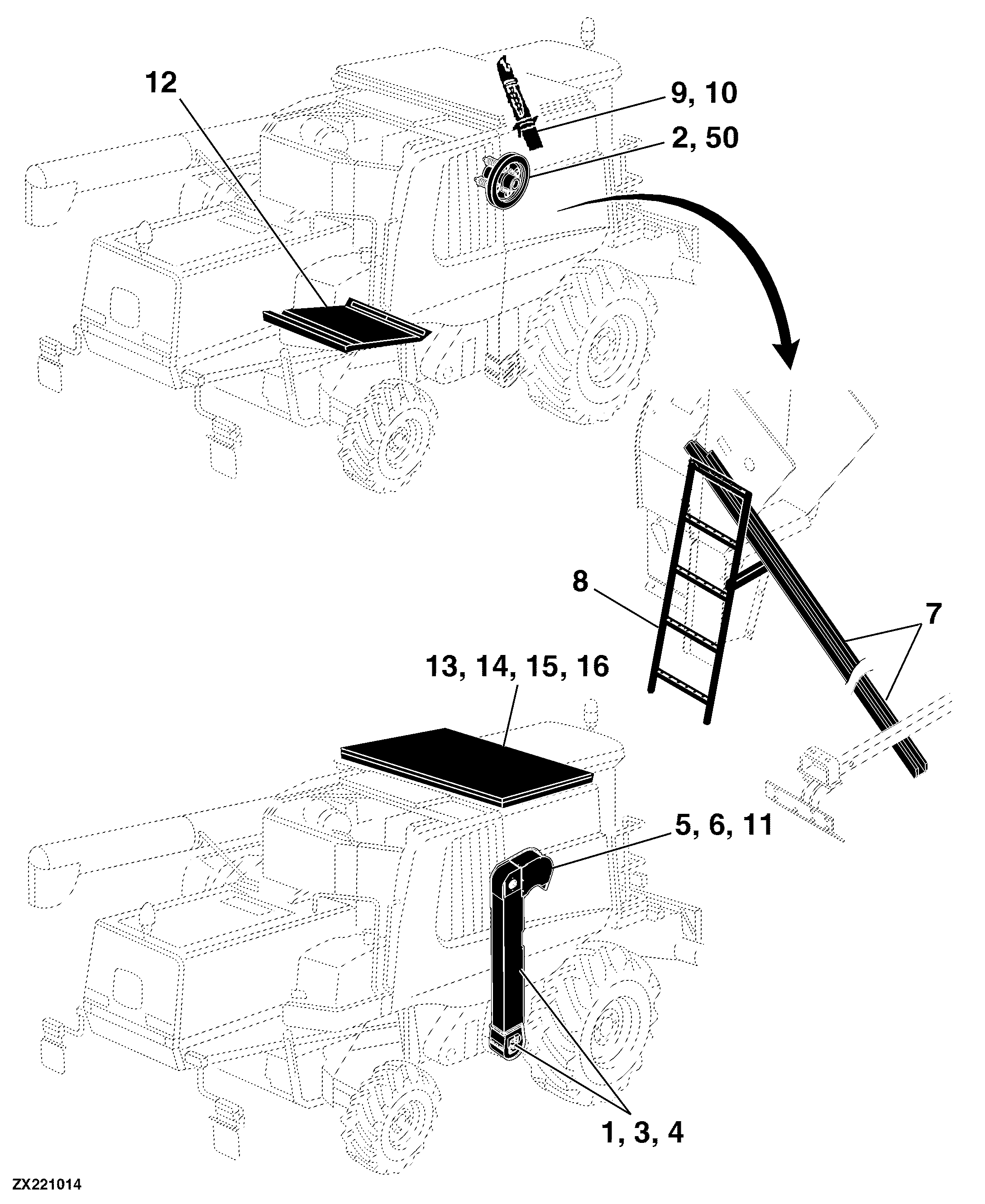

130 Elevators, Grain Tank, Unloading Auger Combine W540-MY12

Нет текстового описания
