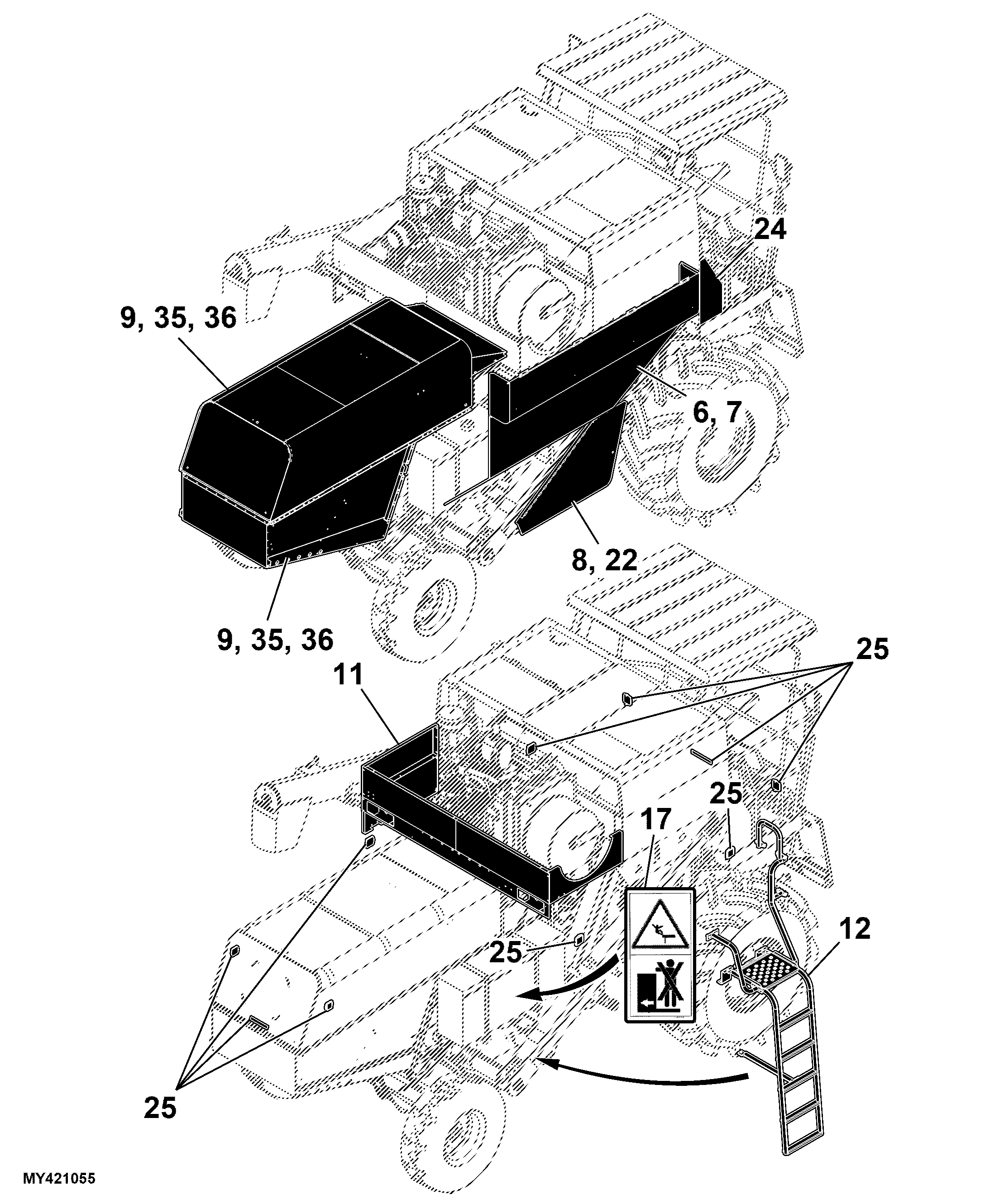

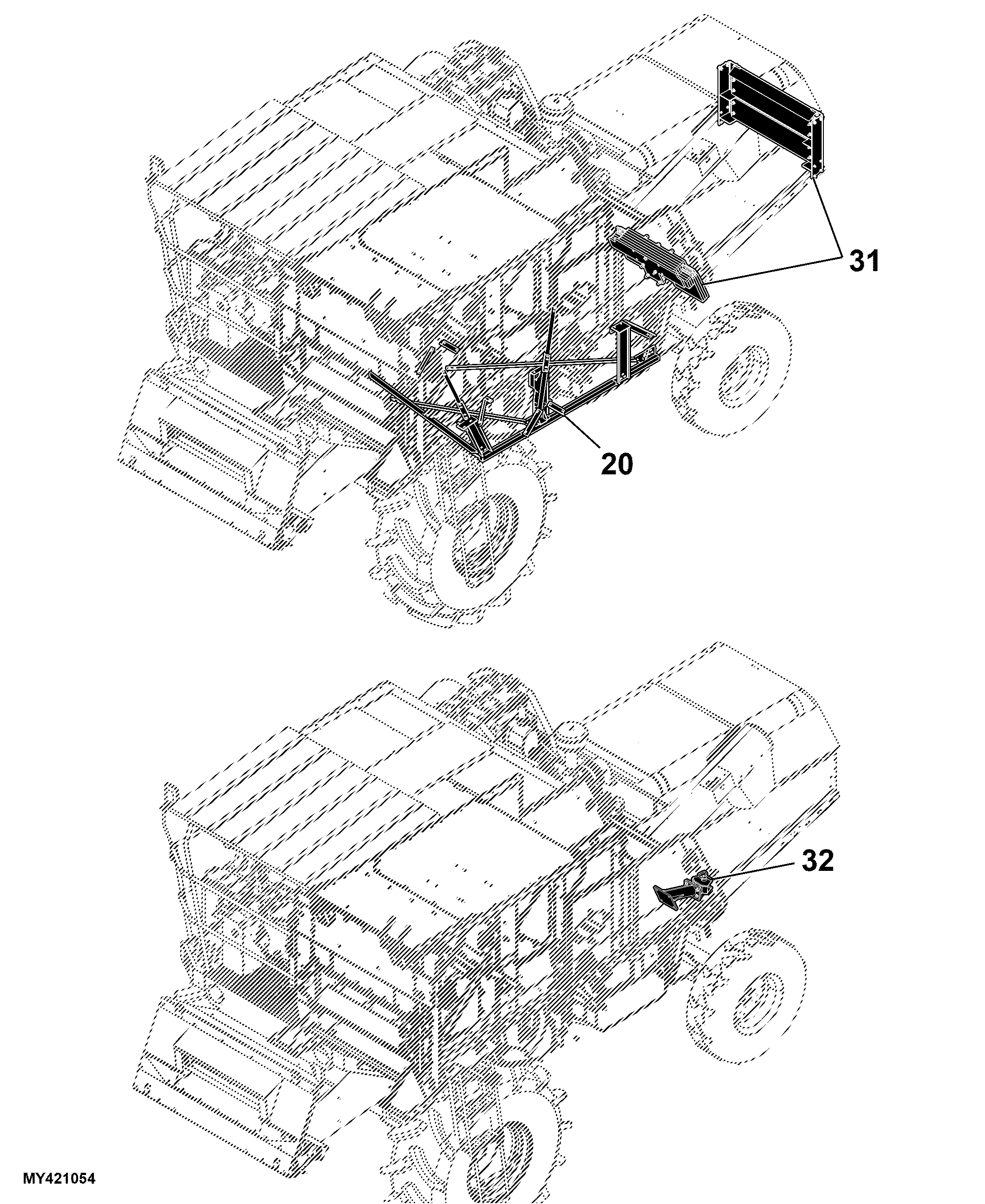

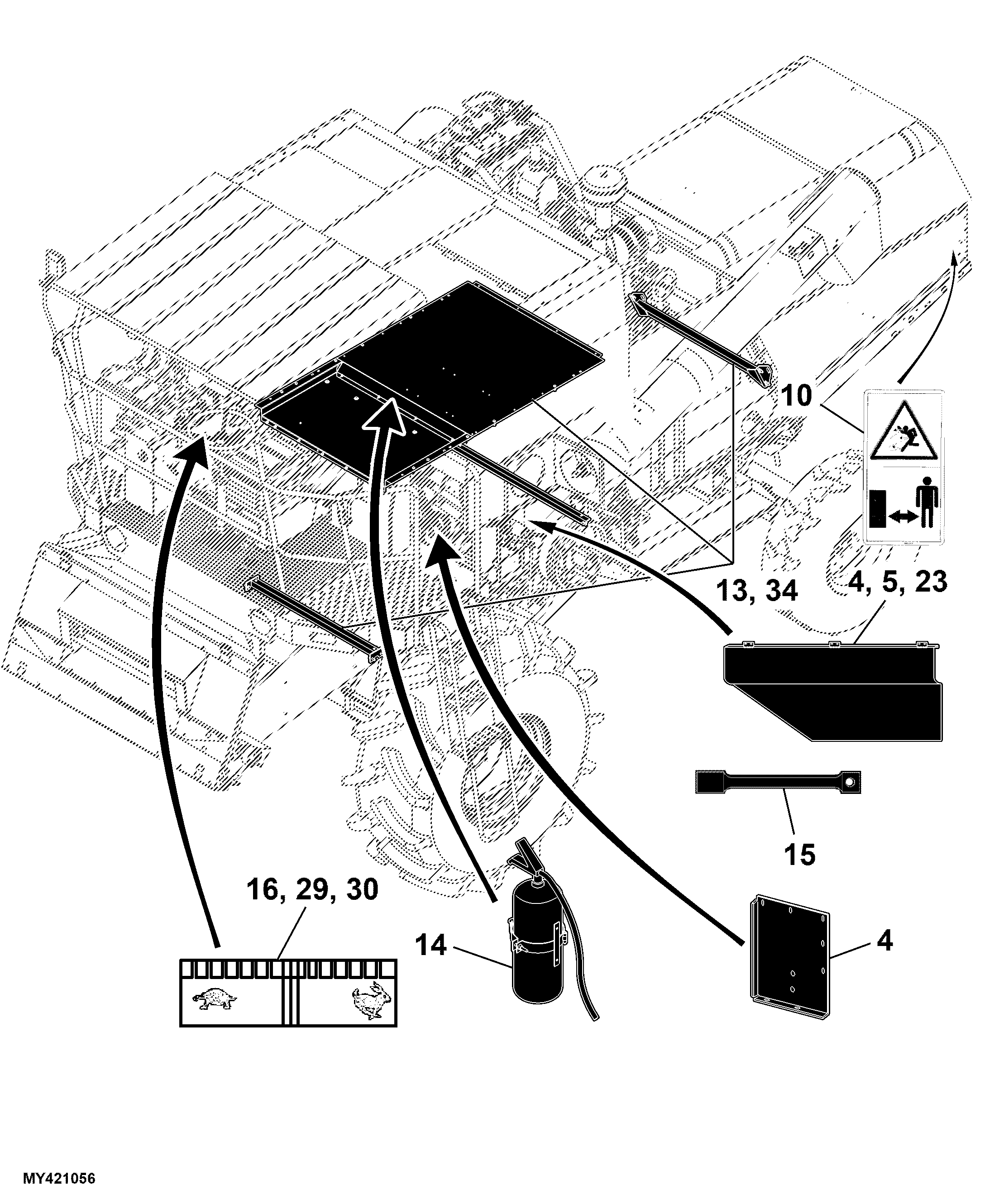

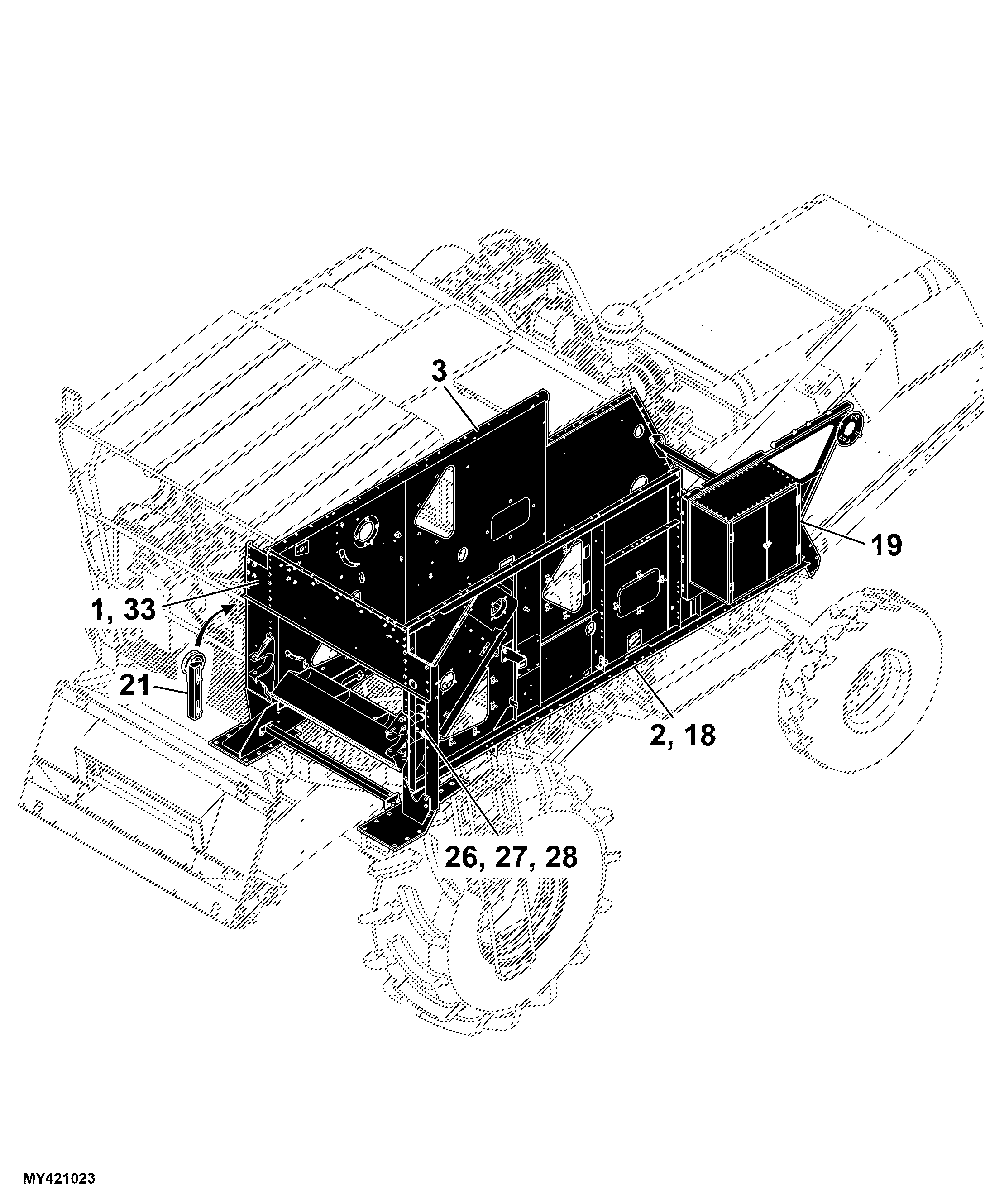

80 Sheet Metal, Covers, Labels and Miscellaneous

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Side Panel, LH ( - 000035)	-
-	-	1	Rear Axle Weights	-
-	-	1	Rear Hood	-
-	-	1	Rear Hood and Side Panels	-
-	-	1	Rear Hood Bottom Panels, for Chopper Assembly	-
-	-	1	Rear Hood Cover	-
-	-	1	Rear Hood Weights	-
-	-	1	Reflectors	-
-	-	1	Service Platform, Rear	-
-	-	1	Labels (2 of 2)	-
-	-	1	Side Panel, LH (000036 - )	-
-	-	1	Side Panel, RH	-
-	-	1	Side Wall, SynchroSmart™ Transmission	-
-	-	1	Side Walls, Main Body	-
-	-	1	Tailings Elevator Cover	-
-	-	1	Tool Box and Spare Wheel Assembly (015202 - )	-
-	-	1	Tools	-
-	-	1	Traverse Bracket and Support	-
-	-	1	Frame Support, Long Member and Cross Member (015245 - )	-
-	-	1	Cover, RH Lower (020216 - )	-
-	-	1	Cover, Threashing Drum	-
-	-	1	Covers LH ( - 020215)	-
-	-	1	Covers Mounting Bracket, LH	-
-	-	1	Covers Mounting Bracket, RH	-
-	-	1	Covers, LH (020216 - )	-
-	-	1	Cross Member, Main Body	-
-	-	1	Fire Extinguisher	-
-	-	1	Cover, RH Lower ( - 020215)	-
-	-	1	Front Frame, Main Body	-
-	-	1	Griddle (020202 - )	-
-	-	1	Guards	-
-	-	1	Guards, RH	-
-	-	1	Labels	-
-	-	1	Labels	-
-	-	1	Labels	-
-	-	1	Labels (1 of 2)	-

80 Sheet Metal, Covers, Labels and Miscellaneous
