Primary Valve Stack, W/O Grain Tank Doors 26' / 22.5'

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5178	1	Adapter Fitting	-
2	T77613	7	O-Ring	-
3	51M7041	4	O-Ring	11.300 X 2.200 mm
4	38H5005	1	Adapter Fitting	-
5	T77858	1	O-Ring	-
6	51M7047	1	O-Ring	23.600 X 2.900 mm
7	38H5006	1	Adapter Fitting	-
8	T76938	1	O-Ring	-
9	51M7048	1	O-Ring	29.600 X 2.900 mm
10	38H5009	1	Adapter Fitting	-
11	T77857	3	O-Ring	-
12	38H5027	1	Elbow Fitting	-
13	51M7045	2	O-Ring	19.300 X 2.200 mm
14	38H5035	1	Elbow Fitting	-
15	51M7042	5	O-Ring	13.300 X 2.200 mm
16	38H5071	1	Elbow Fitting	-
17	38H5124	1	Tee Fitting	-
18	T77932	2	O-Ring	-
19	AXE73736	1	Check Valve	SUB FOR AH205583 APPL
19	F433465	1	Seal Kit	USE WITH AH205583
19	AXE73737	1	Seal Kit	USE WITH AXE73736
20	AH228044	3	Solenoid Valve Coil	-
21	AH230746	3	Solenoid Valve Coil	-
22	AN206491	1	Check Valve	-
23	AN221521	1	Spool Valve	-
24	AN221523	2	Spool Valve	-
25	AT302908	1	Solenoid Valve	-
26	AXE15625	1	Solenoid Valve	-
26	AT224862	4	Seal Kit	-
27	38H5037	3	Adapter Fitting	-
28	AXE15627	1	Strainer	-
29	T122803	1	Fitting Plug	-
30	AXE15631	1	Check Valve	-
30	AH209121	1	Seal Kit	-
31	-	1	Part 35	-
32	AXE15632	1	Flow Control Hyd. Valve	-
32	AH209116	1	Seal Kit	-
33	AXE15629	2	Pressure Relief Valve	-
34	AXE15633	1	Valve	-
34	F304050	1	Seal Kit	-
35	51M7043	1	O-Ring	15.300 X 2.200 mm
36	-	1	Part 42	(Yellow)
37	H170523	1	Washer	(Green)
38	N306563	1	Orifice	-
39	HXE30516	1	Orifice	-
40	H170526	1	Washer	(Light Blue)
41	N305926	1	Orifice	-
42	R77175	5	Cover	-
43	RE190805	5	Diagnostic Coupling	-
44	RE225377	1	Fitting Plug	-
45	RE315707	1	Fitting Plug	-
46	AXE20383	1	Valve Stack	-
..	RE308225	1	Orifice Kit	-
..	AXE15628	1	Pressure Relief Valve	-

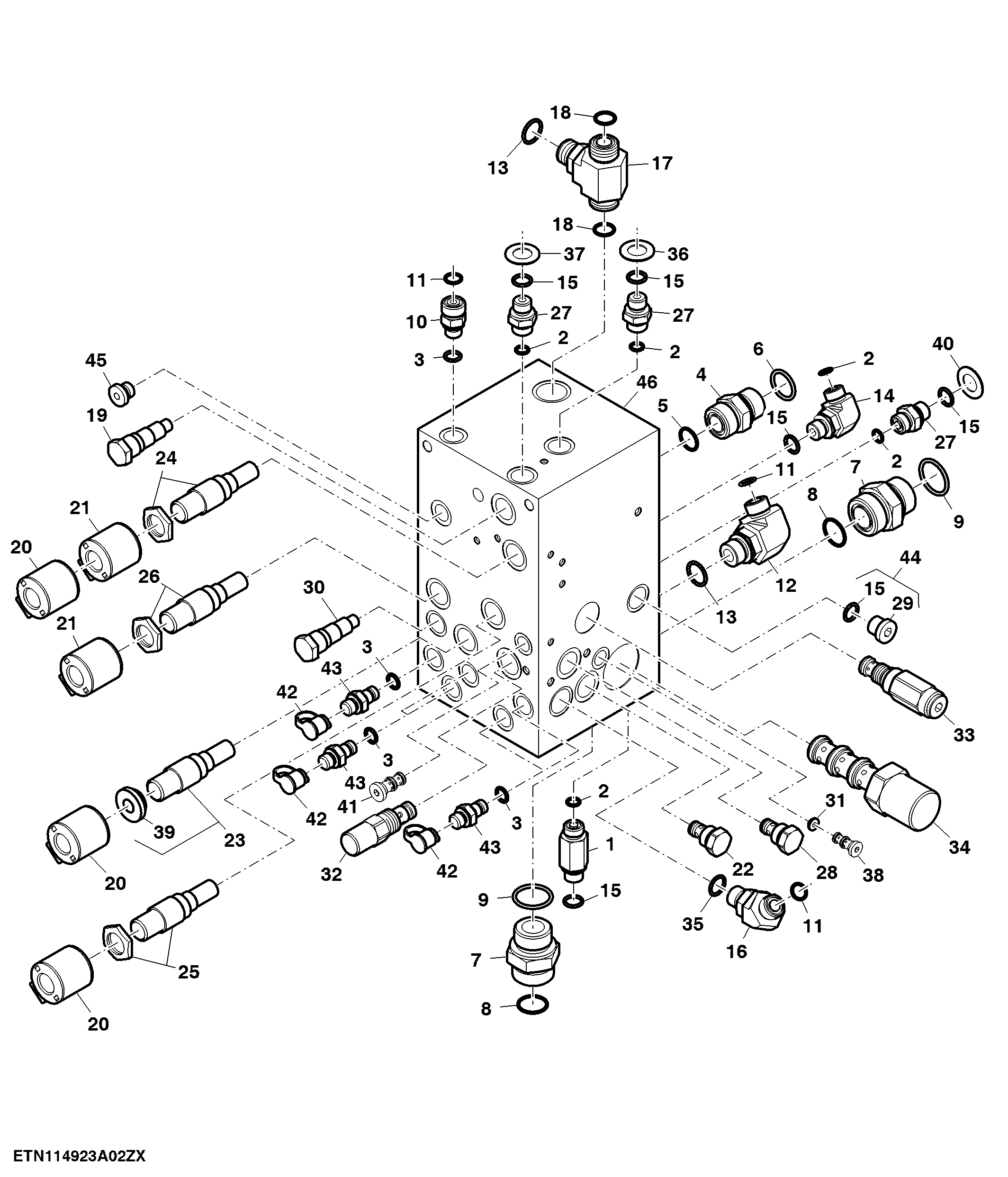

Primary Valve Stack, W/O Grain Tank Doors 26' / 22.5'
