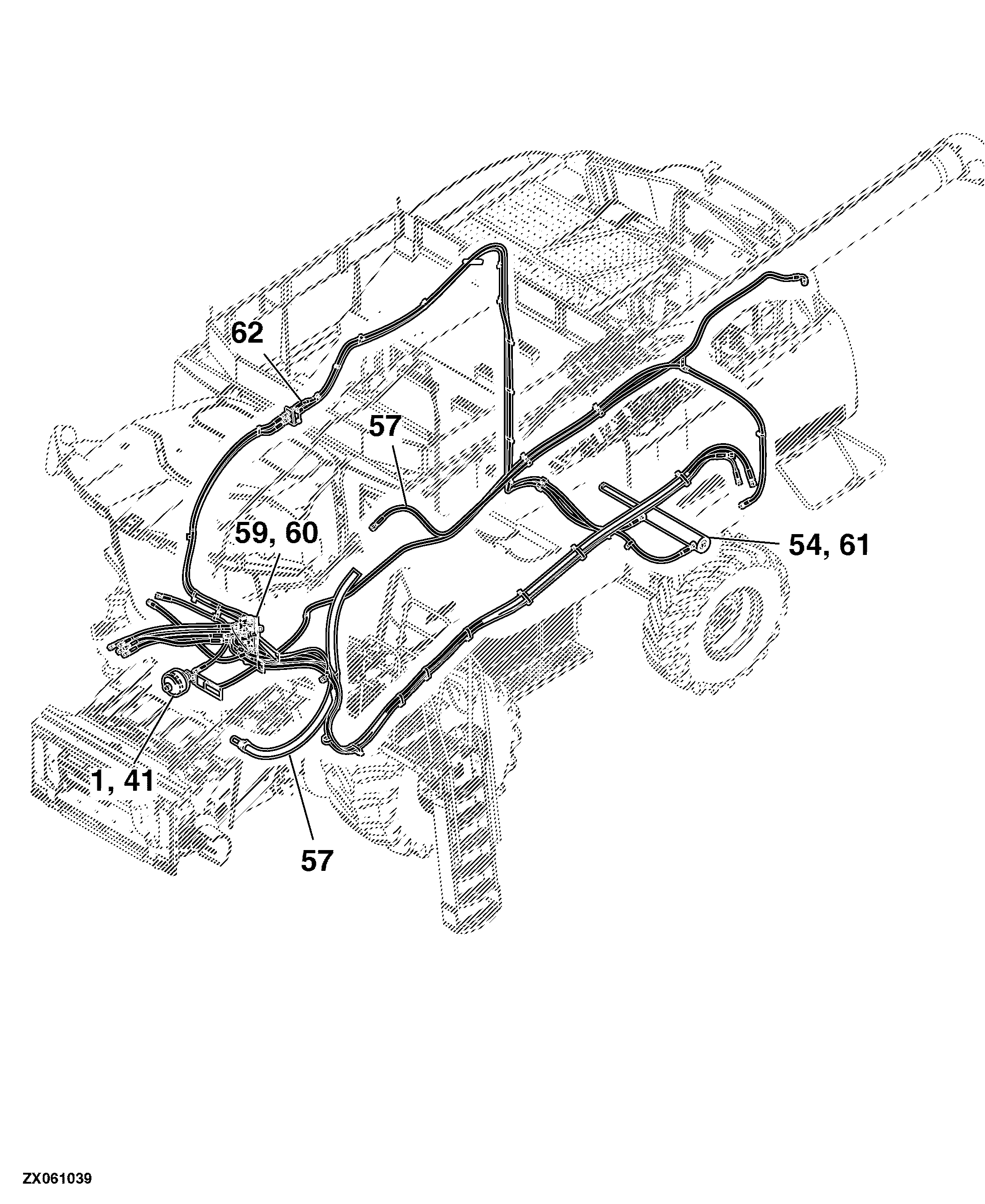

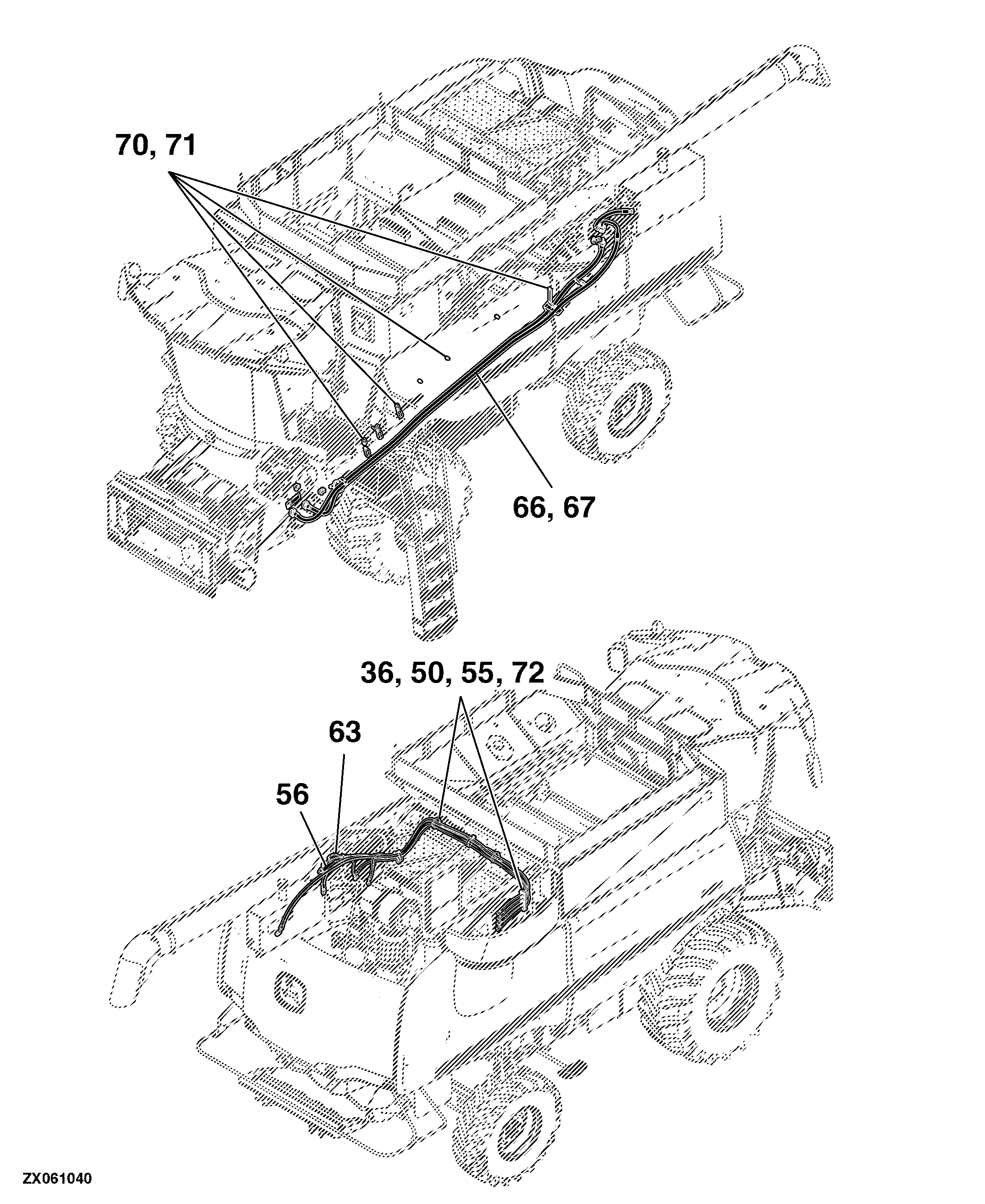

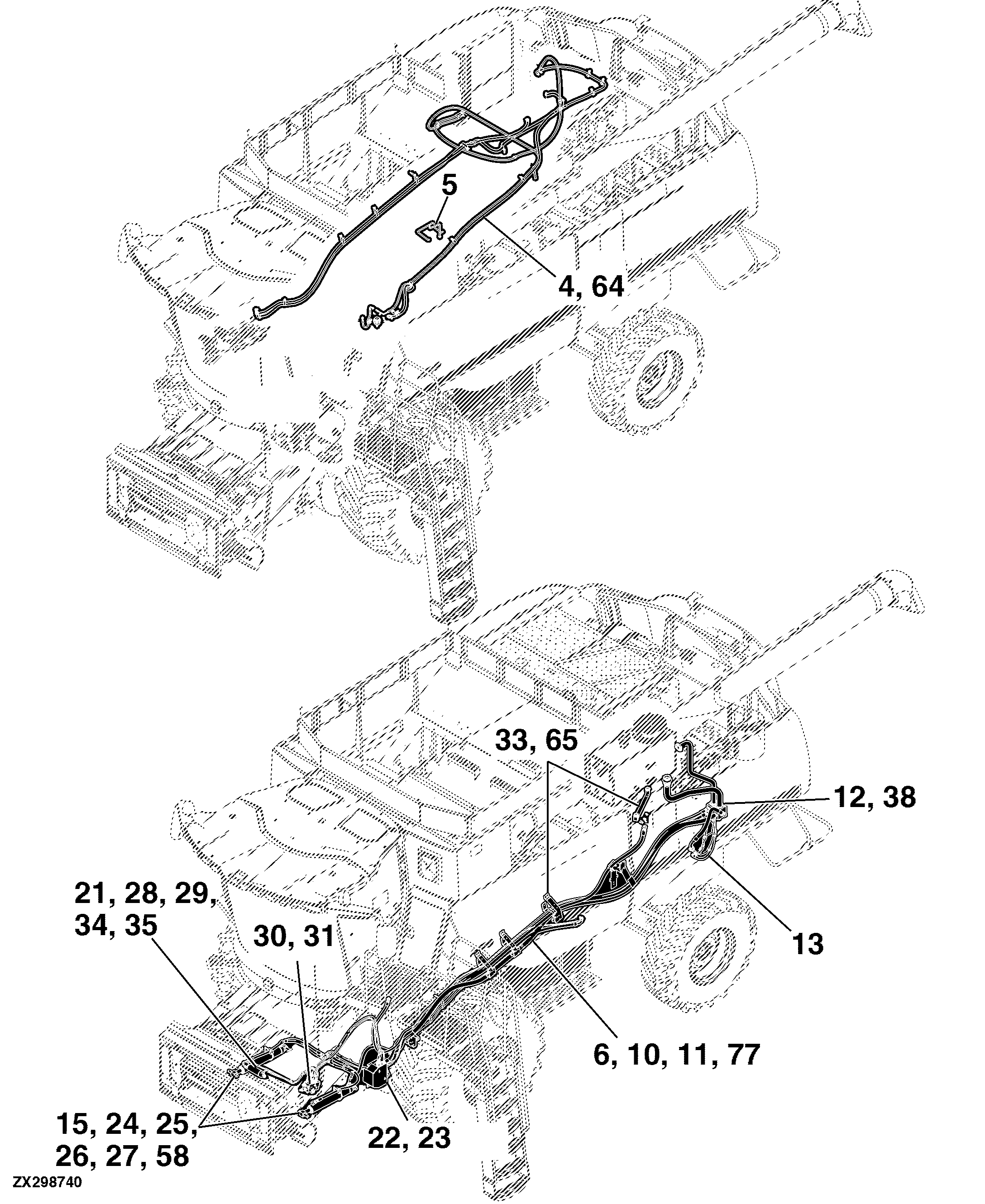

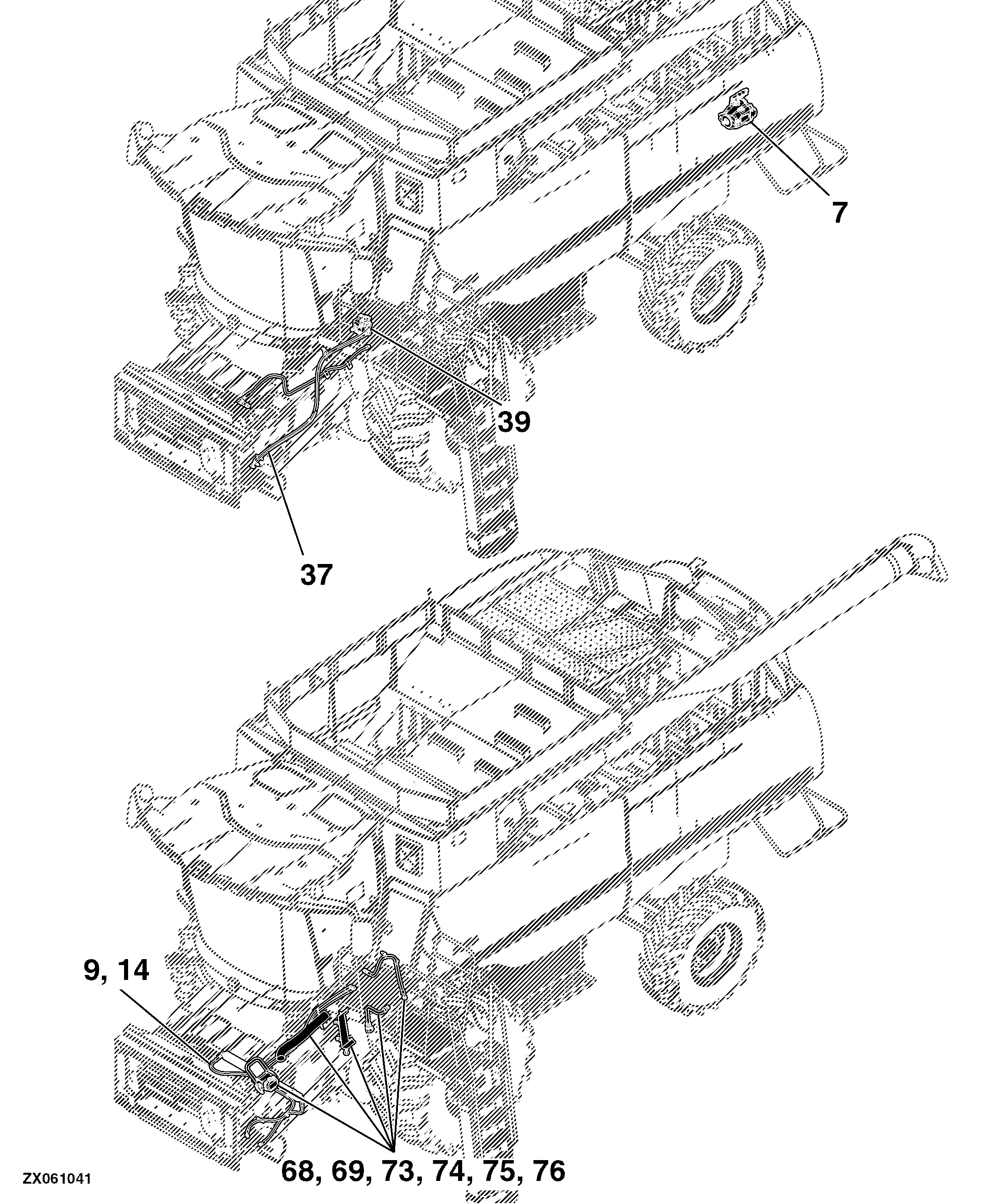

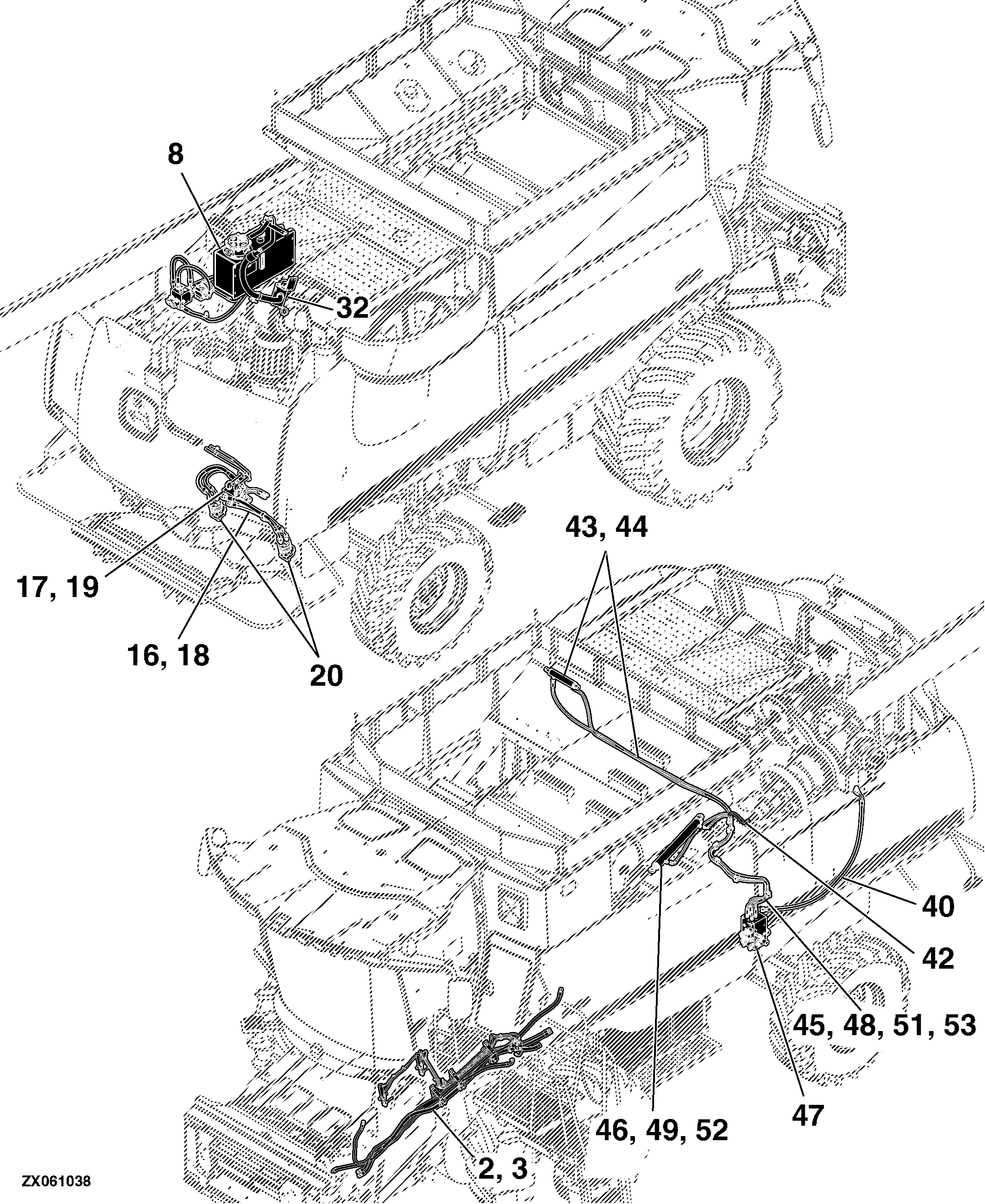

70 Hydraulic System Combine S685 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Main Hydraulic Hoses and Supports, ProDrive™	-
-	-	1	Primary Valve Stack, W/O Grain Tank Doors 26' / 22.5'	-
-	-	1	Primary Valve Stack, W/ Grain Tank Doors 26'/22.5'	-
-	-	1	Primary Valve Stack, W/ Grain Tank Doors 22.5 ft	-
-	-	1	PowerCast™ Tailboard Straw Spreader Hydraulic Motor	-
-	-	1	Platform Tilt Hydraulic Cylinder (50X25-220,403)	-
-	-	1	Multicoupler Valve, Lift Cylinder, 80 mm	-
-	-	1	Multicoupler Valve, Lift Cylinder, 70 mm	-
-	-	1	Multicoupler	-
-	-	1	Main Hydraulic Pump - ProDrive™	-
-	-	1	Main Hydraulic Hoses, ProDrive™	-
-	-	1	Reel Drive Hydraulic Hoses	-
-	-	1	Main Hydraulic Hoses and Supports W/O Concave Isolation, HillMaster™	-
-	-	1	Main Hydraulic Hoses and Supports W/ Concave Isolation, ProDrive™	-
-	-	1	Main Engine Gearcase, Lube Plumbing, W/ 5 Speed, ProDrive™	-
-	-	1	Hydrostatic Oil Cooler Hoses, Tier 4	-
-	-	1	Hydrostatic Oil Cooler Hoses, Tier 2	-
-	-	1	Hydrostatic Hose Clamps, ProDrive™, 2WD	-
-	-	1	Hydrostatic Drive Motor Hoses, Brackets and Fittings	-
-	-	1	Hydrostatic Drive Hoses, Component, Closed Centre Hydraulic System, 2WD	-
-	-	1	Hydrostatic Drive Hoses, 2WD, HillMaster™	-
-	-	1	Steering Hoses, ProDrive™	-
-	-	1	Wet Clutch Cooler Hydraulic Hoses, Tier 2	-
-	-	1	Wet Clutch Cooler Hydraulic Hoses, Final Tier 4	-
-	-	1	Variable Speed Drive Hydraulic Hose and Fittings	-
-	-	1	Unloading Auger Engage Cylinder Hydraulic Hoses and Fittings	-
-	-	1	Unloading Auger Engage Cylinder	-
-	-	1	Tailboard Hydraulics - Advanced PowerCast™, Dual Wag	-
-	-	1	Tailboard Hydraulic Hoses, Advanced PowerCast™, Single Wag	-
-	-	1	Suction and Return Manifold Cap Assembly	-
-	-	1	Straw Spreader Hoses, Dual Closed Center Hydraulics	-
-	-	1	Hydrostatic Drive Hose Clamps and Hardware, ProDrive™, 2WD (For North America)	-
-	-	1	Steering Cylinder, 80 mm	-
-	-	1	Steering Cylinder Stops	-
-	-	1	Steering Control, AutoTrac™	-
-	-	1	Speed Reducer Plumbing	-
-	-	1	Solenoid Valve, Advanced PowerCast™ Residue, Single Flow Control	-
-	-	1	Reel Position Valve Stack - W/ Lateral Tilt	-
-	-	1	Reel Fore/Aft Circuit - W/ Lateral Tilt	-
-	-	1	Reel Drive Hydraulic Hoses, W/ 80 mm Lift Cylinders	-
-	-	1	Reel Drive Hydraulic Hoses, W/ 70 mm Lift Cylinder	-
-	-	1	Auger Swing Cylinder, W/ Grain Tank Doors	-
-	-	1	Feeder House Tilt Cylinder, Hoses and Fittings	-
-	-	1	Feeder House Reverser Flow Control Valve, Tier 2	-
-	-	1	Feeder House Reverser Flow Control Hoses and Fittings, Tier 2	-
-	-	1	Feeder House Oil Cooler and Hoses	-
-	-	1	Feeder House Lateral Tilt Hydraulic Cylinder and Hoses	-
-	-	1	Feeder House Drive Hoses, 5 Speed	-
-	-	1	Concave Isolation Valve	-
-	-	1	Concave Isolation Cylinder	-
-	-	1	Battery Vent Hoses	-
-	-	1	Feeder House Tilt Hydraulic Cylinder (50X25-242,410)	-
-	-	1	Auger Swing Cylinder, Grain Tank Doors 22.5'	-
-	-	1	Auger Swing Cylinder Hoses, W/O Grain Tank Doors 26'	-
-	-	1	Auger Swing Cylinder Hoses, W/O Grain Tank Doors 22.5'	-
-	-	1	Auger Swing Cylinder Hoses, W/ Grain Tank Doors, 26'	-
-	-	1	Auger Swing Cylinder Hoses, W/ Grain Tank Doors 22.5'	-
-	-	1	Attachment, Feederhouse Drive Oil Cooler	-
-	-	1	Air Conditioner Hoses, Tier 2	-
-	-	1	Air Conditioner Hoses, Final Tier 4	-
-	-	1	Advanced PowerCast™ Residue Solenoid Valve - Dual Flow Control	-
-	-	1	Header Lift Hydraulic Cylinder W/O Fore / Aft Tilt, 90 mm	-
-	-	1	Hydraulic Return Manifold Hoses and Fittings	-
-	-	1	Hydraulic Reservoir Plug, W/O Spreader	-
-	-	1	Hydraulic Reservoir	-
-	-	1	Hydraulic Proportional Valve, AutoTrac™	-
-	-	1	Hydraulic Hoses Brackets and Fittings, Europe	-
-	-	1	Hydraulic Cylinder, Concave Isolation Plumbing	-
-	-	1	Hydraulic Brakes Hoses - ProDrive™, W/ 5 Speed, Europe	-
-	-	1	Hydraulic Brakes Hoses - ProDrive™ W/ 5 Speed	-
-	-	1	Header Lift Valve Assembly and Hoses	-
-	-	1	Advanced PowerCast™ Hoses - Dual Flow Control	-
-	-	1	Header Lift Hydraulic Cylinder W/O Fore / Aft Tilt, 80 mm	-
-	-	1	Header Lift Hydraulic Cylinder 70 mm	-
-	-	1	Header Lift Hoses and Fittings, Cylinder, 70 mm, HillMaster™	-
-	-	1	Header Lift Hoses and Fittings W/O Fore / Aft Tilt, 90 mm	-
-	-	1	Header Lift Hoses and Fittings W/O Fore / Aft Tilt, 80 mm	-
-	-	1	Header Lift Control Valve	-
-	-	1	Grain Tank Door Hydraulic Hoses - Variable Speed	-
-	-	1	Grain Tank Door Cylinder, Variable Speed	-
-	-	1	Flow Control Hydraulic Valve, Straw Spreader, Dual Closed Center Hydraulics	-
