Loading Auger Housing, 300 Bushels, Pressure Flow Compensated

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	11	Flange Nut	M10
2	19M7817	1	Screw	M12 X 70
3	19M7866	4	Screw	M8 X 20
4	24M7180	1	Washer	13 X 37 X 3 mm
5	H137916	1	Shim	TK = 0.762 mm
6	H236285	1	Bracket	-
7	H236286	1	Bracket	-
8	HXE100164	1	Deflector	(For Rice Only)
8	HXE100163	1	Deflector	(Extended Wear) SUB FOR H236287
9	JD10384	1	Bearing	-
10	N15764	2	Pressed Flanged Housing	-
11	24M7296	2	Washer	10.500 X 30 X 2.500 mm
12	14M7298	11	Flange Nut	M8
13	AXE56593	1	Housing	ALSO ORDER HXE99951, (2) 24M7241 AND 14M7589; SUB FOR AXE13124
14	H141123	4	Push Nut	-
15	H229875	6	Bolt	M10 X 35
16	03M7307	2	Bolt	M10 X 25
17	HXE137548	1	Support	(For Rice Only) SUB FOR HXE100162 OR HXE137548
17	HXE100161	1	Support	(Extended Wear) ORDER HXE137548
18	AXE14164	1	Support	-
19	14M7299	1	Flange Nut	M12
20	H137328	2	Lock Nut	-
21	HXE13660	1	Bushing	-
22	14M7276	1	Nut	M16
23	H218049	1	Bracket	-
24	HXE98728	1	Channel	SUB FOR HXE13659 APPL
25	H217449	1	Hinge	-
26	45M7057	2	Pin Fastener	16 X 45 mm
27	11M7021	1	Cotter Pin	4 X 25 mm
28	19M7803	1	Screw	M8 X 70
29	19M7867	4	Screw	M8 X 25
30	19M7820	1	Screw	M12 X 100
31	H172174	1	Eyebolt	-
32	03M7184	2	Bolt	M8 X 20
33	H85184	1	Handle	-
34	AXE17977	1	Gas Operated Cylinder	-
35	11M7081	1	Cotter Pin	2.500 X 20 mm
36	HXE29370	1	Pin	-
37	H157762	1	Plate	-
38	AH85494	1	Link Chain	-
39	19M7785	3	Screw	M10 X 25
40	AXE21201	1	Arm	-
41	A31869	1	Lock Nut	-
42	TCU25076	1	Spring Locking Pin	-
43	HXE99951	1	Pin	-
44	14M7589	1	Lock Nut	M16
45	24M7241	2	Washer	17 X 34 X 4 mm
46	HXE127153	1	Deflector	USE WITH HXE137548

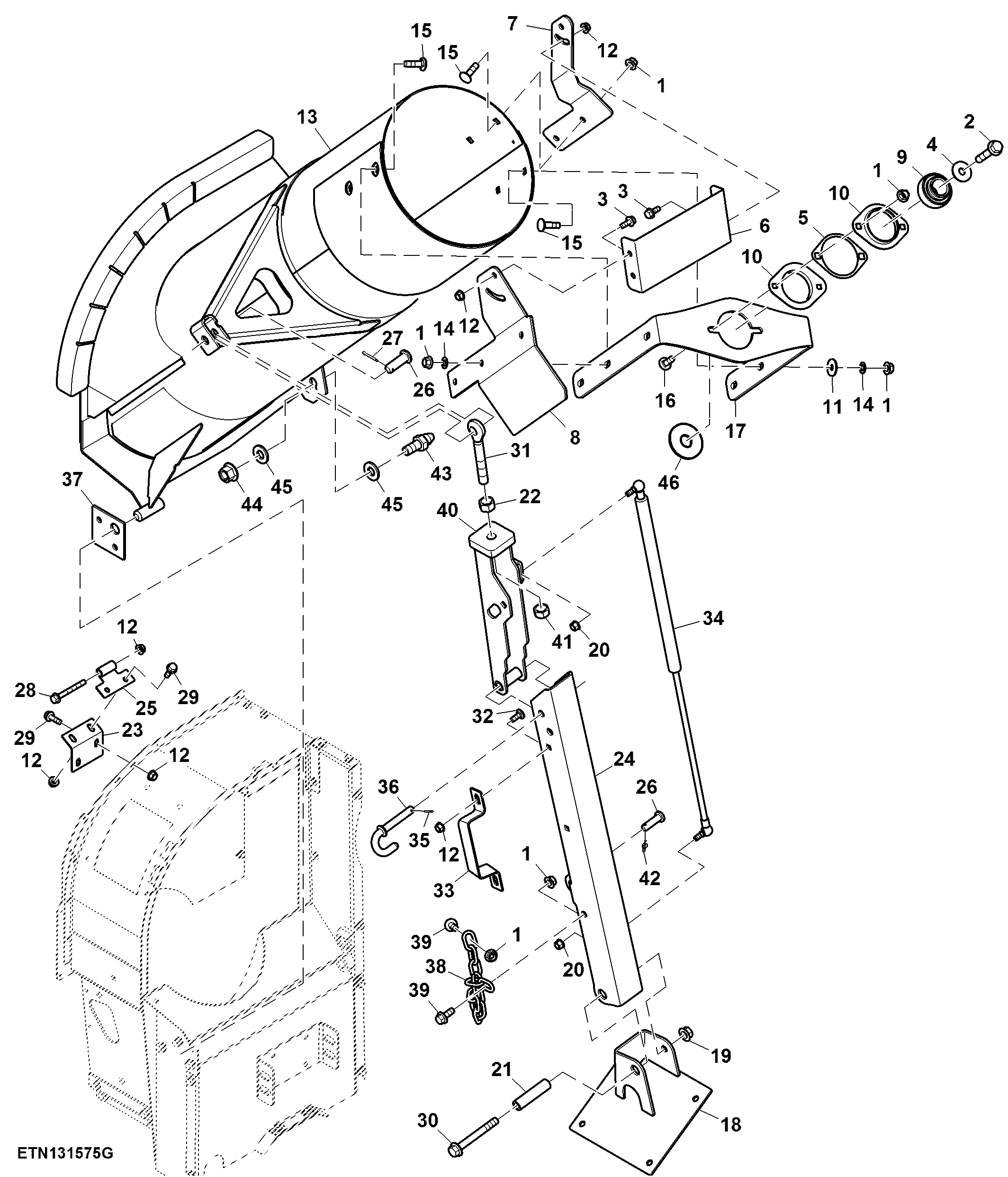

Loading Auger Housing, 300 Bushels, Pressure Flow Compensated
