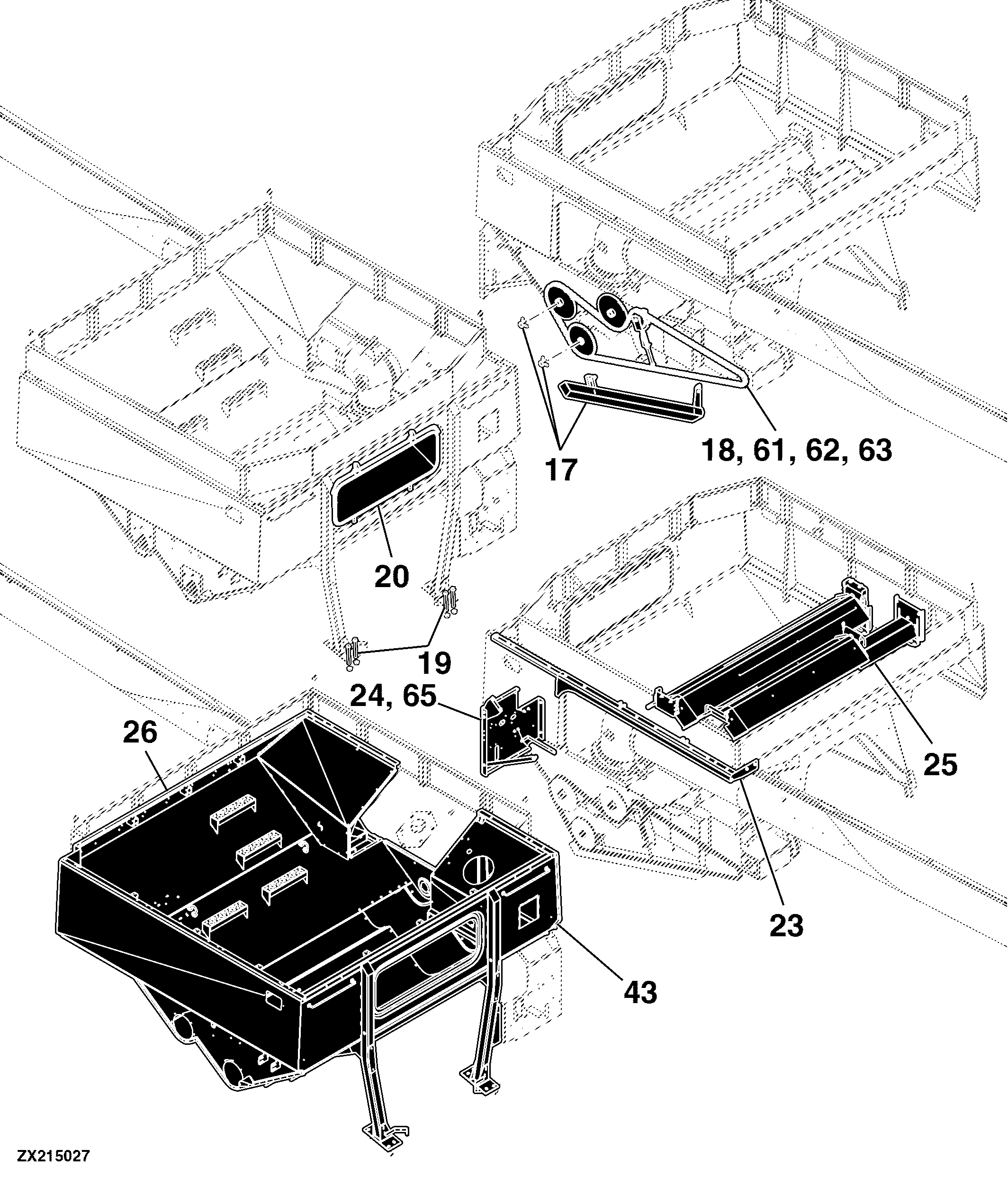

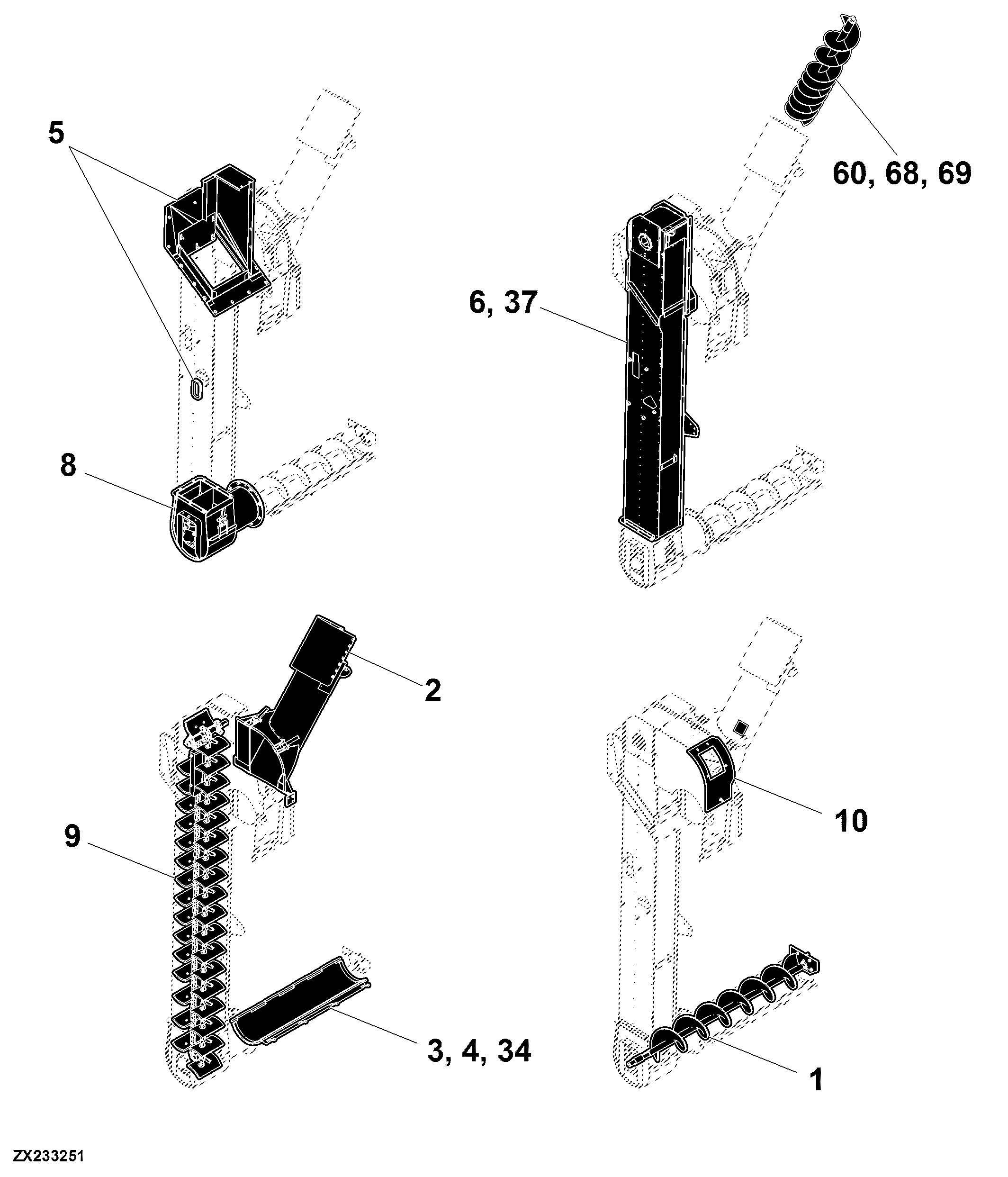

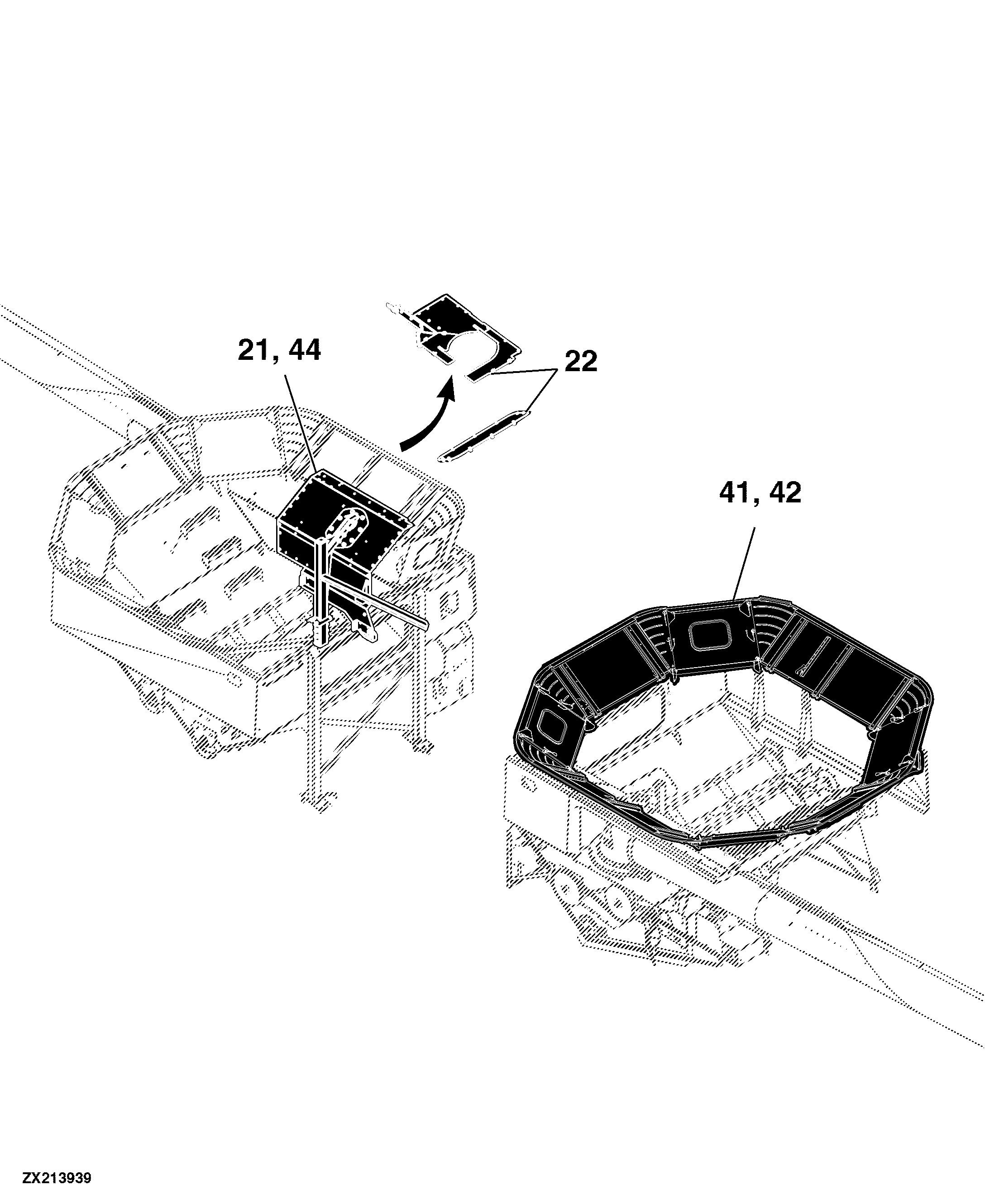

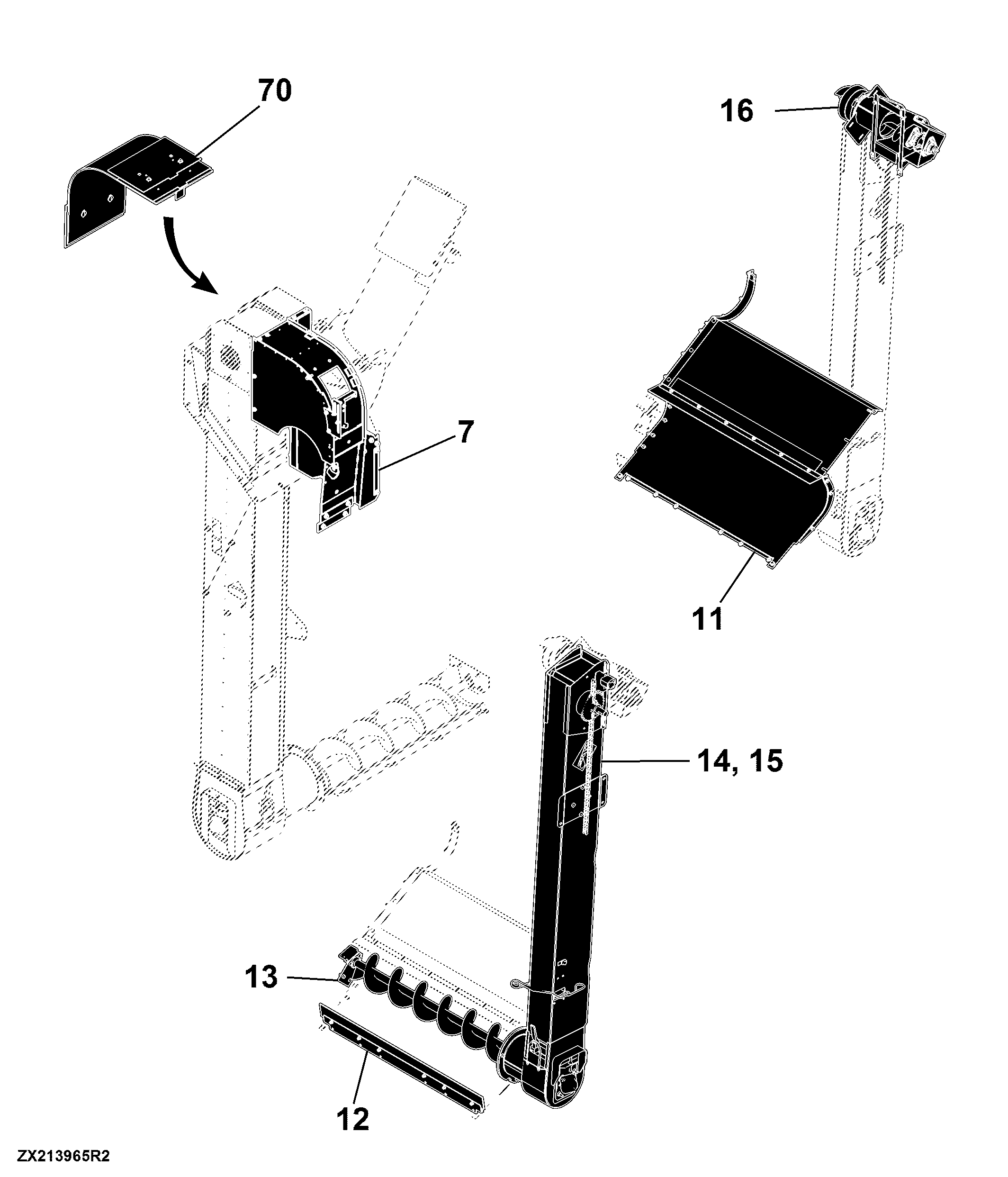

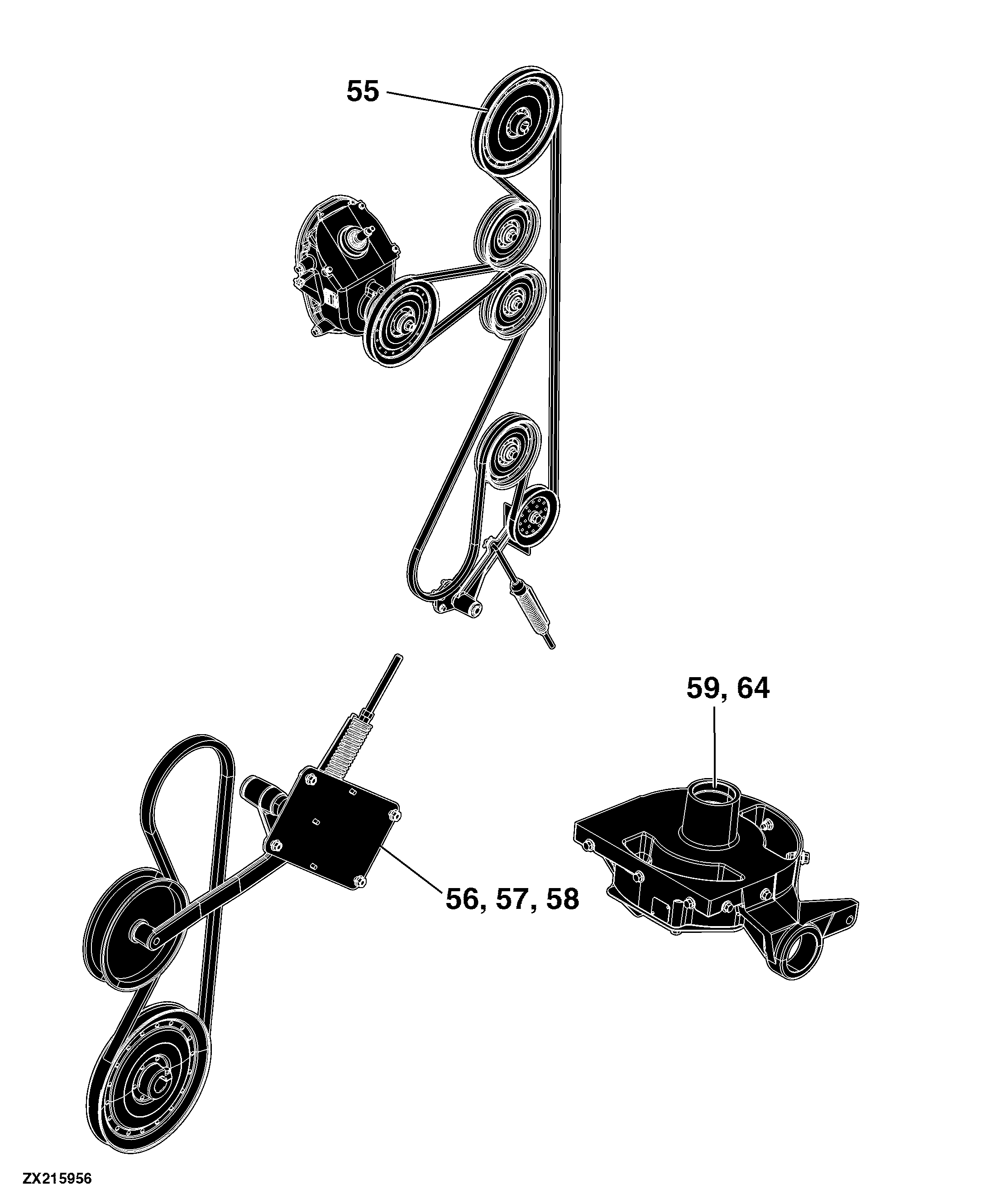

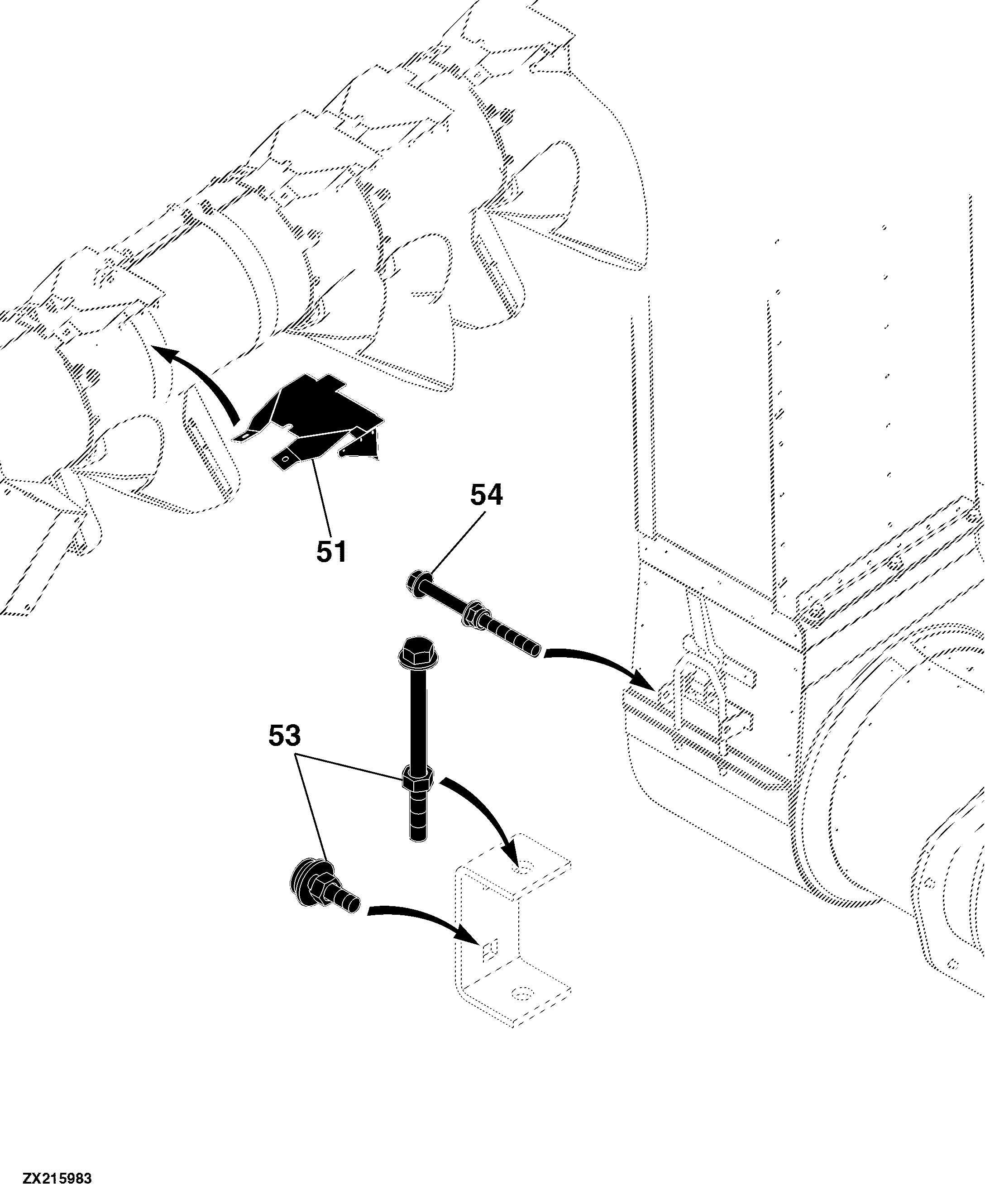

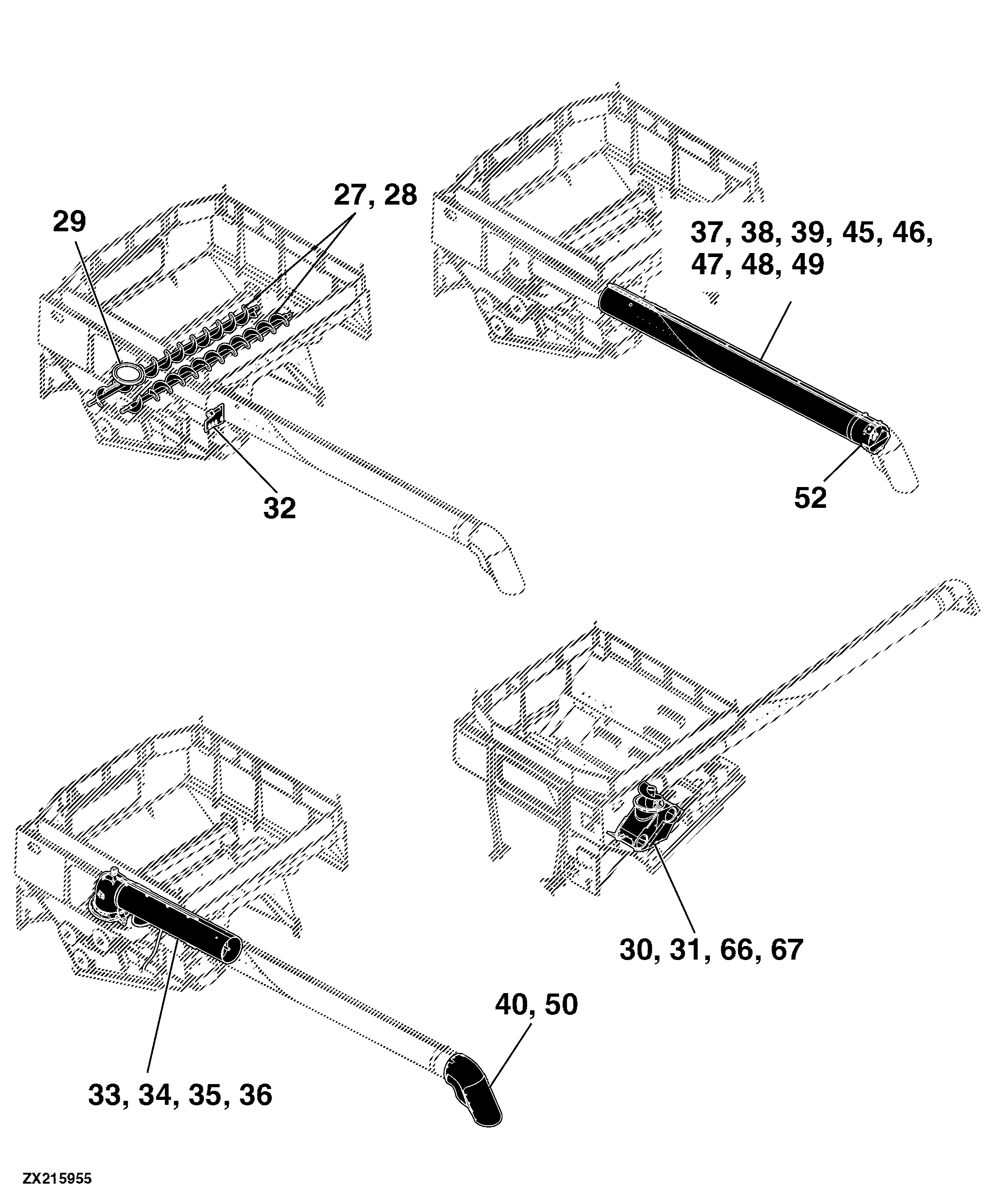

130 Elevators, Grain Tank, Unloading Auger Combine S685 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Lower Auger Door, Heavy Duty	-
-	-	1	Tailings Elevator W/ Rethresher Drive	-
-	-	1	Tailings Elevator Housing	-
-	-	1	Solid Outer Unloading Auger 8.7 m (28.5 ft)	-
-	-	1	Outer Unloading Auger, 7.9 m (26 ft)	-
-	-	1	Outer Unloading Auger Light Bracket	-
-	-	1	Lower Tailings Auger, Rethresher	-
-	-	1	Lower Tailing Door	-
-	-	1	Lower Clean Grain Auger, High Unloading Rate	-
-	-	1	Lower Auger Door, Regular / Heavy Duty	-
-	-	1	Tailings Rethresher Drive	-
-	-	1	Long Unloading Auger Boot, 3.3 and 3.8 bps	-
-	-	1	Loading Auger, Regular Capacity	-
-	-	1	Loading Auger, High Capacity	-
-	-	1	Loading Auger, 400 Bushels Power Fold / Manual Fold	-
-	-	1	Loading Auger, 300 Bushels Power Fold	-
-	-	1	Loading Auger Transition Housing (High Capacity)	-
-	-	1	Loading Auger Housing, Manual Fold, 400 Bushels	-
-	-	1	Loading Auger Housing, 400 Bushels, Power Fold	-
-	-	1	Unloading Auger Drive	-
-	-	1	Vertical Unloader Gear Case	-
-	-	1	Vertical Unloader Gear Case	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, Regular Wear, 3.8 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, Regular Wear, 3.3 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, High Wear, 3.8 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate, High Wear, 3.3 bps	-
-	-	1	Vertical Auger and Charge Housing, High Unloading Rate	-
-	-	1	Upper Clean Grain Loading Auger Housing	-
-	-	1	Unloading Auger, 6.9 m (22.5 ft)	-
-	-	1	Loading Auger Housing, 300 Bushels, Pressure Flow Compensated	-
-	-	1	Unloading Auger Drive	-
-	-	1	Unloading Auger Chain Drive, 3.8 bps	-
-	-	1	Unloading Auger Chain Drive, 3.3 bps	-
-	-	1	Unloading Auger Boot, High Unloading Rate, Standard, 3.3 and 3.8 bps	-
-	-	1	Unloading Auger and Turret Housing, High Unloading Rate, 7.9 m (26 ft) and 8.7 m (28.5 ft)	-
-	-	1	Unloading Auger and Turret Housing, High Unloading Rate	-
-	-	1	Unloading Auger and Turret Assembly	-
-	-	1	Turret Covers, 3.3 and 3.8 bps	-
-	-	1	Clean Grain Elevator Link Chain, High Capacity	-
-	-	1	Elevator Sensor Lock	-
-	-	1	Elevator Locking	-
-	-	1	Electrical Mounting Brackets W/ 5 Speed and ProDrive™	-
-	-	1	Drive, High Unloading Rate, 3.3 and 3.8 bps	-
-	-	1	Dribble Door, High Unloading Rate	-
-	-	1	Door, Regular Duty, Attachment	-
-	-	1	Door Assembly, Attachment	-
-	-	1	Cradle	-
-	-	1	Cover, Grain Tank Turret Support Structure, 3.3 and 3.8 bps	-
-	-	1	Folding Outer Unloading Augers, 7.9 m (26 ft)	-
-	-	1	Clean Grain Elevator Insert, Elevator Kit	-
-	-	1	Clean Grain Elevator Housing, High Capacity and Regular Wear	-
-	-	1	Clean Grain Elevator Housing, High Capacity and High Wear	-
-	-	1	Clean Grain Elevator Drive, Heavy Duty	-
-	-	1	Clean Grain Elevator Cover W/ GreenStar™	-
-	-	1	Clean Grain Elevator Boot, High Capacity	-
-	-	1	Bracket, Unloading Auger Tail Light	-
-	-	1	Auger Assembly, Folding Unloading Auger, 6.9 m (22.5')	-
-	-	1	Grain Tank Electrical Components Mounting Brackets W/O 5 Speed, ProDrive™	-
-	-	1	Loading Auger Housing - 300 Bushels Power Fold	-
-	-	1	Grain Tank Turret Support Cover	-
-	-	1	Grain Tank Styling Panels and Rail, LH, 3.3 and 3.8 bps	-
-	-	1	Grain Tank Sensor Bracket W/ Power Fold Cover	-
-	-	1	Grain Tank Sensor Bracket W/ Manual Fold Cover	-
-	-	1	Grain Tank Mounting Hardware	-
-	-	1	Grain Tank Front Window and Sample Door	-
-	-	1	Grain Tank Extension	-
-	-	1	Auger Assembly, Folding Unloading Auger, 6.9 m (22.5 ft)	-
-	-	1	Grain Tank Cross Augers, High Unloading Rate, Regular Wear	-
-	-	1	Grain Tank Cross Augers, 3.3 and 3.8 bps	-
-	-	1	Grain Tank Cross Auger Covers and Bearing Plates, 3.3 and 3.8 bps	-
-	-	1	Grain Tank Covers	-
-	-	1	Grain Tank Cover Linkages	-
-	-	1	Grain Tank Cover Linkage Supports	-
-	-	1	Grain Tank Assembly, High Unloading Rate	-
-	-	1	Front Lower Tailing Seal, Self Leveling Shoe	-

130 Elevators, Grain Tank, Unloading Auger Combine S685 - MY15

Нет текстового описания
