Открытый узел

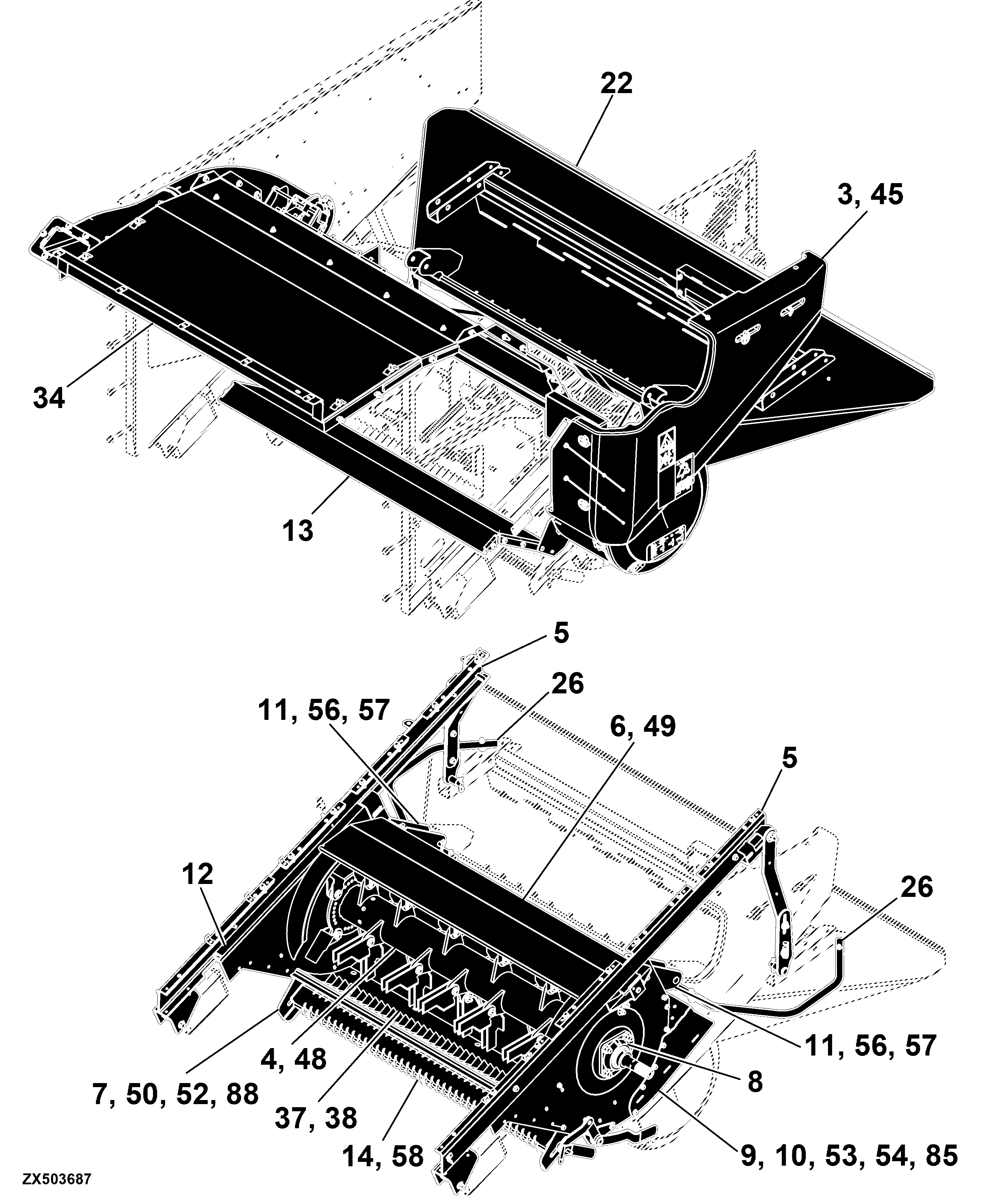

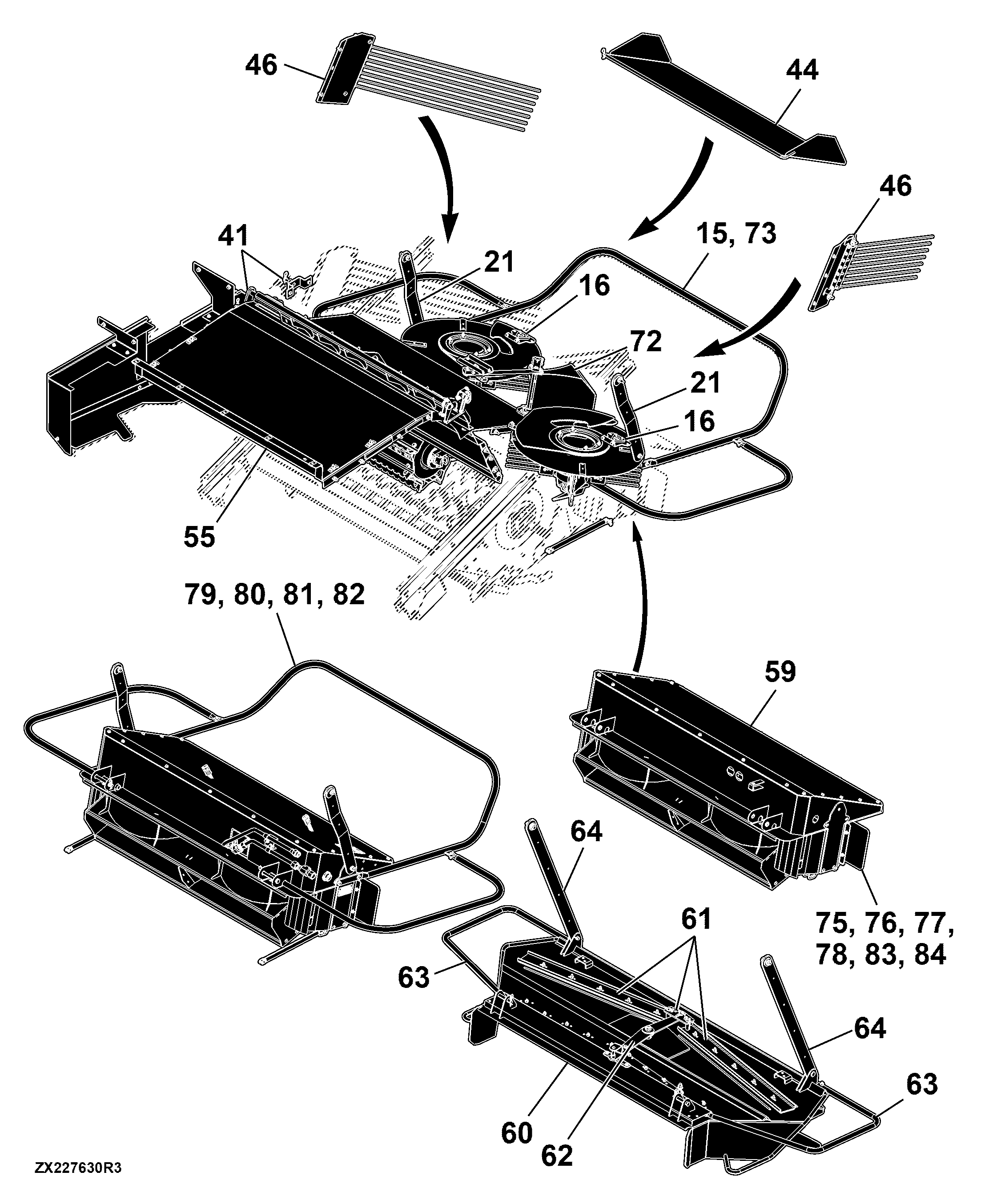

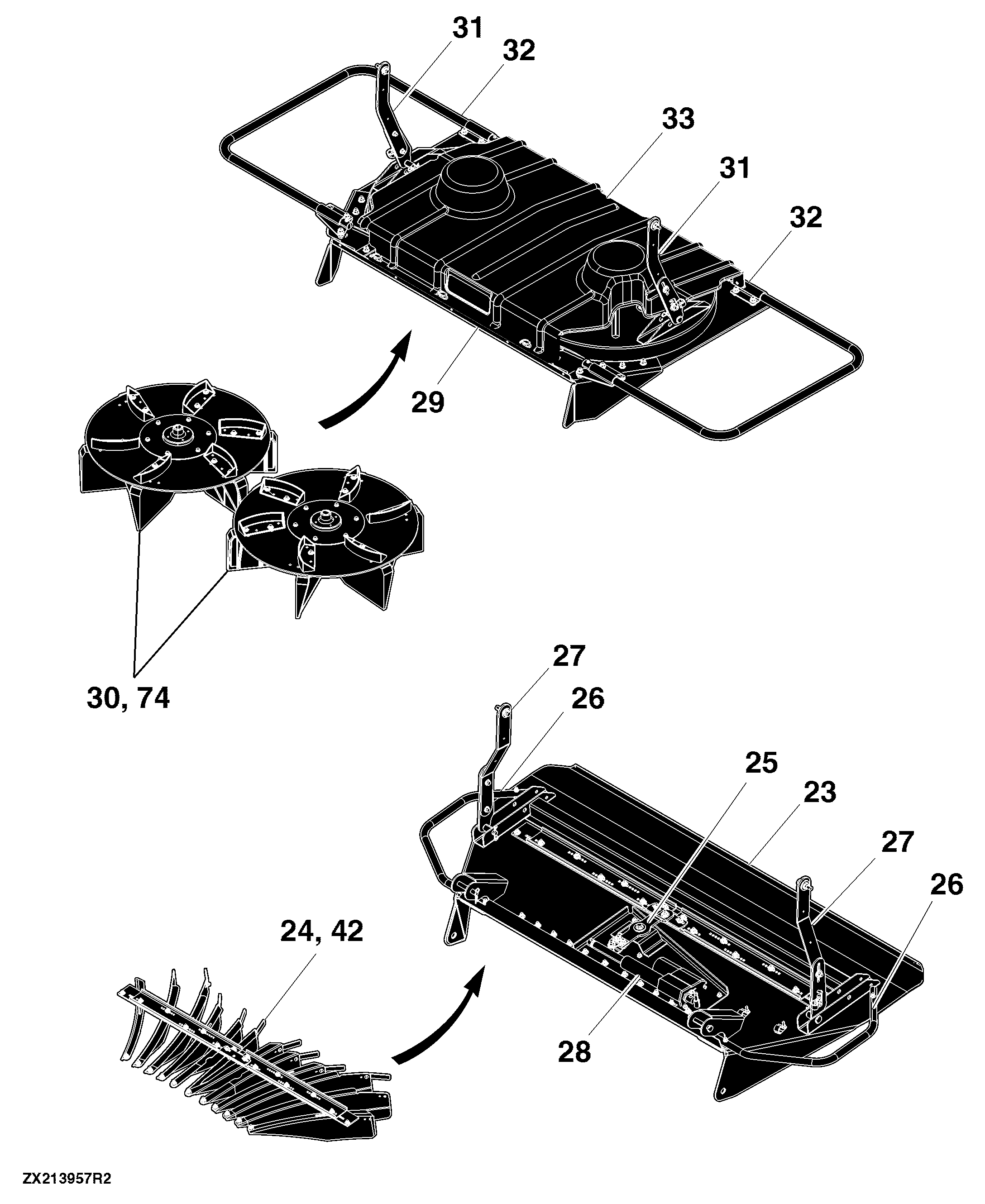

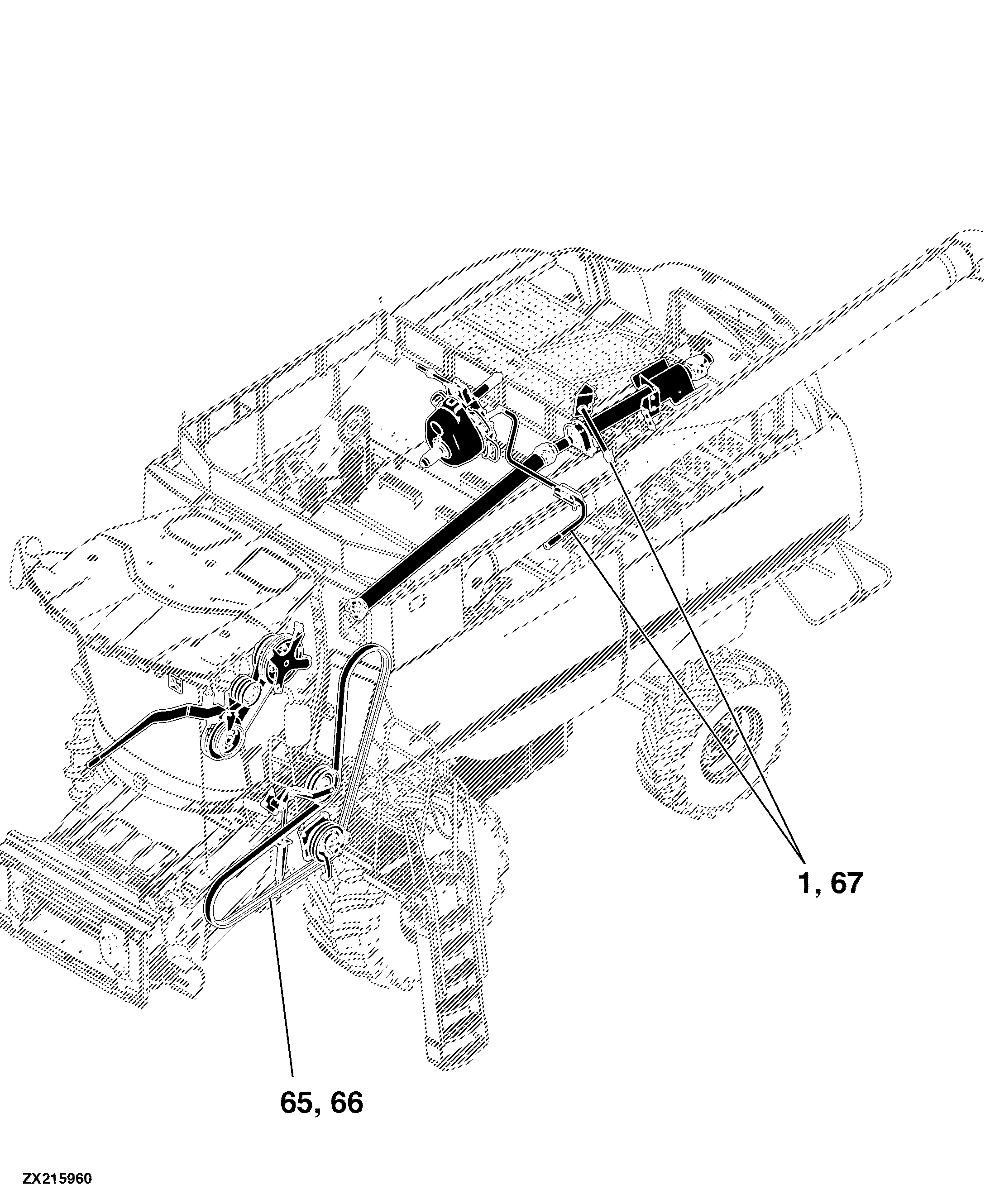

140 Straw Spreader, Chaff Spreader Combine S680 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Manual Tailboard Assembly	-
-	-	1	Primary Countershaft, High Capacity (1 of 2)	-
-	-	1	Primary Countershaft Drive (3/3)	-
-	-	1	Primary Countershaft Drive (2 of 3)	-
-	-	1	Primary Countershaft Drive (1 of 3)	-
-	-	1	PowerCast™ Tailboard Cover	-
-	-	1	PowerCast™ Supports	-
-	-	1	PowerCast™ Safety Rails	-
-	-	1	PowerCast™ Paddle Service Kit	-
-	-	1	PowerCast™ Disks	-
-	-	1	No Disposal Drives	-
-	-	1	Manual Tailboard Housing	-
-	-	1	Primary Countershaft, High Capacity (2 of 2)	-
-	-	1	Knife Kit, Wing Blade	-
-	-	1	Knife Kit	-
-	-	1	Inlet Door Chopper	-
-	-	1	Housing, Counter Knife Assembly, Fine Cut	-
-	-	1	Housing, Counter Knife Assembly, Extra Fine Cut W / Premium Tailboard	-
-	-	1	Housing, Counter Knife Assembly, Extra Fine Cut	-
-	-	1	Hinge	-
-	-	1	Guide, Chopper Rails	-
-	-	1	Gas Operated Cylinder	-
-	-	1	Front End Drive- Heavy Duty	-
-	-	1	Straw Chopper, Extra Fine Cut Rotor W/ Knives, Attachment	-
-	-	1	Vane Tailboard Supports	-
-	-	1	Vane Tailboard Safety Rails	-
-	-	1	Vane Tailboard Housing	-
-	-	1	Vane Tailboard Adjustment	-
-	-	1	Vane and Vane Tailboard Assembly	-
-	-	1	Transfer Gear Case	-
-	-	1	Tailboard, Safety Rail	-
-	-	1	Tailboard Support	-
-	-	1	Support Advanced PowerCast™ Premium	-
-	-	1	Straw Rakes	-
-	-	1	Straw Chute	-
-	-	1	Front End Drive, Reel Pump, 5 Speed	-
-	-	1	Straw Chopper Plate	-
-	-	1	Straw Chopper Drives Shielding	-
-	-	1	Straw Chopper Drive Shield Knob	-
-	-	1	Stationary Knife, Extra Fine Cut	-
-	-	1	Standard Vane Tailboard Motor	-
-	-	1	Safety Barrier	-
-	-	1	Rotor W/ Serrated Knives, Fine Cut Chopper	-
-	-	1	Rotor Drive, Large Sheaves	-
-	-	1	Rotor Drive Gear Case, Large Sheaves	-
-	-	1	Rocker Arm	-
-	-	1	Attachment, Chute Straw Bump Vane Tailboard	-
-	-	1	Chute Kit, Straw Bump, Advance PowerCast™, Attachment	-
-	-	1	Chute Kit	-
-	-	1	Chopper Side Housing	-
-	-	1	Chopper Outlet Tailboard Housing	-
-	-	1	Chopper Outlet Housing for PowerCast™	-
-	-	1	Chopper Outlet Housing	-
-	-	1	Chopper Movement Plates	-
-	-	1	Chopper Housing Supports for Advanced PowerCast™	-
-	-	1	Chopper Housing	-
-	-	1	Chopper Bearings	-
-	-	1	Chop to Drop Door Drive	-
-	-	1	Chute Kit, Straw Bumper Vane Tailboard, Attachment	-
-	-	1	Attachment, Chute Straw Bump Advanced PowerCast™	-
-	-	1	After Treatment Blower Drive, 13.5 L	-
-	-	1	Advanced PowerCast™, Attachment	-
-	-	1	Advanced PowerCast™ Shroud Actuator Support	-
-	-	1	Advanced PowerCast™ Housing, W/ Dual Wag	-
-	-	1	Advanced PowerCast™ Attachment (3 of 4)	-
-	-	1	Advanced PowerCast™ Attachment (2 of 4)	-
-	-	1	Advanced PowerCast™ Attachment (1 of 4)	-
-	-	1	Adjustable Chopper Outlet Housing	-
-	-	1	Actuator, Advanced PowerCast™, Dual wag	-
-	-	1	Dual Chopper Drive, Fine Cut Vane, 2-Speed	-
-	-	1	Fine Cut Straw Chopper Drive, Attachment	-
-	-	1	Extra Fine Cut Rotor W/ Knives	-
-	-	1	Electrical Tailboard Vane Adjustment	-
-	-	1	Electrical Tailboard Housing	-
-	-	1	Electrical Tailboard Assembly	-
-	-	1	Dual Flow Control Valve, Advanced PowerCast™ Attachment (4 of 4)	-
-	-	1	Dual Chopper Drive, Fine Cut, 2-Speed W/ PowerCast™ Pump	-
-	-	1	Dual Chopper Drive, Fine Cut, 2-Speed W/ PowerCast™ Pump	-
-	-	1	Dual Chopper Drive, Fine Cut W/ Advanced PowerCast™ Pump	-
-	-	1	Dual Chopper Drive, Fine Cut W/ Advanced PowerCast™ Pump	-
-	-	1	Actuator Support	-
-	-	1	Dual Chopper Drive, Fine Cut Vane, 2-Speed	-
-	-	1	Dual Chopper Drive, Extra Fine Cut W / Advanced PowerCast™ Pump , 2 of 2	-
-	-	1	Dual Chopper Drive, Extra Fine Cut W / Advanced PowerCast™ Pump , 1 of 2	-
-	-	1	Dual Chopper Drive, Extra Fine Cut	-
-	-	1	Dual Chopper Drive, Extra Fine Cut	-
-	-	1	Current PowerCast™ Housing	-
-	-	1	Counter Knife Housing	-
-	-	1	Cleaning Fan Drive, Standard Speed	-
-	-	1	Chute Straw Bump, Vane Tailboard	-
-	-	1	Chute Straw Bump Advanced PowerCast™	-

140 Straw Spreader, Chaff Spreader Combine S680 - MY15

Нет текстового описания
