Открытый узел

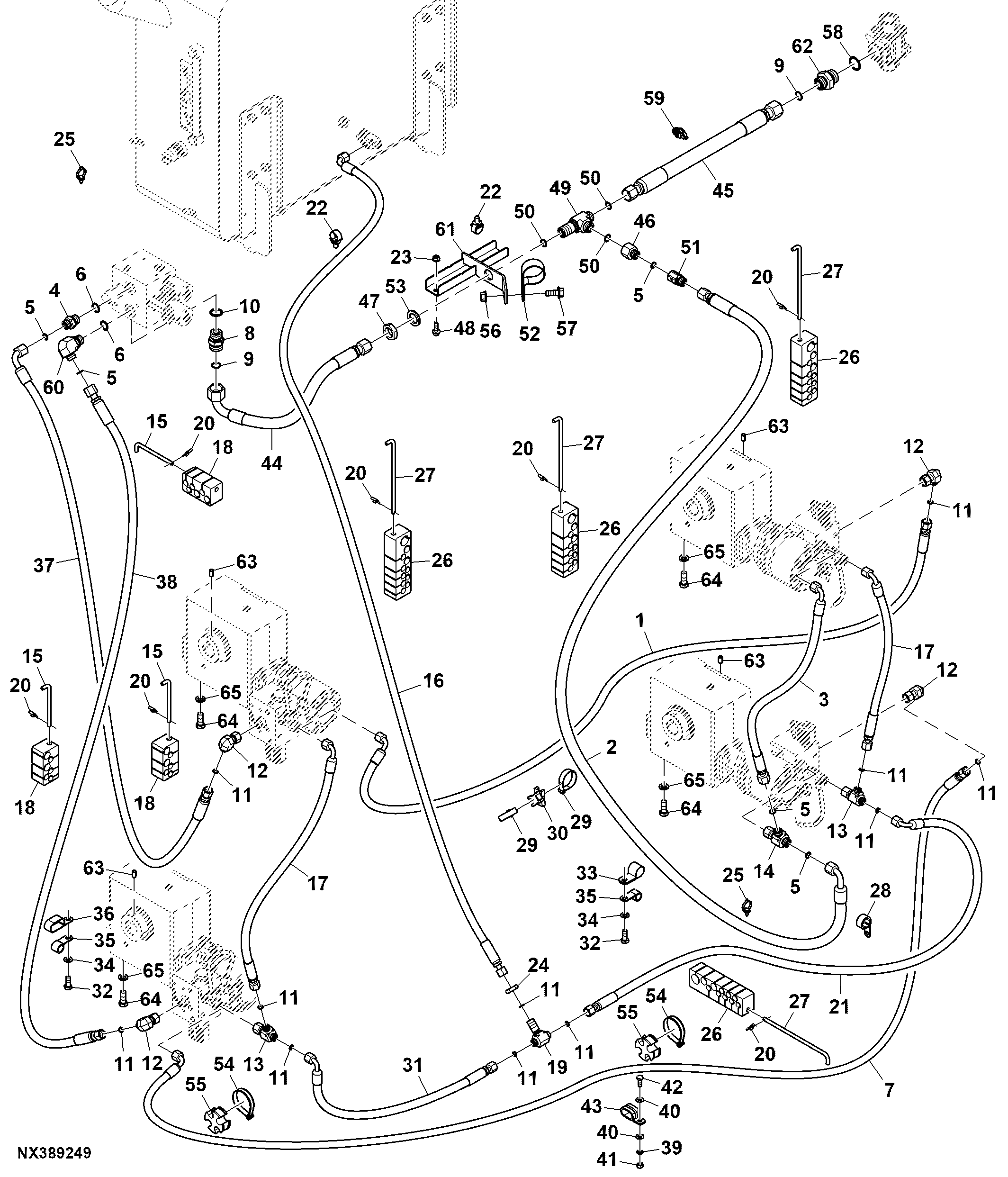

Hydraulic Hoses, Dual Bin And Tri Bin Distribution (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK35604	1	Hydraulic Hose	3050 mm
1	AKK20577	1	Hydraulic Hose	3010 mm, Conveyor ORDER AKK35604
2	AKK42655	1	Hydraulic Hose	4105 mm
2	AKK20462	1	Hydraulic Hose	4140 mm, Motor ORDER AKK42655
3	AKK20459	1	Hydraulic Hose	Motor
4	38H5306	1	Adapter Fitting	-
5	T77857	5	O-Ring	-
6	51M7045	2	O-Ring	19.300 X 2.200 mm
7	AKK20461	1	Hydraulic Hose	Conveyor ORDER AKK35474
7	AKK35474	1	Hydraulic Hose	2600 mm
8	38H5377	1	Elbow Fitting	-
9	T77858	4	O-Ring	-
10	51M7047	1	O-Ring	23.600 X 2.900 mm
11	T77613	11	O-Ring	-
12	38H5287	4	Elbow Fitting	-
13	38H5293	2	Tee Fitting	-
14	38H5500	1	Tee Fitting	-
15	KK35367	5	Pin Fastener	-
16	AKK22272	1	Hydraulic Hose	Conveyor Circuit
17	AKK22270	2	Hydraulic Hose	Conveyor Circuit
18	KK35333	5	Clamp	-
19	38H5363	1	Adapter Fitting	-
20	TCU33336	9	Pin	-
21	AKK22271	1	Hydraulic Hose	Conveyor Circuit RH
22	57M10630	5	Clip Kit	-
23	14M7649	4	Flange Nut	M8
24	38H5352	1	Nut	11/16"
25	RE258807	7	Tie Band	-
26	KK37034	4	Clamp	-
27	KK37238	6	Pin Fastener	-
28	57M10840	1	Clamp	-
29	H113197	6	Tie Band	-
30	AN209168	1	Swivel	-
31	AKK23425	1	Hydraulic Hose	Conveyor Circuit LH
32	19M10283	2	Screw	M10 X 25
33	T140924	1	Clamp	-
34	24M7401	2	Washer	10.500 X 20 X 2 mm
35	R213627	2	Hose Clamp	-
36	RE67586	1	Clamp	-
37	AKK20460	1	Hydraulic Hose	Conveyor
38	AKK20437	1	Hydraulic Hose	Conveyor
39	M177075	1	Lock Washer	-
40	24H1981	2	Washer	11/32" X 3/4" X 0.040"
41	14M7793	1	Nut	M8
42	19M9962	1	Screw	M8 X 20
43	T295912	1	Clamp	-
44	AKK24880	1	Hydraulic Hose	Conveyor Return ORDER AKK40386
44	AKK40386	1	Hydraulic Hose	-
45	AKK24976	1	Hydraulic Hose	Conveyor Return ORDER AKK40385
45	AKK40385	1	Hydraulic Hose	-
46	38H5522	1	Reducer	-
47	38H5354	1	Nut	1"
48	19M9837	2	Screw	M8 X 25
49	38H5730	1	Adapter Fitting	-
50	T77932	3	O-Ring	-
51	SJ14755	1	Check Valve	-
52	R530587	1	Hose Clamp	-
53	24M7294	1	Washer	26 X 39 X 4 mm
54	H224073	2	Tie Band	-
55	T280323	2	Clamp	-
56	14M7688	1	Flange Nut	M12
57	19M9347	1	Screw	M12 X 30
58	51M7048	1	O-Ring	29.600 X 2.900 mm
59	T27550	1	Clip	-
60	38H5027	1	Elbow Fitting	-
61	AKK25312	1	Bracket	ORDER AKK42592
61	AKK42592	1	Bracket	-
62	38H5366	1	Adapter Fitting	-
63	T30053	8	Screw	-
64	19M10314	16	Cap Screw	M12 X 30
65	12H386	16	Lock Washer	1/2"

Hydraulic Hoses, Dual Bin And Tri Bin Distribution (2 of 2)
