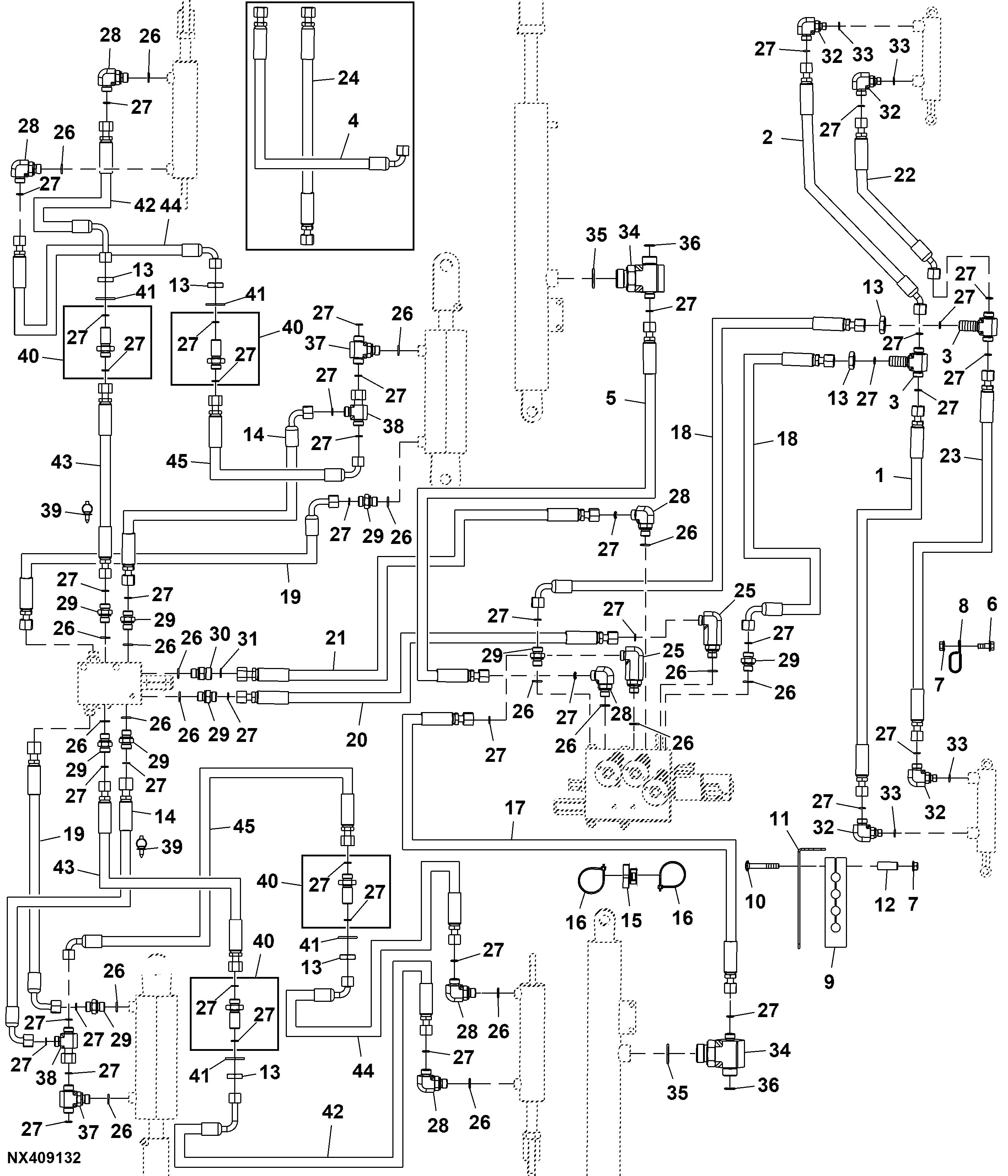

Hydraulic Hoses, Dry Box Spreader (1 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK20464	1	Hydraulic Hose	Transmission Lock
2	AKK20579	1	Hydraulic Hose	Transmission Lock
3	38H5363	2	Adapter Fitting	-
4	AKK20596	2	Hydraulic Hose	Swing Cylinder ORDER AKK33088 AND AKK32967
5	AKK20598	1	Hydraulic Hose	Tilt, LH
6	19M9836	4	Screw	M8 X 20
7	14M7649	6	Flange Nut	M8
8	AH97280	4	Clip	-
9	A88997	1	Block Clamp	-
10	03M7465	2	Bolt	M8 X 55
11	KK50443	1	Sheet	-
12	28H1515	2	Bushing	0.364" X 0.540" X 1-3/8"
13	38H5352	6	Nut	11/16"
14	AKK23118	2	Hydraulic Hose	Transmission Lock
15	AN209168	3	Swivel	-
16	H113197	6	Tie Band	-
17	AKK23409	1	Hydraulic Hose	Tilt, RH
18	AKK20594	2	Hydraulic Hose	Trans Lock
19	AKK20478	2	Hydraulic Hose	Transmission Lock
20	AKK20686	1	Hydraulic Hose	Fold Sequence
21	AKK20595	1	Hydraulic Hose	Sequence Valve
22	AKK20578	1	Hydraulic Hose	Transmission Lock
23	AKK24621	1	Hydraulic Hose	Transmission Lock
24	AKK20597	2	Hydraulic Hose	Fold Cylinder ORDER AKK33089 AND AKK32968
25	38H5551	2	Elbow Fitting	-
26	51M7042	20	O-Ring	13.300 X 2.200 mm
27	T77613	45	O-Ring	-
28	38H5332	6	Elbow Fitting	-
29	38H5319	9	Adapter Fitting	-
30	38H5320	1	Adapter Fitting	-
31	T77857	1	O-Ring	-
32	38H5330	4	Elbow Fitting	-
33	51M7040	4	O-Ring	9.300 X 2.200 mm
34	AKK25829	2	Tee Fitting	-
35	51M7048	2	O-Ring	29.600 X 2.900 mm
36	T77932	2	O-Ring	-
37	38H5340	2	Tee Fitting	-
38	38H5293	2	Tee Fitting	-
39	RE258807	8	Tie Band	-
40	38H5300	4	Union Fitting	-
41	24M7527	4	Washer	19 X 34 X 3 mm
42	AKK33089	2	Hydraulic Hose	-
43	AKK32968	2	Hydraulic Hose	-
44	AKK33088	2	Hydraulic Hose	-
45	AKK32967	2	Hydraulic Hose	-

Hydraulic Hoses, Dry Box Spreader (1 of 2)
