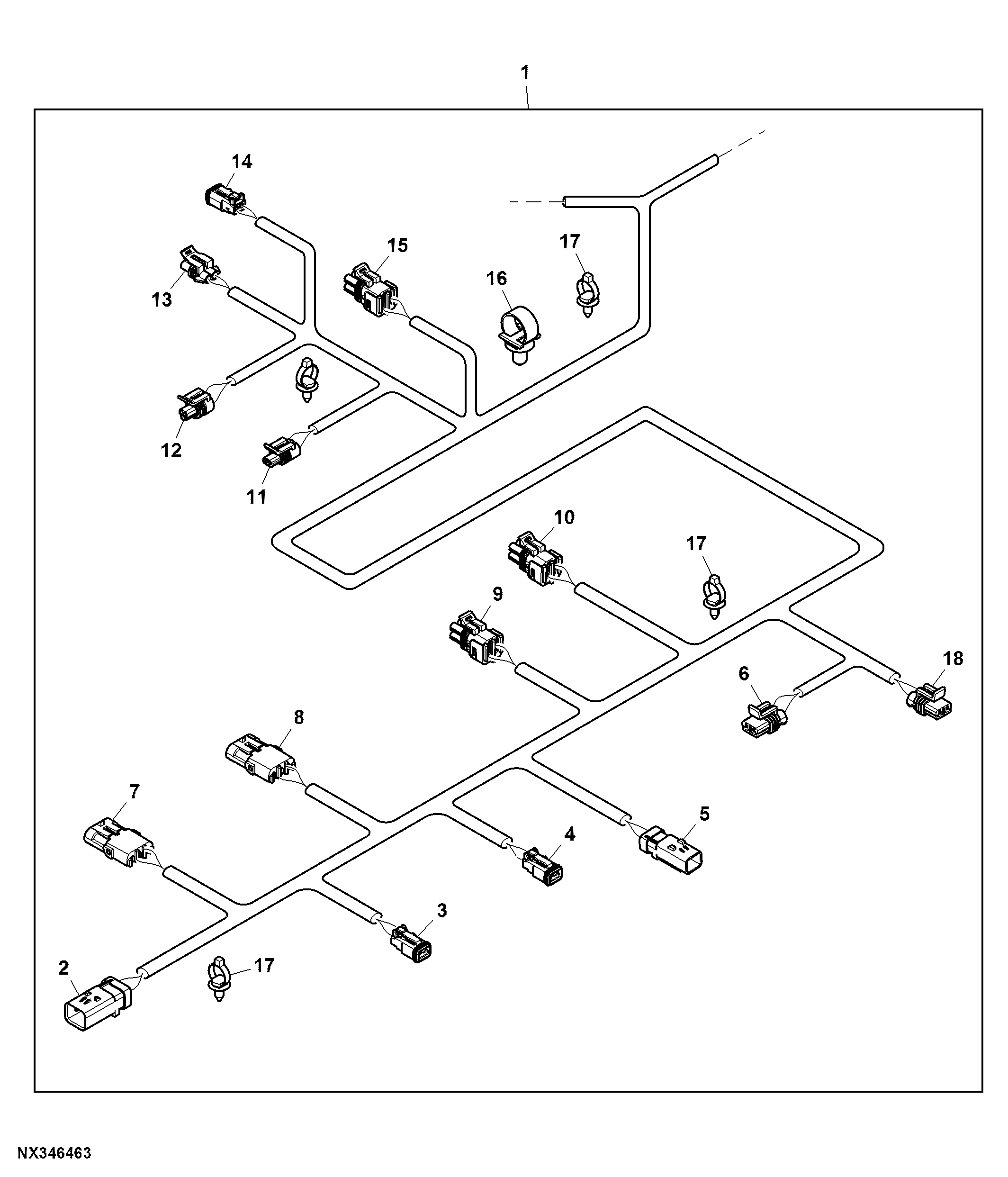

Chassis Wiring Harness, Dry Box Spreader (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK26132	1	Wiring Harness	-
2	57M9746	1	Elec. Connector Housing	Right Rear Light Interconnect
2	57M9940	1	Elec. Connector Accessory	-
2	57M9840	1	Elec. Connector Accessory	-
2	R78066	4	Elec. Connector Terminal	-
3	57M8021	1	Electrical Connector Assy	Bin 1 Conveyor Enable Valve RH
3	R78065	2	Elec. Connector Terminal	-
3	57M8022	1	Elec.Connect Locking Device	-
4	57M8021	1	Electrical Connector Assy	Bin 2 Conveyor Enable Valve RH
4	57M8022	1	Elec.Connect Locking Device	-
4	57M8023	1	Elec. Connector Housing	-
4	R78065	2	Elec. Connector Terminal	-
5	57M9939	1	Elec. Connector Accessory	-
5	R78066	2	Elec. Connector Terminal	-
5	57M9837	1	Elec. Connector Accessory	-
5	57M9726	1	Elec. Connector Housing	-
5	57M9730	1	Elec. Connector Housing	Rear Beacon Light Interconnect
6	57M7309	1	Elec. Connector Housing	Hydraulic Cooler Fan, Air Boom
6	57M7491	1	Elec. Connector Terminal	-
6	57M9216	1	Elec. Connector Seal	-
7	R78054	1	Electrical Connector Assy	Bin 1 Conveyor Speed RH
7	M76268	1	Clip	-
7	57M7251	3	Elec. Connector Terminal	-
7	57M9219	2	Elec. Connector Seal	-
7	57M9218	1	Elec. Connector Seal	-
8	57M9219	2	Elec. Connector Seal	-
8	57M9218	1	Elec. Connector Seal	-
8	57M7251	3	Elec. Connector Terminal	-
8	M76268	1	Clip	-
8	R78054	1	Electrical Connector Assy	Bin 2 Conveyor Speed RH
8	RE12364	1	Electrical Connector Assy	-
9	57M7227	1	Elec. Connector Housing	Bin 2 RH Low Level
9	57M10924	3	Elec. Connector Terminal	-
9	57M9219	2	Elec. Connector Seal	-
9	57M9218	1	Elec. Connector Seal	-
10	57M7227	1	Elec. Connector Housing	Bin 1 RH Low Level
10	57M7228	1	Elec. Connector Housing	-
10	57M10924	3	Elec. Connector Terminal	-
10	57M9219	2	Elec. Connector Seal	-
10	57M9218	1	Elec. Connector Seal	-
11	57M7850	1	Elec. Connector Housing	Hydraulic Oil Temperature, Air Boom
11	57M7829	2	Elec. Connector Terminal	-
12	57M10925	3	Elec. Connector Terminal	-
12	57M7796	1	Elec. Connector Housing	Fan Hydraulic Pressure Sensor
13	57M7254	1	Elec. Connector Housing	Blower Fan Proportional Valve
13	57M10770	2	Elec. Connector Terminal	-
13	57M9883	2	Elec. Connector Cable Seal	-
13	57M9712	1	Elec. Connector Accessory	-
14	57M8021	1	Electrical Connector Assy	Blower Fan On / Off Valve
14	57M8022	1	Elec.Connect Locking Device	-
15	57M7227	1	Elec. Connector Housing	Bin 1 High Level
15	57M7228	1	Elec. Connector Housing	-
15	57M10924	3	Elec. Connector Terminal	-
15	57M9218	2	Elec. Connector Seal	-
15	57M9219	1	Elec. Connector Seal	-
16	57M10630	1	Clip Kit	-
17	RE258807	1	Tie Band	-
18	RE258807	1	Tie Band	Hydraulic Cooler Fan, Air Boom

Chassis Wiring Harness, Dry Box Spreader (2/3)
