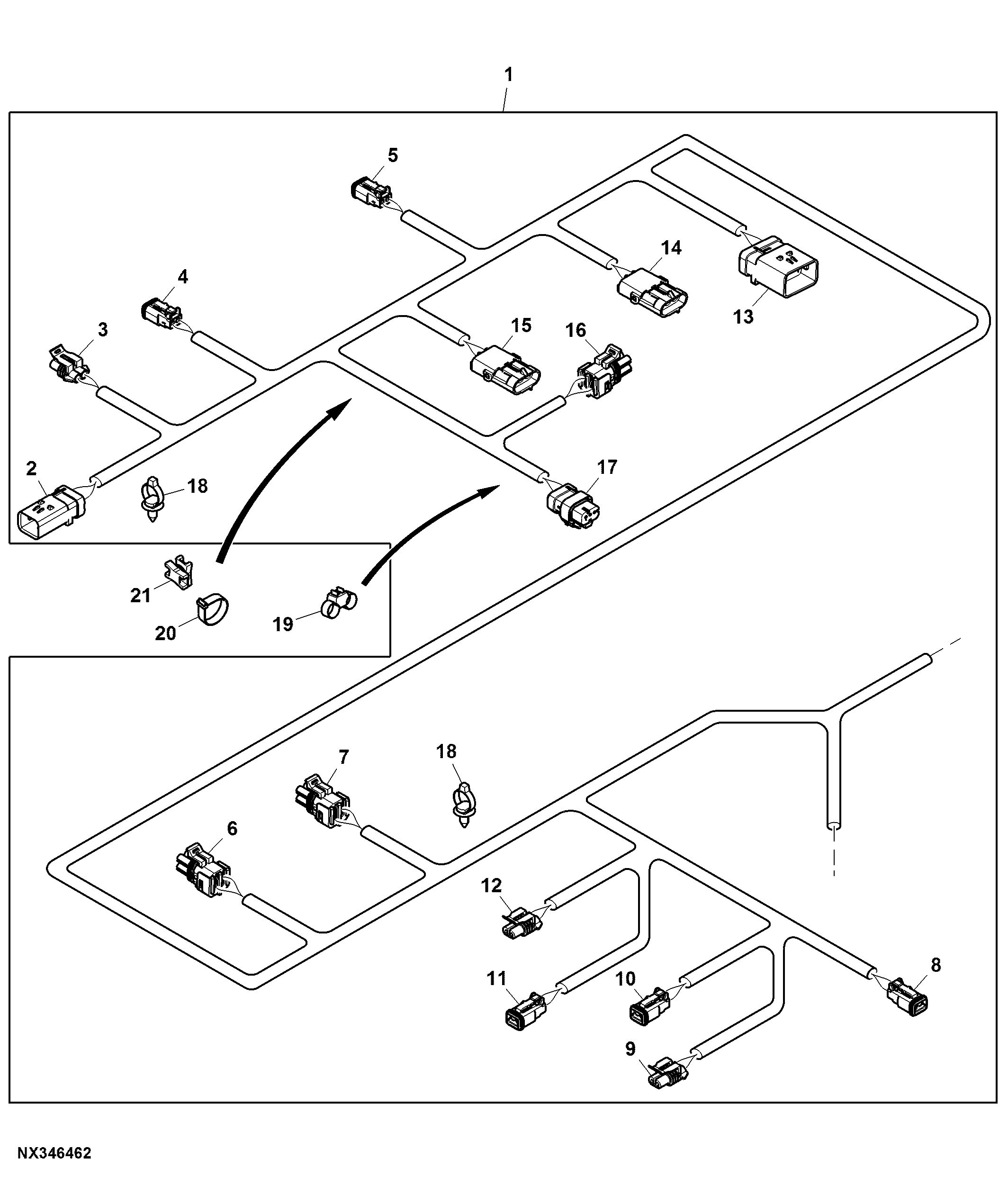

Chassis Wiring Harness, Dry Box Spreader (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK26132	1	Wiring Harness	-
2	57M9746	1	Elec. Connector Housing	Left Rear Light Interconnect
2	R78066	4	Elec. Connector Terminal	-
2	57M9940	1	Elec. Connector Accessory	-
2	57M9840	1	Elec. Connector Accessory	-
3	57M7254	1	Elec. Connector Housing	License Plate Light
3	57M9696	1	Elec. Connector Terminal	-
3	57M9712	1	Elec. Connector Accessory	-
3	57M10770	2	Elec. Connector Terminal	-
3	57M9883	2	Elec. Connector Cable Seal	-
4	57M8021	1	Electrical Connector Assy	Bin 1 Conveyor Enable Valve LH
4	R78065	2	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	-
5	57M8021	1	Electrical Connector Assy	Bin 2 Conveyor Enable Valve LH
5	57M8022	1	Elec.Connect Locking Device	-
5	57M8023	1	Elec. Connector Housing	-
5	R78065	2	Elec. Connector Terminal	-
6	57M9219	1	Elec. Connector Seal	-
6	57M9218	2	Elec. Connector Seal	-
6	57M10924	3	Elec. Connector Terminal	-
6	57M7228	1	Elec. Connector Housing	-
6	57M7227	1	Elec. Connector Housing	Bin 2 LH Low Level
7	57M7228	1	Elec. Connector Housing	Bin 1 LH Low Level
7	57M10924	3	Elec. Connector Terminal	-
7	57M9218	2	Elec. Connector Seal	-
7	57M9219	1	Elec. Connector Seal	-
8	57M8021	1	Electrical Connector Assy	LH Boom Raise / Lower Enable
8	57M8022	1	Elec.Connect Locking Device	-
8	R78065	2	Elec. Connector Terminal	-
9	57M7254	1	Elec. Connector Housing	RH Boom Raise / Lower Enable
9	57M10770	2	Elec. Connector Terminal	-
9	57M9883	2	Elec. Connector Cable Seal	-
9	57M9712	1	Elec. Connector Accessory	-
10	R78065	2	Elec. Connector Terminal	-
10	57M8022	1	Elec.Connect Locking Device	-
10	57M8021	1	Electrical Connector Assy	Double Blocker Actuator
11	57M8021	1	Electrical Connector Assy	Boom Fold / Unfold
11	57M8022	1	Elec.Connect Locking Device	-
11	R78065	2	Elec. Connector Terminal	-
12	57M7254	1	Elec. Connector Housing	-
12	57M9712	1	Elec. Connector Accessory	Boom Unfold / Latch / Raise
12	57M10770	2	Elec. Connector Terminal	-
12	57M9883	2	Elec. Connector Cable Seal	-
13	57M9940	1	Elec. Connector Accessory	-
13	57M7541	1	Elec. Connector Terminal	-
13	R78066	10	Elec. Connector Terminal	-
13	57M9844	1	Elec. Connector Accessory	-
13	57M9800	1	Elec. Connector Housing	-
13	57M9804	1	Elec. Connector Housing	Granular Bin Interconnect
14	R78054	1	Electrical Connector Assy	Bin 2 Conveyor Speed LH
14	M76268	1	Clip	-
14	RE12364	1	Electrical Connector Assy	-
15	R78054	1	Electrical Connector Assy	Bin 2 Conveyor Speed LH
15	57M9219	1	Elec. Connector Seal	-
15	57M9218	2	Elec. Connector Seal	-
15	57M7251	1	Elec. Connector Terminal	-
15	M76268	1	Clip	-
16	57M7227	1	Elec. Connector Housing	Bin 2 High Level
16	57M7228	1	Elec. Connector Housing	-
16	57M10924	3	Elec. Connector Terminal	-
16	57M9218	2	Elec. Connector Seal	-
16	57M9219	1	Elec. Connector Seal	-
17	57M9780	1	Elec. Connector Housing	Blower Fan Speed Sensor
17	R78065	3	Elec. Connector Terminal	-
17	57M9838	1	Elec. Connector Accessory	-
18	RE258807	1	Tie Band	-
19	R213663	2	Clamp	-
20	H113197	3	Tie Band	-
21	AN209168	1	Swivel	-

Chassis Wiring Harness, Dry Box Spreader (1/3)

Нет текстового описания
