22 Engine W/O Engine Brake QSX15-RE567942-ETN113461

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	6584 Turbocharger	-
-	-	1	4706 Crankshaft and Bearings	-
-	-	1	4811 Connecting Rod	-
-	-	1	4907 Valve Actuating Mechanism	-
-	-	1	5006 Engine Oil Pump	-
-	-	1	5114 Cylinder Head	-
-	-	1	5217 Gear Driven Auxiliary Drive	-
-	-	1	5932 Engine Oil Cooler and Oil Filter	-
-	-	1	6136 Aftertreatment, Exhaust System (Wheeled And 4 - Track Tractor)	-
-	-	1	6137 Aftertreatment, Exhaust System (2 - Track Tractor)	-
-	-	1	4613 Cylinder Block	-
-	-	1	7310 Dosing System	-
-	-	1	7717 Timing Gear Cover	-
-	-	1	8466 Engine Wiring Harness	-
-	-	1	8911 Exhaust Gas Recirculation	-
-	-	1	9633 Air Intake Kit	-
-	-	1	9819 Lift Strap	-
-	-	1	9901 Exhaust Gas Recirculation Repair Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	2212 Thermostat	-
-	-	1	1218 Oil Filler Neck	-
-	-	1	1355 Crankshaft Pulley and Damper	-
-	-	1	1431 Flywheel Housing	-
-	-	1	1527 Flywheel	-
-	-	1	1680 Fuel Injection System	-
-	-	1	1749 Air Intake Manifold	-
-	-	1	1933 Oil Pan	-
-	-	1	2012 Water Pump	-
-	-	1	2116 Thermostat Cover	-
-	-	1	1115 Rocker Arm Cover	-
-	-	1	2319 Belt Tensioner	-
-	-	1	2606 Coolant Heater	-
-	-	1	2827 Exhaust Manifold	-
-	-	1	2918 Ventilating System	-
-	-	1	3021 Starter Motor Hardware	-
-	-	1	3546 Fuel Filter	-
-	-	1	3912 Thermostat Housing	-
-	-	1	4038 Dipstick Tube	-

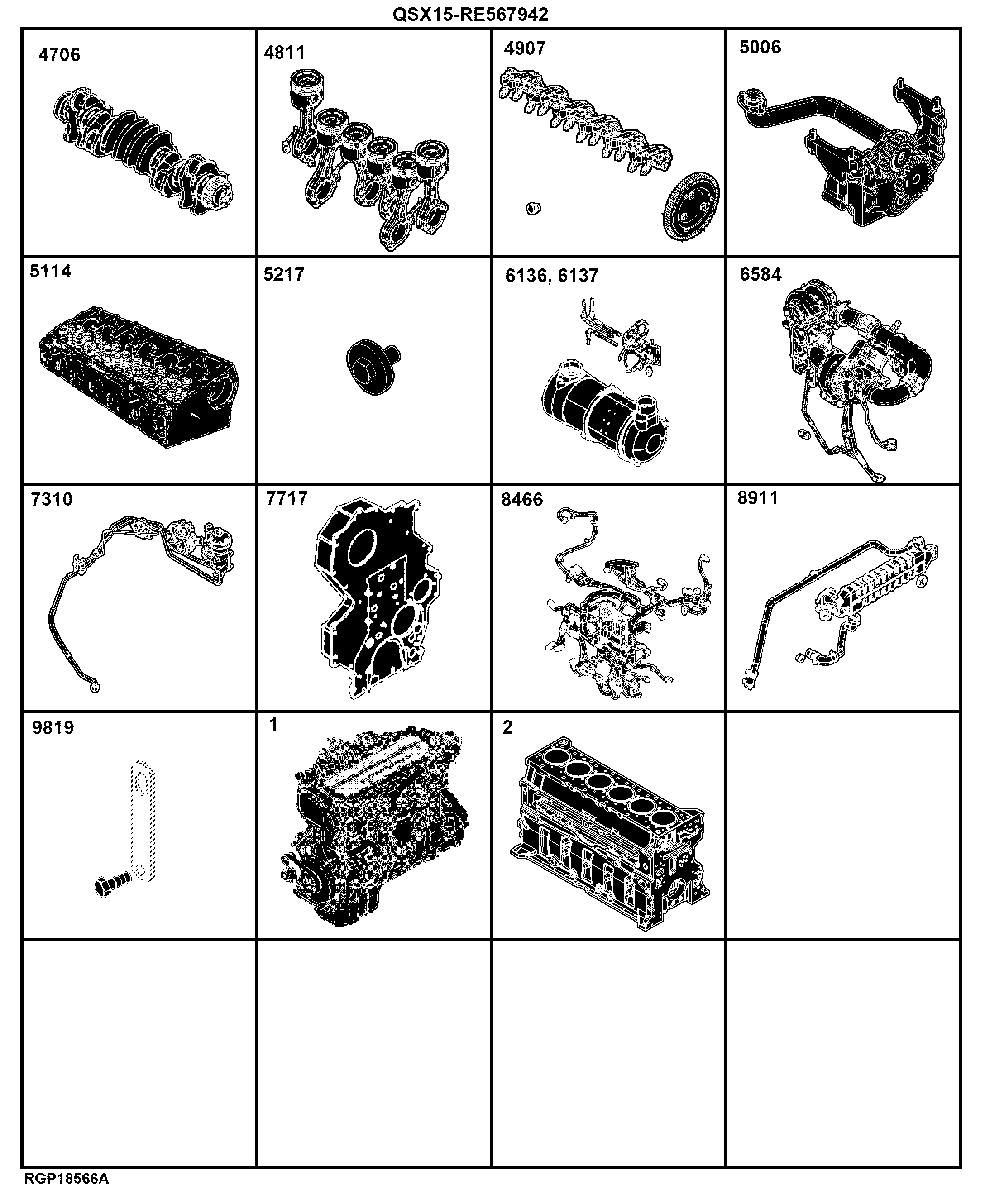

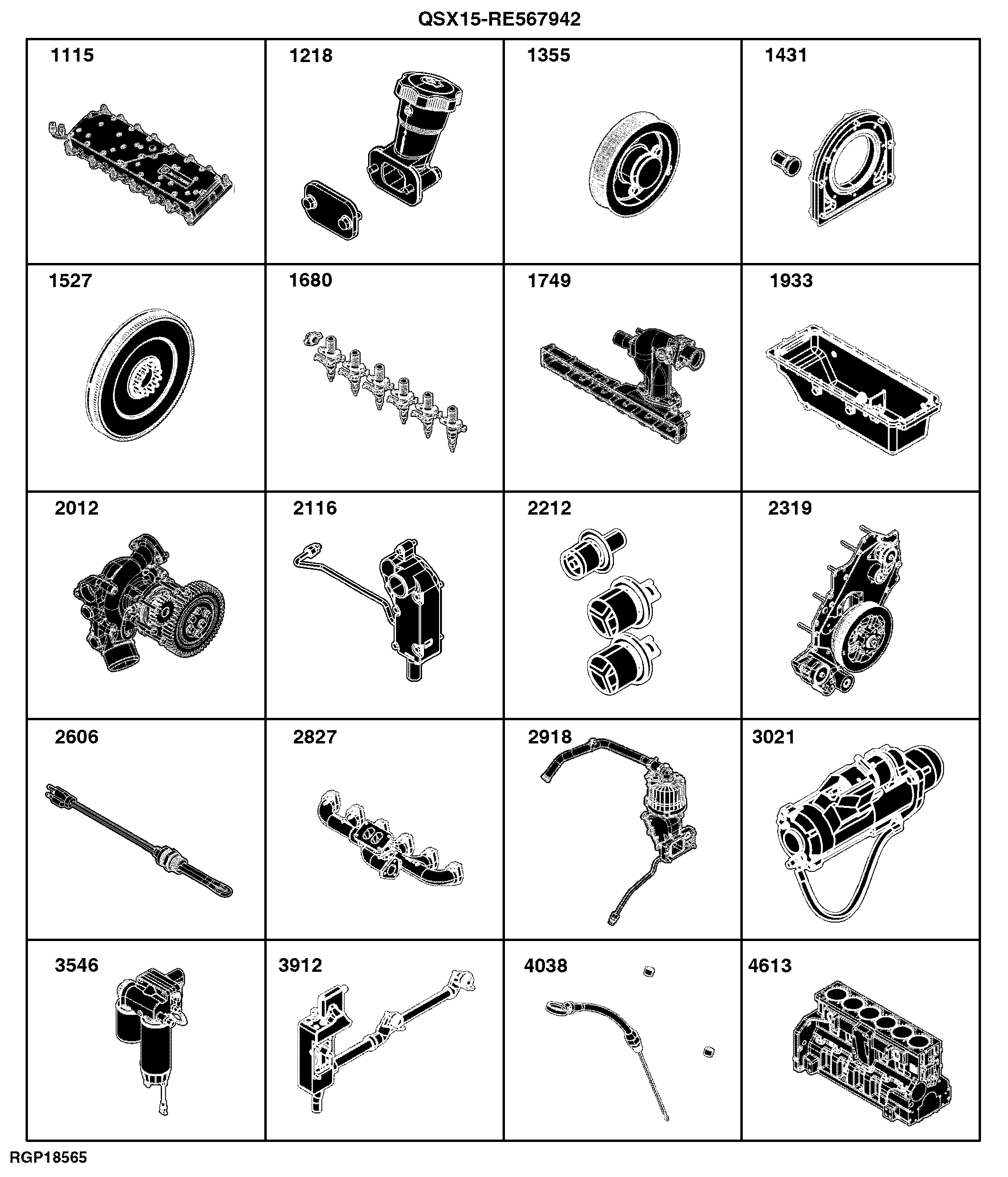

22 Engine W/O Engine Brake QSX15-RE567942-ETN113461

Нет текстового описания
