Открытый узел

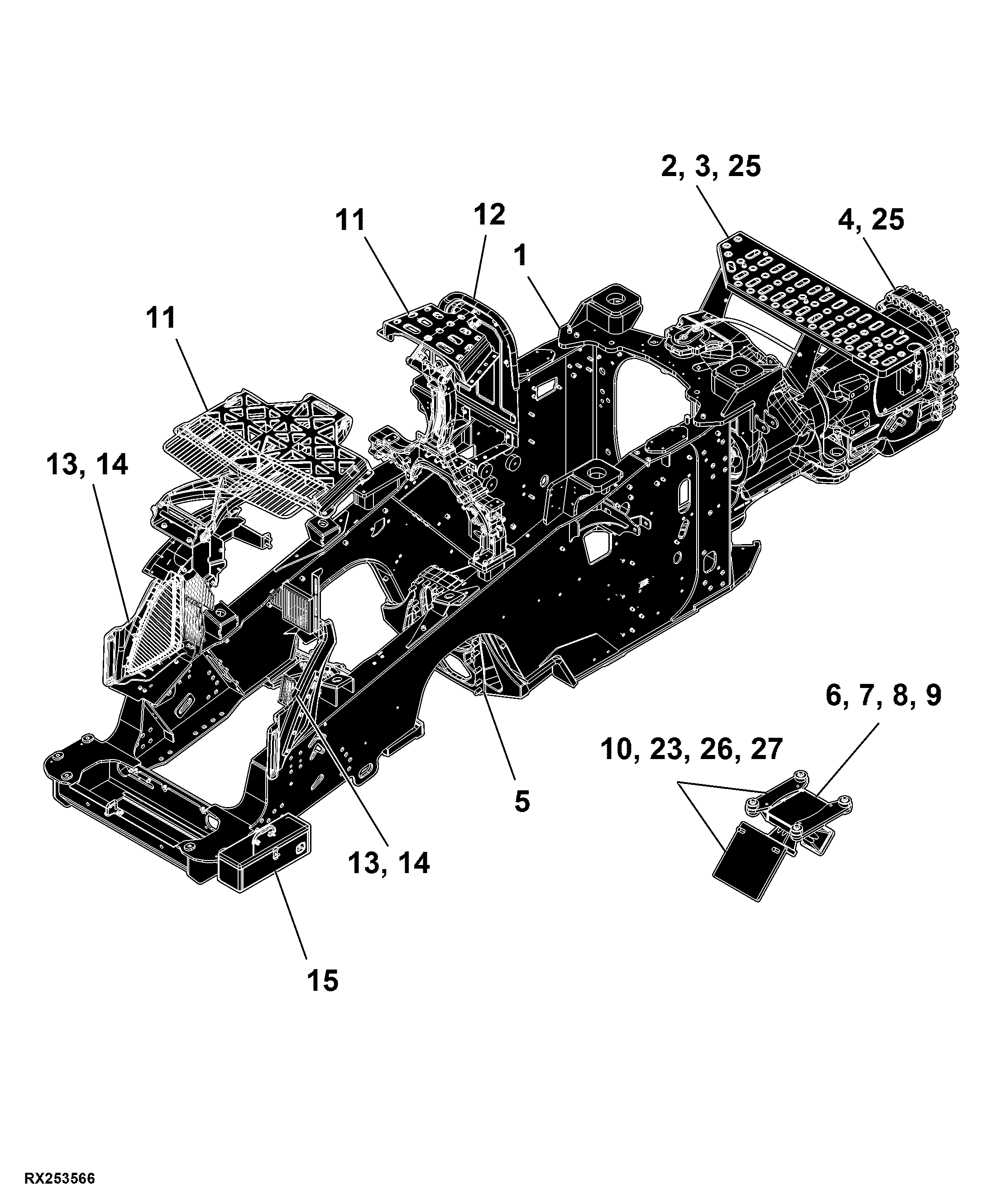

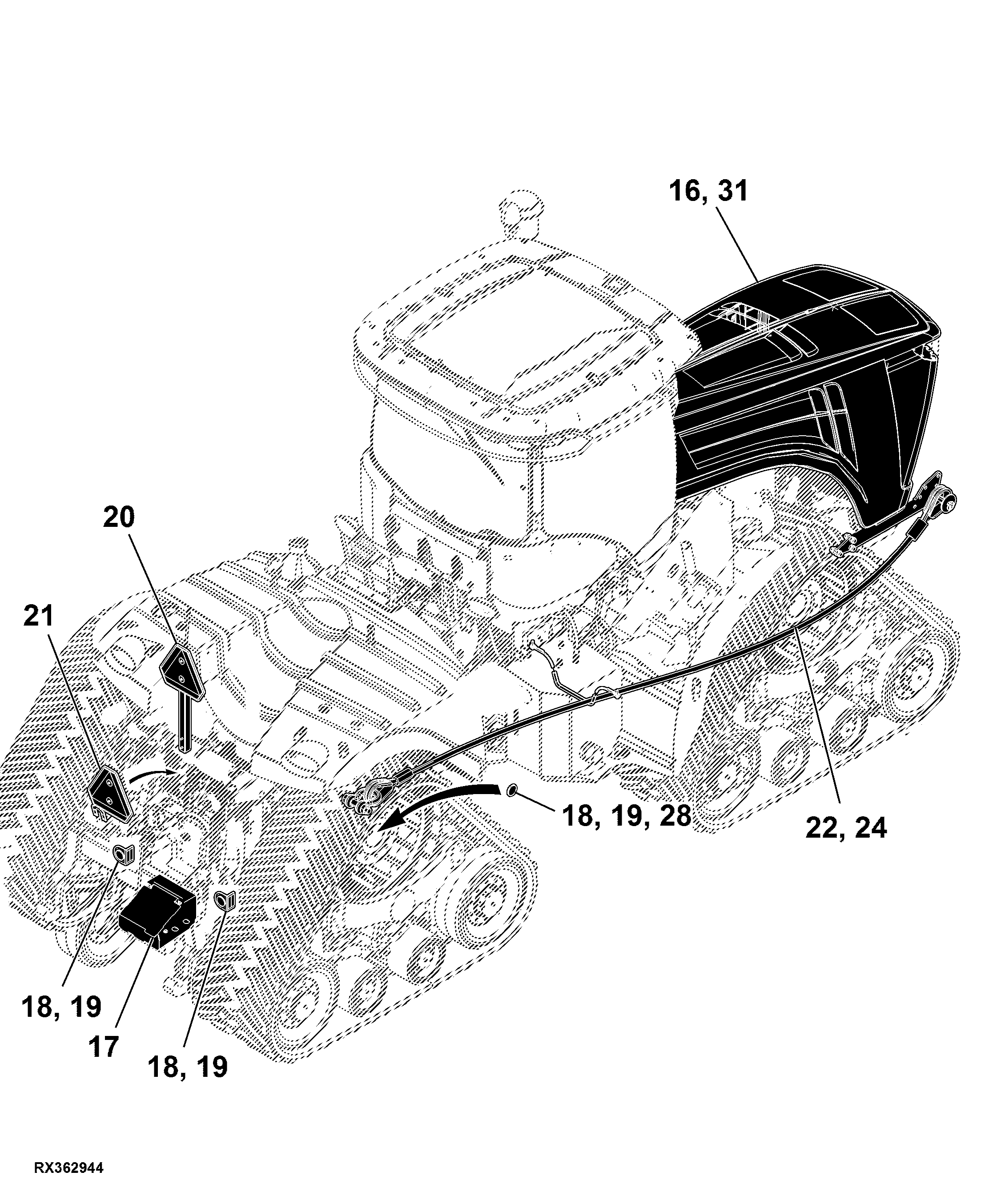

80 Hood and Frame

80 Hood and Frame

80 Hood and Frame

80 Hood and Frame

80 Hood and Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

80 Hood and Frame

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Reflector, Drawbar Support, W/ Hitch (For Europe, CIS, North Africa, Near and Middle East, China)	-
-	-	1	Hood Side Shields, 13.5 L T2 / T3 Engine ( - 807000)	-
-	-	1	Hood Support, 13.5 L Engine (800141 - )	-
-	-	1	Hood Support, 13.5L Engine ( - 800140)	-
-	-	1	Main Frame ( - 805770)	-
-	-	1	Main Frame (805771 - 807000)	-
-	-	1	Main Frame (807001 - )	-
-	-	1	Mounting Parts, Radar Sensor	-
-	-	1	Mounting Parts, Radar Sensor, Attachment	-
-	-	1	Radar Sensor (For Australia)	-
-	-	1	Radar Sensor (For Europe)	-
-	-	1	Radar Sensor (For North America)	-
-	-	1	Radar Sensor (For United Kingdom)	-
-	-	1	Rear Mid Frame, Double Reduction Axle	-
-	-	1	Hood Side Shields, 13.5 L FT4 Engine ( - 807000)	-
-	-	1	Reflector, Single / Double Reduction, W/ Quick Coupler, Heavy Duty / Long Scraper Drawbar Support (For Europe, CIS, North Africa, Near and Middle East, China)	-
-	-	1	Reflectors, Hitch W/ Quick Coupler (For Europe, CIS, North Africa, Near and Middle East, China)	-
-	-	1	Side Panels (807001 - )	-
-	-	1	Side Panels (For Brazil)	-
-	-	1	Slow Moving Vehicle Emblem, Hitch Frame Mounted	-
-	-	1	Slow Moving Vehicle Emblem, SCV Mounted	-

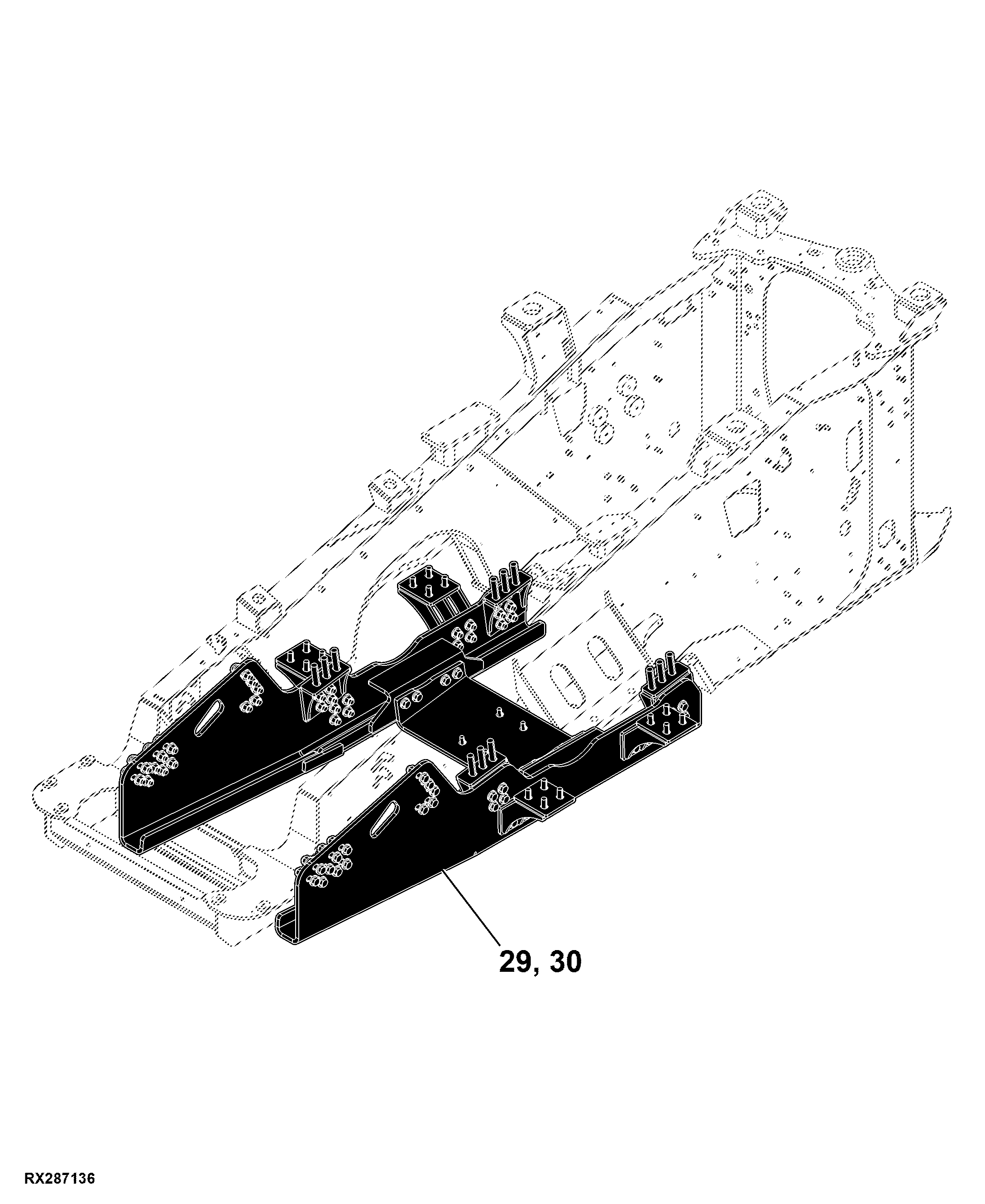

-	-	1	Support Kit, Liquid Tank Frame	-
-	-	1	Support Kit, Liquid Tank Frame, Narrow	-
-	-	1	Support Kit, Liquid Tank Frame, Wide	-
-	-	1	Toolbox Assembly	-
-	-	1	Tow Cable, Double Reduction, W/O Front Weight Support	-
-	-	1	Tow Cable, Double Reduction, W/O Front Weight Support (For EAEU)	-
-	-	1	Tow Cable, Double Reduction, W/O Weights, Attachment	-
-	-	1	Front Hood ( - 807000)	-
-	-	1	Attachment, Dual Beam Radar Sensor Mounting	-
-	-	1	Attachment, Engine Side Cover, 13.5 L FT4 Engine, LH	-
-	-	1	Attachment, Engine Side Cover, 13.5 L FT4 Engine, RH	-
-	-	1	Attachment, Engine Side Cover, 13.5 L T2/ T3 Engine, RH	-
-	-	1	Attachment, Support Kit, Liquid Tank Frame, Narrow	-
-	-	1	Attachment, Support Kit, Liquid Tank Frame, Wide	-
-	-	1	Chain Box, Double Reduction Axle, FT4 Engine, W/O Rear PTO	-
-	-	1	Engine Side Cover, 13.5 L FT4 Engine, LH (807001 - )	-
-	-	1	Engine Side Cover, 13.5 L FT4 Engine, RH (807001 - )	-
-	-	1	Engine Side Cover, 13.5 L T2 / T3 Engine, LH (807001 - )	-
-	-	1	Engine Side Cover, 13.5 L T2 / T3 Engine, RH (807001 - )	-
-	-	1	Engine Side Cover, 13.5 L T2/ T3 Engine, LH, Attachment	-
-	-	1	Front Axle Support, Non-Suspended (800207 - )	-
-	-	1	Attachment, Dual Beam Radar Sensor	-
-	-	1	Front Hood (807001 - )	-
-	-	1	Front Hood (For Brazil)	-
-	-	1	Front Hood and Side Panels (For EU)	-
-	-	1	Gudgeon, Heavy Duty ( - 801460)	-
-	-	1	Gudgeon, Heavy Duty (801461 - 804100)	-
-	-	1	Gudgeon, Heavy Duty (804101 - )	-
-	-	1	Gudgeon, Standard ( - 801460)	-
-	-	1	Gudgeon, Standard (801461 - 804100)	-
-	-	1	Gudgeon, Standard (804101 - )	-
-	-	1	Gudgeon, W/ Tapered Roller Bearings, Attachment	-
-	-	1	Hardware, Serial Number Plate	-
-	-	1	Heat Shield, Hood, W/ Hydraulic Trailer Brake (804101 - )	-
-	-	1	Heat Shield, Hood, W/O Hydraulic Trailer Brake	-
