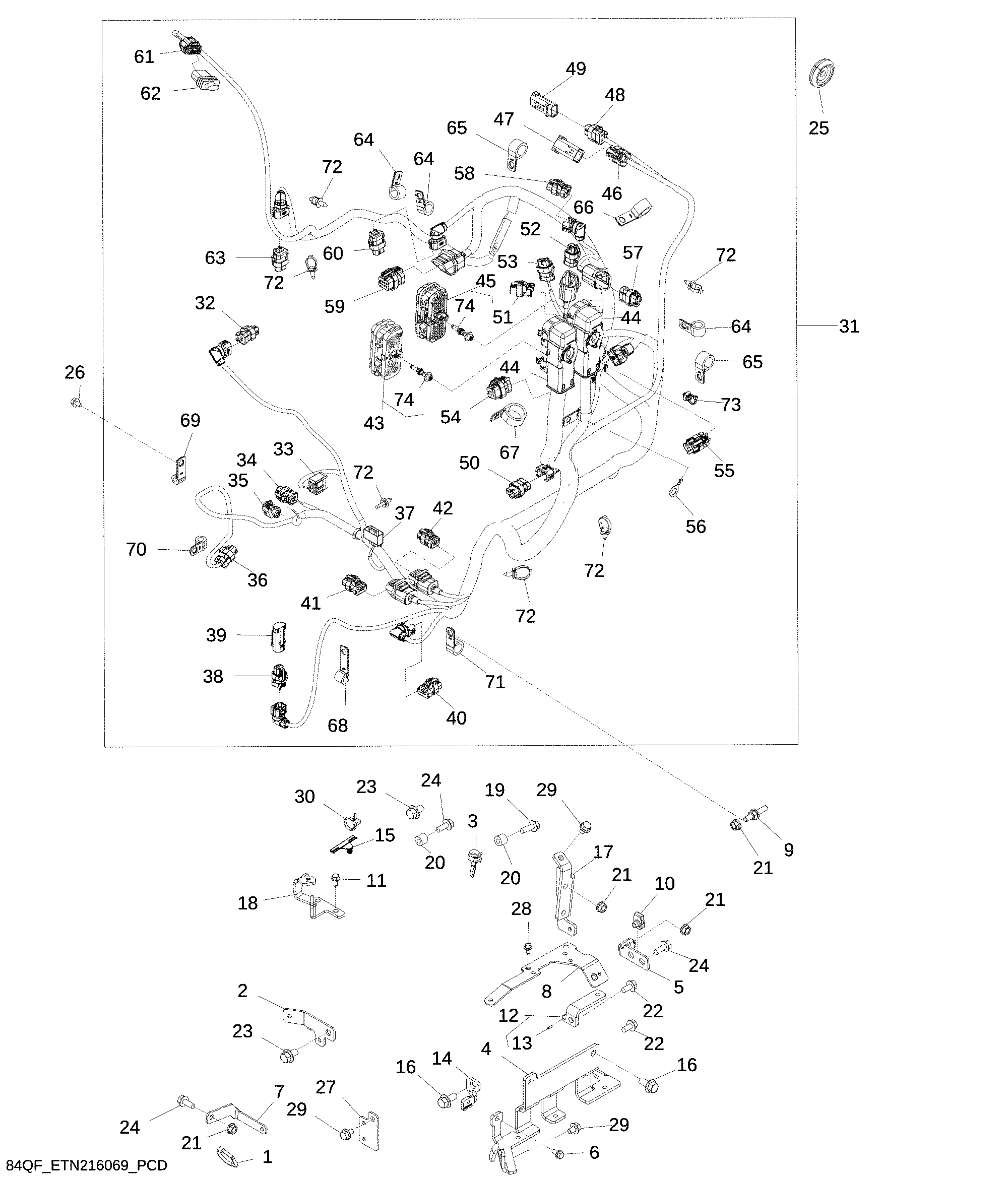

84QF Engine Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R527993	1	Tie Band	-
2	R531628	1	Bracket	-
3	L210203	1	Clip	-
4	DZ123834	1	Bracket	-
5	DZ101802	1	Bracket	-
6	19M7774	1	Screw	M6 X 12
7	R534484	1	Bracket	-
8	RE559708	1	Bracket	-
9	R529573	1	Stud	-
10	M84971	1	Nut	-
11	37M7076	2	Screw	-
12	DZ119248	1	Bracket	-
13	34M7120	1	Spring Pin	3 X 8 mm
14	DZ121158	1	Bracket	-
15	DZ119461	1	Tie Band	-
16	19M7784	3	Screw	M10 X 20
17	DZ100263	1	Bracket	-
18	DZ117579	1	Bracket	-
19	19M7867	1	Screw	M8 X 25
20	R55599	2	Sleeve	-
21	14M7298	5	Flange Nut	M8
22	19M7865	3	Screw	M8 X 16
23	19M7783	2	Screw	M10 X 16
24	19M7866	3	Screw	M8 X 20
25	SU33506	1	Grommet	-
26	19M7861	2	Screw	M6 X 10
27	R532475	1	Bracket	-
28	37M7089	2	Screw	M6 X 12
29	RE524730	3	Cap Screw	-
30	R44302	2	Tie Band	-
31	DZ116275	1	Wiring Harness	-
32	57M10155	1	Elec. Connector Accessory	-
32	57M9773	1	Elec. Connector Housing	B5208, Coolant Temp Sensor
32	57M10321	2	Elec. Connector Terminal	-
33	57M11238	1	Elec. Connector Housing	Y5024, Pressure Relief Valve
33	57M11258	2	Elec. Connector Terminal	-
33	57M11251	2	Elec. Connector Seal	-
34	57M9775	1	Elec. Connector Housing	B5302, Cam Position Sensor
34	57M10321	2	Elec. Connector Terminal	-
35	57M9828	1	Elec. Connector Housing	Y5002, High Pressure Pump
35	57M9831	2	Elec. Connector Terminal	-
35	57M9149	2	Elec. Connector Seal	-
36	57M9775	1	Elec. Connector Housing	B5301, Crank Position Sensor
36	57M10321	2	Elec. Connector Terminal	-
37	57M11246	1	Elec. Connector Housing	B5113, Fuel Rail Pressure
37	57M11262	3	Elec. Connector Terminal	-
37	57M11251	3	Elec. Connector Seal	-
38	57M10155	1	Elec. Connector Accessory	-
38	57M10321	2	Elec. Connector Terminal	-
38	57M9772	1	Elec. Connector Housing	B5600, Water in Fuel
39	57M11333	1	Elec. Connector Accessory	-
40	57M9782	1	Elec. Connector Housing	B5101, Oil Pressure Sensor
40	57M10321	3	Elec. Connector Terminal	-
40	57M10156	1	Elec. Connector Accessory	-
41	57M9780	1	Elec. Connector Housing	B5107, Inlet Fuel Press Sensor
41	57M10321	3	Elec. Connector Terminal	-
41	DZ107592	1	Electrical Connector Cap	-
42	57M9774	1	Elec. Connector Housing	B5209, Fuel Temp Sensor
42	57M10321	2	Elec. Connector Terminal	-
42	DZ107591	1	Electrical Connector Cap	-
43	RE543733	1	Elec. Connector Accessory	A5501, Electronic Control Unit Connector 01
43	57M10321	43	Elec. Connector Terminal	-
43	57M9814	11	Elec. Connector Cavity Plug	-
44	R528122	2	Elec. Connector Accessory	-
45	57M10321	15	Elec. Connector Terminal	-
45	RE538504	1	Elec. Connector Accessory	A5502, Electronic Control Unit Connector 02
45	57M9814	38	Elec. Connector Cavity Plug	-
45	57M10319	1	Elec. Connector Terminal	-
46	57M9817	1	Elec. Connector Housing	B5204, Temperature Module
46	57M10321	4	Elec. Connector Terminal	-
47	57M11335	1	Elec. Connector Accessory	-
48	57M9780	1	Elec. Connector Housing	B5109, Delta Pressure
48	57M10321	3	Elec. Connector Terminal	-
49	57M11334	1	Elec. Connector Accessory	-
50	57M9783	1	Elec. Connector Housing	B5105, Crankcase Pressure
50	57M10321	3	Elec. Connector Terminal	-
50	57M10156	1	Elec. Connector Accessory	-
51	57M9773	1	Elec. Connector Housing	B5206, Manifold Air Temperature
51	57M10321	2	Elec. Connector Terminal	-
51	57M10155	1	Elec. Connector Accessory	-
52	57M10321	2	Elec. Connector Terminal	-
52	DZ107591	1	Electrical Connector Cap	-
52	57M9774	1	Elec. Connector Housing	B5207, Exhaust Gas Recirculation Gas Temperature
53	57M9780	1	Elec. Connector Housing	R5604, Glow Plug Assembly
53	57M10321	3	Elec. Connector Terminal	-
54	57M9786	1	Elec. Connector Housing	Y5400, Exhaust Gas Recirculation Valve
54	57M10321	5	Elec. Connector Terminal	Cavity 1-4, 6
54	57M9814	1	Elec. Connector Cavity Plug	-
54	57M9841	1	Elec. Connector Accessory	-
55	57M9787	1	Elec. Connector Housing	Y5402, Exhaust Brake Control Valve
55	57M10321	5	Elec. Connector Terminal	Cavity 1-4, 6
55	57M9814	1	Elec. Connector Cavity Plug	-
55	57M9841	1	Elec. Connector Accessory	-
56	57M9535	1	Elec. Connector Terminal	X5001, Static Ground
57	DZ107592	1	Electrical Connector Cap	-
57	57M10321	3	Elec. Connector Terminal	-
57	57M9780	1	Elec. Connector Housing	B5103, Exhaust Gas Recirculation Delta Pressure
58	57M9773	1	Elec. Connector Housing	B5205, Intercooler Outlet Temperature
58	57M10321	2	Elec. Connector Terminal	-
58	57M10155	1	Elec. Connector Accessory	-
59	57M9792	1	Elec. Connector Housing	Y5021, Fuel Injector Valves
59	57M10321	6	Elec. Connector Terminal	Cavity 3-8
59	57M9814	1	Elec. Connector Cavity Plug	-
59	DZ107595	1	Electrical Connector Cap	-
60	57M9781	1	Elec. Connector Housing	B5104, Intake Manifold Pressure
60	57M10321	3	Elec. Connector Terminal	-
60	57M10156	1	Elec. Connector Accessory	-
61	57M9144	1	Elec. Connector Housing	B5500, Compressor Inlet Humidity/Pressure/Temperature
61	57M9831	4	Elec. Connector Terminal	-
61	57M9149	4	Elec. Connector Seal	-
61	RE326399	1	Electrical Connector Cap	-
62	RE326399	1	Electrical Connector Cap	-
63	57M9781	1	Elec. Connector Housing	B5102, Exhaust Manifold Pressure
63	57M10321	3	Elec. Connector Terminal	-
63	57M10156	1	Elec. Connector Accessory	-
64	57m13296	3	PART MISSING IN WISE	-
65	57m13302	2	PART MISSING IN WISE	-
66	57m13306	1	PART MISSING IN WISE	-
67	57m13310	1	PART MISSING IN WISE	-
68	57m13290	1	PART MISSING IN WISE	-
69	57m13289	2	PART MISSING IN WISE	-
70	57m12128	1	PART MISSING IN WISE	-
71	57m12137	1	PART MISSING IN WISE	-
72	re258807	17	PART MISSING IN WISE	-
73	r527993	1	PART MISSING IN WISE	-
74	RE545538	2	Bolt Kit	-
