Большое обновление пильных узлов

Смотреть

Открытый узел

20 Engine 4045HCP45-DZ114513-ETN231161

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-

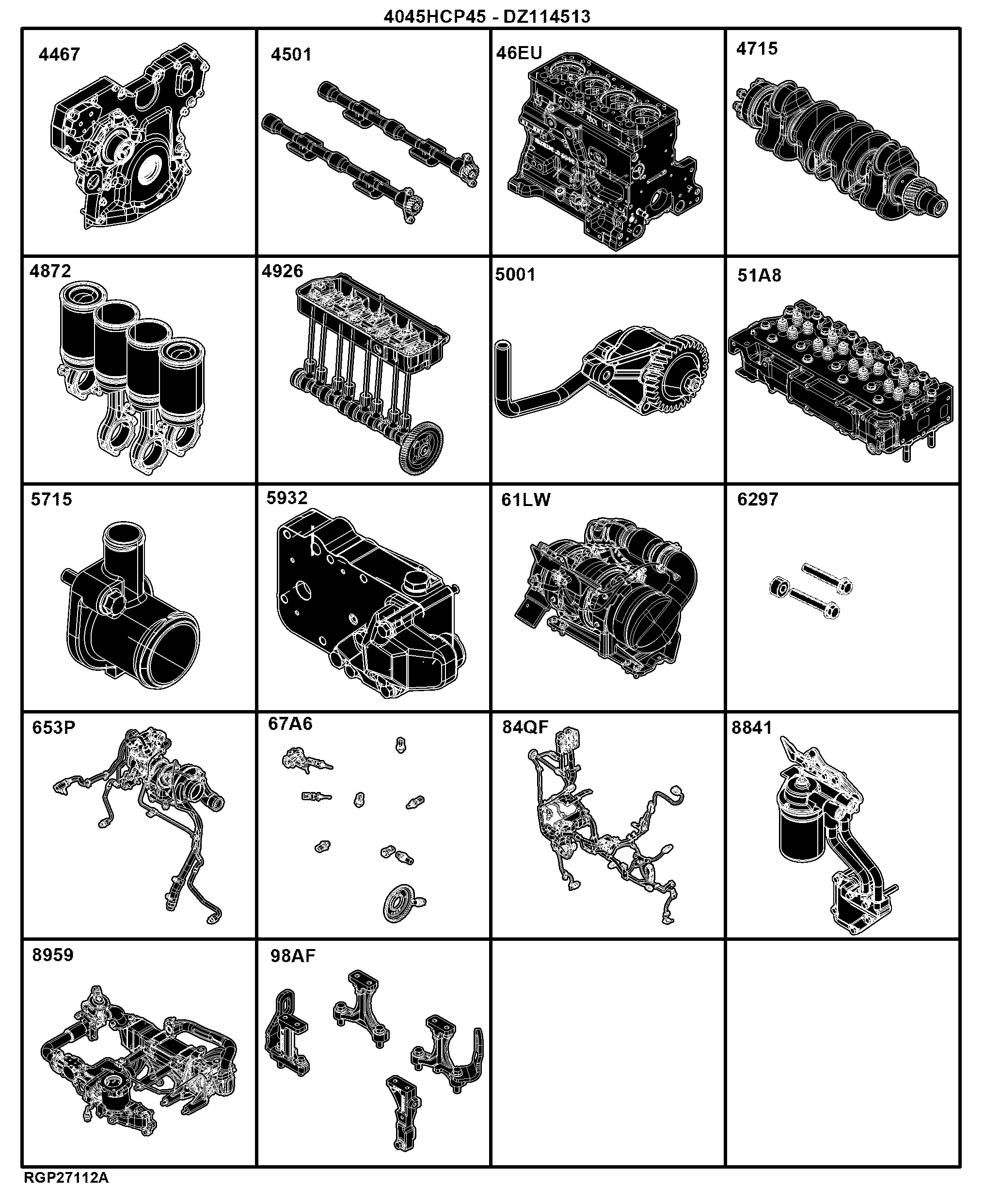

-	-	1	6297 Alternator Mounting Hardware	-
-	-	1	653P Turbocharger	-
-	-	1	67A6 Engine Sensors	-
-	-	1	84QF Engine Wiring Harness	-
-	-	1	8841 Engine Oil Filter	-
-	-	1	8959 Exhaust Gas Recirculation	-
-	-	1	98AF Lift Straps	-
-	-	1	9901 Bolt Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	61LW Aftertreatment, Exhaust System	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Nozzle kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-

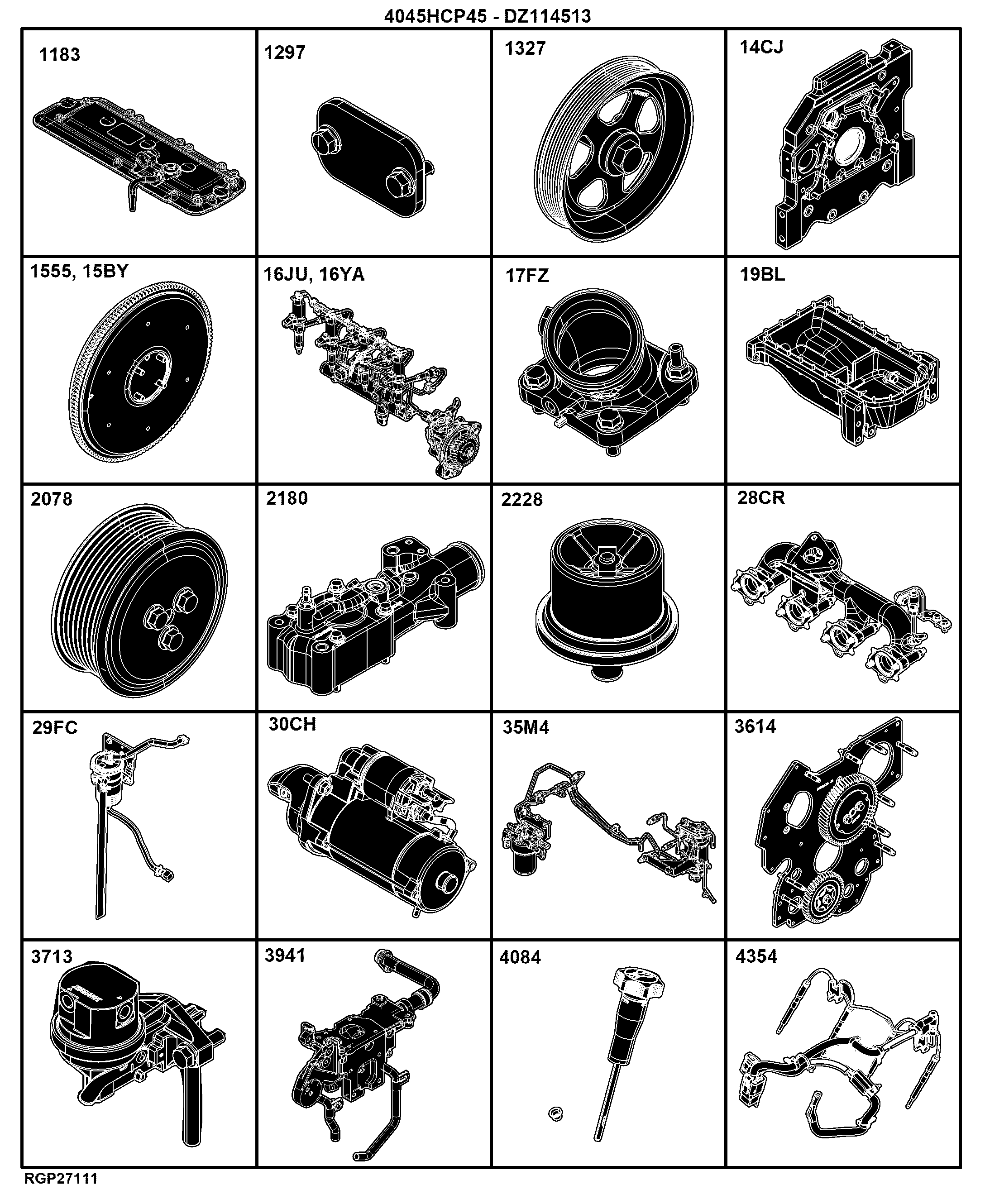

-	-	1	Flywheel Housing	-
-	-	1	3614 Front Plate	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1555 Flywheel ( - 154156)	-
-	-	1	15BY Flywheel (154157 - )	-
-	-	1	16JU Fuel Injection System ( - 154156)	-
-	-	1	16YA Fuel Injection Pump (154157 - )	-
-	-	1	17FZ Air Intake	-
-	-	1	19BL Oil Pan	-
-	-	1	2078 Water Pump Pulley	-
-	-	1	2180 Thermostat Cover	-
-	-	1	2228 Thermostat	-
-	-	1	28CR Exhaust Manifold	-
-	-	1	29FC Ventilating System	-
-	-	1	30CH Starter Motor	-
-	-	1	35M4 Fuel Filter	-
-	-	1	1183 Valve Cover	-
-	-	1	3713 Fuel Transfer Pump	-
-	-	1	3941 Thermostat Housing	-
-	-	1	4084 Engine Oil Dipstick Tube	-
-	-	1	4354 Starting Aid	-
-	-	1	4467 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	46EU Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4872 Connecting Rods and Pistons	-
-	-	1	4926 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	51A8 Cylinder Head	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5932 Engine Oil Cooler	-

20 Engine 4045HCP45-DZ114513-ETN231161

Нет текстового описания
