Открытый узел

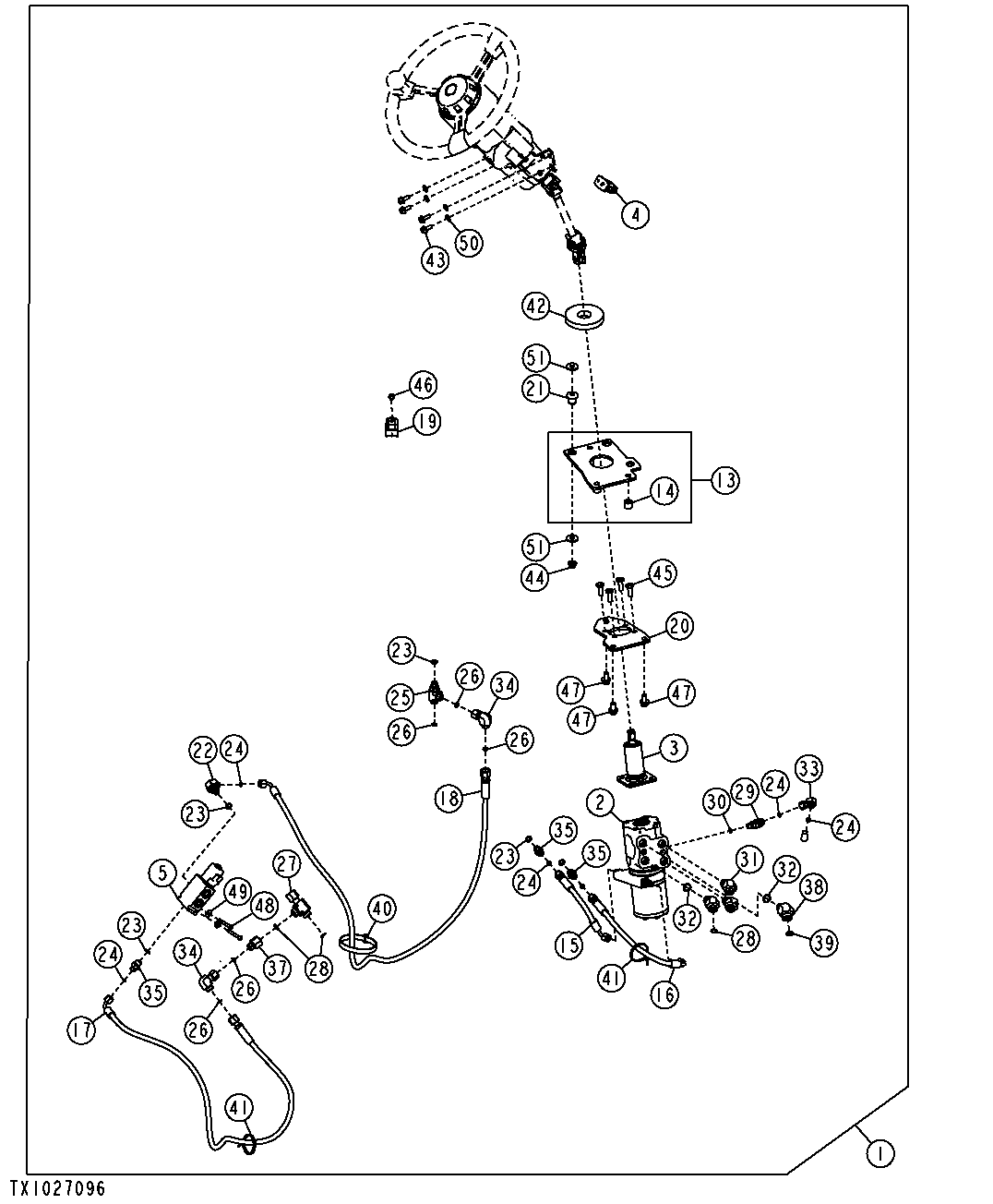

DUAL MODE STEERING (TORQUE CONVERTER) (SN -624142)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ORDER AT366816 ) (SUB FOR AT366817)(WHOLEGOODS) (AT341410 NLA)
2	AT353988	1	Valve	(SUB FOR AT325855)
3	AT326326	1	Steering Column	-
4	AT327022	1	Toggle/Rocker Switch	(QUICK STEER)
5	AT354279	1	Solenoid Hydraulic Valve	(SUB FOR AT329745)
5	AT354279	1	Solenoid Hydraulic Valve	-
5	AT354893	1	Seal Kit	-
5	AT354894	1	Solenoid Valve Coil	-
13	AT329771	1	Support	-
14	T122329	1	Bushing	-
15	AT331897	1	Hydraulic Hose	9/16" X 241 mm (9-1/2") X 9/16"
16	AT331898	1	Hydraulic Hose	9/16" X 419 mm (16-1/2") X 9/16"
17	AT332022	1	Hydraulic Hose	9/16" X 1422 mm (56") X 17.4752"
18	AT332023	1	Hydraulic Hose	17.4752" X 1701 mm (67") X 9/16"
19	AT75769	1	Relay	-
20	T223190	1	Plate	-
21	AT116162	3	Isolator	-
22	38H1009	1	Elbow Fitting	-
23	R26448	5	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	T77814	6	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
25	38H1023	1	Tee Fitting	-
26	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	38H1031	1	Tee Fitting	-
28	T77857	5	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	38H1044	1	Elbow Fitting	-
30	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
31	38H1046	1	Elbow Fitting	-
32	R26375	4	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
33	38H1093	1	Elbow Fitting	-
34	38H1094	2	Elbow Fitting	-
35	38H1168	3	Adapter Fitting	-
36	-	1	Part 32	(ORDER 38H1481 AND T77613)
37	38H1481	1	Reducer	-
38	38H1602	1	Elbow Fitting	-
39	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
40	N189220	2	Tie Band	-
41	R44302	3	Tie Band	-
42	T131980	1	Isolator	-
43	T164946	4	Screw	-
44	14M7296	3	Flange Nut	M10
45	19M7402	4	Cap Screw	M10 X 25
46	19M7774	1	Screw	M6 X 12
47	19M7784	3	Screw	M10 X 20
48	19M8538	2	Cap Screw	M6 X 45
49	24M7139	2	Washer	6.400 X 18 X 1.600 mm
50	24M7238	4	Washer	8.700 X 17 X 2 mm
51	24M7296	6	Washer	10.500 X 30 X 2.500 mm

DUAL MODE STEERING (TORQUE CONVERTER) (SN -624142)

Нет текстового описания
