Открытый узел

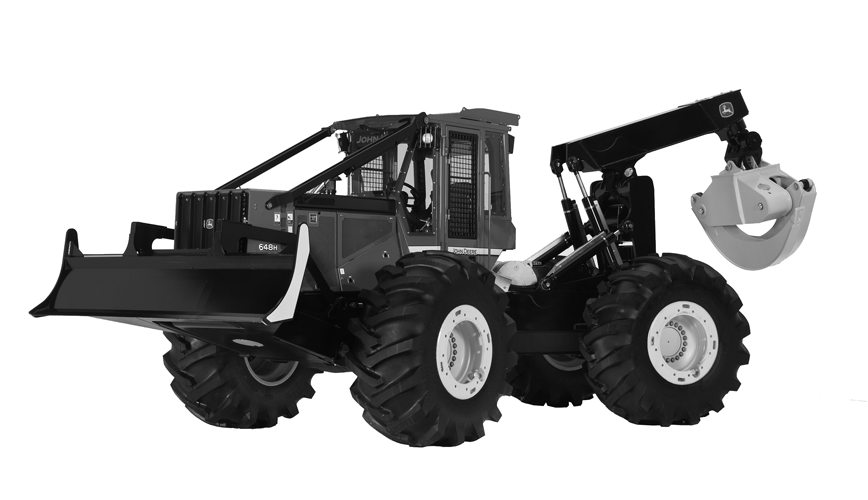

640H Cable and 648H Grapple Skidders (S.N. -630435)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	17 FRAME, CHASSIS OR SUPPORTING STRUCTURE	-
-	-	1	1 WHEELS	-
-	-	1	03E Transmission DF180 LUTC Without Winch yz19180	-
-	-	1	04A Engine 00	-
-	-	1	5 ENGINE AUXILIARY SYSTEM	-
-	-	1	6 DFR yz18998	-
-	-	1	7 TRACTION (ENGINE) AND DISCONNECT CLUTCH	-
-	-	1	9 STEERING SYSTEM	-
-	-	1	10 SERVICE BRAKES	-
-	-	1	13 MISCELLANEOUS VEHICLE	-
-	-	1	16 VEHICLE ELECTRICAL SYSTEMS	-
-	-	1	03D Transmission DF180 With Winch YZ19179	-
-	-	1	18 OPERATOR'S STATION	-
-	-	1	19 SHEET METAL & STYLING	-
-	-	1	20 SAFETY, CONVENIENCE AND MISCELLANEOUS	-
-	-	1	21 VEHICLE MAIN HYDRAULIC SYSTEM	-
-	-	1	30 WINCH	-
-	-	1	32 DOZERS	-
-	-	1	37 ARCH OR BOOM OR CRANES	-
-	-	1	38 GRAPPLE	-
-	-	1	40 PTO OR WINCH DRIVE	-
-	-	1	02L Axle YZ19118	-
-	-	1	02A Axles, Differentials & Suspension Systems	-
-	-	1	02B Front Axle with Differential Lock Narrow - 1200 Series TeamMate™ IV YZ19116	-
-	-	1	02C Front Axle, 1200 Narrow TMIV YZ19534	-
-	-	1	02D Front Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19628	-
-	-	1	02E Rear Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19117	-
-	-	1	02F Rear Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19535	-
-	-	1	02G 1400 TeamMate™ IV SWEDA Axle YZ19120	-
-	-	1	02H Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19629	-
-	-	1	02I Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19722	-
-	-	1	02J Rear Axle with Differential Lock, SWEDA - 1400 Series TeamMate™ IV YZ19123	-
-	-	1	02K 1400 SWEDA TeamMate™ IV, Rear Axle, 7C YZ19725	-
-	-	1	03C Transmission DF180 Without Winch YZ19000	-
-	-	1	02M 1400 TeamMate™ IV Axle YZ19119	-
-	-	1	02N 1400 TeamMate™ IV Front Axle YZ19491	-
-	-	1	02O 1400 TeamMate™ IV Rear Axle YZ19122	-
-	-	1	02P 1400 TeamMate™ IV Rear Axle YZ19121	-
-	-	1	02Q 1400 TeamMate™ IV Rear Extreme Duty Axle YZ19493	-
-	-	1	02R 1400 TeamMate™ IV Rear Axle YZ19723	-
-	-	1	03A Transmission	-
-	-	1	03B Transmission DF180 with Direct Drive and Winch YZ18999	-
-	-	1	04C Engine 6068HDW64-RE535514	-
-	-	1	04B Engine 6068HDW65-RE535515-RE542534	-
