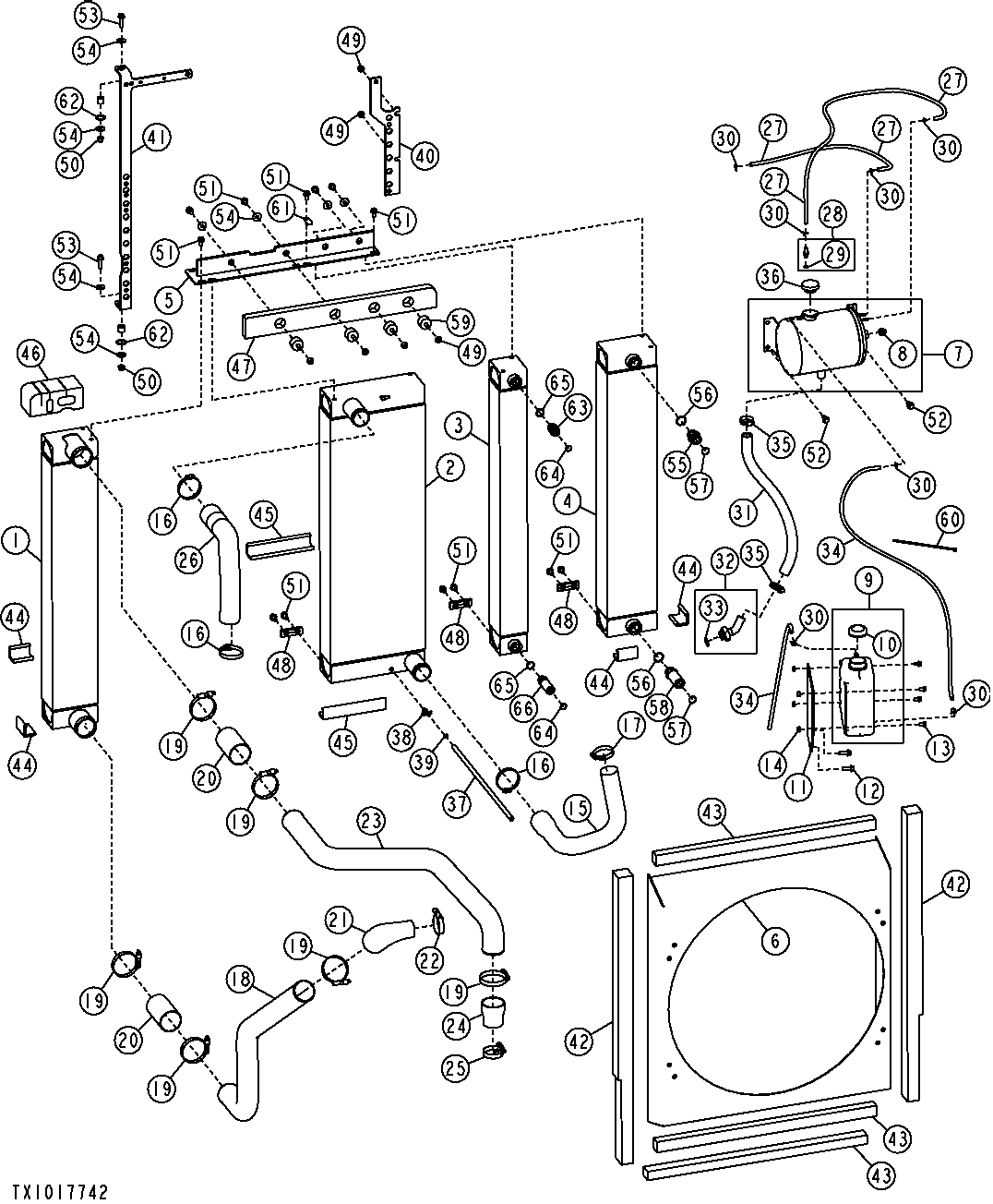

COOLING SYSTEM (DIRECT DRIVE) (SN -618407) ( - 618407)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT326945	1	Aftercooler	-
2	AT326946	1	Radiator	-
3	AT326948	1	Oil Cooler	Transmission
4	AT326951	1	Oil Cooler	Hydraulic
5	AT326949	1	Bracket	-
6	AT343993	1	Deflector	-
7	AT339852	1	Tank	NLA, ORDER AT354898
7	AT354898	1	Engine Cooling Kit	Components On Seperate Page Plastic Tank Assembly
8	T162965	1	Gauge	-
9	AT166459	1	Tank	-
10	AT405918	1	Cap	SUB FOR AT106413
11	T218767	1	Plate	-
12	19M7786	2	Screw	M10 X 30
13	19M7865	4	Screw	M8 X 16
14	14M7298	4	Flange Nut	M8
15	T209811	1	Radiator Hose	-
16	TY22472	3	Clamp	SUB FOR RE41991
17	AR40418	1	Hose Clamp	-
18	T209813	1	Tube	-
19	RE52702	6	Clamp	-
20	T190271	2	Hose	-
21	T211407	1	Hose	-
22	RE67208	1	Clamp	-
23	T209814	1	Tube	-
24	R504237	1	Hose	-
25	AH170895	1	Clamp	-
26	T209810	1	Radiator Hose	-
27	-	2	Part 28	MF TY22559, CTL
28	AT323961	1	Adapter Fitting	-
29	51M7040	1	O-Ring	9.300 X 2.200 mm
30	AR48236	7	Clamp	SUB FOR T13254
31	-	1	Part 32	Use With Metal Tank, MF T207885, CTL
32	AT330120	1	Adapter Fitting	Use With Metal Tank
33	51M7051	1	O-Ring	26.600 X 2.900 mm
34	-	1	Part 35	MF T79477, CTL
35	AR21839	2	Clamp	-
36	AT173610	1	Filler Cap	Use With Metal Tank
37	T72856	1	Hose	-
38	AT13740	1	Drain Valve	-
39	TY22462	1	Clamp	-
40	T218768	1	Plate	-
41	T210058	1	Bracket	-
42	T190805	2	Isolator	-
43	T190570	3	Isolator	-
44	T207783	4	Isolator	-
45	T207929	2	Isolator	-
46	T218679	1	Isolator	-
47	T223524	1	Isolator	-
48	T211088	3	Plate	-
49	14M7296	6	Flange Nut	M10
50	14M7400	2	Lock Nut	M10
51	19M7784	18	Screw	M10 X 20
52	19M7785	4	Screw	M10 X 25
53	19M8162	2	Screw	M10 X 40
54	24M7296	8	Washer	10.500 X 30 X 2.500 mm
55	38H1164	1	Adapter Fitting	-
56	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
57	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
58	38H1216	1	Adapter Fitting	-
59	AT315760	4	Isolator	-
60	H77698	4	Tie Band	-
61	T19935	1	Clamp	-
62	T70023	2	Washer	25.400 X 35.712 X 0.813 mm (1" X 1-13/32" X 0.032")
63	38H1163	1	Adapter Fitting	-
64	T77858	2	O-Ring	-
65	U12547	2	O-Ring	-
66	38H1215	1	Adapter Fitting	-
